High Speed Gear Change Feeder Width:120.0mm~400.0mm Thickness:0.35mm~1.0mm
Apply CAM mechanism
Reliable and stable feeding
One year quality guarantee
Product Description

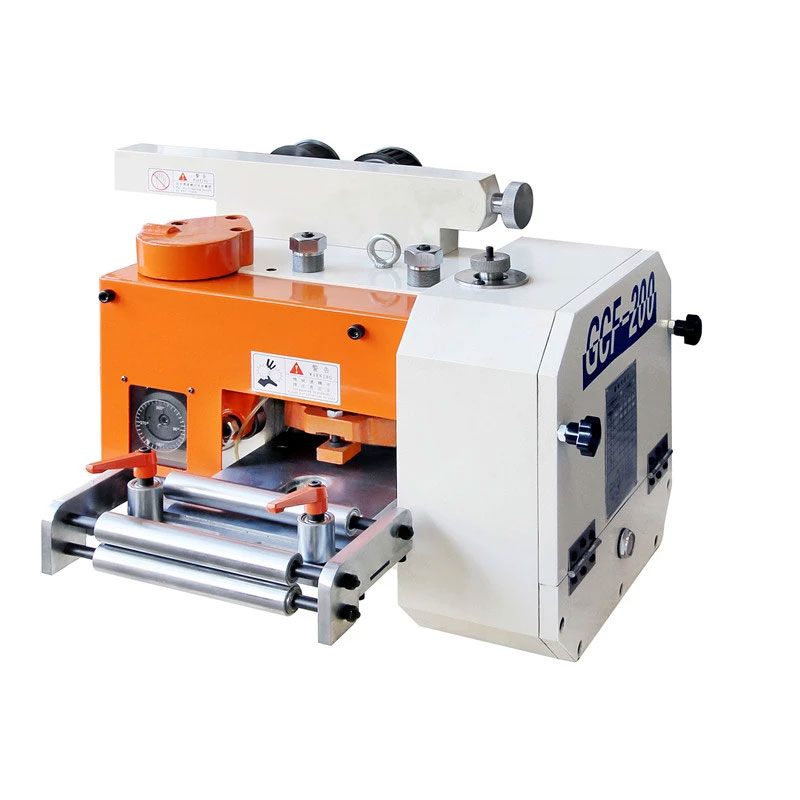

High Speed Gear Change Feeder
Features
Belt type high-speed gear feeder is suitable for high-speed processing and requires high-precision feeding of the punch products, the change of feed length is made from 1-4 gear transformation.
1. Suitable for the requirement of high-speed processing and high-precision feeding punch products.
2. Applicable to different thickness products, the length of the delivery distance is not the same, the material width changes a wide range of feeding device.
3. Do not need to adjust the thickness of the feed, the feed distance only by gear transformation can be. 4, belt high-speed gear feeder standard specifications (or design) description:
(1) Use cam-driven intermittent feed.
(2). The change of pitch is made from the transformation of 2 to 4 gears.
(3) Only the lower roller wheel and the upper roller are pressed by the spring.
(4) When inserting material, the relaxation of the upper and lower rollers can be operated by the manual switch of the air valve.
(5). The cam part of the lubrication method one divider is oil tank type, while the other gear part is oil immersion type.
(6). The upper and lower rollers are coated with hard chrome.
(7). The relaxation device is eccentric cam, so the relaxation angle can be adjusted at will in the range of 0 to 180 degrees.
Configuration
1. Material lubrication device. (With flow adjustment)
2. Gear 4. (Customer-specified number of teeth)
3. Air pressure material clamping release device
Specifications
Model | GCF-120 | GCF-250 | GCF-400 |
Material width | 120mm | 250mm | 400mm |
Material thickness | 0.35-1.0mm | ||
Material line thickness | 60-120mm | ||
Standard partition quantity | 4/12 | ||
Feeding length | 0.15-199 / 0-0.66mm | ||
Feeding angle | 180° | ||
Skackening angle | 135°- 195° | ||
Feeding direction | left→right | ||
Weight | 237kg | 267kg | 320kg |
