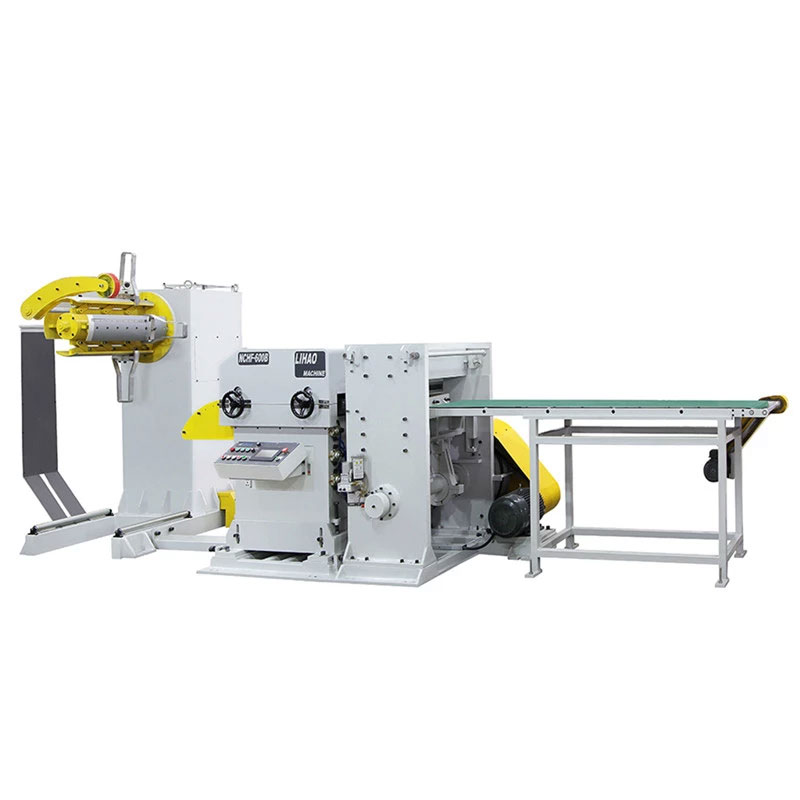

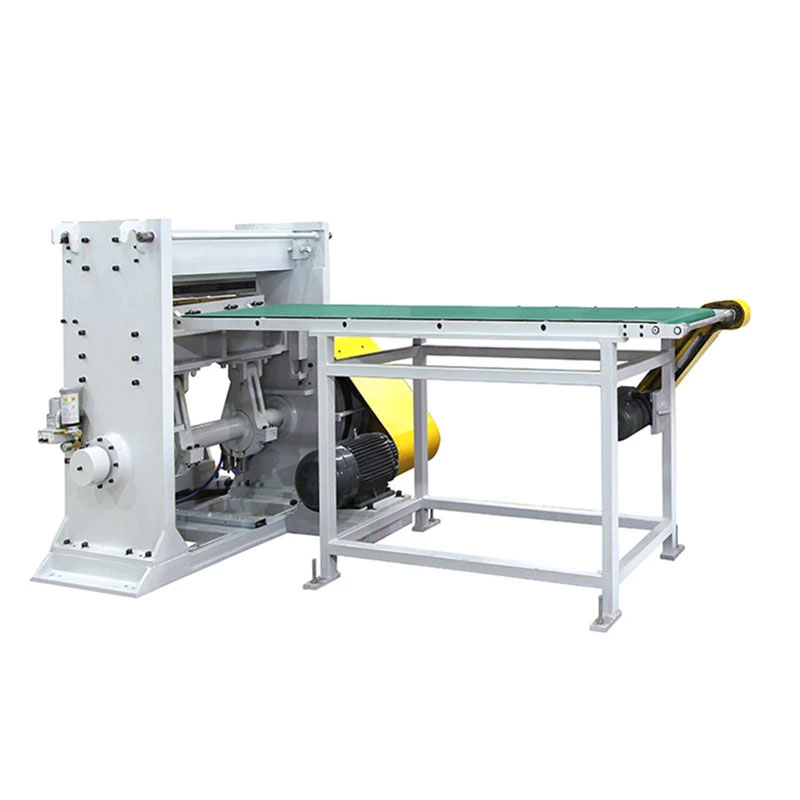

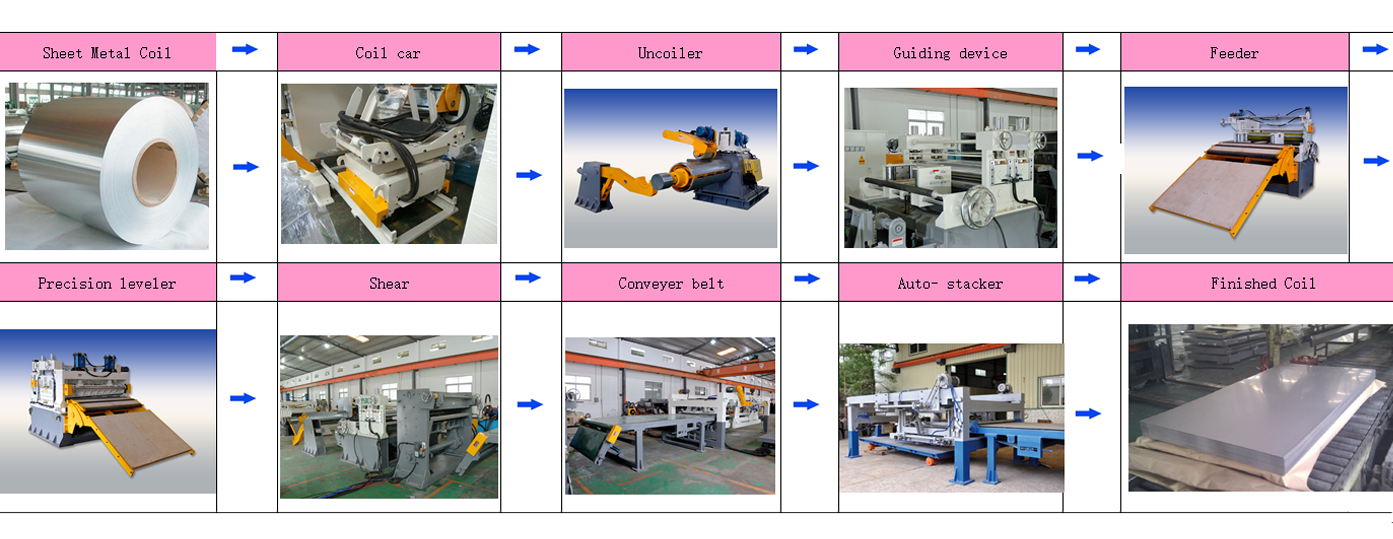

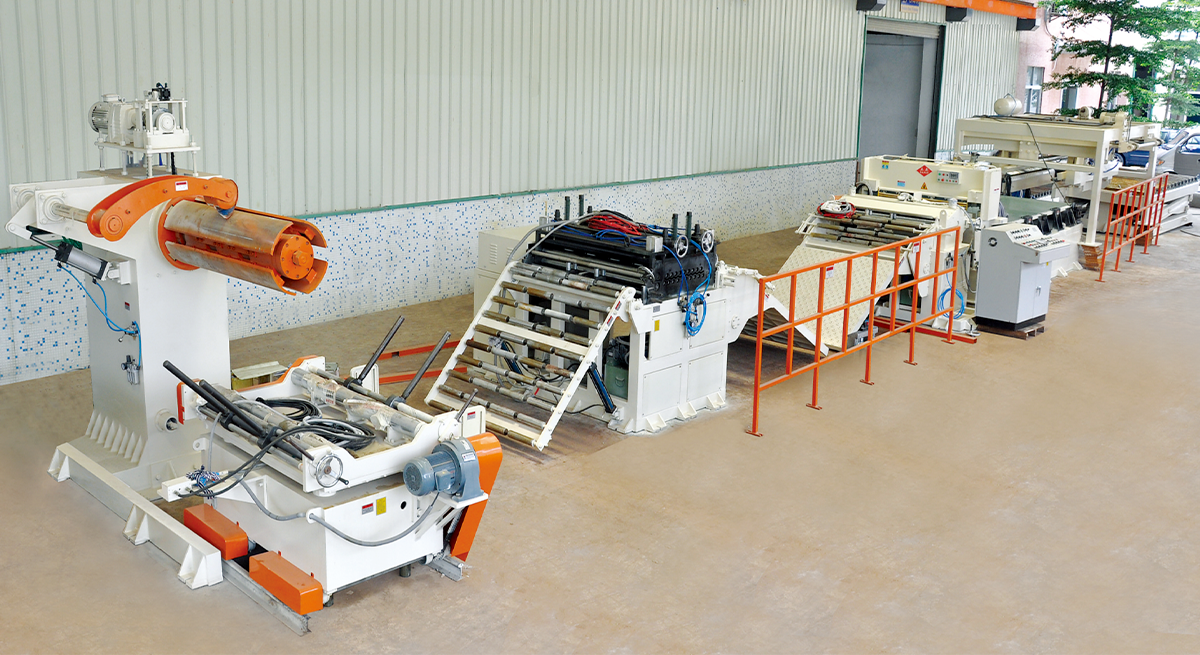

Uncoiler, Straightener And Feeder 3 In 1 Machine With Cutting System Simple Cut To Length Line
Simple with good price
Compact structure
Easy & safety operating system
Customizable
Overseas commissioning
Product Description
I. Features
1. Suitable for various metal sheet uncoiling, straightening, feeding.
2. Suitable for producing metal part hardware, electron, electrical appliance, toy and auto parts etc, by continuous uncoiling, straightening, feeder, pressing production.
3. Japanese brand servo motor, PLC, and other good quality electric parts, with little malfunction, but long using time.
4. Rollers have chrome plating, high precision, more durable.
5. Input feeding length number easily, easy operation, safe and high stability.
6. According to ergonomic optimization design, stable quality and safety performance, compact structure, to save using space
to ensure complex strurture and stable safety additionally, it can save space.
7. It adopts 7 pieces of straightening rollers, so can straighten high rigidity material effectively, to improve material straightening precision and feeding precision.
8. For customers’ optional requirement, through servo system control, to adjust straightening range automatically, as higher automation.
II. pecification
| Name | Uncoiler, straightener, NC servo roll feeder, 3 in 1 simple cut to length line（coil car is optional） | ||
| Model | NCHF-300B | NCHF-400B | NCHF-600B |
| Material width | 50mm～300mm | 50mm～400mm | 50mm～600mm |
| Material thickness | 0.2mm～2.0mm | ||
| Straighteningcapacity | 300×1.4mm 250×1.6mm 190×2.0mm | 400×1.2mm 300×1.4mm 250×1.6mm 190×2.0mm | 600×0.8mm 500×1.0mm 400×1.2mm 300×1.4mm 250×1.6mm 190×2.0mm |
| Feeding length | 0-9999.99mm | ||
| Coil inner diameter | Φ508mm（hydraulic expansion）(expansion range Φ460mm～Φ530mm） | ||
| Coil outer diameter maximum | Φ1200mm | ||
| Coil weight maximum | 3000KG | ||
| Straightening roller diameter | Φ48mm×11（top 6 pieces/ bottom 5 pieces） | ||
| Feeding roller diameter | Φ66mm | ||
| Uncoiler motor | 1.5KW | ||
| Straightener motor | 2.9KW | ||
| Feeding speed | 0～20m/min | ||
| Feeding precisioni | <±0.2mm | ||
| Feeding line height(from material exit to floor) | 1000mm-1150mm(It can be changed according to your requirement) | ||
| Feeding direction | left to right, or right to left | ||
| Electrical power | 3 Phase, AC380V±10%,50HZ ±2% (It can be changed according to your requirement) | ||
| Pneumatic pressure | 0.5Mpa | ||
