Belarusian Rack Support Connection Line (NCBF-600B + JH21-160T Punch Press)

Belarusian Rack Support Connection Line (NCBF-600B + JH21-160T Punch Press)

This production line is specifically designed for the precision manufacturing of rack support connectors in Belarus, integrating an NCBF-600B 3-in-1 uncoiling, straightening, and feeding machine and a JH21-160T punch press. It achieves automated material forming, precision stamping, and feeding, solving the pain points of low efficiency and unstable quality in traditional manual or semi-automatic rack support production. This production line fully meets the stringent dimensional and structural strength requirements of Belarusian rack applications.

Core Equipment and Workflow

1. Core Equipment Functions

NCBF-600B 3-in-1 Uncoiling, Straightening, and Feeding Machine: Employing servo control technology, it ensures consistent continuous feeding, preventing component misalignment and loosening, laying a solid foundation for subsequent stamping processing.

JH21-160T Punch Press: With 160-ton stamping force, it is responsible for the high-precision shaping of metal plates. It features fast response speed and stable pressure output, effectively improving the structural rigidity of rack supports and ensuring that the products can bear heavy loads in rack applications.

2. Automated Production Workflow

Material Loading: Metal coils or sheets are fed into the NCBF-600B through the feeding system.

Connection Forming: The NCBF-600B completes the positioning and preliminary connection of the support components.

Precision Stamping: The pre-formed components are transported to the JH21-160T punch press for integral stamping and shaping, ensuring the tight fit of connection parts.

Unloading & Inspection: The finished rack supports are automatically unloaded and transferred to the quality inspection station for dimensional and strength testing.

Case Advantages

High Efficiency: The integrated automated line reduces manual intervention by 70%, increasing the daily output of rack supports by 3 times compared with the traditional process.

Stable Quality: The servo control and precise stamping ensure that the dimensional tolerance of products is controlled within ±0.1mm, and the qualification rate reaches 99.5%.

Strong Adaptability: The line can be adjusted according to the specifications of different Belarusian rack supports, realizing flexible production of multiple models.

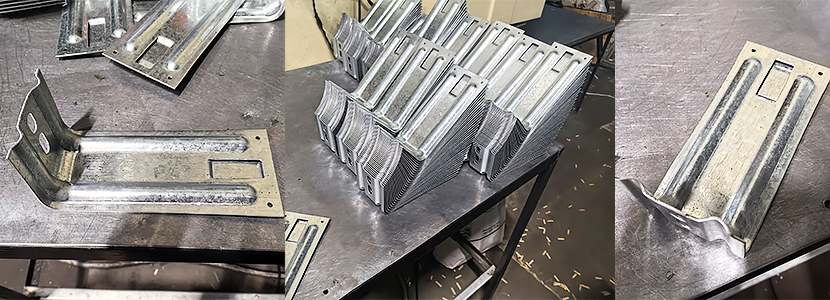

Application Effect

The rack support components produced by this line have been successfully applied to multiple rack projects in Belarus. They have passed the load-bearing durability test, with excellent performance in high and low temperature environments, winning high recognition from customers.
