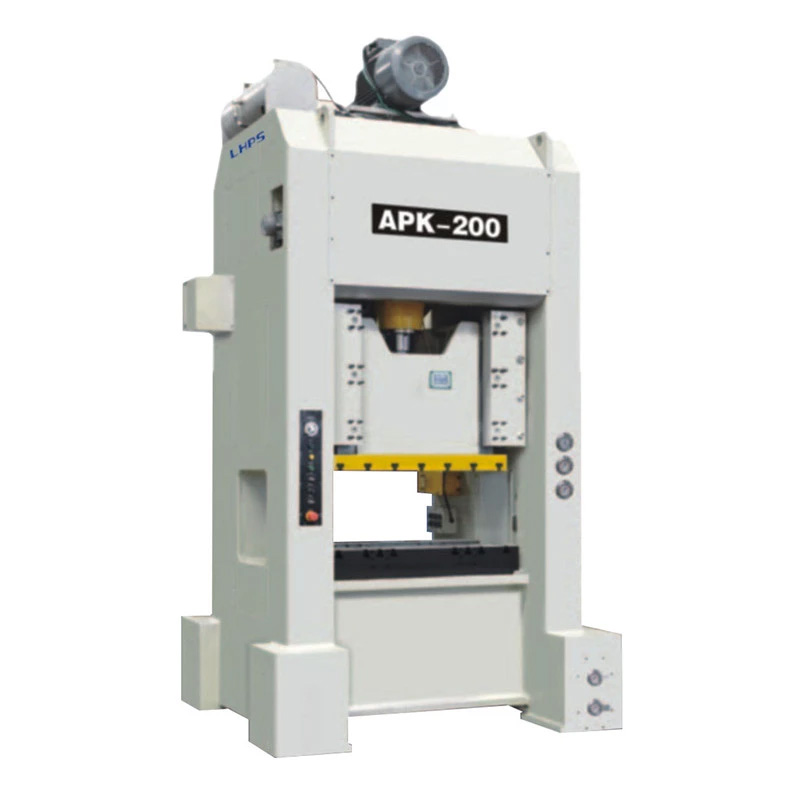

APK Series Single-Point High-Speed H-Type Press Machine
Control machine tools' actions with the use of rotary encoder and adopt human-cuomputer interface syste for the convenience of human-computer communication.
Lock connecting rod oil pressure and enhance precison of bottom dead center.
With huge cost performance ,they apply to motor totor punching.
Product Description
Standard configuration:
>Electric moulding-height adjustment.
>Moulding-height display precision:0.01mm
>Inch positioning device
>Three-group batch control
>Two-group wrong inspection
>Inter-action and single-action tools have 0 degree and 90 degree locate funciton
>Host inversion device
>Oil-pressure slider fixed-locking device
>Independent electric control box
>Oil-pressure die lifting device
>Host motor transducer control
Optional configuration:
>Bottom dead center precison detector
>Quick die-clamping device
>High-speed feeder
>Double-end oil-pressure uncoiler
>Leveling discharging machine
>Oil-pressure anti-vibration footstand device
>Stamping controller
Technical parameters
| Name | APK-80 | APK-125 | APK-160 | APK-200 | ||
| Nominal force | 80 TON [800KN] | 125 TON[125kn] | 160 TON[1600kn] | 200 TON[2000kn] | ||
| Rated tonnage point | mm | 2 | 3 | 3 | 3 | |
| Stroke | mm | 30 | 20 | 30 | 30 | 30 |
| Stable speed | s.p.m | 160-280 | 160-280 | 160-240 | 160-220 | 150-200 |
| Distance between the colum | mm | 380x920 | 450x1160 | 520x1360 | 550x1320 | |
| Bolster area | mm | 900x500 | 1100x600 | 1300x700 | 1300x800 | |
| Slide area | mm | 800x450 | 1000x550 | 1200x600 | 1200x600 | |
| Material hole | mm | 700x180 | 880x150 | 1000x250 | 1000x250 | |
| Die height adjustment | mm | 310-360 | 350-400 | 350-400 | 350-400 | |
| Main motor | kw.p | 11 | 18.5 | 22 | 30 | |
| Color | kg/cm2 | Standard | Standard | Standard | Standard | |
