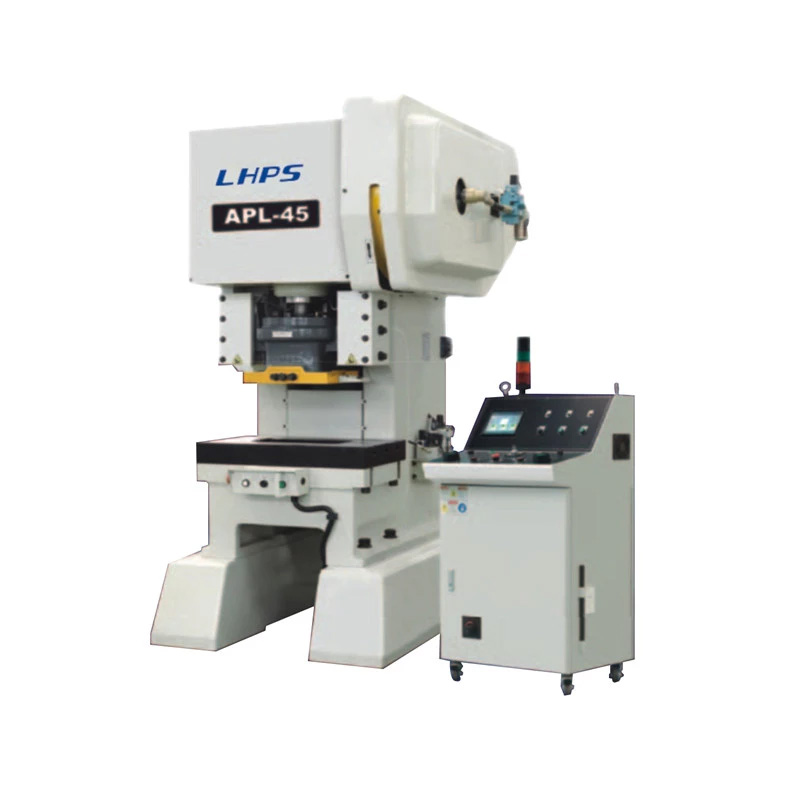

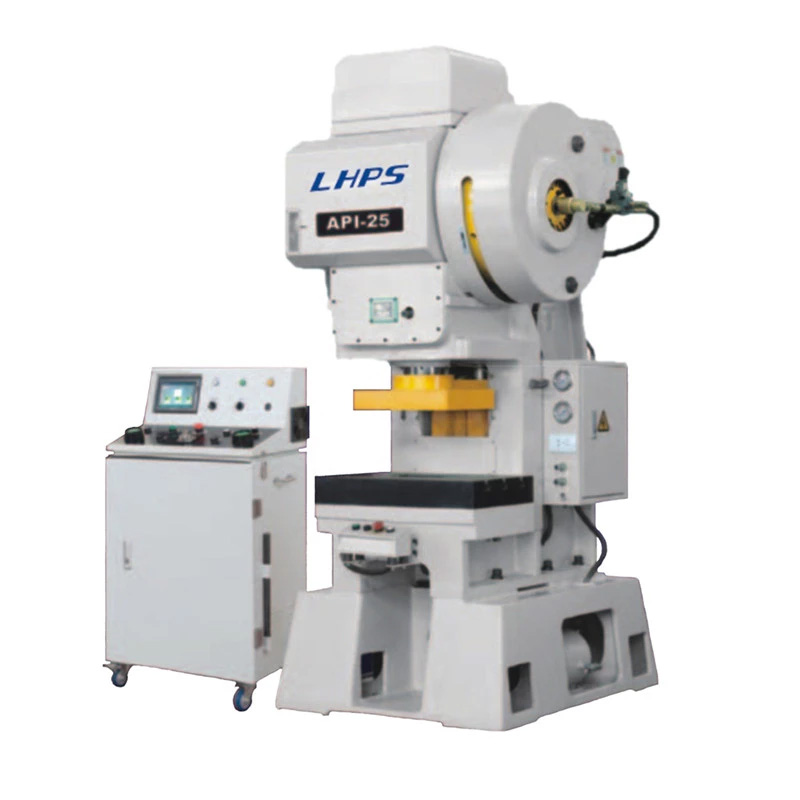

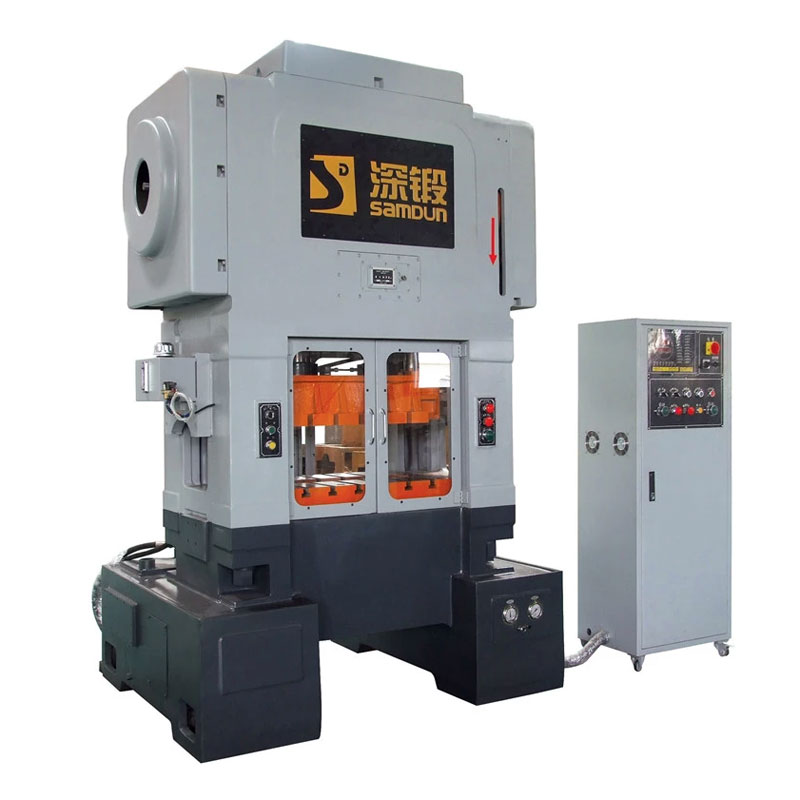

APL High-Speed Precision Automatic Punch Machine
Apply to precision electronic component punch in large quantity.
Enhance life if punch and mold under power balance device.
Oil-ressure slider fixed locking and sticking release device can increase reliability.
Cylinder connecting rod driving device can enhance of punch’s operation and precision.
Product Description
Standard Congiguration:
>Top stop
>Variable-speed motor
>Hydraulic lock punch
>Slider and mould balancing device
>Digital moulding-height indicator
>Slider adjusting device
>Machine slide opration box
>Drilling crew operation box
>Force circulation oil device
>Mechanical crank angle indicator
>Miss-feed plug/socket(2 sets)
>Air source connector
>Operating manual
>Tool box
Optional configuration:
>Level pad
>Material oil lubricating device
>Ottom dead center detector
>Quick die change device
Technical parameters:
| Name | APL-25 | APL-45 | API-65 | ||||||
| Model | A B | C | A B | C | A | B | C | ||
| Capacity | ton | 25 | 45 | 65 | |||||
| Rated tonnage point(B.D.C | mm | 1.2 | 1.2 | 1.6 | |||||
| Stroke | mm | 20 30 | 40 | 20 30 | 40 | 20 | 30 | 40 | |
| Stroke per minute | s.p.m | 100-600 | 100-500 | 100-400 | 100-500/100-400 | 100-300 | 100-400 | 100-350 | 100-300 |
| Die height | mm | 225 220 | 215 | 265 260 255 | 305 | 300 | 295 | ||
| Bolster area(L.R.xF.B.) | mm | 650x390x75 | 760x450x90 | 860x52x100 | |||||
| Slide area(L.R.xF.B.) | mm | 280x250 | 380x320 | 460x370 | |||||
| Slide adjustment | mm | 30 | 30 | 50 | |||||
| Main motor | Kw | 3.7x4P | 5.5x4P | 7.5x4P | |||||
| Shank hole | mm | Φ38.1 | Φ50 | Φ50 | |||||
| Hole of bed (L.R.Xf.B.) | mm | 270x150 | 400x200 | 480X260 | |||||
| Lubrication system | Forced Recirculating Lubrication | ||||||||
