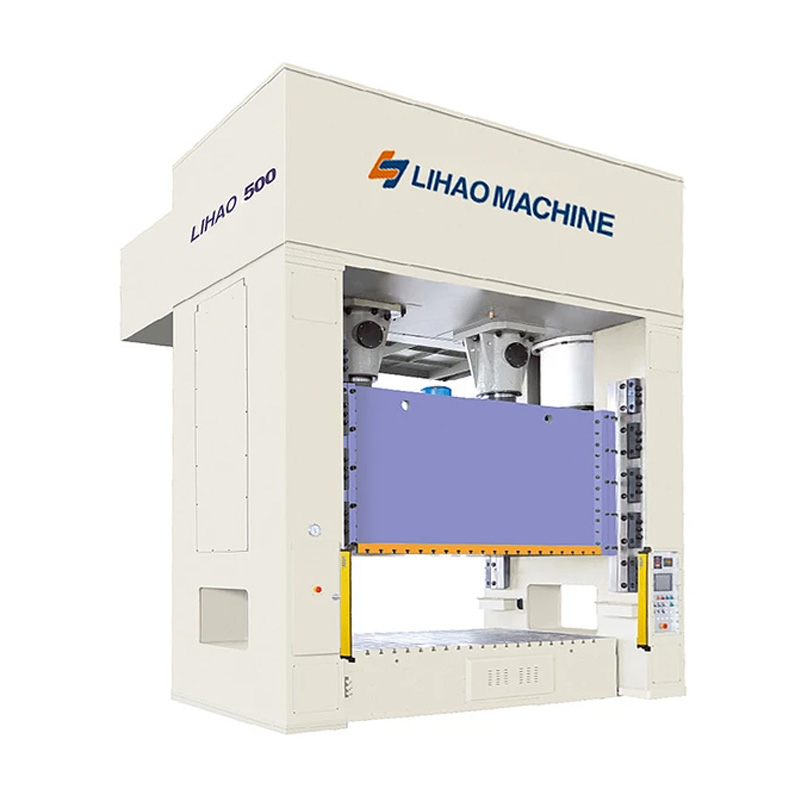

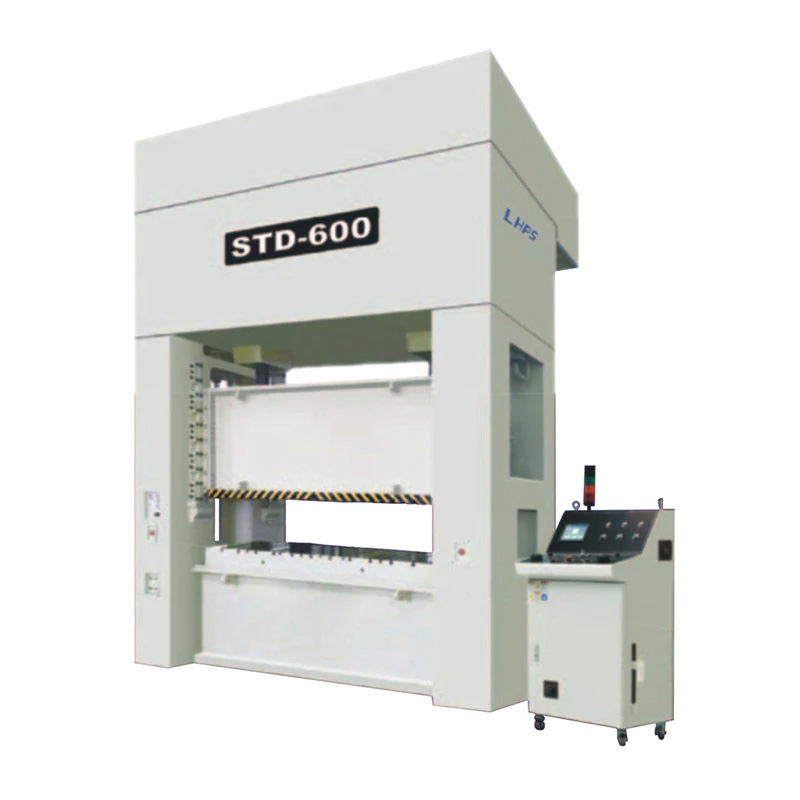

STD Series Right-Cylinder Double Bent Axle Forced Power Press Machine
Double crank metal stamping press can be used to stamp heavy metal with large thickness, such as parts of motorcycle and bicycle,automatic equipment of home appliance.
Product Description
Feature:
Octahedral guiding of slider and long guide fail can guarantee operation precision.
Hydraulic overload protection device and overload automatic emergency cut off can protect safety of press machine and mould, with convenient application..
PLC electric interlocking control possesses sudden-stop, inch, single pass and continuous operation specifications.
Dry pneumatic friction clutch is small in noise, large in clutching torque, small in braking angle and convenient in maintenance.
Body is closed structure, including beams,, stand columns, and bases, which is strained with four tie bolts, with good rigidity(400-600).
Standard Configuration:
>VS variable-speed motor
>Hydraulic overload protector
>Electric slider adjusting device
>Indepence electrical control cabinet
>Movable working table
>Digital moulding-height indicator (Unit:0.1mm)
>Electric butter lubricating device
>Power socekt
>Over-run satety device
>Misfeed detaction consent
>Pre-determinned counter(6 digits)
>Air-blast device 1/2" primary circuit
>Air source conector 1/2" secondary circuit
Optional configuration:
>Die backer device
>Photo-electric safety device
>Feeding device on the slider
>Safety dog and safety latch
>Anti-vibration footstand device
>Die area lighting
>Quick die change device
>Movable working table
>Frequency converter
>Automatic feeding system
Technical parameters
| Name | STD-400 | STD-500 | STD-600 | STD-800 | STD-1000 | STD-1200 | |||||||
| Model | S type | H type | S type | H type | S type | H type | S type | H type | S type | H type | S type | H type | |
| Capacity | Ton | 400 | 500 | 600 | 800 | 1000 | 1200 | ||||||
| Rated tonnage point | mm | 13 | 7 | 13 | 7 | 13 | 9 | 13 | 9 | 13 | 9 | 13 | 9 |
| Stroke | mm | 400 | 300 | 400 | 300 | 400 | 300 | 400 | 300 | 400 | 300 | 400 | 300 |
| Speed changing | s.p.m | 15-30 | 30-60 | 15-30 | 30-60 | 15-30 | 25-50 | 15-30 | 25-50 | 15-25 | 25-40 | 15-25 | 25-40 |
| Die height | mm | 600 | 650 | 650 | 700 | 650 | 700 | 700 | 750 | 1000 | 1050 | 1000 | 1050 |
| Slide adjustment | mm | 150 | 200 | 200 | 250 | 250 | 250 | ||||||
| Slide area | mm | 2800x1300 | 3100x1400 | 3600x1400 | 3800x1600 | 4600x1800 | 5000x1800 | ||||||
| Bolster area | mm | 2800x1400 | 3100x1500 | 3600x1500 | 3800x1600 | 4600x1800 | 5000x1800 | ||||||
| Slide opening | mm | 850x600 | 950x650 | 1000x700 | 1100x800 | 1200x900 | 1200x900 | ||||||
| Die cushion capacity | Ton | 60 | 70 | 80 | 80 | 80 | 80 | ||||||
