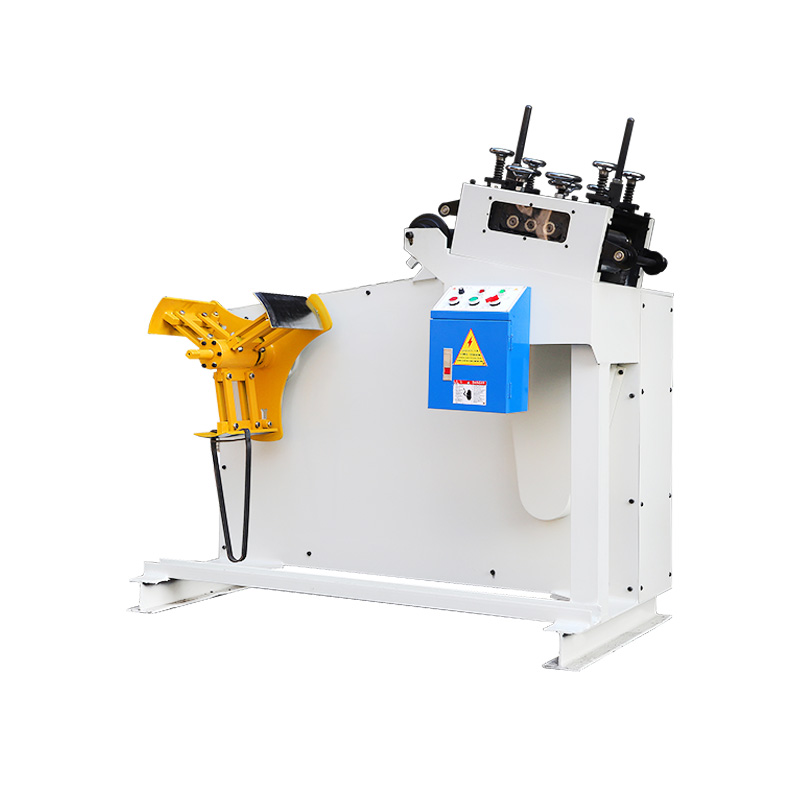

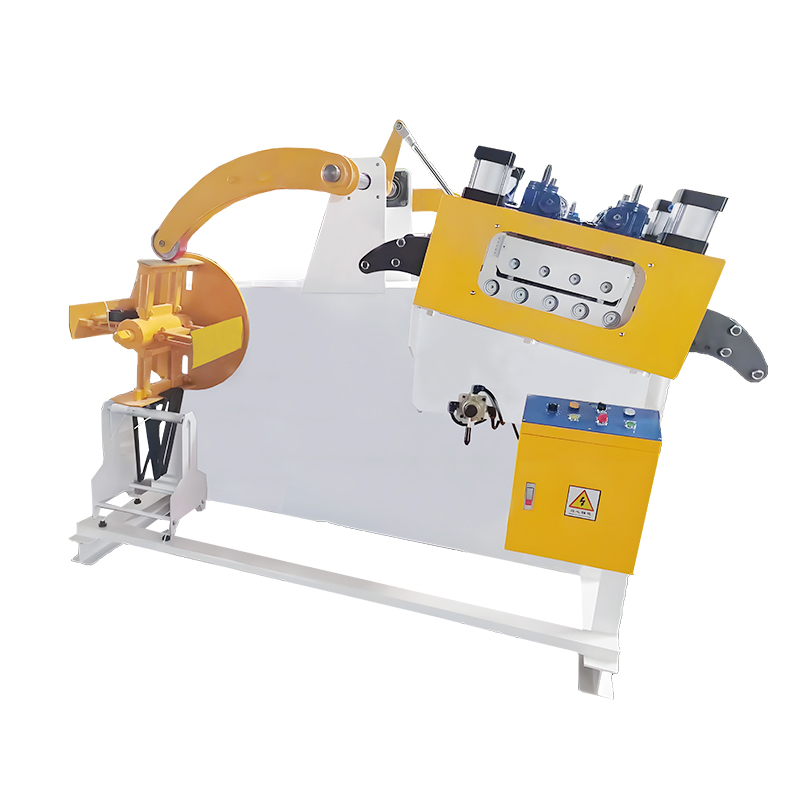

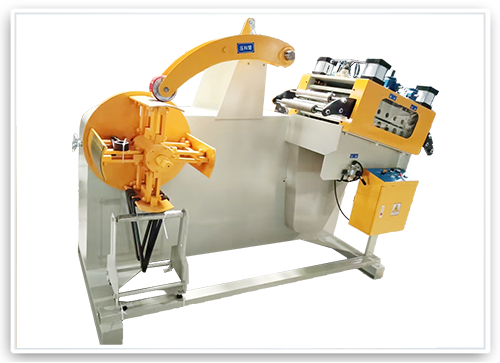

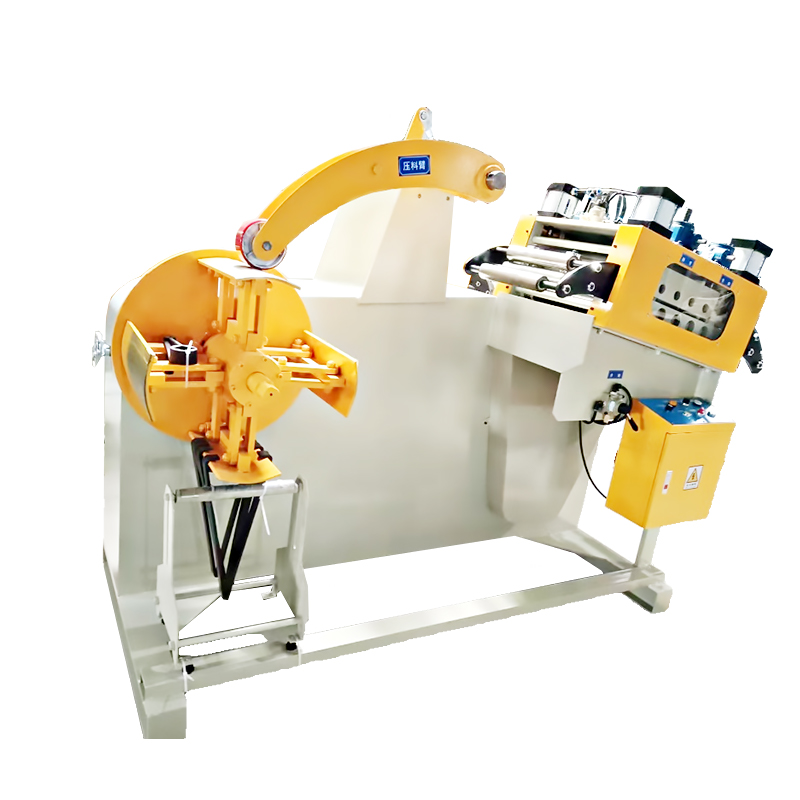

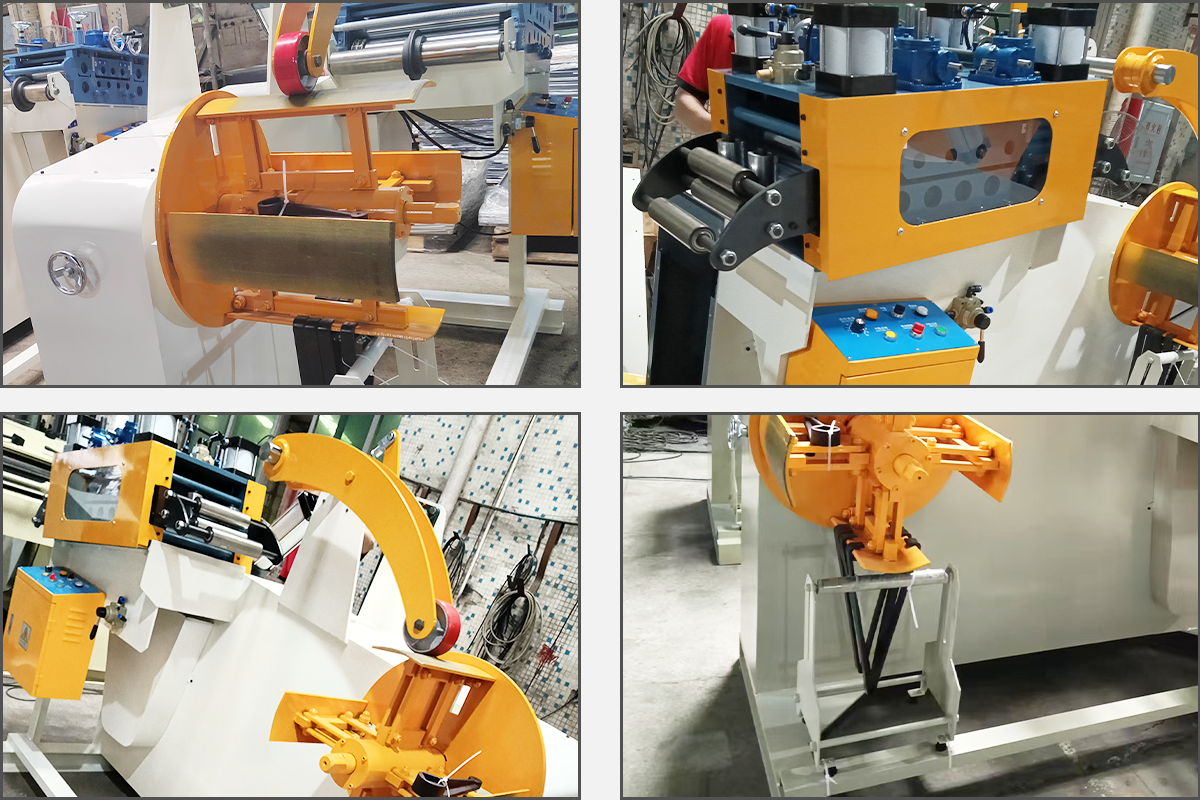

GO-A Medium And Thick Plates Straightener Cum Decoiler For Sheet Thickness: 1mm~4.5mm

2 in 1 Medium Thick Plate GO-A Series, Metal Sheet Decoiler & Straightener

Features:

1. Multifunctional integration: It has both unwinding and leveling functions, suitable for thicker coils with a thickness of 1.0-4.5mm. The unwinding part has a material pressing function, which can effectively prevent the material from loosening.

2. High-strength material: The expansion body and arc-shaped expansion claws of the material rack are formed by FC25 cast iron body, ensuring the requirements of high strength and concentricity.

3. Precision correction: The cylinder turbine adjustment and four-point manual fine-tuning technology are adopted to press the material straight, which is easy to operate, safe and labor-saving.

4. High-quality materials: The leveling roller adopts high-strength rolling bearing steel GCr15, with a hardness of up to HRC60~62°, ensuring high-precision leveling.

5. The leveling roller adopts a high-power motor with a worm gear reducer, which is transmitted to the leveling machine through the sprocket chain to generate a large leveling force, and the speed can be adjusted by the frequency converter.

6. This machine adopts Japanese electromagnetic contactors and electronic parts, with long life, few failures and low maintenance costs.

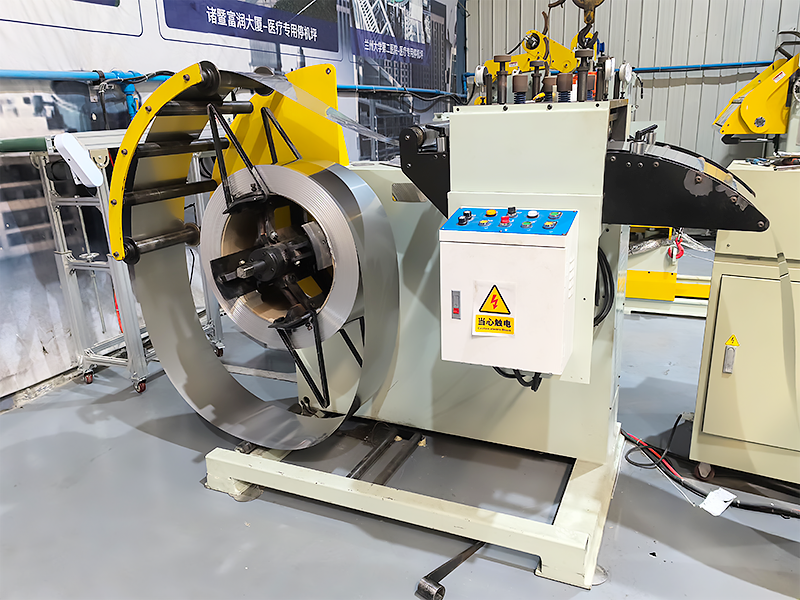

Introduction

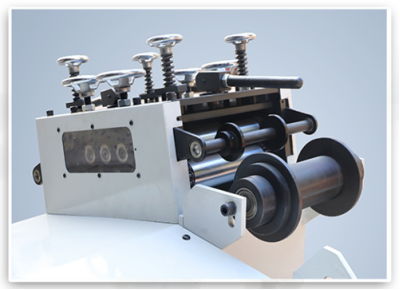

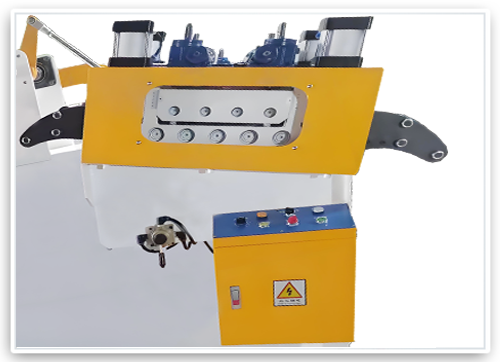

·Straightener head

1. Adopt parallel roller design, 3 up / 4 down, totally 7 rollers.

2. Adopt four point fine adjustment is adopted, which is more suitable for processing high-precision products. Adopt four point independent pressure to adjust the pressure of feeding roller for entrance and exit, which can prevent material deviation and deformation effectively.

3. The supporting roller adopts the galvanizing roller without power, the material is one body formed, the surface is scratch-resistant and wear-resistant, use the mechanical bearing, rotating flexible and durable.

4. Handwheel made of cast iron, surface is electroplated. It is the most traditional handwheel.

5. The transmission part is protected by protective cover on both sides, equipped with observation window for easy viewing.

·Straightening roller

1. The straightening rollers are made of solid bearing steel, thickening plating treatment after medium frequency, surface hardness is not less than HRC58, to ensure material durability.

2. Adopt GCr15 forging round steel, after preheating treatment (spheroidal annealing), then turning, milling, intermediate frequency treatment, rough grinding and cold stabilization, then fine grinding, finally electroplating. Maximized guarantee the accuracy, concentricity, finish and hardness, and extended the using life of the rollers.

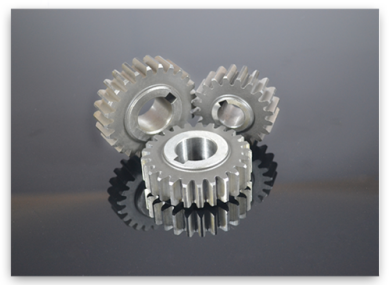

·Drive gear

Gear processing includes the following processes: gear blank processing - gear surface machining - heat treatment - gear surface fine grinding. Rough parts are mainly forging parts. Through normalizing treatment, improve the machining to facilitate cutting. According to the gear design drawings, rough machining, and then semi-finishing processing, turning, rolling, gear shaping, to make the gear basically formed. After the heat treatment to improve the mechanical properties. According to the design requirements of the drawings, finally do the finishing, finishing the benchmark, finishing the tooth profile. After all above treatments, our gear grade can reach to grade 6, with high wear resistance, high strength, long using life.

·Frame part

Adopt 80-type worm gear vertical reducer, use the speed converter of gear to reduce the number of revolutions of the motor to the required number of revolutions, and obtain a mechanism with larger torque.

Adopt vertical motor, low vibration, low noise, pure copper coil is used in stator and rotor, the service life is ten times that of ordinary coil, ball bearings are installed at both ends, small friction and low temperature.

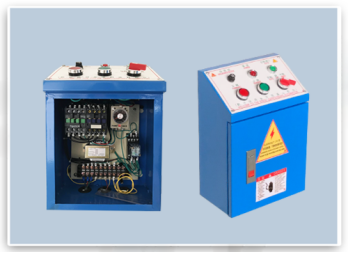

·Electric control box

1. Adopt silver alloy relay, full copper coil, flame retardant safety base, long lasting and durable.

2. Adopt safety protection adjustment circuit time delay relay, silver alloy contact, satisfied different delay ranges.

3. The switch adopts sliding contact ,with self-cleaning function , normally open and normally closed contact adopts separate bonding structure, can work with different poles, equipped with anti-rotation positioning and stop loose mounting gasket.

4. Adopt self-duplex flat button, the force is light, the key range is moderate, the building block type combination structure. The contact is made up of keto-base composite points with strong conductivity and large current, with a life span of up to 1 million times.

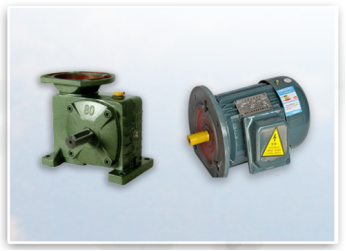

·Power part

1. Adopt model 80 worm gear vertical reducer, use the speed converter of gear , reduce the rotation number of motor to desired rotation number ,and get the mechanism with larger torque.

2. Adopt vertical motor, low vibration, low noise, stator rotor part adopt pure copper coil, life is 10 times of ordinary coil, both ends are equipped with ball bearing, low friction, low temperature.

Specification

Details

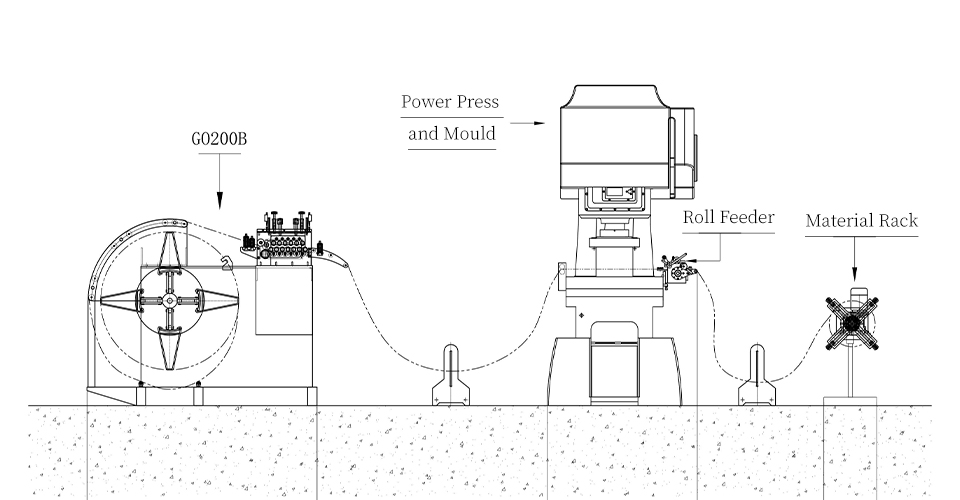

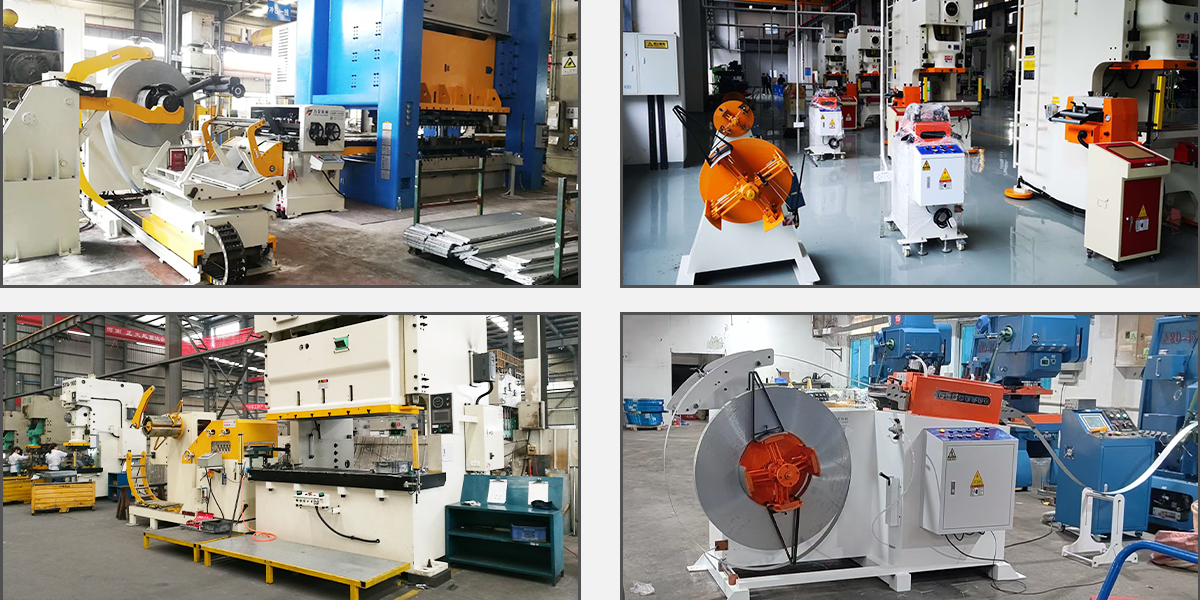

Application Fields

Hardware Manufacturing: Precision hardware brackets, metal fasteners, industrial hardware clips, etc.

Electronic Equipment: Server chassis sheet metal, communication device casings, power supply shell parts, etc.

Construction Hardware: Curtain wall sheet metal accessories, door and window metal components, scaffolding connecting plates, etc.

Kitchenware Industry: Kitchenware sheet metal accessories, pot handle connectors, kitchenware stamping sheet metal parts, etc.

Lighting Industry: Lighting metal sheet pieces, lighting housing sheet metal parts, lighting accessory sheet metal, etc.

Other Optional Equipment

(Providing Turnkey Automatic Stamping Production Line)

Presses: C-frame hydraulic presses, H-frame mechanical presses, precision servo presses, high-speed stamping presses

Stamping Molds: Progressive die sets, compound stamping molds, transfer molds, precision blanking molds, custom-shaped stamping molds

Stamping Feeding Systems: High-precision NC servo feeders, automatic air feeders, 3-in-1 integrated decoiler-straightener-feeder, Zigzag feeders, etc.

Decoilers: Hydraulic expansion decoilers, motorized decoilers, double-head decoilers, light-duty decoilers, heavy-duty coil decoilers

Straighteners: hydraulic adjustable straighteners, sheet metal leveling machines, heavy-duty plate straighteners

FAQs

Q1: Is the GO-A Series 2 in 1 medium thick plate equipment reliable for long-term industrial use? Can it be customized for specific production needs?

A1: Yes, it is built with high-quality components for stable long-term operation. We offer customizations for coil width, load capacity and functional configurations, plus turnkey stamping line solutions.

Q2: What types of metal materials can the GO-A Series process?

A2: It works with cold-rolled steel, stainless steel, aluminum, galvanized steel, etc.

Q3: Do you provide after-sales support and technical training for the GO-A Series equipment?

A3: Yes, we offer free on-site installation, commissioning and training, plus professional after-sales maintenance and technical support.
