GF Type New Gripper Feeder For Sheet Thickness: 0.1~1.5mm
SPM 1200,raise production, reduced cost, improved product quality.
Scale type adjusting, easy to operation, great stability.
Integrally formed which can avoid produce resonance.
Product Description

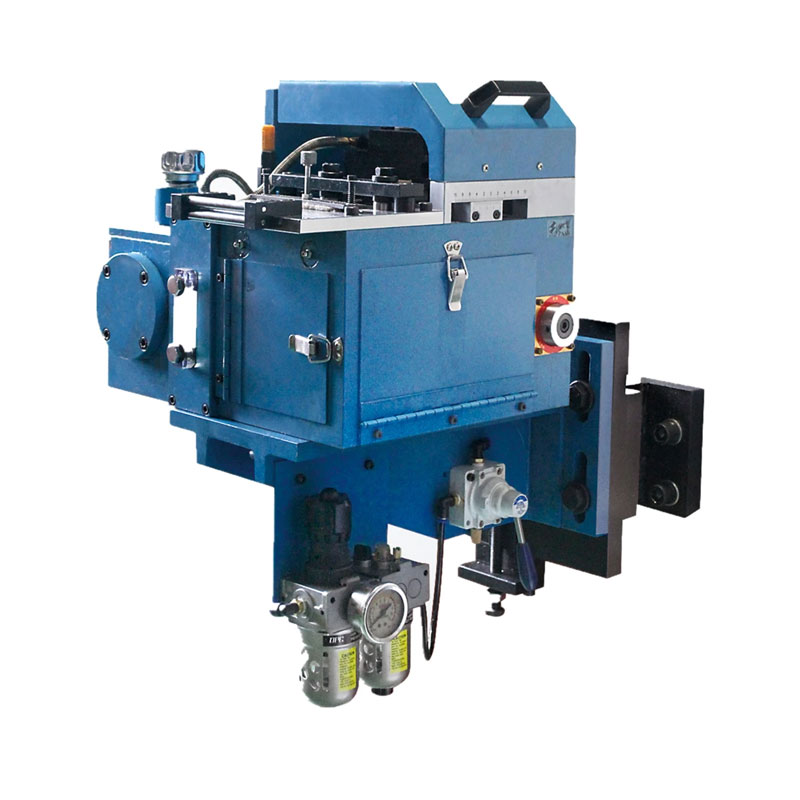

Mechanical Gripper Feeder
Features
1. Suitable for high-speed processing and high-precision products. (Up to 1200 feeds per minute)
2. When the machinery is running, quiet and silent, do not cause workplace noise.
3. The surface of the material will not leave any indentation, can make the electroplating material aluminum alloy, stainless steel, copper, iron or secondary engineering manufacturers, to get the most perfect punch manufactured products.
4. So the adjustment is using rowing, simple operation, strong stability, any person can easily operate it.
5. Three-dimensional as a one-dimensional molding, can avoid the resonance generated by stamping, and affect the accuracy of feeding.
Specification
| Model | GF-515N | GF-906N | GF-1106N | GF-1310N | GF-1512N | GF-25 12N |
| Material width | 50mm | 90mm | 110mm | 130mm | 150mm | 250mm |
| Feeding length | 15mm | 60mm | 60mm | 100mm | 120mm | 120mm |
| Material thickness | 0.1-1.0mm | 0.1-1.5mm | ||||
| Speed | 1200 times/min | 1200 times/min | 1200 times/min | 1000 times/min | 800 times/min | 700 times/min |
| Feeding angle | Adjustable | |||||
| Feeding mechanism | Crank shaft transmission | |||||
| Installation position | left | |||||
| Feeding direction | Left->Right | |||||
