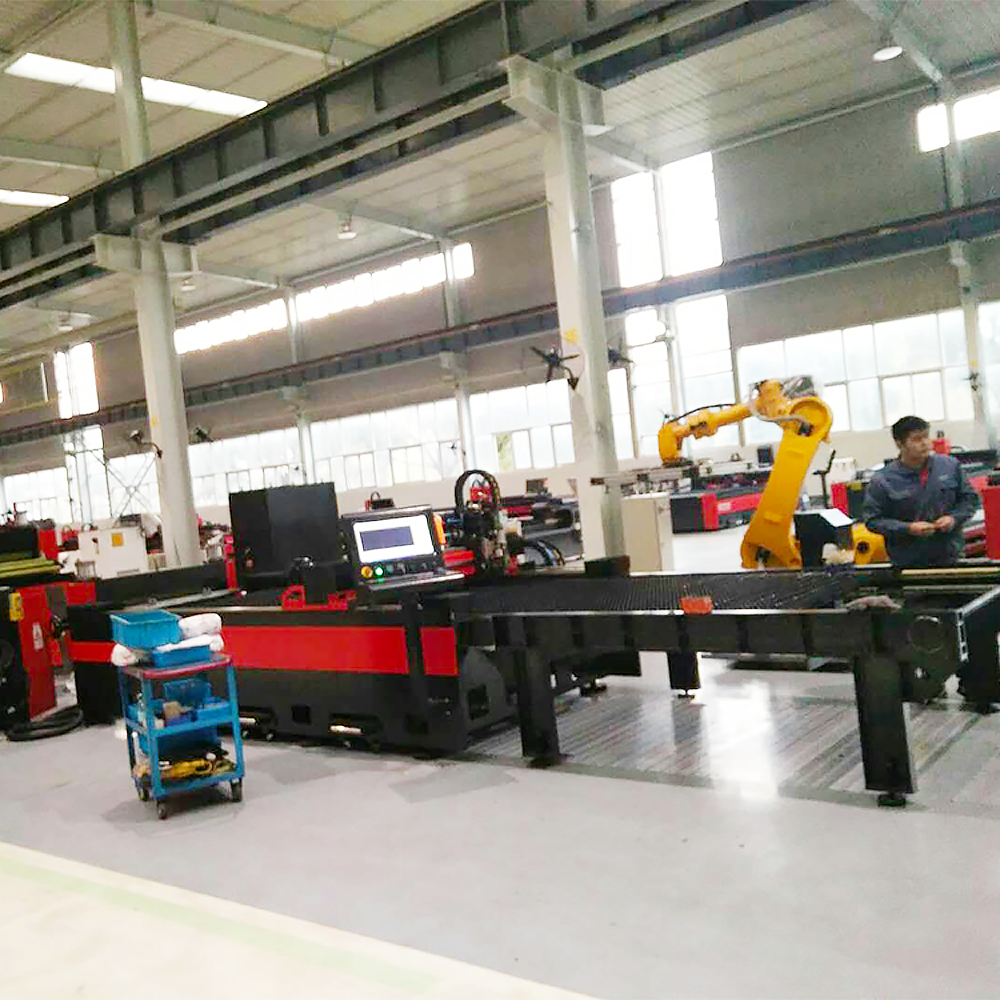

Automatic Sheet Metal Laser Cutting Production Line - Coil Cutting Machine
The sheet metal laser cutting machine is a high-precision processing equipment used to cut metal sheets. It uses laser technology to achieve precise cutting of materials.
Product Description
Features of Sheet Metal Laser Cutting Machine
Metal cutting equipment is indispensable in the sheet metal cutting industry. The laser emitter generates a laser beam, which is integrated and transmitted through the optical path system, then focused into a high-density, high-power laser beam. When the beam irradiates the surface of the metal sheet, it reaches the melting point and melts the material instantaneously. Meanwhile, coaxial high-pressure gas blows away the molten and vaporized metal from the workpiece, realizing metal cutting.
With an advanced control system, the sheet metal parts cut by this machine feature a smooth cut surface and require almost no secondary processing. Thanks to these advantages, it has become the mainstream equipment in the manufacturing industry.
1. High Cutting Efficiency
The cutting machine supports intelligent operation. Operators only need to set parameters in advance and import the graphics to be cut. After computer programming, perfect cutting can be realized automatically without manual intervention, resulting in high efficiency.
2. Fast Cutting Speed
It features high and stable cutting speed, supporting high-speed and ultra-high-speed cutting modes.
3. Excellent Cutting Quality
Laser cutting causes a small heat-affected zone on sheet metal, with a smooth cut surface and narrow kerf. The roughness of the cut section can be as low as tens of microns, enabling one-shot forming without secondary processing. The cutting accuracy is within ±0.05 mm, ensuring high precision.
As a non-contact cutting method, there is no direct physical contact between machine components and sheet metal, so no tool wear occurs. It enables flexible and high-speed cutting, and various complex patterns can be cut automatically based on programmed parameters.
4. Wide Material Applicability
This machine can effectively cut various metal sheets, including carbon steel, stainless steel, aluminum, alloys, non-ferrous metals, etc.
5. Precision Laser Processing
It realizes fine material cutting. Workpieces are cut according to designed programs with high dimensional accuracy, capable of cutting sharp angles and narrow slits.
Product Introduction
The main machine adopts a gantry-type dual-drive structure, featuring excellent rigidity and stable operation. The body is welded with steel plates and subjected to stress-relief annealing treatment, ensuring long-lasting precision. It is equipped with an imported fiber laser generator for low operating costs.
The complete set of high-performance fiber-specific laser cutting heads is fitted with lens protectors, extending the service life of the focusing lens. The dedicated laser control system supports program simulation, visual display of the part processing process, and automatic nesting, which greatly improves material utilization.
An uncoiling, leveling and feeding system as well as a cutting-off system can be optionally equipped to form an automatic laser cutting production line for coil processing.
Specification
| Description | Unit | CTL 3013F | CTL 3016F | CTL 4013F | CTL 4016F | |
| Sheet size | mm | 2500x300 | 3000x1300 | 4000x1300 | 4000x1600 | |
| X axis | mm | 1325 | 1625 | 1325 | 1625 | |
| Y axis | mm | 3050 | 3050 | 4050 | 4050 | |
| Z axis | mm | 80 | 80 | 80 | 80 | |
| Coil width | mm | 1300 | 1600 | 1300 | 1600 | |
| Accuracy | X,Y positioning accuracy | mm/m | 0.02 | 0.02 | 0.02 | 0.02 |
| X,Y repeat positioning accuracy | mm | ±0.02 | ±0.02 | ±0.02 | ±0.02 | |
| X,Y combined speed | m/min | 120 | 120 | 120 | 120 | |
| Laser source capacity | w | 500/700/1000/1500/2000/3000/4000/6000 | ||||
FAQs
Q1: What materials can your laser cutter process?
A: It can cut carbon steel, stainless steel, aluminum, copper, brass, galvanized sheet, and other metal sheets and coils.
Q2: What is the maximum cutting thickness?
A: Depending on laser power: typically 0.5–25mm for carbon steel, 0.5–16mm for stainless steel, 0.5–12mm for aluminum.
Q3: What industries is it suitable for?
A: Widely used in sheet metal fabrication, chassis, cabinets, hardware, home appliances, auto parts, medical devices, kitchenware, advertising signs, etc.
Q4: What about cutting accuracy?
A: High precision, positioning accuracy up to ±0.02mm, cutting accuracy ±0.05mm, smooth cut surface with little secondary processing needed.
Q5: Is it easy to operate?
A: Intelligent CNC system, user-friendly interface, supports graphic import, automatic nesting, simulation. Easy to learn.
Q6: Can you provide automatic production lines for coil materials?
A: Yes. We provide uncoiling → Straightening → feeding → cutting → unloading fully automatic lines.
Q7: What is the warranty and after-sales service?
A: 1-year whole machine warranty. 7×24 technical support and on-site service.
Q8: Can you customize the machine?
A: Yes. We accept customization on power, table size, automation, coil feeding and other functions.
