Extend the center line of the table under the punch press on the side of three in one (left/right) vertically on the ground for more than 4m.
1. Correct the installation of the feeding host
(1) Place the three-in-one host on the center line drawn, and align the center line of the host with the center line of the ground.
(2) Adjust the distance between the host machine and the punch press. A space of 600mm should be set aside for subsequent maintenance of the host machine.
(3) Preinstall the connecting parts of the main machine and the material frame, and wear the wires and pipes of the main machine.
2. Installation of material rack
(1) Place the material rack, align the center of the material rack and tile with the ground center line, and draw close to the main machine.
(2) When approaching the connector, the connector hole should be moved slowly.
(3) Adjust the material rack to keep parallel with the main machine and then lock the connector.
(4) Thread the wires and pipes through the opening of the material rack and through the supporting feet of the material rack to the bottom of the electric cabinet.
(5) Put the press arm close to the material rack and butt the screw hole.
(6) The edge of the base of the press arm is stuck into the clamping position at the supporting foot of the material frame, and let the supporting foot of the material frame press it and then lock the connection screw.

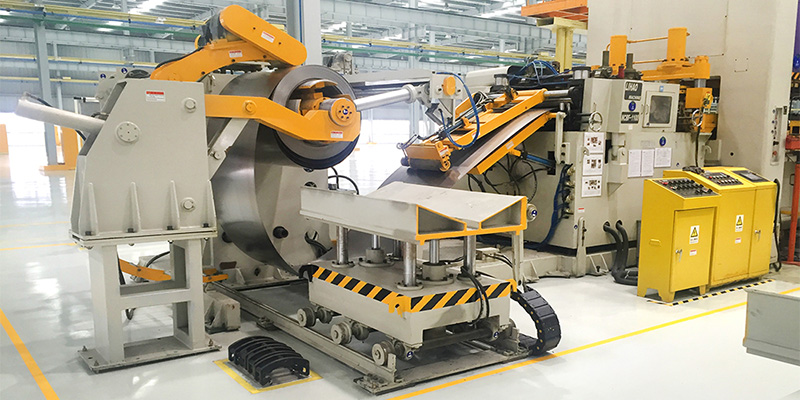

3. Installation of loading trolley
(1) Place the loading trolley (pay attention to the direction of the trolley), and place the trolley and rail between the two legs of the feeding rack.
(2) The trolley V slot center can be aligned with the main shaft center of the material frame.
(3) Adjust the minimum distance between guide rail and material frame. It is advisable for the trolley to move forward without touching the material frame and keep about 100mm.
(4) Adjust the parallelism of guide rail and material support.
(5) Put the trolley oil pipe into the cable chain in the trough at the bottom of the trolley and walk out from the bottom of the electric cabinet.
4. Installation of wires and pipes
(1) Connect the trachea in the coupling with the same serial number.
(2) The wire passes into the electric cabinet through the opening at the bottom of the cabinet, and is connected according to the same wire number.
(3) The tubing should be connected to the hydraulic valve of the hydraulic station according to the serial number and locked.
(4) Add lubricating oil to all parts as required.
5. Hydraulic adjustment
(1) The action speed of each hydraulic mechanism can be adjusted, and each hydraulic action has corresponding solenoid valve control.
(2) If there is a knob head below the solenoid valve, the action speed can be adjusted;If there is no knob head for pressure valve, speed can not be adjusted.
(3) When it is necessary to adjust the speed, you should always press the switch of the action, check the corresponding solenoid valve light one end, and turn the lower knob to adjust the speed.
(4) When the solenoid valve is not on, turn the knob head, and the speed adjustment is invalid.
6. Level adjustment
(1) Thoroughly clean the rack first to increase the accuracy of horizontal readings.
(2) A precision level is placed at the leading edge of the frame for measurement at the front, middle and rear points.
(3) Use the level to adjust the anchor screws.
7. Complete the installation
(1) Connect the origin and power on for trial operation. Before power on, please make sure that all wires and oil pipe joints are fastened to avoid accidents.
(2) Run each electric, oil and gas action in one under manual state.
