Press Feeding Line for Automotive Industry
1.Production Line Features
This production line greatly reduces labor cost and improves production efficiency.Before the improvement, it was operated by 7 people, and now 1 person can complete all operations .

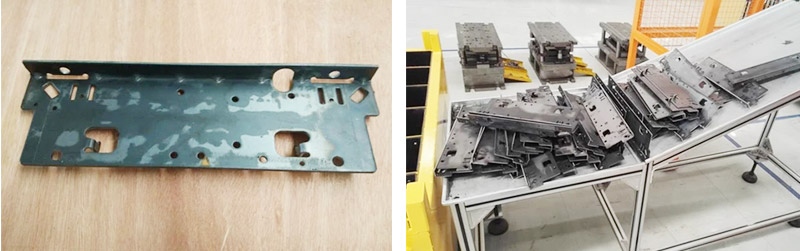

Product flatness of ± 0.5mm, angle of 90 º ± 0.5 º, hole requirements to achieve ± 0.1mm, automatic welding torque strength of not less than 50N / M, the layout of the wire body requirements to achieve more than 95% accuracy in place size, product Tolerance requirements in ± 0.2mm, the production beats in 3 ~ 6 seconds / piece.
Sheet metal coil - Uncoiler - Straightener - Feeder - Punching - Spot welding - Bending - Product
4.Details of Machine
NCSF-600B: This big machine, combines uncoiler function, straightener function, NC servo roll feeder function together, so as 3 in 1.
Press Feeding Line For Automotive Industry Working Video: Click here
NC servo zigzag feeder is one of the servo feeder, it consists of a set of two sets of servo motor, PLC control characteristic is feeder in linear feed at the same time, the nose can swing shift, the deflection of realization about material function.
