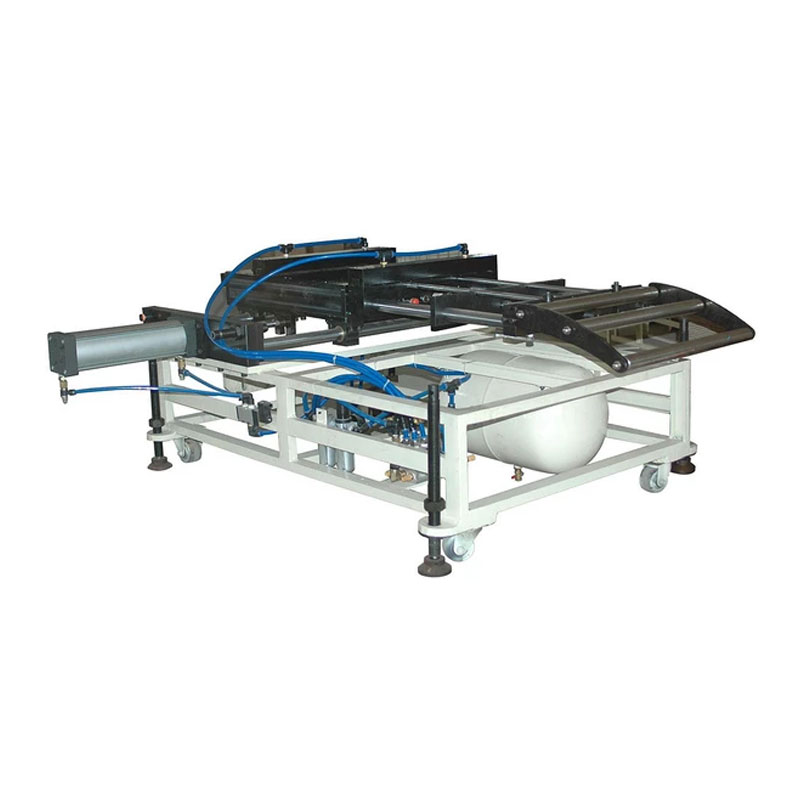

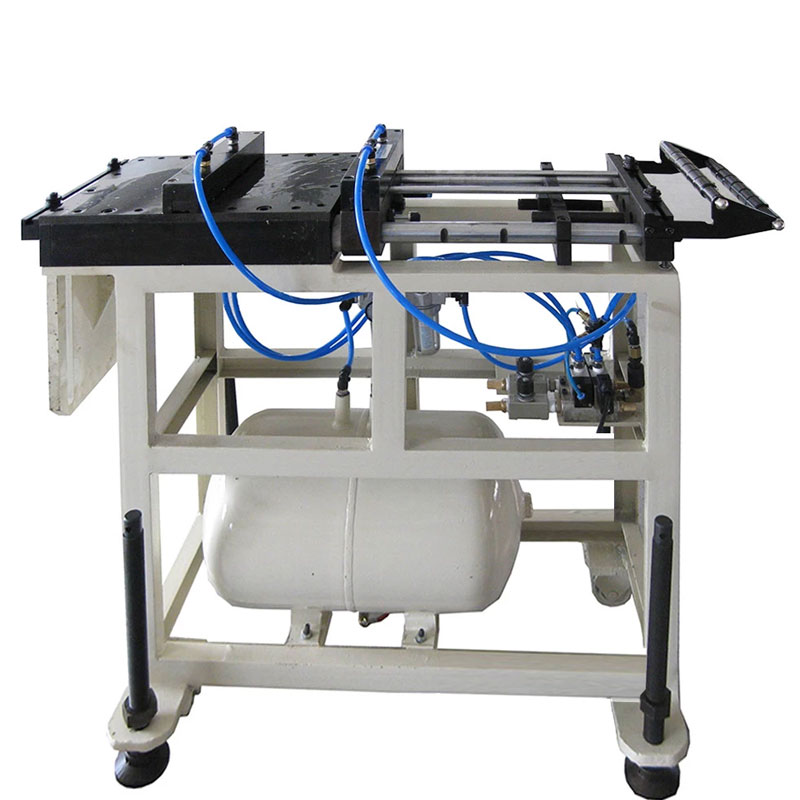

Pneumatic Feeder Air Feeder ( 8C~11C ) Width: 300.0mm~450.0mm Thickness:2.5mm~3.0mm

Air Feeder

Conventional Model Instruction

1. The central hole of the main structure is by lapped finishing first and then electroplating so as to better ensure its roundness and straightness, which thus enables the core shaft to run smoothly.

2.  After processed, the main structure goes through anti-corrosive treatment, and then it is cleaned through ultrasonic wave before assembled so as to guarantee trouble-free when processing leftover materials.

3. The exchangeable reversal valve is constructed large circular angle and its internal bore goes through mirror polishing treatment so as to greatly improve feeder’s loading speed and the life span of sealing ring.

4. All the sealing parts are introduced from Japan.

5. Two-position three-way valve structure is adopted in the new floating lever, and thus gas-leaking problem is solved.

6. Two units of pneumatic cushions are adopted to efficiently reduce vibration and noise.

7. The guiding rail is processed through hard chrome plating finish after going high tensi

le steel heating process. The connection between mobile part and guiding rail goes through accurate grinding so as to make machine moving and its motion flexible and stable.

8. All screws are fixed with high-strength oxygen pressed rubber so as to avoid loosening from vibration, yielding good sealing capability.

9. Air feeder features compact conformation, high accuracy, high speed, and a good combination of beauty and application.

10.Particular model can be produced according to different dimension and length.

Equipment models

·E type solenoid valve standard model

Suitable for short stroke of press machine, or too long feeding length.

·R type solenoid valve standard model

For high precision feeding, use electromagnetism valve to slack fixed clamp to correct error.

·Left and right zigzag style

1. Suitable for many kinds of parts processing,can save material up to 1/2.

2. Vertical axletree for support,matching with round rod slide,without noise,high wearable,light load,fast moving.

3. Shorten feeding time.

4. Electron control,choose feeding time.

5. Easy operation and maintenance,high precision.

New and Heavy duty

1. Suitable for thick material automatic feeding.

2. With new pneumatic pressure buffer,to avoid shake when fast feeding.

Precautions:

1. Fix guide level on punch head or mould stand,when guide level press pliot,the movalbe clamp move back,and press material and prepare next feeding.When pilot level raise,movable clamp feed material forward.

2. If want length distance feeding or up-down running distance is too short,need to extend the time of pilot level press down,can fix spring part on the screw of guide level.Using the flexing principle of spring,can get stable and exact feeding.

3. When punch machine speed is too fast to cooperate with feeder speed,then need to fix spring guide level.

Specification

Note: Floor type mounting bracket for AF-8C model above.

All machines need maintenance. There are corresponding solutions for maintenance methods and troubleshooting. Only part of them are shown below. Please consult for more information!

Malfunction and Elimination
