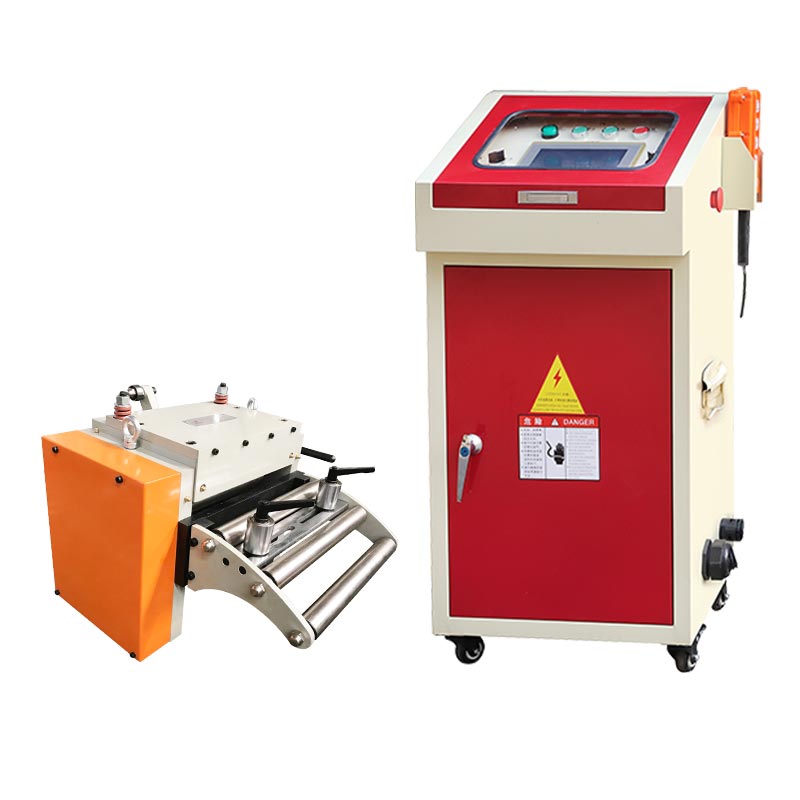

JNC Type NC Servo Roll Feeder For Sheet Thickness: 0.2mm~2.5mm, Mechanical Release System

NC Servo Roll Feeder for Punch Press Coil Feeding

Feature:

1. Suitable for material feeding with different thickness and length.

2. Suitable for high speed and long size feeding to improve productivity and feeding accuracy.

3. Simple operation panel, with feeding length and feeding speed of the key number code, the operator can be arbitrary Settings

4. Adopts mechanical type relaxation (accurate relaxation point), which can be used for a long time with zero fault.

5. High quality, brushless servo motor drive, effectively shorten the distance adjustment and testing time.
6. High sensitivity decoder is used for accurate insemination and better feeding accuracy.
7. Equipped with timing belt transmission, can eliminate gear gap, wear, no noise, no lubrication, safety and environmental protection.
8. Motor internal device can avoid damage during handling and loading and unloading.

Feeding Process

Product Description:

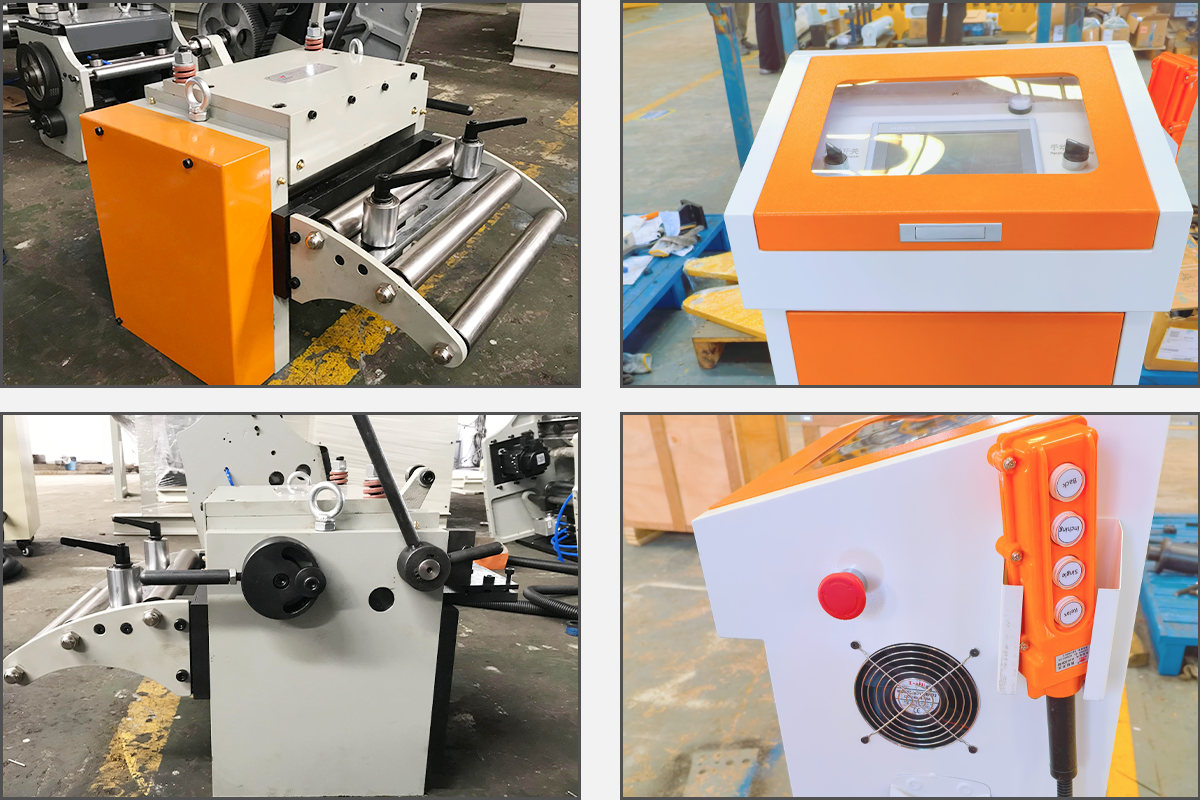

·Control panel

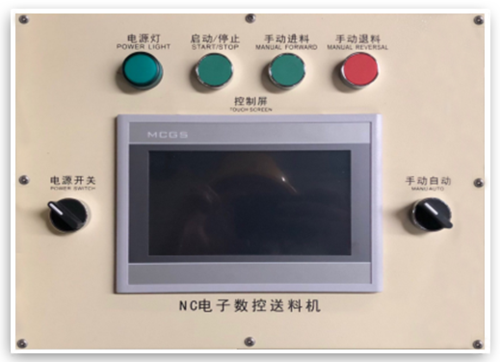

1. HMI adopts Taiwan screen pass 7-inch hd screen, with uniform color and The human-machine interface adopts Taiwan screen pass 7-inch hd screen, with uniform color and exquisite picture quality.

2. The switch adopts sliding contact, has self-cleaning function, normally open and normally closed contact adopts separate bonding structure, can work with different poles, equipped with anti-rotation positioning and stop loose mounting gasket

3. The contact of the modular structure is made of ketone compound point, which has strong conductivity and large carrying current, and has a life span of 1 million times.

• Operating handle

1. The electric control box is equipped with an operation box, which is convenient for personnel transposition operation, time-saving, waterproof and dustproof, high material strength, good electrical conductivity and long service life.

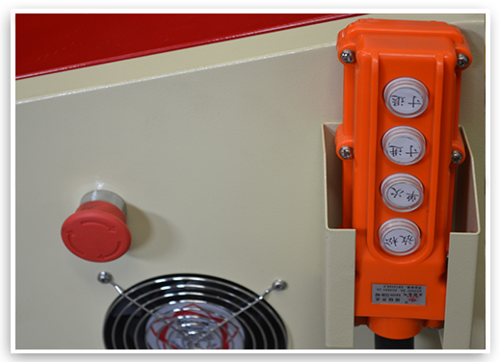

2. The electric control box is separately set with emergency stop button, which is safe and reliable, and can effectively reduce the opening and closing of the electric control box, and effectively protect the operation panel.

· Feed roller, block wheel

1. The feeding roller adopts the galvanizing roller without power, which is formed in one, and the surface is scratch-resistant and wear-resisting mechanical bearing, which is flexible in rotation and durable

2. Hard chrome plating on feeding wheel, hard chrome hardening HRC60, strong locking force on locking handle, convenient locking, smooth rolling of roller

·Feed cylinder

Using genuine yade polite cylinder, alloy cylinder body, hard oxidation, riveting no leakage, solid aluminum CNC precision machining, inner wall grinding smooth, non-clamping, high efficiency, high strength operation, durable, suitable for all kinds of working conditions.

·Servo Motor

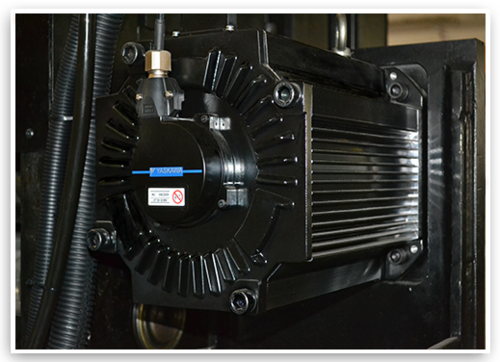

Brands use yaskawa servo motor and drive (optional), improve equipment performance significantly, the maximum play to the device performance, problem solving, yaskawa motor original "no adjustment function" further deepen, without tedious tuning work, stable movement, can be used in harsh environment and energy saving, conform to safety standards, time limit for visualization.

·Transmission gear

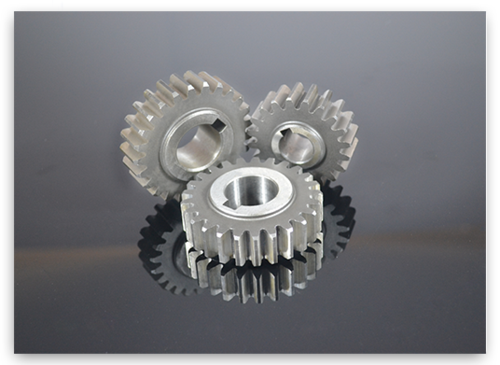

Gear processing process includes the following processes: gear hair cultivation processing - tooth surface processing - heat treatment - tooth surface fine grinding. Maopei parts are mainly forgings. After the above treatment, our gear grade can reach grade 6, high wear resistance, high strength, long service life.

Specifications

Configuration Table

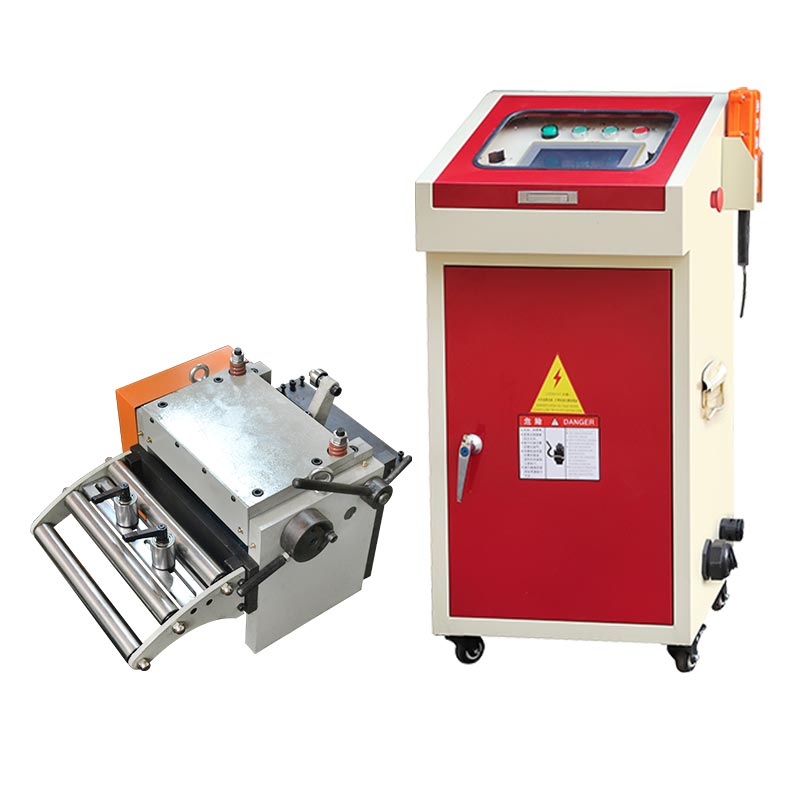

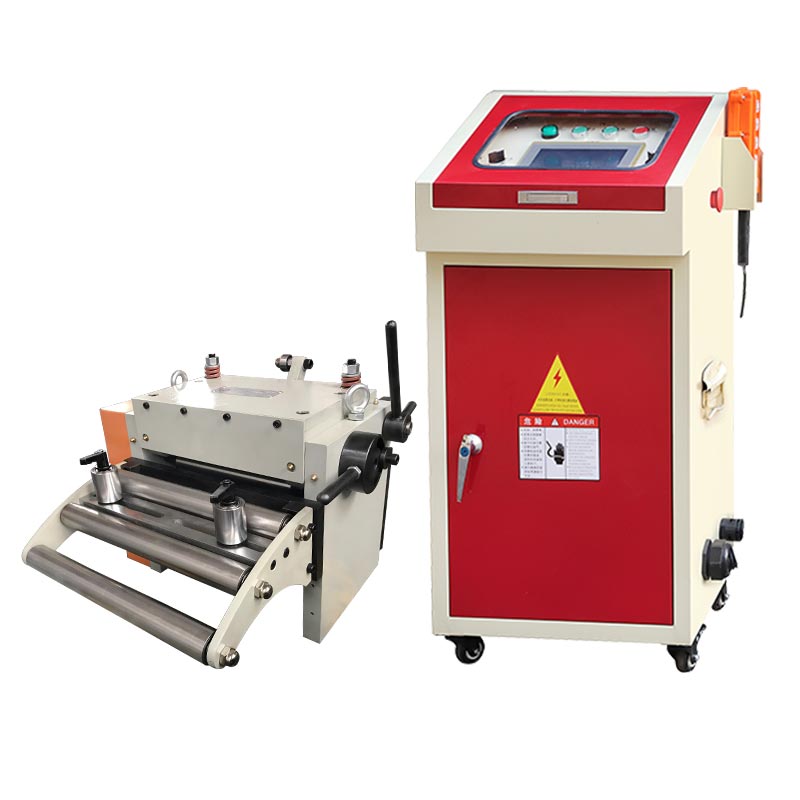

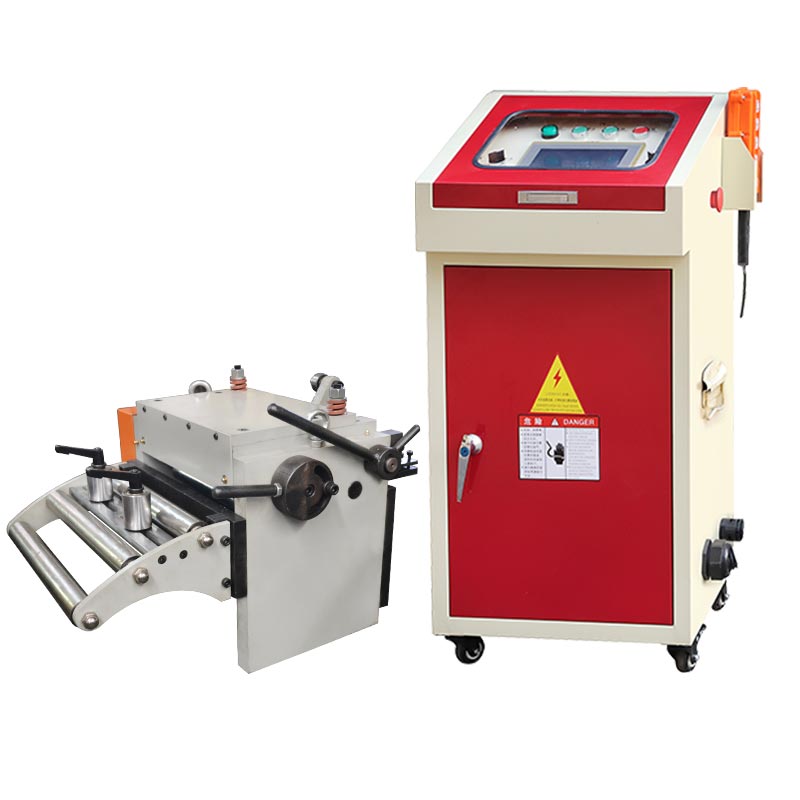

NC Feeder Images

Advanced Options

1. Rubber-coated roller for sensitive material feeding

2. Multiple language capability, Spanish, Polish, etc.

3. Other optional equipment: uncoiler, straightener, punch press, stamping die, slitting machine, laser cutting machine, etc.

Case For Press feeder

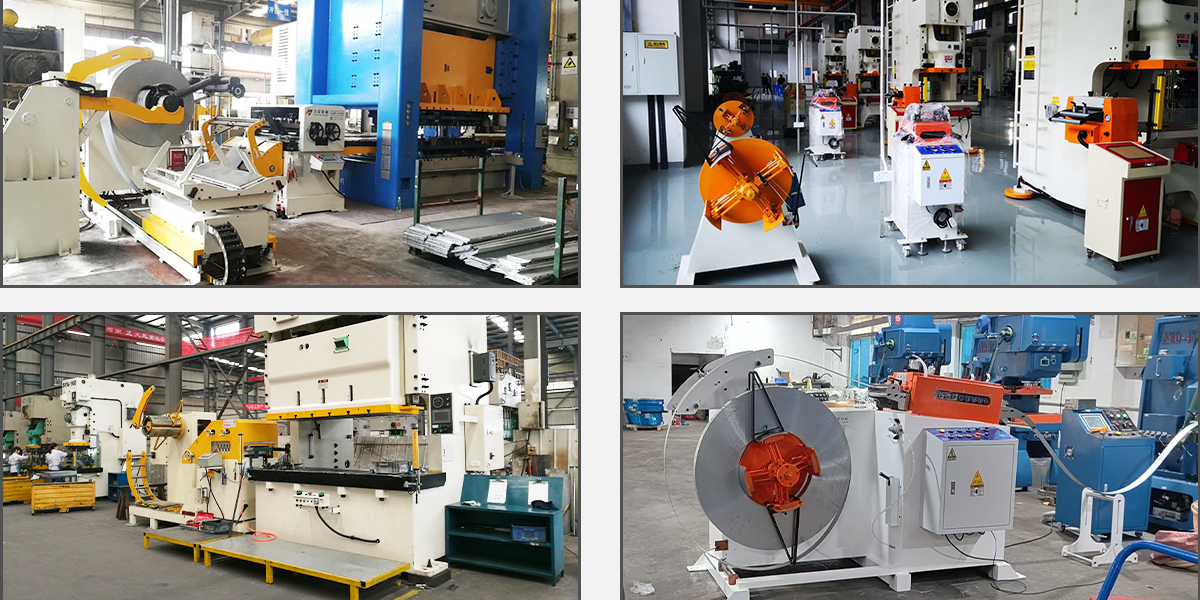

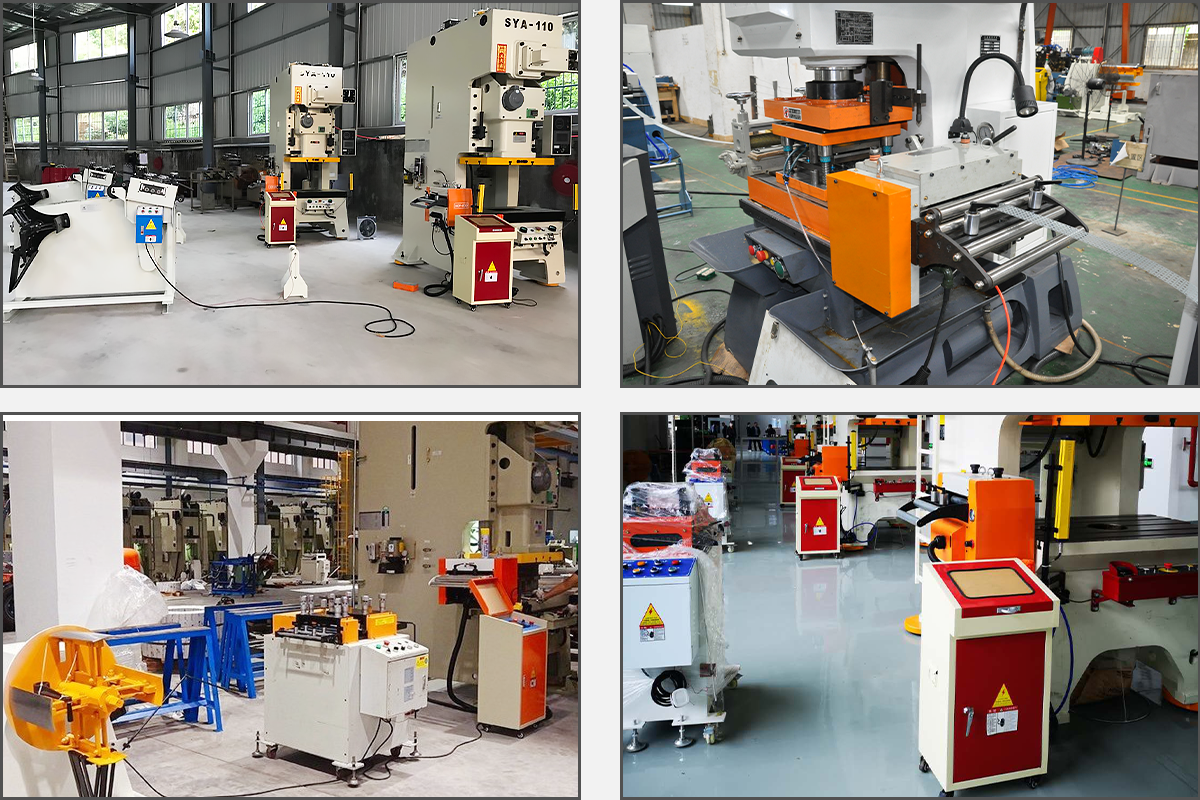

Servo feeders are applicable to various metal materials such as iron, steel, copper, aluminum and alloy sheets. They can be used with punch presses, forming machines, and other metal processing equipment, and are widely used in the automotive, electronics, hardware, electrical appliance, and metal stamping industries.

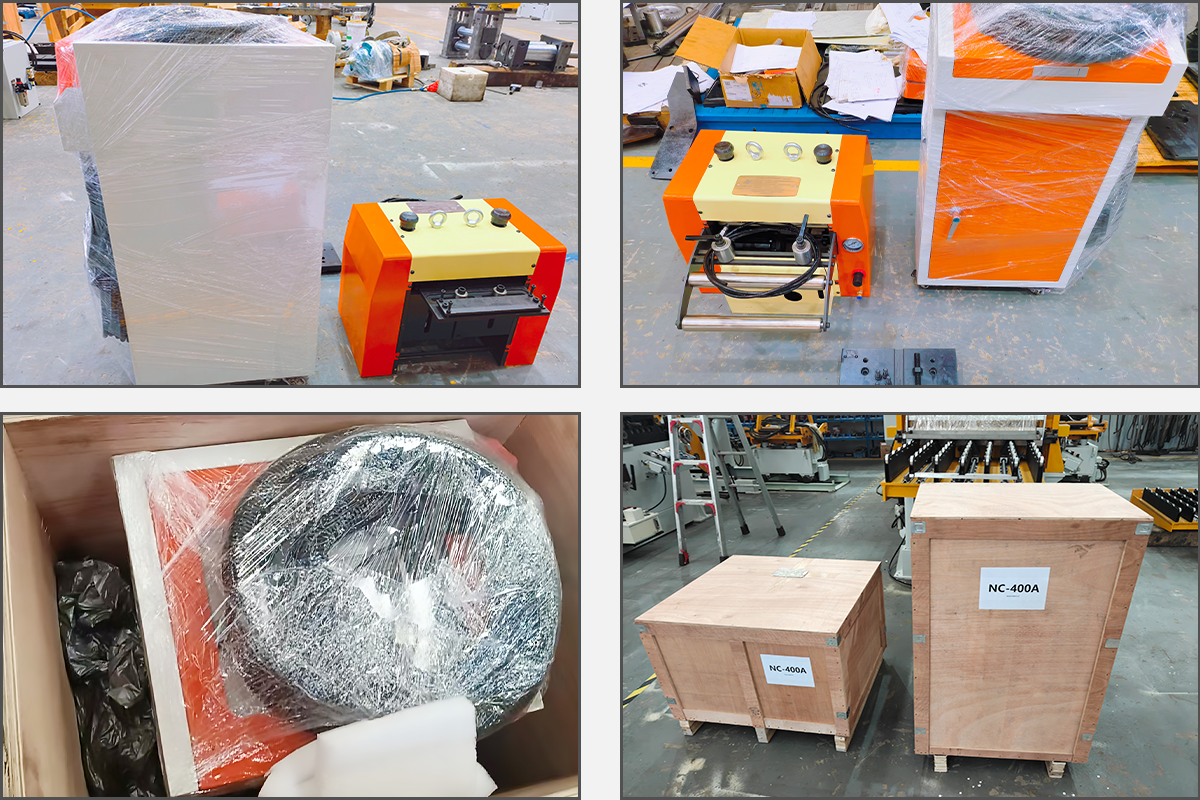

Shipping & Delivery

FAQs

Why use mechanically releasing feeders for soft materials?

For such specially sensitive materials, mechanically releasing feeders (rollers and JNC type) are recommended, because mechanical release relies on an eccentric shaft to compress the material. After adjusting the locking screws, the gap between the two rollers will be slightly smaller than the material thickness, which can ensure feeding while protecting the material from damage. Ordinary NC feeders with pneumatic release let the upper roller drop directly onto the lower roller. Even with proper clamping force, they can easily damage soft materials.

What is ultra-high speed servo?

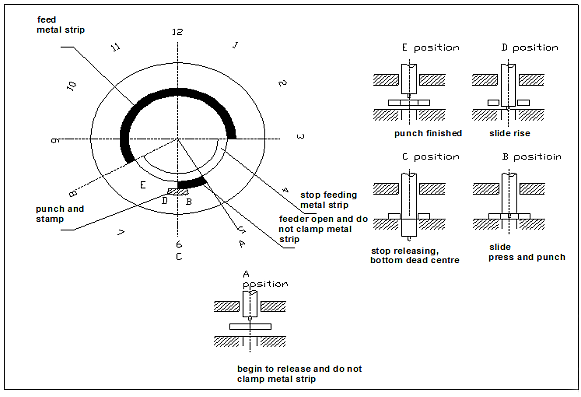

There are three release modes: pneumatic release, mechanical release, and ultra-high speed servo release. Their release speeds and feeding speeds increase in this order. Pneumatic release is completed by an air cylinder. Mechanical release is triggered when a protruding mechanism on the punch press touches the feeder. Ultra-high speed servo release is controlled by a servo motor.

Is mechanical high-speed release faster than ultra-high speed servo?

Speed order: pneumatic, mechanical, ultra-high speed servo. Ultra-high speed servo release is the fastest.

How to connect NC signal wires to SYA punch presses?

There are 4 signal wires in total: automatic feeding X0, clamping and releasing X1. They connect to S1, S2, S3 and S4 on the SYA punch press respectively. The wiring position varies for each punch press. Confirm with engineers before wiring.

What is the feeding accuracy of NC?

±0.2mm/m (Note: For customers with extremely high accuracy requirements, fully closed-loop customized NC can improve feeding accuracy. Meanwhile, most molds are equipped with positioning pins to eliminate feeding errors caused by the feeder.)

Can NC be installed on mechanical punch presses?

Yes, but the punch press needs modification. NC operation requires two signals: feeding and releasing. Old mechanical punch presses cannot be electrically modified and have no electronic cam function, so signal triggering parts are needed. Proximity switches, photoelectric switches or micro switches can be used. The customer selects and provides the switches. We do not perform on-site punch press modifications.

What is the minimum feeding width of NC?

12mm (narrower materials require verification)
