Roller feeder and NC feeder are two kinds of coil feeding equipment commonly used in automatic processing, usually customers will choose between the two types, the following simple introduction of the difference between the two types of feeder, convenient for customers to choose.
One, two feeder applicable scope difference

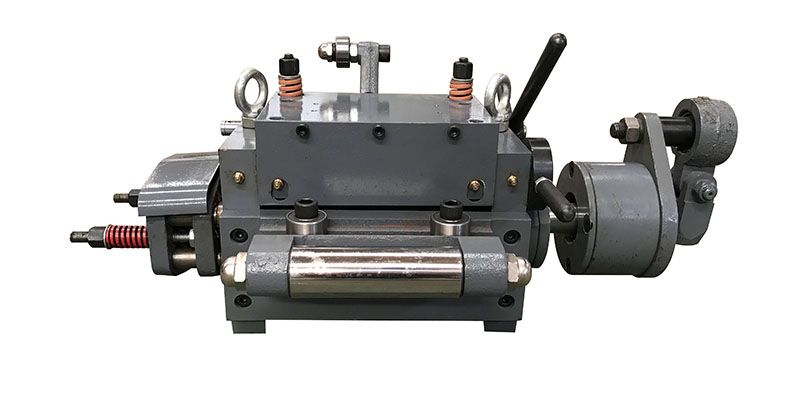

1, the roller feeder is a kind of feeding mechanism driven by the power of the punch itself, only suitable for the use of various types of punch with an output shaft, and the width of the feed, feed step has strict restrictions, usually material width more than 700mm or feed step is greater than 300mm, can not choose the roller feeder.

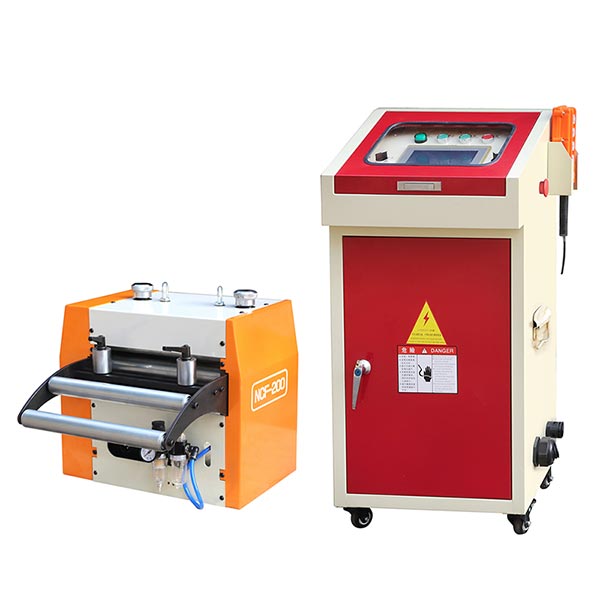

2. NC servo feeder is not only suitable for all kinds of punch press, but also suitable for oil press, plate shearing machine, laser cutting machine and other types of processing equipment. There are no restrictions on the feeding width and feeding step, high degree of customization, and the range of use is wider than the roller feeder.
Two, the difference in the use of debugging
1. The roller feeder is a mechanical transmission, and the feeding time and the feeding step need to be adjusted to the eccentric disc fixed on the output shaft of the punch. Debugging is relatively complicated and professional requirements are high.
2. The NC servo feeder is equipped with a touch screen, and the feeding step and times can be adjusted simply by setting them on the touch screen, so that anyone can use them simply.
There is a big difference in price
1, roller feeder pure mechanical structure, no motor, electrical components, the price is relatively economical.
2. The NC servo feeder USES Mitsubishi servo control system, so it is much more expensive than the roller feeder.
Processing and production enterprises can choose according to their own needs, the price of roller feeder is economical, but the operation is relatively cumbersome, the scope of application is small, high technical requirements of personnel, NC servo feeder one-time investment cost is high, but the operation is simple, wide range of use, more suitable for the long-term development of enterprises.
