Differences Between Mechanical and Hydraulic Power Press

Jan. 17, 2025

A power press is a mechanical device used to shape or cut materials like metal or plastic, using a die. It is commonly used in manufacturing for processes such as stamping, bending, drawing, and cutting. There are two primary types of power presses: mechanical and hydraulic. While both serve the same basic function, their operation, capabilities, and applications differ. Understanding the key differences between mechanical and hydraulic power presses can help businesses and manufacturers make informed decisions about which press is best suited for their needs.



1. Operating Mechanism


The fundamental difference between mechanical and hydraulic power presses lies in their operating mechanisms.



Mechanical Power Press


A mechanical power press operates using a mechanical system involving a flywheel, clutch, and crank mechanism. The energy stored in the flywheel is used to generate force for the pressing operation. The mechanical system converts rotational motion into linear motion, which drives the ram or punch to perform tasks such as stamping, punching, or cutting.

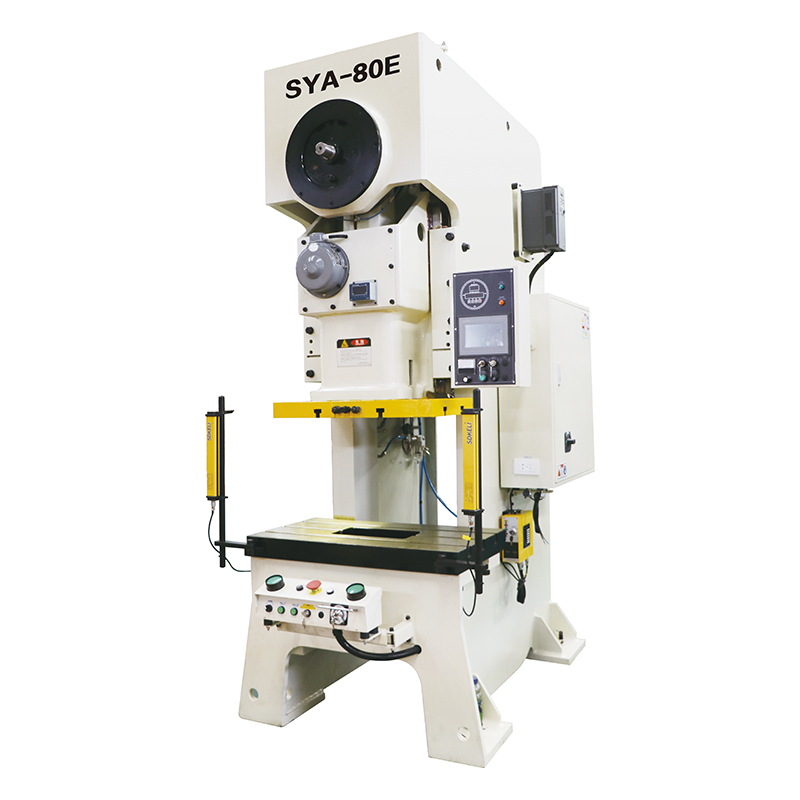

Mechanical Power Press

 Mechanical Power Press


Hydraulic Power Press


On the other hand, a hydraulic power press uses hydraulic fluid and a hydraulic cylinder to generate force. The hydraulic system is powered by a pump that sends fluid into the cylinder, creating pressure. This pressure forces the ram to move, delivering the required force for forming or cutting. The movement of the ram is controlled by the flow of hydraulic fluid, providing smoother, more controlled operations.



2. Force Generation



The method of force generation in both presses is different, which also impacts their capabilities.



Mechanical Power Press


Mechanical presses generate force by the rotational energy of the flywheel. As the flywheel is spun, it stores energy, which is then transferred to the ram via a clutch and crank mechanism. These presses can generate high speed and rapid stroke rates but typically provide a constant force throughout the stroke. Mechanical presses are best suited for high-speed operations with lighter to moderate force requirements.



Hydraulic Power Press


Hydraulic presses, on the other hand, can generate much higher and adjustable force levels due to the flexibility of hydraulic fluid. They offer variable force throughout the stroke and can provide substantial pressure at lower speeds. This makes hydraulic presses ideal for applications that require high precision and significant force, such as deep drawing or heavy-duty forming operations.



3. Speed and Stroke Rate



The speed and stroke rate of a press significantly affect the productivity and suitability of the machine for different tasks.



Mechanical Power Press


Mechanical power presses are known for their high speed and fast stroke rate, making them ideal for mass production where quick cycle times are crucial. The constant speed of the ram throughout the stroke allows for rapid operations, which is essential in industries like automotive manufacturing where parts need to be produced at a high volume.



Hydraulic Power Press


Hydraulic power presses generally operate at slower speeds compared to mechanical presses. This slower operation allows for greater control over the forming process, making them ideal for jobs that require more intricate and precise results. The speed is not constant throughout the stroke, as the ram moves more slowly at the beginning and end of its stroke for better control.



4. Precision and Control



When it comes to precision and control, hydraulic presses have distinct advantages over mechanical presses.



Mechanical Power Press


Mechanical presses, due to their constant speed and force, can be less precise for certain delicate tasks. While they are great for fast, high-volume operations, their limited adjustability in force and stroke control means that they are less suited for precision work, especially for parts that require complex forming or delicate handling.



Hydraulic Power Press


Hydraulic power presses offer superior precision and control due to their ability to vary both the force and speed throughout the stroke. This makes them ideal for intricate processes like bending, molding, or deep drawing, where precise control is necessary to avoid damage to the material or to ensure the desired shape is achieved. Hydraulic presses also have smoother operations, reducing the risk of vibrations that could affect the quality of the finished part.



5. Maintenance and Durability



Both types of power presses have their own maintenance requirements, which can impact long-term costs and efficiency.



Mechanical Power Press


Mechanical presses are generally more robust and durable because of their simple design. They have fewer moving parts, which means that maintenance can be less frequent and typically cheaper. However, the wear on components such as the clutch, crankshaft, and flywheel can lead to eventual maintenance needs. Since these presses work at higher speeds and generate more mechanical stress, regular upkeep is essential to maintain performance.



Hydraulic Power Press


Hydraulic presses require more maintenance due to their complex hydraulic systems, including the pump, fluid, and cylinders. Over time, seals and hoses can wear out, and hydraulic fluid can degrade, requiring regular checks and replacements. While hydraulic systems are highly reliable, they do need periodic maintenance to keep them in optimal condition. Despite this, hydraulic presses are often favored for heavy-duty or high-precision applications due to their adaptability and smooth operation.



6. Cost


Price is a significant factor when choosing between mechanical and hydraulic power presses, and the cost differences are typically influenced by the complexity of the system.



Mechanical Power Press


Mechanical power presses are generally less expensive upfront compared to hydraulic models. Their simpler design and faster manufacturing process contribute to lower initial costs, making them more affordable for applications that prioritize speed and mass production. However, the operational costs (e.g., energy consumption) might be higher in some cases due to the mechanical wear and tear.



Hydraulic Power Press


Hydraulic power presses are typically more expensive initially because of the more complex hydraulic components and systems. They also require more investment in maintenance over time, particularly for larger or more advanced models. Despite the higher upfront costs, hydraulic presses can provide more versatility and precision, making them a more cost-effective option in the long term for specific applications that require heavy-duty or high-precision work.



7. Applications



The specific applications for which mechanical and hydraulic power presses are best suited can influence your choice of machine.



Mechanical Power Press



Mechanical presses are ideal for high-speed applications and mass production processes. They are commonly used in industries such as:

  • Automotive manufacturing (for stamping and punching parts)

  • Metal forming (for bending, stamping, and cutting)

  • Packaging (for forming containers and lids)



Hydraulic Power Press



Hydraulic presses are better suited for applications requiring high force or precise control. These include:

  • Deep drawing (for creating deep-drawn parts like metal enclosures)

  • Bending and molding (for delicate or intricate parts)

  • Forging and heavy-duty forming (for materials requiring significant pressure)



Conclusion



Both mechanical and hydraulic power presses offer distinct advantages depending on the application, force requirements, speed, and precision needed. Mechanical presses excel in high-speed, mass production environments where constant force and rapid cycles are required. Hydraulic presses, on the other hand, are more suited to applications that require greater force flexibility, precision, and versatility. The choice between the two depends on your specific operational needs, budget, and the type of material being processed. By understanding the differences between these two types of presses, you can make an informed decision that aligns with your business requirements.
