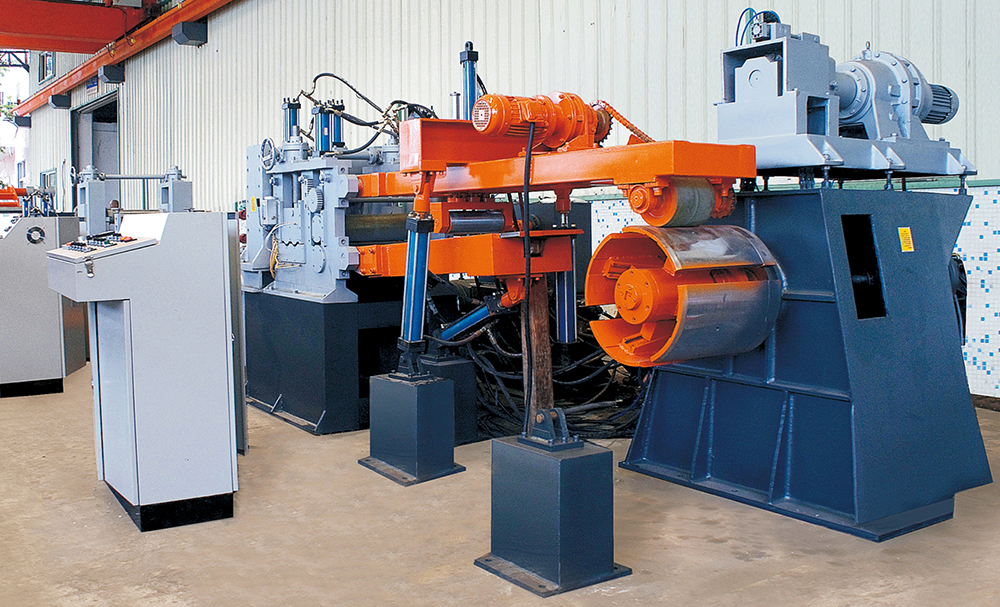

High speed automatic coil slitting machine

For Coil Widths: 400–850mm

Thickness: 0.2mm–3.0mm

Slitting Speed: up to 120m/min
Application: Steel, Aluminum, Galvanized, Painted, Stainless, and More

PLC Control
Servo Motor Drive
Precision Slitting with Mitsubishi Automation



Product Description

I. Introduction

The automatic coil slitting machine is designed to slit wide coils into narrower strips with precise cutting tolerance and stable tension control. It operates through a continuous process of uncoiling → leveling → slitting → recoiling, making it ideal for mass production in various industries.

This machine supports a wide range of materials such as:

  • Cold-rolled steel

  • Hot-rolled steel

  • Stainless steel

  • Galvanized steel

  • Aluminum coil

  • Color-coated / pre-painted steel

  • Silicon electrical steel

Industries Served:
Automotive, HVAC, Household Appliance, Construction, Packaging, Container Manufacturing, Electrical Components.


Ⅱ.Features

  • Fully Automatic Operation: Integrated design for uncoiling, slitting, and recoiling in one continuous process.

  • Mitsubishi PLC System: High-speed data processing and reliable global control.

  • Servo Motor Drive: For precise positioning, efficient feeding, and low tolerance cutting.

  • High Accuracy: Tolerance up to ±0.1 mm, slitting speed up to 120 m/min.

  • Optional CPC/EPC Control: Ensures better coil edge positioning during decoiling and recoiling.

  • Rugged Mechanical Frame: Built with high-strength steel structure, high rigidity for stable and durable performance.

  • Low Scrap and High Output: Optimized blade shafts and advanced scrap recoilers reduce waste and increase productivity.


Whether you process narrow or wide coils, the automatic coil slitting machine from Lihao offers dependable performance with minimal operator intervention.


Ⅲ.Main Components

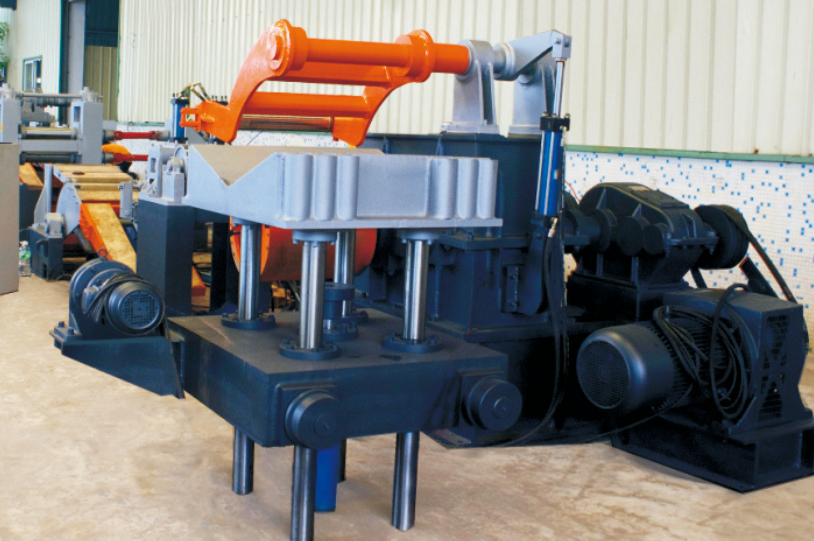

1. Coil car

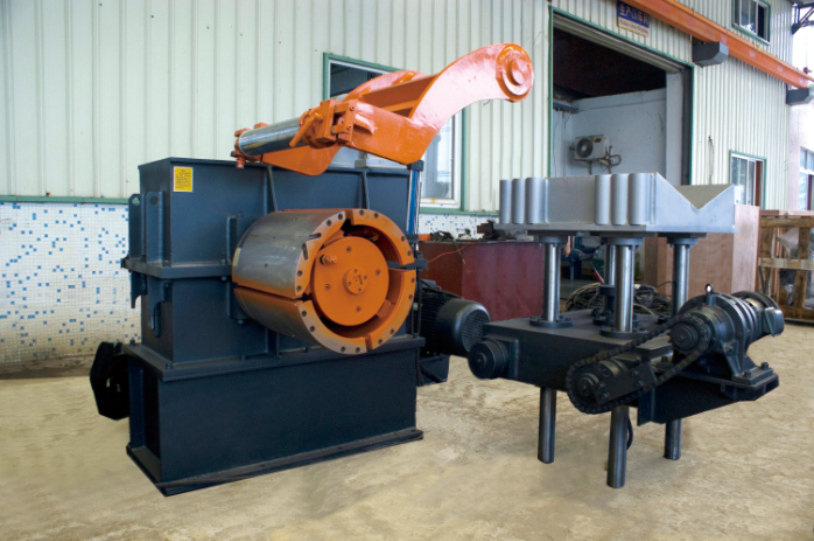

2. Uncoiler

3. Pinching device, Straightener and Shearing machine

4. Looper

5. Side guiding

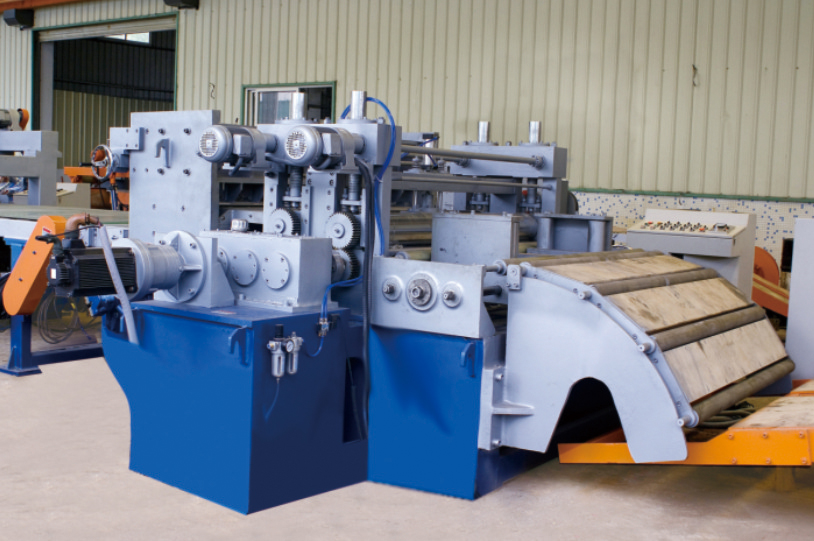

6. Slitting machine

7. Scrap recoiler  (both sides)

8. Looper

9. Separator and tension device

10. Recoiler

11. Unloading car for recoiler

12. Hydraulic system

13. Pneumatic system

14. Electrical control system


Ⅳ.Technical process

Here’s the typical working process of a high-speed automatic coil slitting machine:

Coil car → uncoiling → pinching, straightening and coil head cutting → looper → guiding → slitting → side scrap winding → looper → material pre dividing, tension → recoiling → unloading car


Ⅴ.Parameter


Model

Width

(mm)

Thickness

   (mm)

Coil Weight

       (T)

Slitting Strips

Slitting speed

     (m/min)

Floor Area

      (m)

LH-SL-4504000.2-31-32-200-1204×15
LH-SL-6506000.2-31-52-200-1204.5×15
LH-SL-8508000.2-31-62-200-1204.5×16

NOTE:The machine can be desighed according to client's special demand, above details for reference only.


Why Choose Our Automatic Coil Slitting Machine?

Our high-speed automatic coil slitting machine is designed for precision metal coil processing with minimal labor and maximum productivity. Equipped with advanced PLC control, tension regulation systems, and auto blade positioning, it is ideal for handling a wide range of materials—cold-rolled steel, hot-rolled steel, galvanized sheet, stainless steel, aluminum, and pre-painted coils.

Whether you are operating in automotive manufacturing, home appliance production, or construction materials, our slitting line ensures ±0.1 mm accuracy at speeds up to 200 m/min, with superior edge quality and burr control.

At Lihao, every automatic coil slitting machine is engineered to optimize your metal coil processing workflow.
