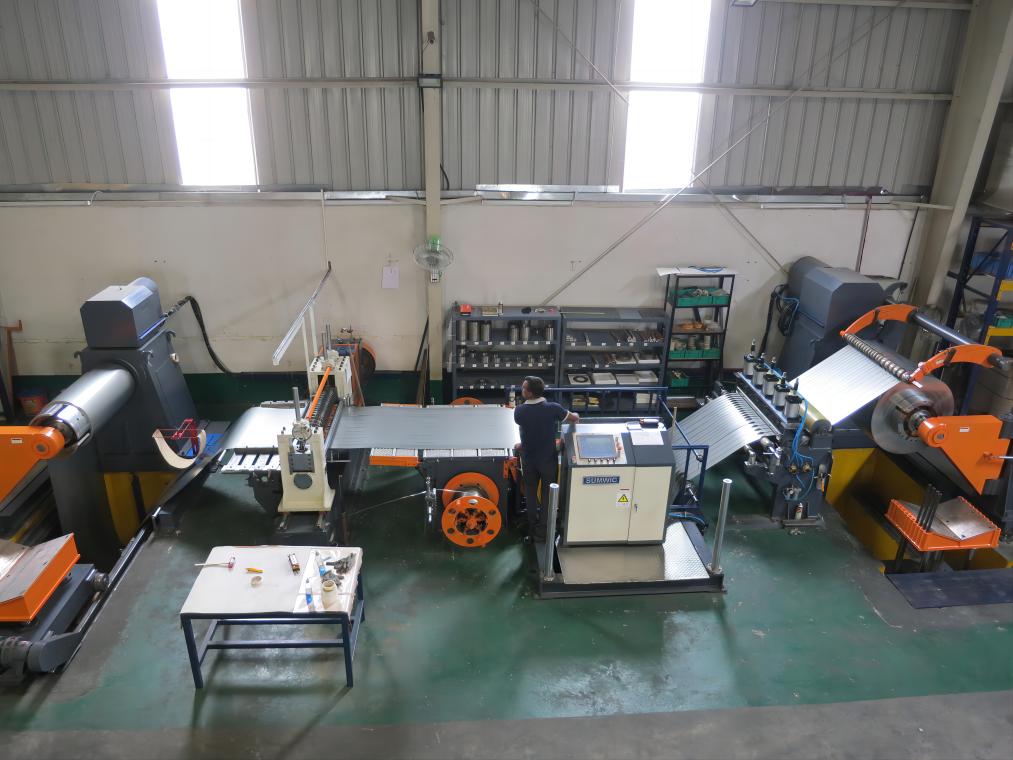

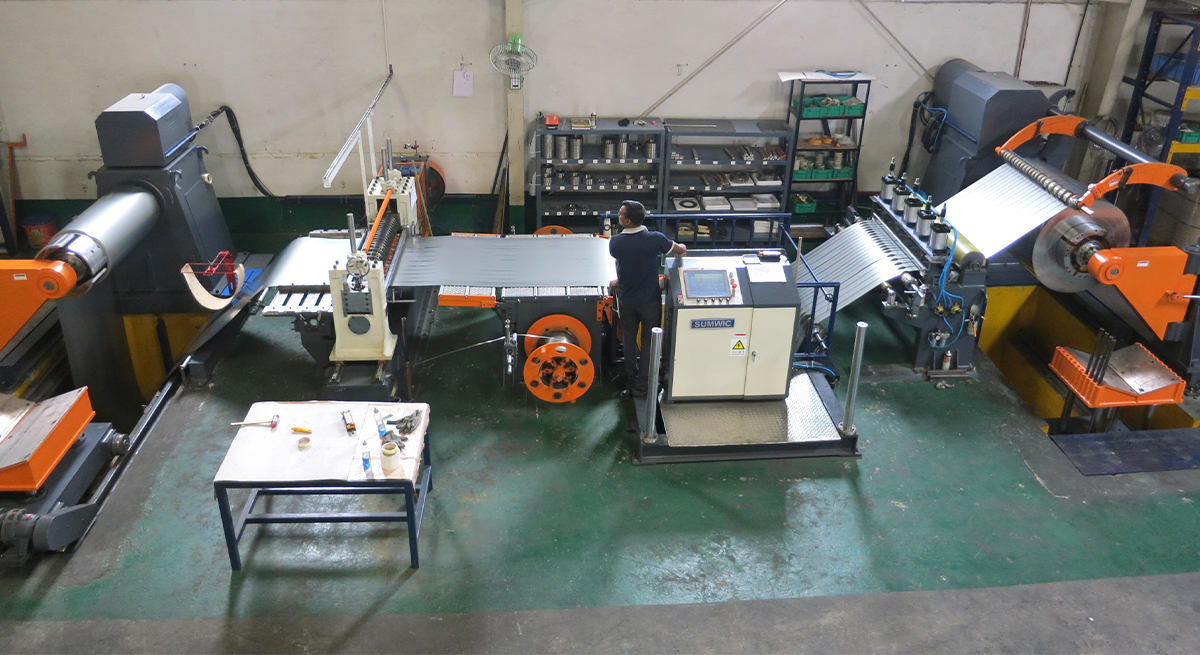

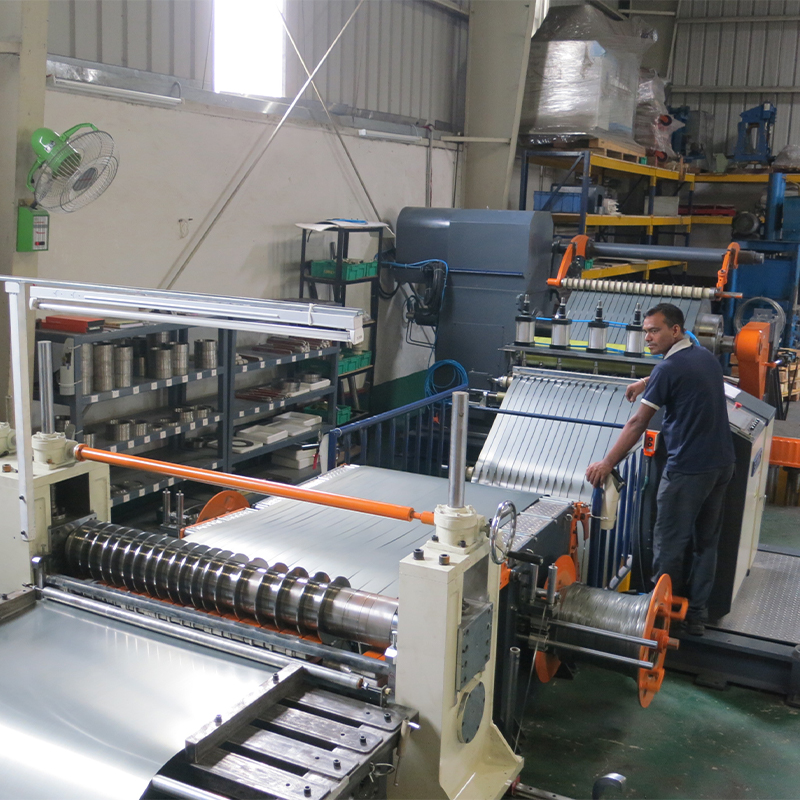

High Speed Precision Slitting Line For Thick Plate
Reasonable layout, full automatic, high efficiency & precision
Imported high-performance Mitsubishi PLC control system
CPC & EPC system are optional for decoiling and recoiling accuracy.
Easy & safety operating system
Customizable
Overseas commissioning
Product Description
High Speed Precision Slitting Line For Thick Plate
I. Product Description
Our high speed precision slitting line is used for coil with different specifications, through uncoiling--slitting--recoiling to any needed width coil.
Applied to process various of metal coil, such as cold rolled steel, hot rolled steel, stainless steel, galvanize steel, aluminum, silicon steel, colored steel or painted steel.
Slitting line is widely applying in metal plate processing industry, like auto car, container, household application, packing, construction material, etc.
II. Features
With reasonable layout, full automatic, high efficiency, high productivity, high precision, high quality, steady running, easy operating.
Imported high-performance Mitsubishi PLC control system is used to realize global control.
CPC & EPC system are optional for improve decoiling and recoiling accuracy.
With reliable and stable hydraulic system, high-strength, high-rigidity structure, and rational site configurations, the high speed slitting machine is more convenient and practical for your operation.
III. Technical Specification
| No. | Model | Raw Material | THK (mm) | Width (mm) | ID(mm) | OD(mm) | Weight (T) | Width accuracy (mm) | Slit No. (pcs) | Slitting width (mm) | Speed (m/min) | Capacity (kw) | Flood space (m*m) |
| 1 | 4.0x1600 | carton steel stainless steel aluminum or other steel material | 0.5-4.0 | 800-1600 | Φ508/610 | ≤Φ1500 | ≤25 | ≤±0.1 | ≤24 | ≥30 | ≤120 | ≈220 | 25x7.5 |
| 2 | 6.0x800 | 1.0-6.0 | 200-800 | Φ508/610/ 760 | ≤15 | ≤24 | ≥30 | ≤60 | ≈220 | 15x5.5 | |||
| 3 | 6.0x1600 | 1.0-6.0 | 800-1600 | ≤25 | ≤24 | ≥40 | ≤50 | ≈220 | 28x10.5 | ||||
| 4 | 9.0x1600 | 2.0-9.0 | 800-1600 | ≤Φ2000 | ≤25 | ≤12 | ≥60 | ≤40 | ≈265 | 28x10 | |||
| 5 | 12x2000 | 3.0-12.0 | 1000-2000 | ≤35 | ≤±0.5 | ≤10 | ≥200 | ≤20 | ≈285 | 36x10 | |||
| 6 | 16x2200 | 4.0-16.0 | 1000-2200 | ≤35 | ≤10 | ≥200 | ≤20 | ≈285 | 36x10 | ||||
| PS:All above specifications only for reference, also can customize as your request. | |||||||||||||

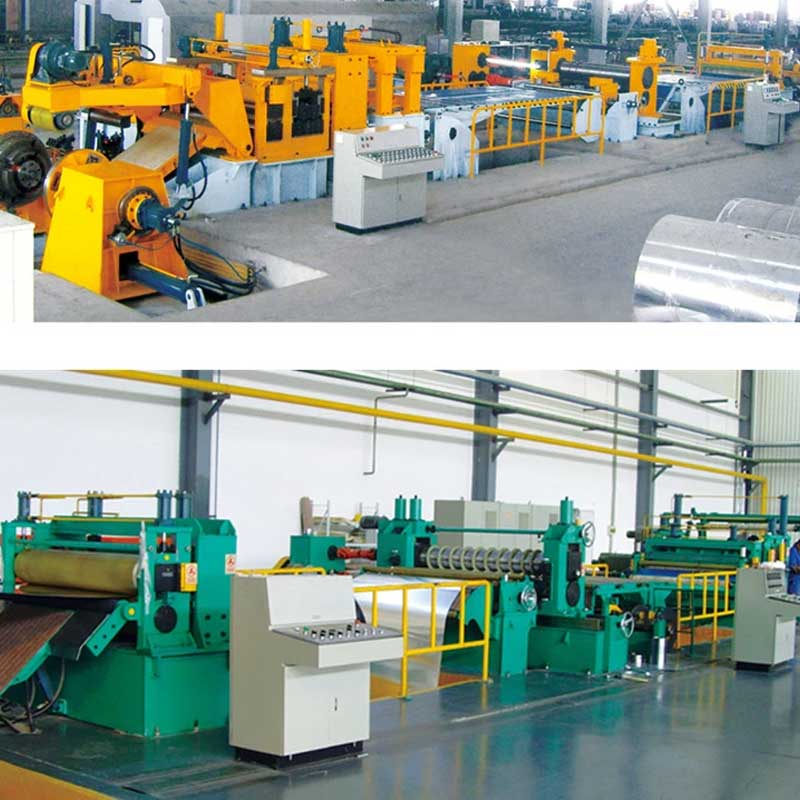

IV. Main Components

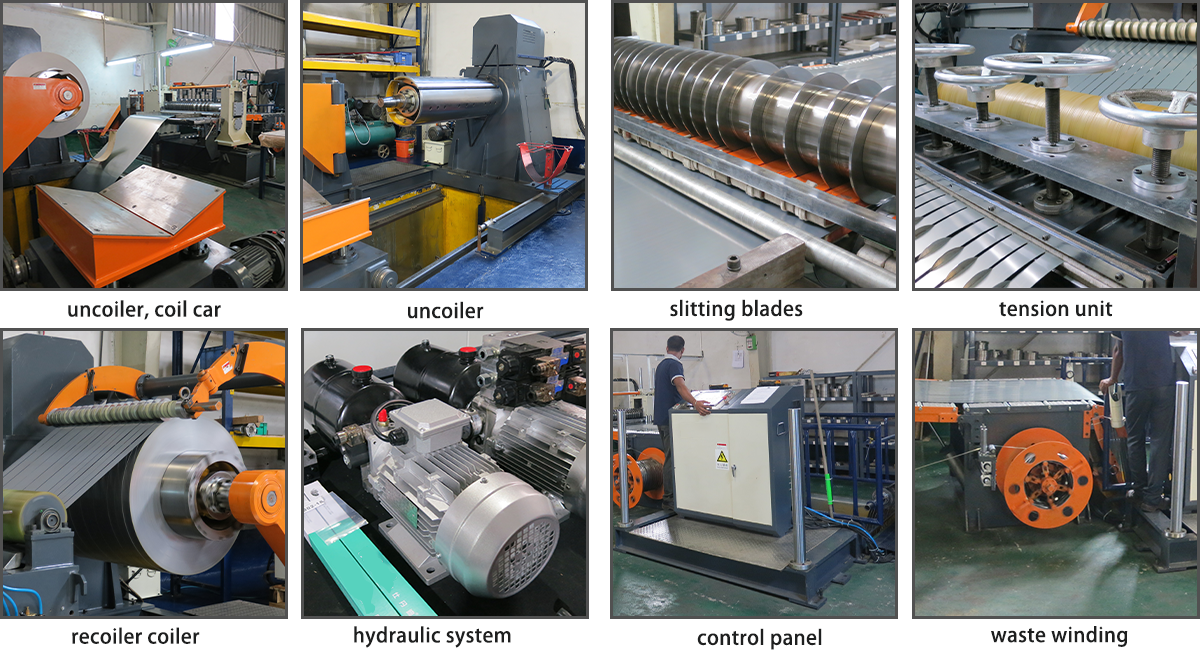

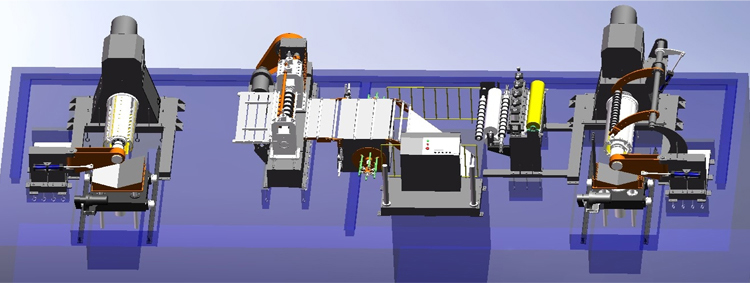

(1) Coil car
(2) Uncoiler
(3) Pinching device, Straightener and Shearing machine
(4) Looper
(5) Side guiding

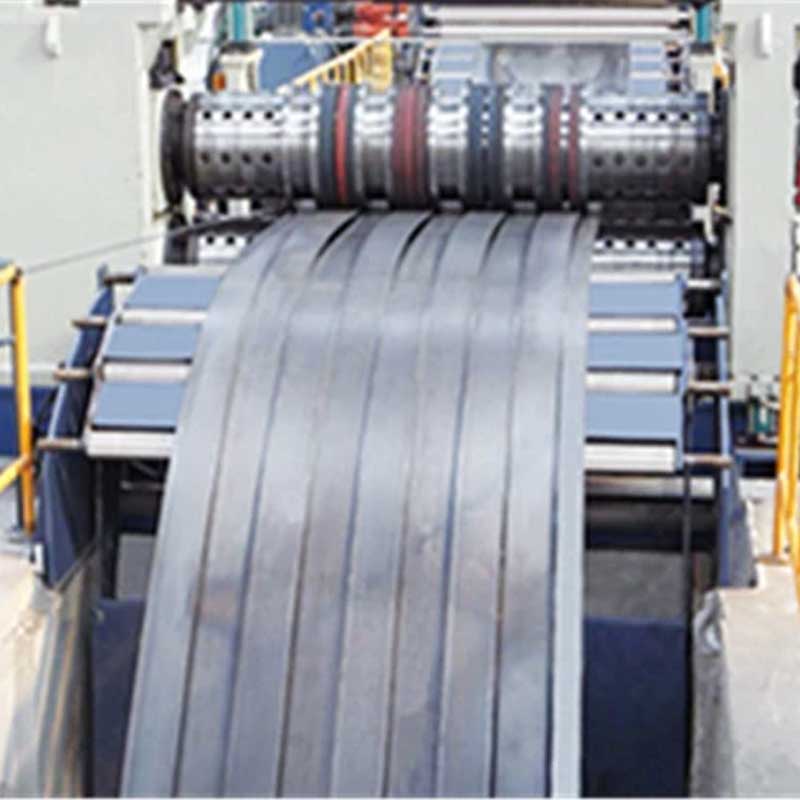

(6) Slitting machine
(7) Scrap recoiler (both sides)
(8) Looper

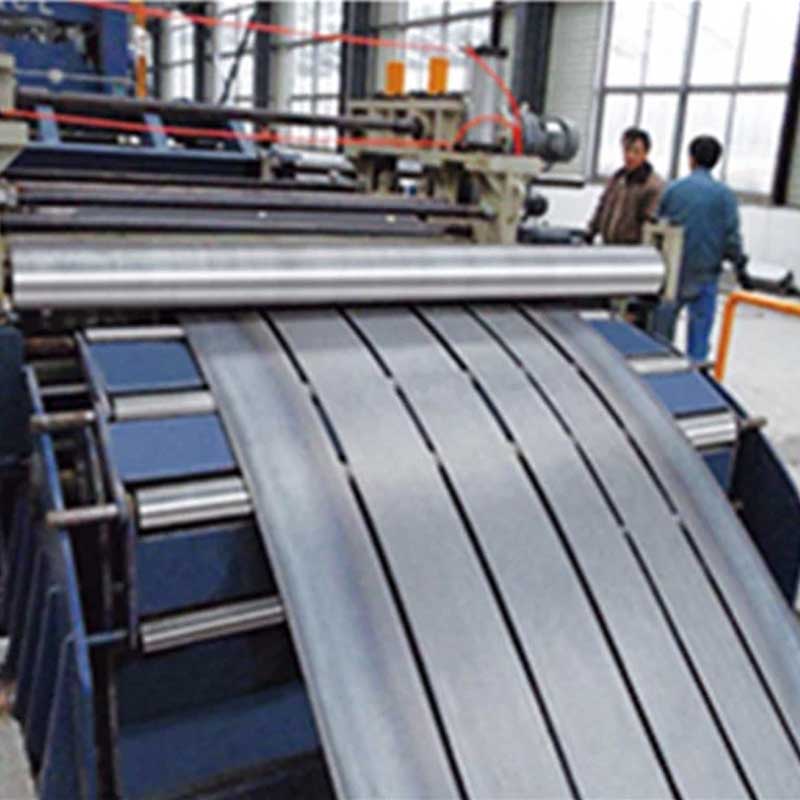

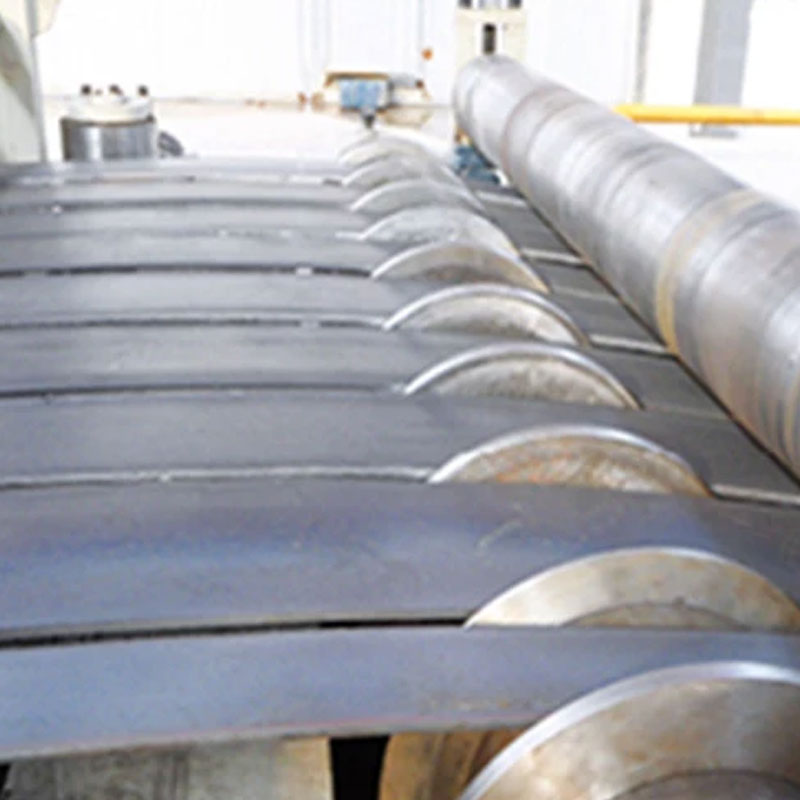

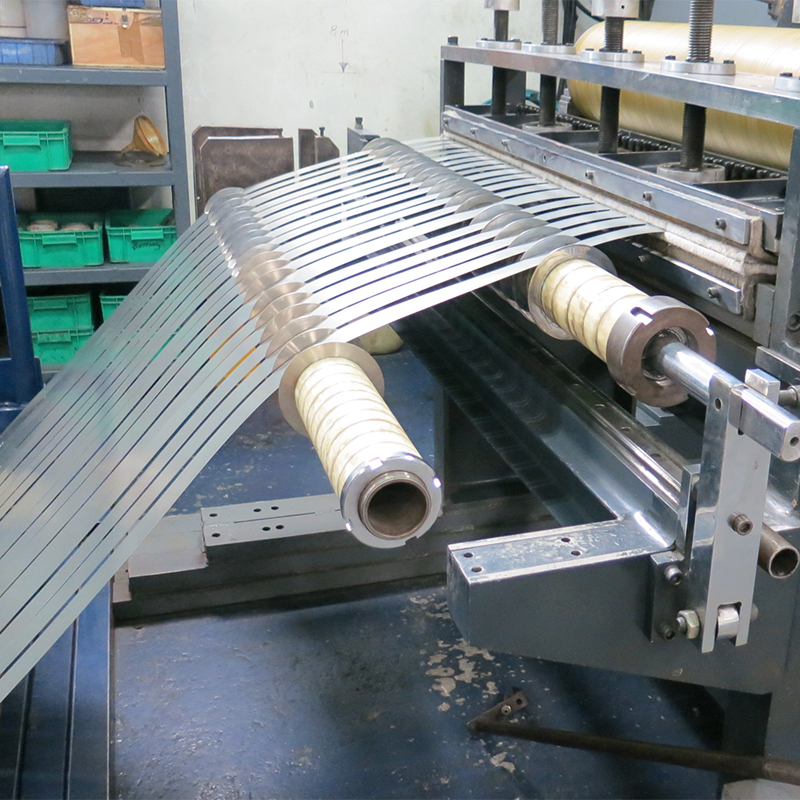

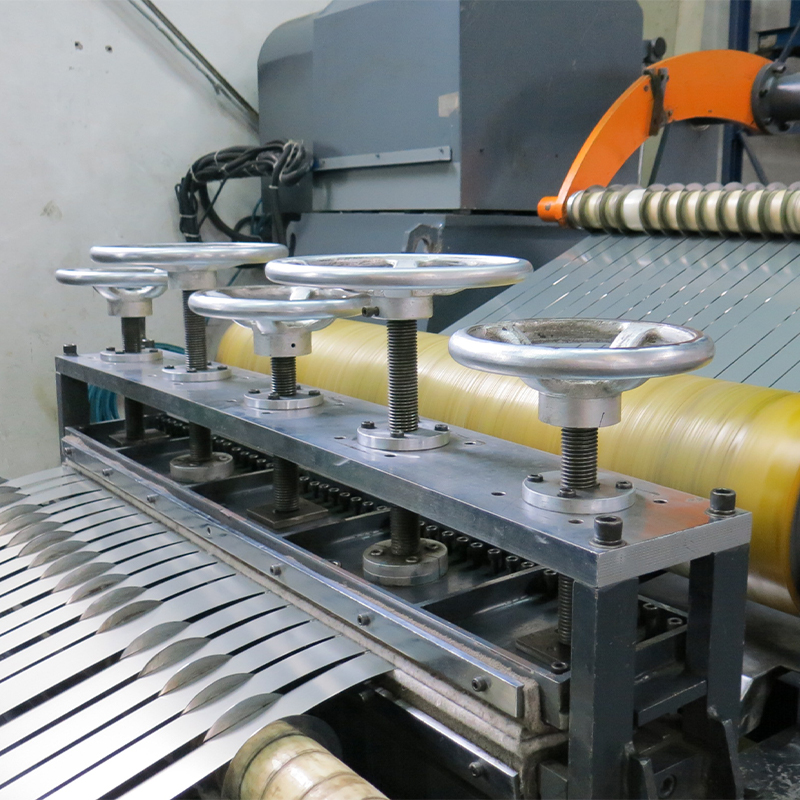

(9) Separator and tension device
(10) Recoiler
(11) Unloading car for recoiler
(12) Hydraulic system
(13) Pneumatic system
(14) Electrical control system
V. Technical process
Coil car → uncoiling → pinching, straightening and coil head cutting → looper → guiding → slitting → side scrap winding → looper → material pre dividing, tension → recoiling → unloading car
LH-SL4.0-16 Technical Parameter.PDF
FAQs
1. What is a high precision slitting machine used for?
A high precision slitting machine is used to slit metal coils into narrower widths while maintaining excellent dimensional accuracy. It is ideal for industries such as automotive, construction, and packaging where precision is critical.
2. How does a high speed precision slitting line improve production efficiency?
A high speed precision slitting line allows continuous uncoiling, slitting, and recoiling of metal coils at faster speeds, reducing downtime and improving overall productivity without compromising quality.
3. What types of materials can a precision slitting line process?
A precision slitting line can handle various metals, including cold rolled steel, stainless steel, galvanized steel, aluminum, and painted steel. It ensures smooth operation and precise cuts for all these materials.
4. What is the difference between a high speed slitting line and high speed slitting lines?
The term high speed slitting line typically refers to a single production line, while high speed slitting lines refers to multiple lines working simultaneously. Both are designed for fast, precise, and continuous slitting operations.
5. Why choose LIHAO Machine’s high precision slitting line?
LIHAO Machine’s high precision slitting line combines advanced PLC control, stable hydraulic systems, and high-strength structures to deliver accurate, efficient, and reliable slitting solutions for a variety of metal coils.
