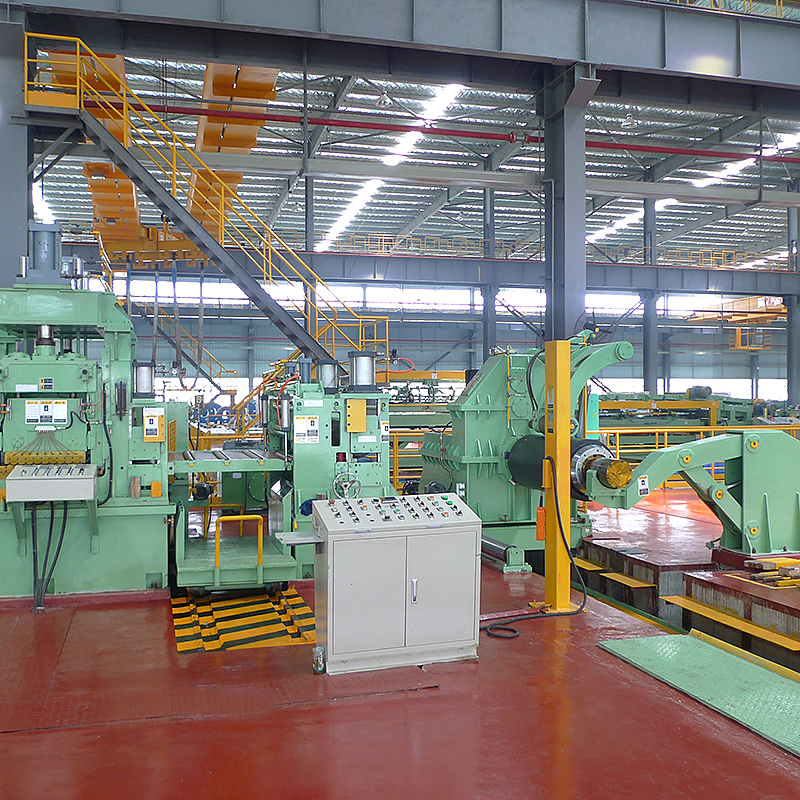

Automatic Slitting Machine Slit Coils with Slitting Knife
I. Introduction
1. The slitting line is used for coil with different specifications, through uncoiling--slitting--recoiling to any needed width coil.
2. Applied to process various of metal coil, such as cold rolled steel, hot rolled steel, stainless steel, galvanize steel, aluminum, silicon steel, colored steel or painted steel.
3. Slitting line is widely applying in metal plate processing industry, like auto car, container, household application, packing, construction material, etc.
Ⅱ.Features
1. With reasonable layout, full automatic, high efficiency, high productivity, high precision, high quality, steady running, easy operating.
2. Imported high-performance Mitsubishi PLC control system is used to realize global control.
3. CPC & EPC system are optional for improve decoiling and recoiling accuracy.
4. With reliable and stable hydraulic system, high-strength, high-rigidity structure, and rational site configurations, the device is more convenient and practical for your operation.
Product Description
Ⅲ.Main Components

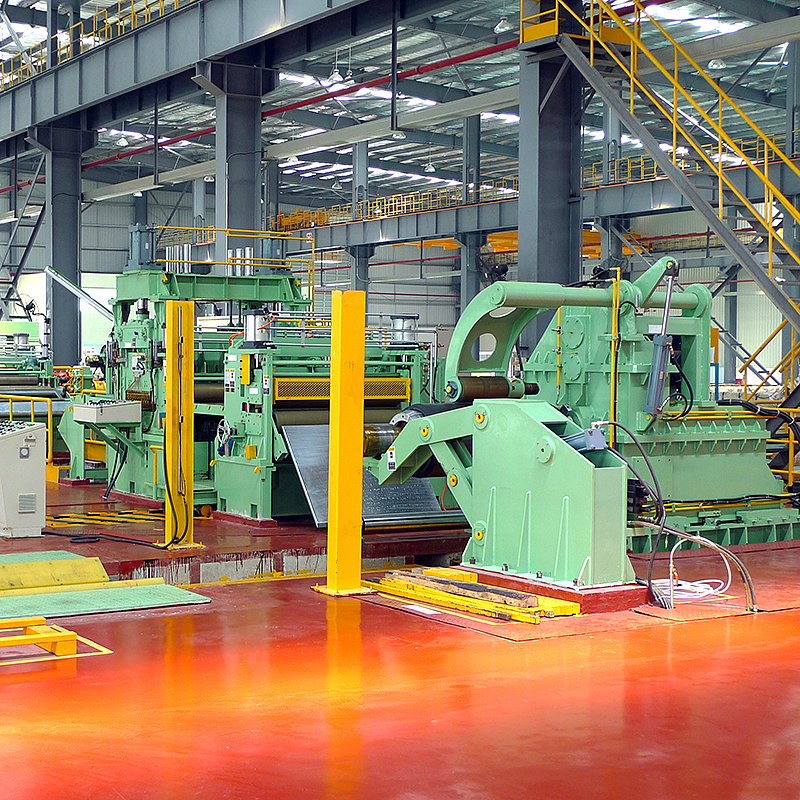

1. Coil car
2. Uncoiler
3. Pinching device, Straightener and Shearing machine
4. Looper
5. Side guiding

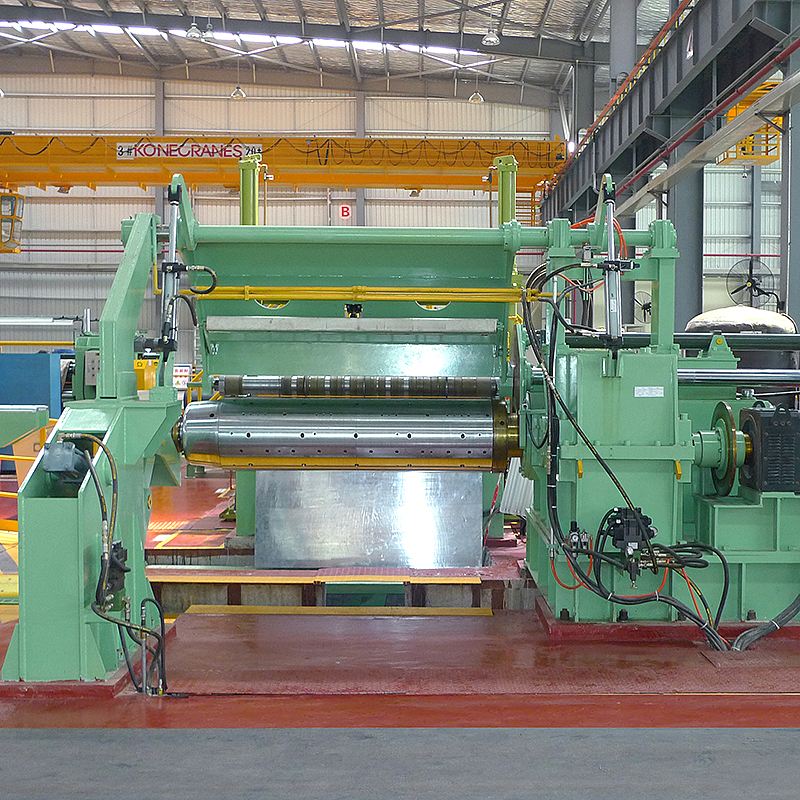

6. Slitting machine
7. Scrap recoiler (both sides)
8. Looper
9. Separator and tension device

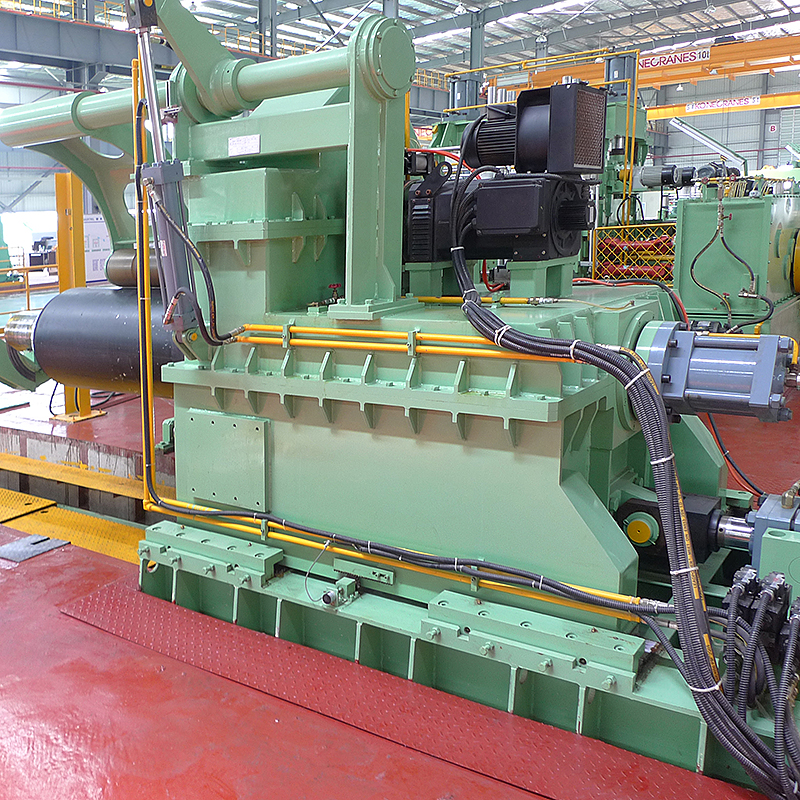

10. Recoiler
11. Unloading car for recoiler
12. Hydraulic system
13. Pneumatic system
14. Electrical control system

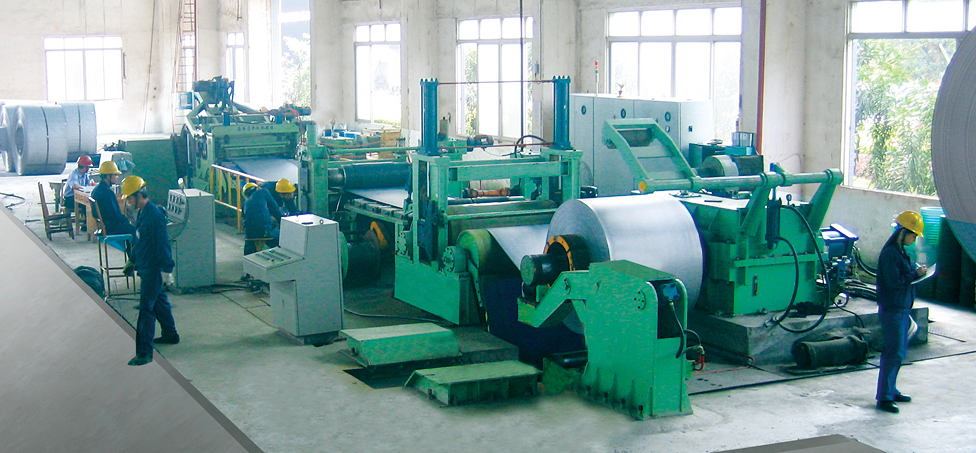

Ⅳ.Technical process
Coil car → uncoiling → pinching, straightening and coil head cutting → looper → guiding → slitting → side scrap winding → looper → material pre dividing, tension → recoiling → unloading car
Ⅴ.Parameter
| Model | Width (mm) | Thickness (mm) | Coil Weight (ton) | Slitting Strips | Slitting speed (m/min) | Floor Area (m) |
| LH-SL-1050 | 1000 | 0.2-3mm | 1-8 | 2-20 | 0-120 | 5×16 |
| LH-SL-1300 | 1250 | 0.2-3mm | 1-10 | 2-20 | 0-120 | 6×18 |
| LH-SL-1500 | 1450 | 0.2-3mm | 1-15 | 2-20 | 0-120 | 6×19 |
| LH-SL-1650 | 1600 | 0.2-3mm | 1-15 | 2-20 | 0-120 | 8×20 |
NOTE:The machine can be desighed according to client's special demand, above details for reference only.
