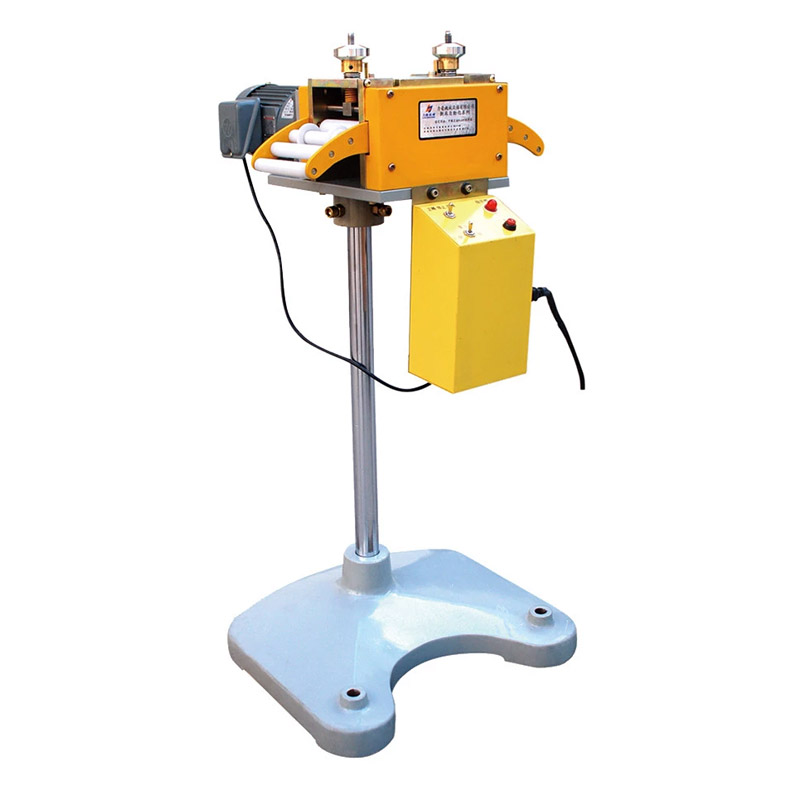

JHL Series Simple Straightener Width:100.0mm Thickness:0.15~0.5mm
For metal material continuous punching use
Can work together with uncoiler
With sample structure
Product Description
Straightener / Leveler
| Specification | |||||||||
| Model | Width | Thickness | Speed | Motor | Roller Diameter | Roller Quantity | Guide roller | Size | weight |
| JHL-100 | 100mm | 0.15-0.5mm | 16m/min | 1/4HP×4P | Φ18mm | 5/6 | Φ38mm*2 | 0.5*0.45*0.95 m3 | 50kg |
Feature of JHL metal sheet strip straightener:
This is a special designed straightener for the connectors that need high precision.
The flattening and the straightening secondary wheels adopt the imported SUJ2 and the HRC60 heat treatment, starts production after plating the hard chrome and then milling to ensure the evenness of the chrome layers and the form tolerances of each bearing.
The flattening adjusting adopts the single point balancing equipment, with the inedex ring, which can find the leveling point rapidly.
Except the straightening roller the additional feeding wheel improves the material punching precision.
Adopt the high precision wheels to prolong the operation time, and the frequency converter can be chosen according to the customer requirement, which enables the special material panel straightening more competitive.
