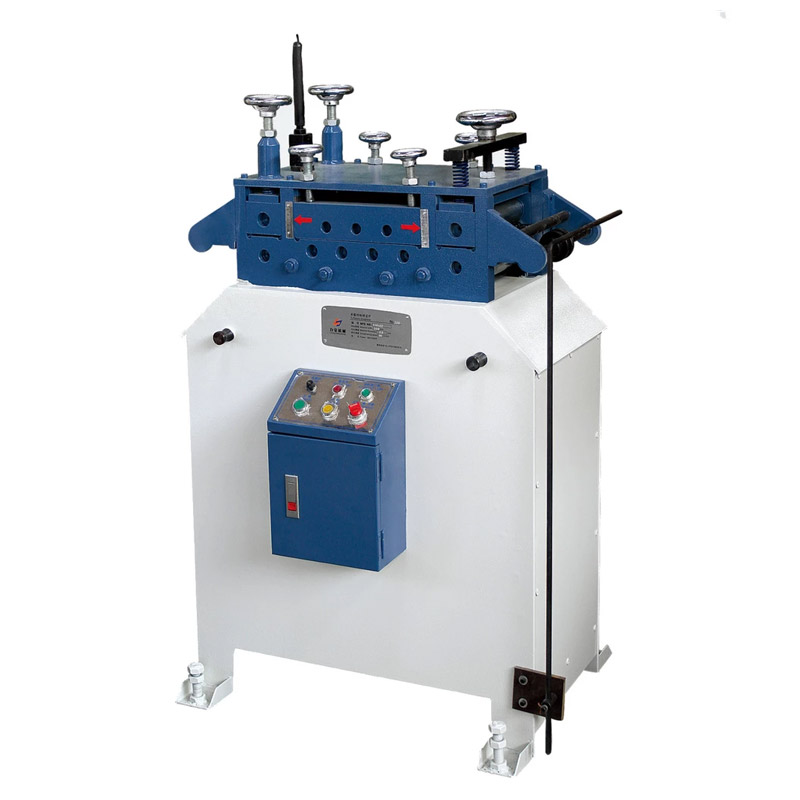

TL Type Straightener For Medium Thickness Sheets (Thickness: 0.4mm~4.0mm)
For different thickness material continuous punching use
Work together with uncoiler machine for automatic production
Can be customized
Product Description
Straightener for Medium Thickness Sheets (CL TYPE)
Description:
We are the Manufacturer and Supplier of Metal Sheet Straighteners of various dimensions. Straightener of high precision, high speed and special structure for sheet is a powerful new equipment, used in high-speed pressing. It can improve the quality and quantity of press workpieces.
Feature:
Precise micro-adjustment device, suitable for precision processing.
Use Japanese electromagnetic contact and electric parts, long service life.
Integrated with Uncoiler and straightener, small volume, simplify feeding operation, reduce cost.
All rolls are made of bearing steel, have all been quenched, hard-chrome plated and grinded with mim HRC60.
Equipped with Frequency converter and induction system.
Selection range is extensive according to the thickness of the materials and work space.
Specification:
TL Type ( For Thickness 0.4-2.2mm)
| Type | TL-200 | TL-300 | TL-400 | TL-500 | TL-600 |
| Max.Material width | 200mm | 300mm | 400mm | 500mm | 600mm |
| Material thickness | 0.4-2.2mm | ||||
| Width.thickness(mm) | 200*1.5200*2.0160*2.2 | 300*1.5300*1.5240*2.2 | 400*1.5400*2.0320*2.2 | 500*1.5400*2.0250*2.2 | 600*1.5450*2.0300*2.2 |
| Max.Feed speed | 15m/min | ||||
| Motor | 1HP | 1HP | 2HP | 2HP | 3HP |
TL-A Type( For Thickness 0.4-3.2mm)
| Type | TL-200A | TL-300A | TL-400A | TL-500A | TL-600A |
| Max.Material width | 200mm | 300mm | 400mm | 500mm | 600mm |
| Material thickness | 0.4-3.2mm | ||||
| Max.Feed speed | 15m/min | ||||
| Motor | 1HP | 1HP | 2HP | 2HP | 3HP |
| Type | TL-200B | TL-300B | TL-400B | TL-500B | TL-600B |
| Max.Material width | 200mm | 300mm | 400mm | 500mm | 600mm |
| Material thickness | 0.4-4.0mm | ||||
| Max.Feed speed | 15m/min | ||||
| Motor | 1HP | 1HP | 2HP | 2HP | 3HP |
