NCR Type NC Servo Roll Feeder For Sheet Thickness: 0.2mm~2.2mm, Pneumatic Release System

Unique Japanese technology design

Reliability & rigid structure

High precision & durability

High Productivity

Product Description

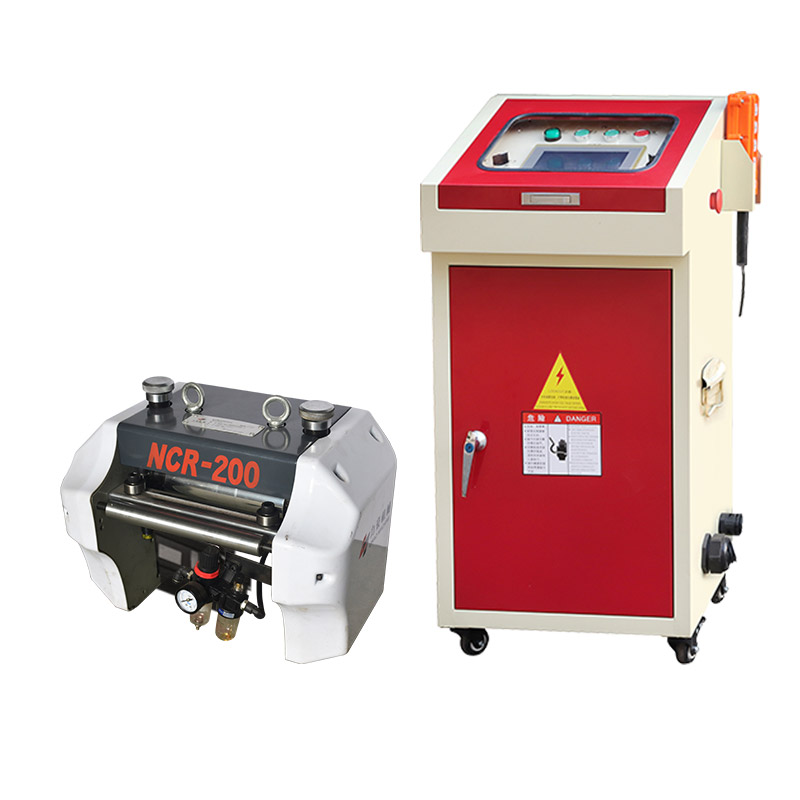

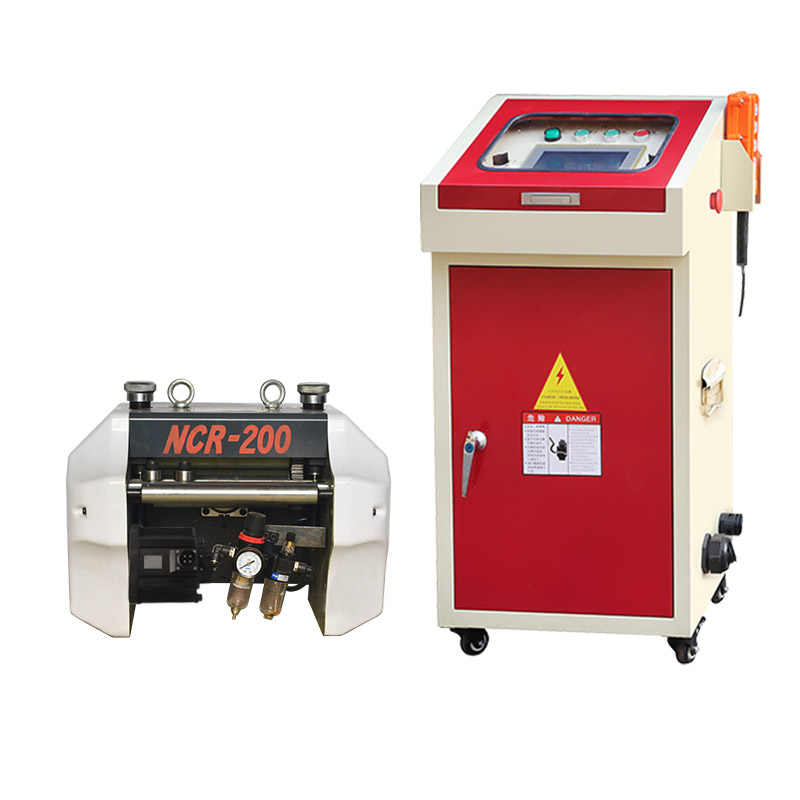

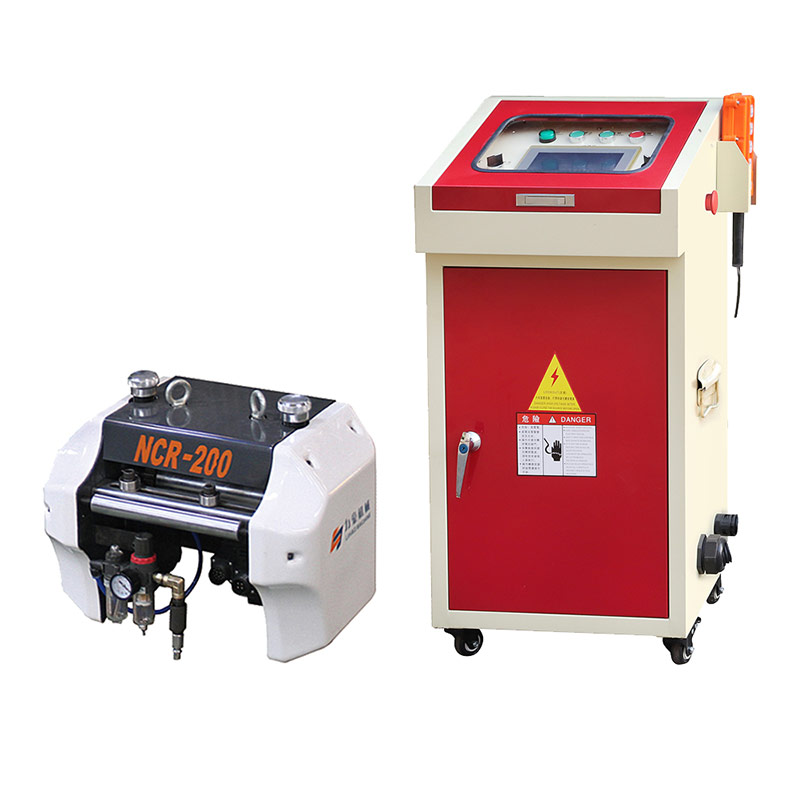

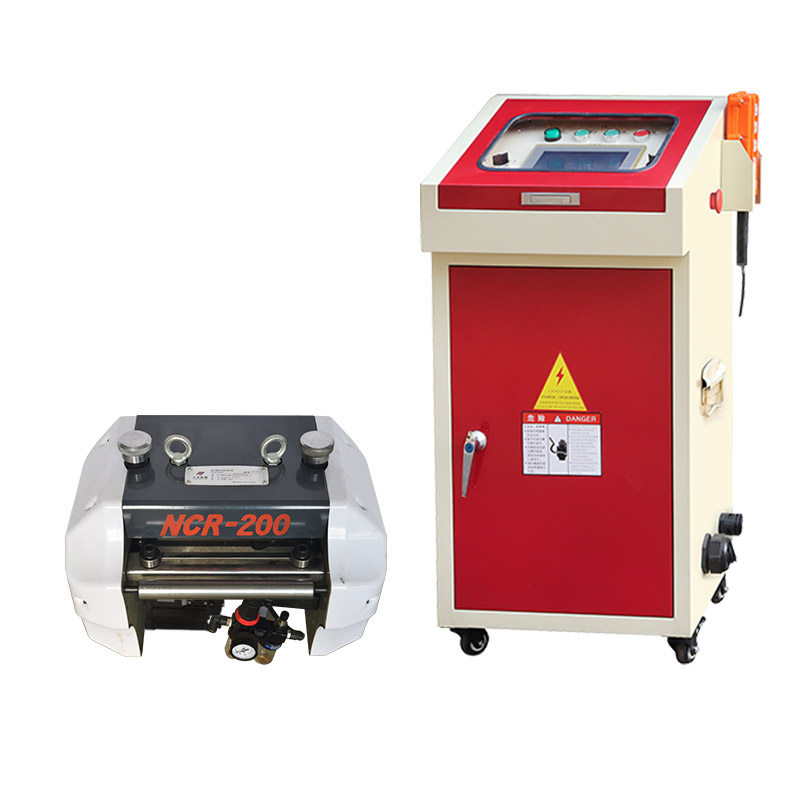

NC Servo Roll Feeder

Feature:

1. Suitable for material feeding with different thickness and length.
2. Suitable for high speed and long size feeding to improve productivity and feeding accuracy.
3. Simple operation panel, equipped with button digital code of feeding length and feeding speed, the operator can set it arbitrarily, fast and accurate, the feeding length can be from 0.1mm-9999.99mm.
4. Air pressure type relaxation (accurate relaxation point), can be used for a long time, zero fault.
5. According to customer requirements for release type.


Structure:

1. High quality, brushless servo motor drive, effectively shorten the distance adjustment and testing time.
2. High sensitivity decoder is used for accurate insemination and better feeding accuracy.
3. Equipped with timing belt transmission, can eliminate gear gap, wear, no noise, no lubrication, safety and environmental protection.
4. Motor internal device can avoid damage during handling and loading and unloading.
5. The best cost-effective feeder below 400 times .



Product Description:

NCF Type NC Servo Roll Feeder For Sheet Thickness: 0.6mm~3.5mm, Pneumatic Release System    NCF Type NC Servo Roll Feeder For Sheet Thickness: 0.6mm~3.5mm, Pneumatic Release System


·Control panel

1. HMI adopts Taiwan screen pass 7-inch hd screen, with uniform color and The human-machine interface adopts Taiwan screen pass 7-inch hd screen, with uniform color and exquisite picture quality. It is applied in most industrial environments with high reliability, and supports serial port and network communication synchronously

2. The switch adopts sliding contact, has self-cleaning function, normally open and normally closed contact adopts separate bonding structure, can work with different poles, equipped with anti-rotation positioning and stop loose mounting gasket

3. It adopts self-compound flat button button, which is light and light in strength and moderate in key range. The contact of the modular structure is made of ketone compound point, which has strong conductivity and large carrying current, and has a life span of 1 million times.


• Operating handle

1. The electric control box is equipped with an operation box, which is convenient for personnel transposition operation, time-saving, waterproof and dustproof, high material strength, good electrical conductivity and long service life.

2. The electric control box is separately set with emergency stop button, which is safe and reliable, and can effectively reduce the opening and closing of the electric control box, and effectively protect the operation panel.


NCR Type NC Servo Roll Feeder For Sheet Thickness: 0.2mm~2.2mm, Pneumatic Release System    NCR Type NC Servo Roll Feeder For Sheet Thickness: 0.2mm~2.2mm, Pneumatic Release System

· Feed roller, block wheel

1. The feeding roller adopts the galvanizing roller without power, which is formed in one, and the surface is scratch-resistant and wear-resisting mechanical bearing, which is flexible in rotation and durable

2. Hard chrome plating on feeding wheel, hard chrome hardening HRC60, strong locking force on locking handle, convenient locking, smooth rolling of roller


·Feed cylinder

Using genuine yade polite cylinder, alloy cylinder body, hard oxidation, riveting no leakage, solid aluminum CNC precision machining, inner wall grinding smooth, non-clamping, high efficiency, high strength operation, durable, suitable for all kinds of working conditions.


NCF Type NC Servo Roll Feeder For Sheet Thickness: 0.6mm~3.5mm, Pneumatic Release System    NCR Type NC Servo Roll Feeder For Sheet Thickness: 0.2mm~2.2mm, Pneumatic Release System

·Servo Motor

Brands use yaskawa servo motor and drive (optional), improve equipment performance significantly, the maximum play to the device performance, problem solving, yaskawa motor original "no adjustment function" further deepen, without tedious tuning work, stable movement, can be used in harsh environment and energy saving, conform to safety standards, time limit for visualization.


·Transmission gear

Gear processing process includes the following processes: gear hair cultivation processing - tooth surface processing - heat treatment - tooth surface fine grinding. Maopei parts are mainly forgings. Through normalizing treatment, the machining type of maopei parts is improved to facilitate cutting .According to the gear design drawings, rough machining, and then semi-finishing, turning, rolling, gear shaping, so that the basic gear shape; After the heat treatment to improve the mechanical properties. According to the design requirements of the drawings, the final finishing, finishing the benchmark, finishing the tooth profile. After the above treatment, our gear grade can reach grade 6, high wear resistance, high strength, long service life.


Specifications

Mode

NCR-200

NCR-300

NCR-400

NCR-500

Max.feeding width(mm)

200

300

400

500

Max.feeding length(mm)

9999.99

9999.99

9999.99

9999.99

Material thickness(mm)

0.2-2.2

0.2-2.2

0.2-2.2

0.2-2.2

Mould line height(mm)

44-136

44-136

44-136

44-136

Max.feeding speed(m/min)

20

20

20

20

Release style

Pneumatic

Pneumatic

Pneumatic

Pneumatic


Configuration table

Model/ Specification

NCR-200

NCR-300

NCR-400

NCR-500

Motor model

SGMGH-05A

SGMGH-09A

SGMGH-09A

SGMGH-013A

Drivers model

SGDM-05ADA

SGDM-10ADA

SGDM-10ADA

SGDM-15ADA

      Release air pump

1pc

1pc

2pc

2pc

     Feeding              capacity
  (thickness X         width)

1.6

200mm

300mm

400mm

500mm

2

175mm

300mm

335mm

500mm

2.2

150mm

290mm

290mm

450mm
