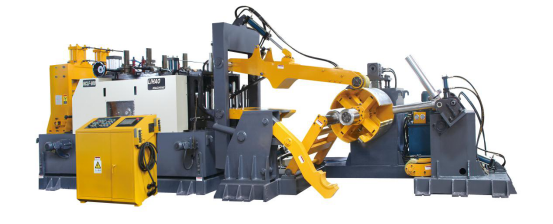

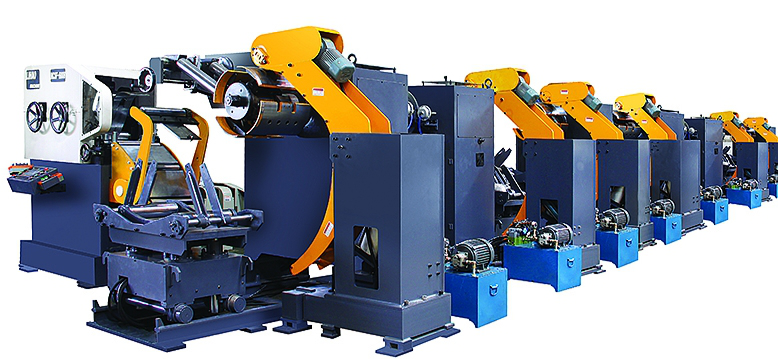

NC servo three-in-one feeder is widely used on the basis of precision technology of internationally renowned companies such as Switzerland and Germany. Combining our more than ten years of experience in the production of wire feeders, we carefully research and design a set of unwinding, flattening and sending three In the large-scale stamping automation equipment with large functional materials, the overall structure of the model is compact, no need to reserve materials, accounting for about 50% of the traditional split stamping production line, which greatly reduces the automatic production of space, centralized technology and good synchronization. High precision, high efficiency, energy saving, environmental protection, space saving and many other advantages.
The three-in-one feeder is divided into three types: standard, medium plate and plate. The thickness of the material is according to the applicable classification standard. The sheet material with a thickness of 0.3-2.2mm is automatically produced on the integrated machine.
It is 0.5-4.5mm thick plate in automatic production type three-in-one feeder, which is mainly used in electric parts, automobile parts, ceiling stamping, and other motor rotor plate stamping .
The automatic production machine is 0.6-6.0mm thick plate, which is mainly used for the stamping application of metal stamping materials such as shelf stamping, stamping, brake casters and so on.The three-link feeder is used for uncoiling, leveling and feeding part and three functional components of independent electric control system.
At the same time, according to the needs of actual stamping production, increase the other auxiliary devices, such as hydraulic transport vehicles, rack and hydraulic system, the pressure arm, pneumatic feeding arm, leveling material head device, electric control system of hoist, automatic oiling machine and so on, compared with the traditional separation automatic stamping production line, the use of feeder has four major advantages:
1，Wide range of applications, so that automatic stamping plate processing is possible.
In fact, these three kinds of materials are the automatic equipment specially developed and produced for the automatic processing of thick plate materials. It can not only process the traditional stamping production line, but also process the plate, which can process the thick plate materials with the maximum applicable material thickness up to 12mm.
2，Low labor intensity, high production efficiency.
Triple feeder will feed frame, flow ping, feeding three feature sets are placed on the same machine, automatic feeding, open book, feed, leveling, feeding, etc. All the production process, 3, 4 in order to fully feed together before, now use triad feeder only need control can easily set, radically reduce the labor intensity, improve production efficiency.
3，Compact structure and small space.
Traditional style of stamping production line in the layout, frame materials, leveling machine, feeder between three types of equipment to set aside for a long time of feed, material is thicker, the needed materials waiting area, sometimes even more than 10 meters, affected by the customer when planning and spatial layout, and the three layers of feeder will be packaged in three basic models of whole, compact structure, no material waiting area, to maximize the customer's workshop space applications.
4 ，Small wear, low failure rate, long service life.Three-in-one feeder adopts optimized structure design, all parts and wear parts adopt industry standard, and has automatic lubrication system.
