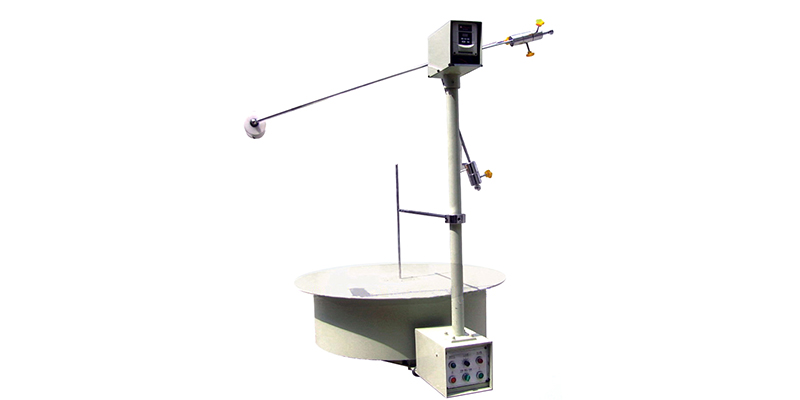

Plane electronic feeder is also called disc feeder, plane material carrier and disc material carrier. It is a horizontal material carrier.Before the plane electronic feeder, light, narrow material feeding uncoiling is used in vertical material decoiling, although also can realize automatic feeding, but the existence of material roll diameter strictly limited, feeding the poor stability, easy cut material surface, feeding speed is slow, poor synchronicity a series of problems, and the plane electronic feeder after birth and use are fundamentally solves the problem of the series.
Plane electronic feeder is designed for light, narrow material feeding uncoiling and special research and development production models, it adopted plane circular horizontal loading way, not only material inside totally unrestricted, large carrying type (according to different model can carry 500 kg to 3000 kg), and can be a plane carrying materials plate stacked multi-volume material, can use forklift stacking multiple material directly, simple and convenient loading and unloading material, saves the time in the process of stamping, more important is its use tracker, swinging rod, guide wheel, speed tracking with frequency converter, can achieve the function of automatically adjusting speed, feeding speed and stable,It can realize the effect of complete synchronous operation with the punch press.
In actual use, connected the power cord, place the material on the disc carrier materials plate, the material is first lead to bypass the feed wheel make it into the follow-up after feeder, start the plane electronic feeder to the uncoiling operation feeding, when material pull the feed wheel, long swinging rod followed slowly swing, when placed swing rod to start position, square aluminum piece touches start switch, rotating disk released material.When material less than plane electronic feeder on the right side of the balance beam weight, long swinging rod automatically returned to the stop position, wheel stops rotating, when swinging rod action, installed on the pendulum shaft's eccentric automatically adjust speed tracking, the speed tracking feedback to frequency converter, so as to achieve the function of automatically adjusting speed, namely can coordinate with stamping speed to variable speed punch stamping automation production, high efficiency, stable and reliable, practical, terminals, connectors, precision electronic products stamping production ideal feeding equipment.
