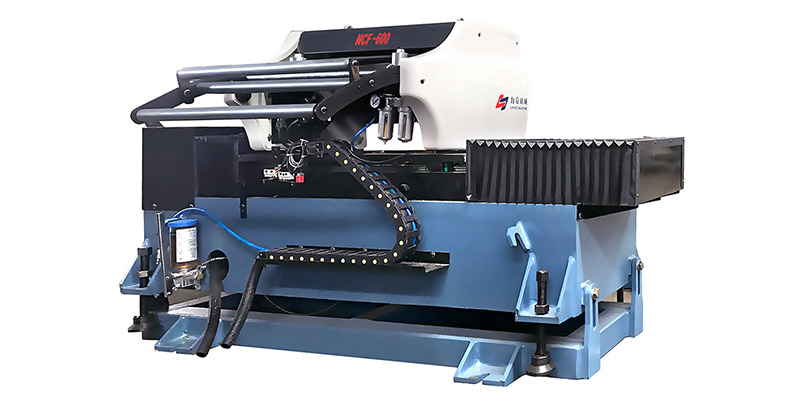

Most pressing the owners manual for punching machine is used for feeding, this kind of mode of production labor intensity is big, the human cost is high, the risk is bigger, once the improper operation or overwork to punch in the feed will be serious safety accidents, and feed for the first time consuming more than artificial feeding machine, the second low accuracy, increase the production time, low production efficiency and blanking wafer yield is low.Aiming at the blanking processing and production of circular sheet, Lihao machinery has developed a high-quality biased feeder suitable for stamping forging processing with different material thickness and feeding step length.
The swing feeder adopts large touch screen PLC independent electric box, high clarity operation screen, high degree of automation, configuration memory function, automatic diagnosis system, reduce production fault and maintenance cost.Follow the power of hao xiaobian to understand the left and right swing feeder operation process and parameter setting method
I. Test screen:
1. Off-balance and off-Balance reversal buttons: refer to the press of the off-balance feeder in the manual state to make the machine move left and right. However, the premise is that the off-balance button is pressed in the use of the off-balance state.
2, manual stamping and manual cutting: refers to the use of manual control of the punch press and shearing press, shearing press is used to cut waste.If the punching disc diameter is larger, and the punch speed is faster, then you can use the swing feeder to control the punch, that is, after the swing and feed, give a signal to start the punch.
3, stamping mode single punch: mainly used for debugging equipment, do not press this button when NC bias feeder automatically runs.
4. Whether to start the punch press after cutting: This button is mainly used to switch whether the feeder stops when the shear press cuts waste, and then start the punch press according to the set value of the starting time after cutting.
Ii. Setting screen:
Parameter setting: set the diameter and number of the swing circle of the punch swing feeder. The stamping time and shearing time are generally set at about 0.5 seconds, which is enough.If the setting is too long, press twice or shear twice.The number of cuts set refers to the number of stamping disc, scissors to cut off the waste.
Iii. Operation Screen:
1, manual forward rotation and manual reversal: refers to the swing feeder in manual state, can feed or return material, automatic when invalid.
2. If it is in the state of deflection no, it can be used as an ordinary feeder. The feeding length is the set value of the diameter of the wafer.
3, count switch: refers to whether to use the counter to calculate the output of the product, to zero, press the count reset button.
4. After debugging, the machine will tilt the stamping deflect feeder to the starting position of one side. First, press the automatic start button and the machine will automatically deflect and feed.If the pendulum machine wants to stop, please press the automatic stop button not to switch between manual and automatic buttons, otherwise it will be proofread again.
