Automatic Uncoiler winder coil machine roll winding machine

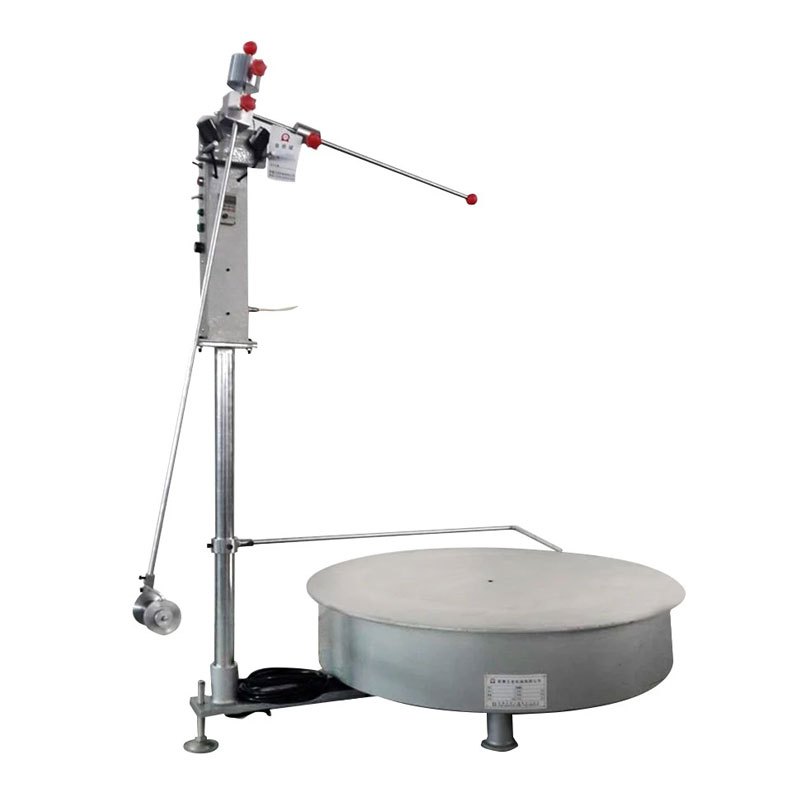

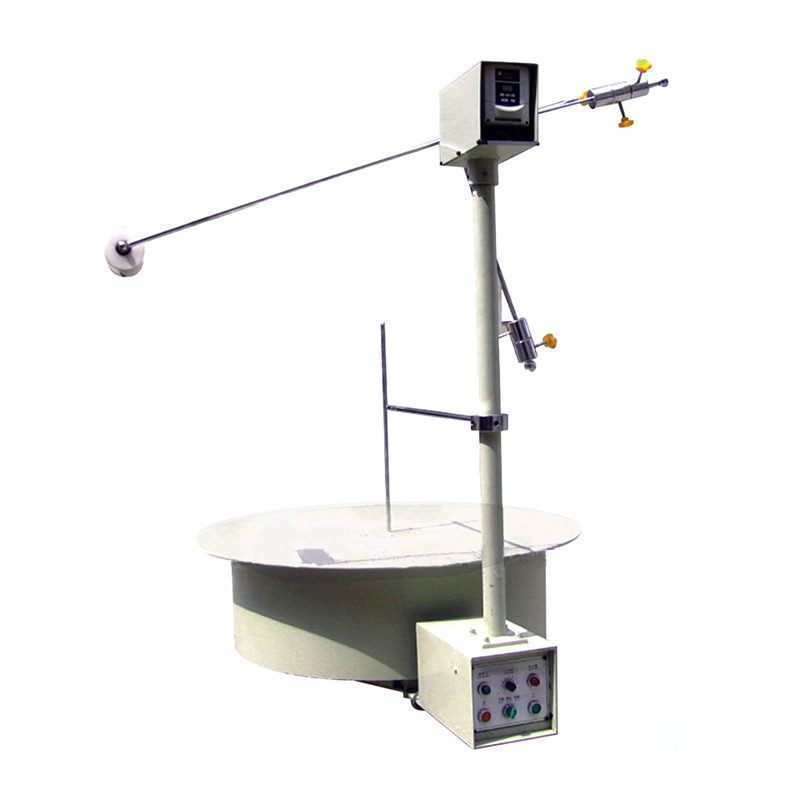

The pallet-type uncoiler is a horizontal decoiler specifically designed for uncoiling narrow and flexible materials. This type of uncoiler has the simplest structure and the most convenient unloading. It is suitable for stacking multiple rolls of material with a width less than 130mm, a thickness less than 1.0mm, and a total weight less than 800kg at a time.
Product Description
Description:
Save floor space, coil material loading time and increase production with this excellent LIHAO Electronically Controlled Pallet Reel. The FU's specialty is light gauge, thin material with narrow width, such as tab stock material for beverage cans, electrical parts and other related industries.
Features
1.Adopt horizontal turntable feeding style, with large loading capacity, can up to 2T, the coil material can be placed overlapped to reduce the material loading times and save material changing time. It adopts two-stage speed and can adjust and track the machine working speed separately, the feeding speed can up to 0-30m/min.
2.With reasonable structure, low gravity center for discharging material.
3.Two-stage speed adjusted automatically, adopt tension switch device, the tension, the first stage and second stage can be adjusted individually, feeding smoothly.
Working principle
Flat decoiler adopts horizontal flat carrying material method, through induction swing rod to control frequency conversion motor drive disc rotation, material through the steering wheel into the pulling roller, speed regulating motor drive the pulling roller rotating through the tensioner, feeding the material, when the material length is more than the press machine needed, swing rod swing downward, disc motor speed will slow down and eventually stop, at the moment, the pulling roller continue to rotating. When the flat disc stop, the material is pulled tightly, the pulling roller will stop, but the roll motor will continue to rotate, the tensioner skidded and does not work, the tension can be adjusted to pull the material without damage, thus to continuously feed in a cycle.
The machine has the characteristics of strong structure, overlapping placed, speed adjustable, and variable speed, easy operation and so on. It is suitable for all kinds of metal, nonmetal and thin coil material.
Specification:
| Model | FU-600 | FU-1000 | FU-2000 |
| Thickness (mm) | 0.1-1.0 | ||
| Width (mm) | 130 | ||
| Loading weight (kg) | 600 | 800 | 800 |
| Loading height (mm) | 600 | 600 | 600 |
| Coil outer diameter (mm) | 1000 | 1000 | 1200 |
| Speed (m/min) | 0-30 | ||
Standard Accessory:
Coil material head up/down controller
LED display and speed controller
Emergency stop

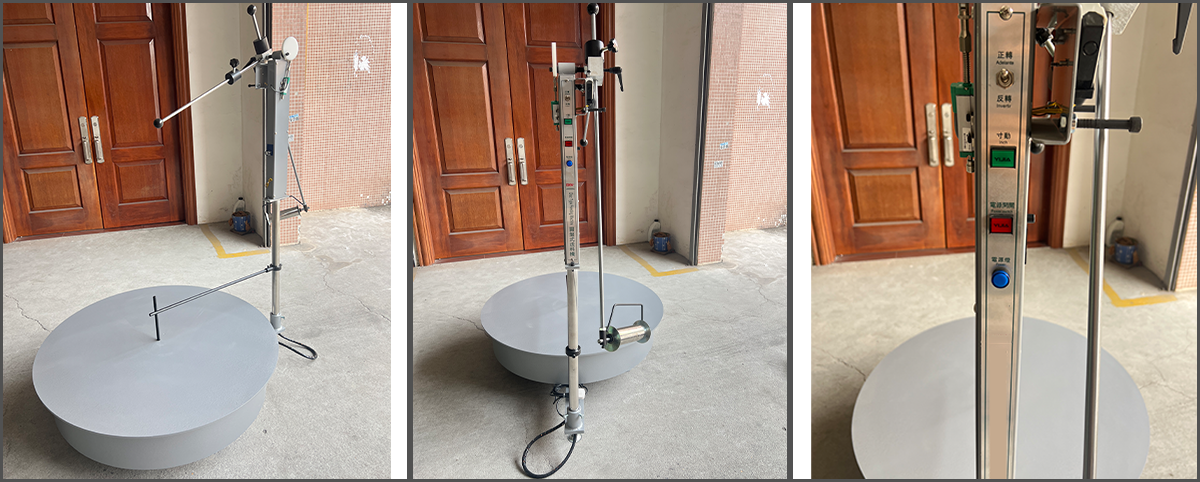

FU Uncoiling Machine
Application of Pallet Uncoiler Machine
Usually, FU decoiler machine is working with high speed punch press machine.

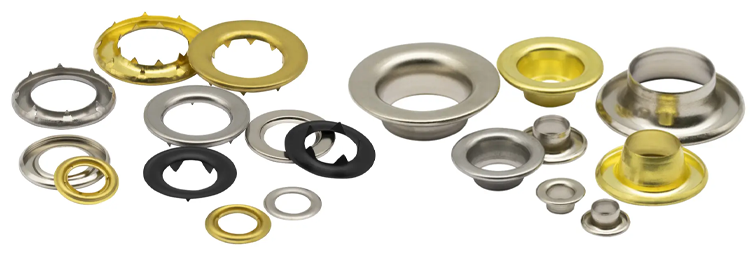

Pallet uncoiler machine Widely used in Garment accessories and electric connectors Automatic production such as metal button, eyelet, Led stand, terminal, saw blad, precision mobile phone accessories.
FAQs
Are you manufacturer or trader?
We are a manufacturer of die cutting presses with more than 20 years of experience in the die cutting industry.
Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
Can you provide some videos of your factory and the machine working?
Yes, please visit our website to get more videos.
