    Machine description

Line-up with leveler economy and practically.

Save production time by loading the next coil.

Double head rotation by foot pedal.

Details information refer to the introduction of MT-type.

Machine struture:

1. A coil keeper

2. Tiles

3. Connecting rod

4. Adjusting screw

5. Adjusting handle

6. Hand wheel

Feature:

1. It can be used together with the Straightener machine (TL-type), and the effect is good.

2. Save refueling time, increase production capacity, reduce costs, and strengthen competitiveness.

3. For other special devices, please refer to MT type detailed introduction.

Body structure

1. Three-Part Construction: This machine consists of the frame, spindle case, and load rack. The main shaft box serves as a long-wheelbase support carrier, with a compact design that occupies minimal space but provides high load capacity and flexible operation.

2. Dual-Axis Structure: Featuring a two-axis setup, it allows material loading during operation, significantly reducing material change time, increasing production efficiency, and lowering production costs.

3. Motorized Options: Available in motorized and non-motorized versions, this uncoiler can be paired with a straightener for expanded functionality.

Main shaft and tile

1. Tile Construction: Made from A3 steel, the tiles undergo a flashing process post-blanking, followed by milling for inclined angles, bending, drilling, and milling for precision.

2. Non-Slip Nuts: All fastening nuts are non-slip to prevent loosening during operation, thus avoiding potential machine damage or safety risks.

3. Precision Machined Spindle and Sleeve: Both spindle screw and screw sleeve are finely machined to ensure smooth adjustments to inner and outer diameters, minimizing downtime.

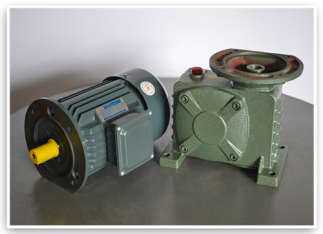

 Power part

1. Model 80 Worm Gear Reducer: Equipped with a vertical reducer that converts motor speed to the desired rotation rate, delivering greater torque for high-load operations.

2. Vertical Motor Design: Using a low-vibration, low-noise vertical motor with a pure copper stator rotor, it has a lifespan ten times longer than standard coils. Ball bearings on both ends ensure low friction and reduced operating temperatures.

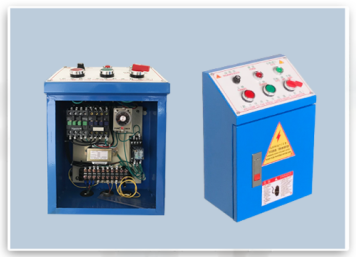

Electric control box

1. High-Durability Relay: Incorporates a silver alloy relay with full copper coil and flame-retardant safety base for durability.

2. Safety Delay Circuit: Uses a time-delay relay with silver alloy contacts to accommodate various delay intervals.

3. Reliable Switching: The switch features sliding contacts with a self-cleaning function, and the normally open/closed contacts use a separate bonding structure to support different poles. Includes anti-rotation gaskets to secure the mounting.

4. Long-Life Buttons: Utilizes a self-duplex flat button with a moderate key range and light touch force. The contact points are keto-base composite, offering strong conductivity and high current capacity, with a lifespan of up to 1 million cycles.

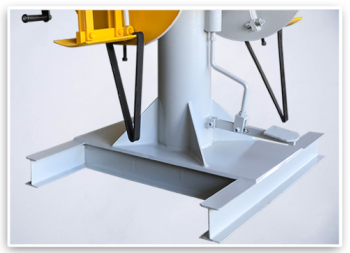

The base part

1. Welded Frame: The entire frame is designed with welded joints using second protection welding. Vertical fillet welding is done first, followed by flat fillet welding; short welds precede longer welds to ensure tight seams and enhanced strength.

2. Precision-Cut Plates: All plates are laser plasma cut for high accuracy.

3. CNC Processing: All parts are CNC-processed for high interchangeability.

4. Simplified Structure: The machine’s design facilitates assembly and replacement, reducing maintenance costs significantly and allowing general technical workers to handle servicing.

Option:

Hydraulic expansion of the mandrel ( for 3 ton above uncoiler )

Pneumatic / hydraulice coil hold down arm (for 1.6mm above thickness )

AC variable speed drives

Load coil car

Equipment installation:

1. Remove the packing liner (wooden box) provided with the machine before installation.

2. This uncoiler is easy to install. Hang the material rack on the foundation and then hit it.The underground bolt can be locked tightly.

3. Attention must be paid during installation: the centerline of the material frame (that is, the length of the blade center) must be on the same centerline as the die or punch (or shears, etc.).

4. After installation, remove the anti-rust oil from the machine and refill it with lubricating oil.

Maintenance and notes:

1. Please check the specifications of the material rack before use, and it is strictly forbidden to overload it.

2. Add butter to the mouth with butter every week.

3. The fasteners on the machine should be checked regularly to prevent loosening.

Note: Custom engineering can be provided to meet any application demands.
