Triad feeder is the punch with the top automation equipment collocation, match with the punch of short process stamping production line is the strongest industry the most widely applicable scope, processing capacity, stability, highest, the best automation production line winding pattern and its applicable material width can reach 50-2000mm, suitable material thickness of 0.3 to 10 mm.The high performance and long service life of the three-in-one feeder have been widely praised by the market and customers.
The three-in-one servo feeder can process a variety of products, involving dozens of automobile, hardware, electronics and other manufacturing industries.And the processing of different products on the punch feeder automation equipment requirements are different, so there are many types of three-in-one feeder equipment, and the common is the thin plate three-in-one feeder, the middle plate three-in-one feeder, the thick plate three-in-one feeder, the high strength plate three-in-one feeder.
Then the four common three in one servo feeder has their own characteristics, how to match other material frame, leveling machine equipment?Shenzhen Lihao Machinery here to give a detailed description.

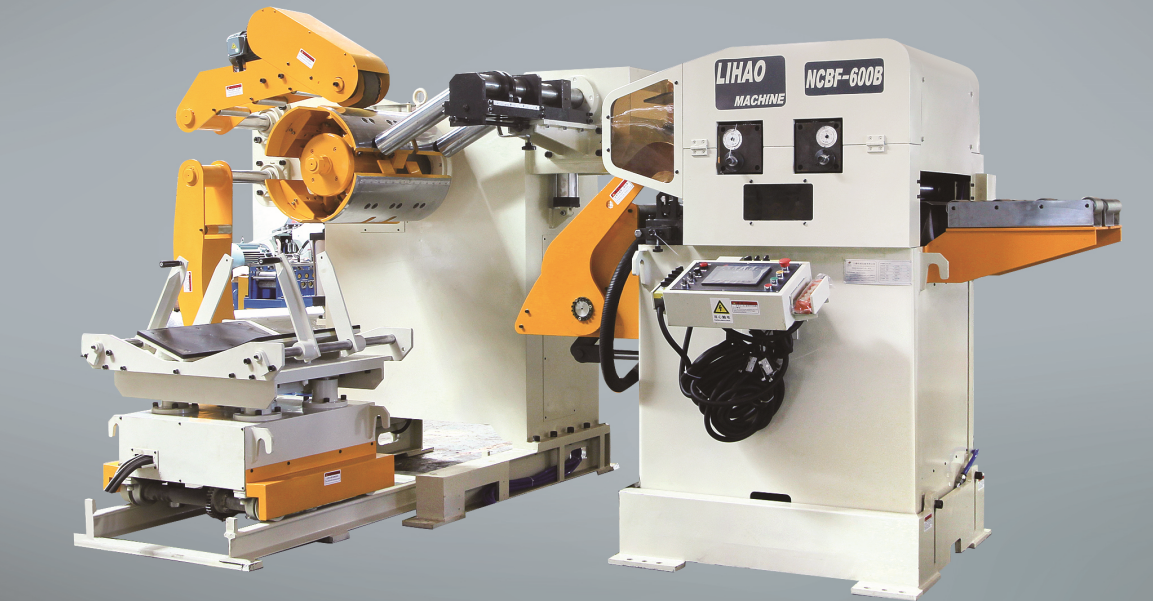

I. Advantages of three-in-one medium plate feeder
1. Oil pressure automatic filling pressure device ensures stable tension of material frame and prevents loose coil material, which is safe and reliable.Oil pressure expansion is adopted to reduce labor intensity and safety accidents.
2, the material coil automatic pressing device, to avoid thick material rebound loose.
3. Suitable for all kinds of metal coils of 0.3-3.2mm thickness, developed and designed for saving space and easy operation.

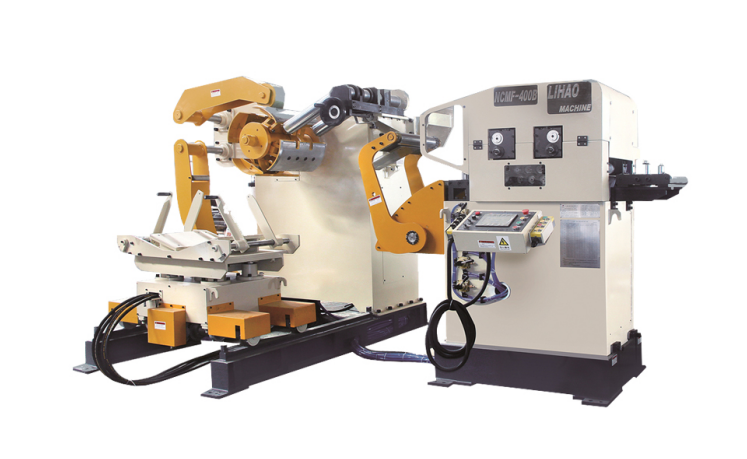

Ii. Advantages of medium and thick plate three-in-one feeder
1, the middle plate three-in-one feeder leveling roller relaxation part by the standard cylinder to complete the piston cylinder relaxation, suitable for the material thickness of 0.5mm ~ 4.5mm sheet coil stamping leveling feeding.
2. Eccentric structure is adopted for leveling and relaxation. Double cylinder is adopted for realization.Because the exhaust pipe is equipped with a super speed exhaust valve during relaxation, the relaxation speed is fast.
3, the worm wheel lifting device, so that the feeding height within the range of 100 applicable to customers with different specifications of the product mold height, convenient and reliable adjustment.

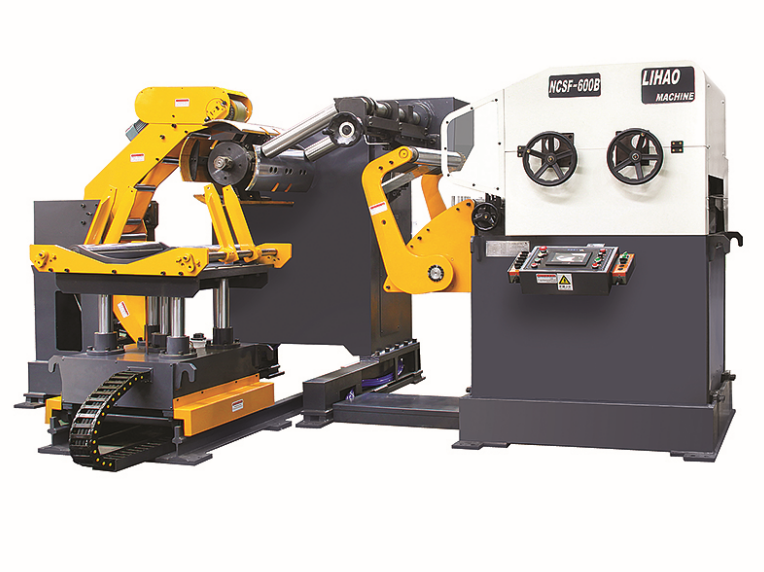

Three, thick plate three in one feeder potential
1, thick plate three in one feeder especially high tensile thick plate design back pressure roller set, suitable for the material thickness of 1.0mm ~ 6.0mm roll of stamping unwinding, leveling feeding.
2. The discharging width is adjusted by the screw of the two baffle rollers. During discharging, the cylinder lifts the outer baffle roller to avoid materials, and the discharging is carried out.
3, straightening roll adopts high alloy bearing steel manufacturing, a series of heat treatment (+ quality + high frequency treatment hard chromium layer), the rigidity of straightening roll can be assured and straightening roll surface finish, ensure that the correct process is correct material surface properties, straightening roll surface hardness up to HRC60, ensure high precision and high wear resistance.

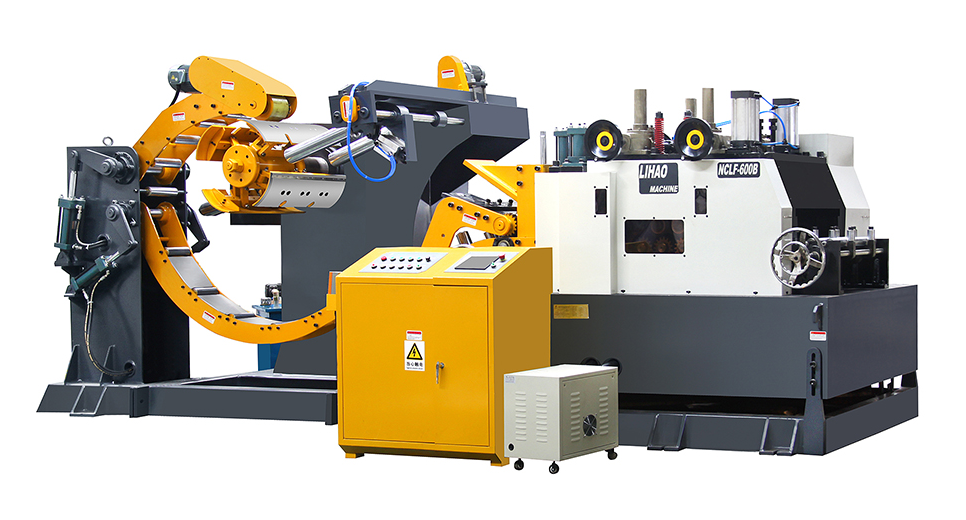

Advantages of high strength three-in-one feeder
Gao Qiangban triad is a specific machine, with higher yield strength of sheet in stamping automation and a new type of open-book leveling servo feed feed machine clamping round rod surface adopted low plough sandblasting processing hard chromium electroplating, effectively increase the friction between the material and the roller, to ensure that won't skid servo feed process, in order to achieve the feeding of preciseness, the exit is equipped with a new type of electronic automatic lubricating device, the oil stick is soft rubber structure, maximize the material surface coating reservoir evenly daub, effectively protect the die service life and equipment adopts Japan's servo system, pneumatic components, bearings and electric components,The control system adopts large-size touch screen, with large-capacity user product parameter information memory function, and perfect equipment fault alarm system, so that the machine has longer service life, higher work efficiency and more reliable safety factor.
