The working principle of the correction machine.

Aug. 18, 2020

Automatic stamping production process, in order to ensure the quality of stamping products, not only requires high-precision punching machine, feeding equipment and die, but also requires high quality stamping materials.Therefore, before stamping, the material must be leveled to eliminate its internal stress and improve its flatness.The following is a brief introduction to the structure and working principle of the correction machine.

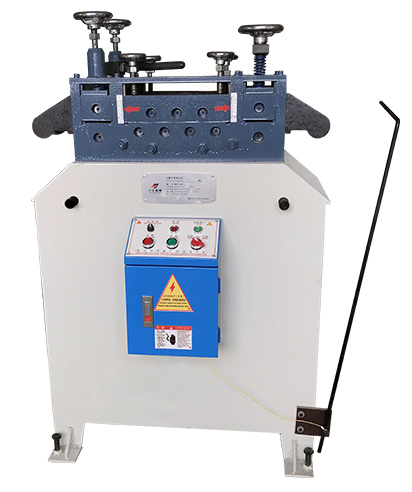

Straightening machine

The straightener part of the straightener consists of two parts: the transmission part of the straightener and the base.

The transmission mechanism of the straightening machine is composed of the motor, the transmission reducer, the chain wheel at the outlet shaft end of the reducer, the chain wheel transmission shaft and gear on the transmission leveling frame, and the leveling roller and the feeding roller.The leveling operation is completed by the feeding roller and the leveling roller. Before the leveling, the feeding roller needs to be adjusted to ensure that the material does not slip when passing through.When using the correction machine, adjust the leveling adjustment handle according to the thickness and toughness (internal stress) of the material to ensure that the raw material meets the leveling requirements.When adjusting the leveling effect should be observed, if the effect is not good, it is necessary to increase the leveling roller pressing degree, but need to pay special attention to the speed of pressure to gentle, and the amount of pressure should not be too large, otherwise it will lead to the material on both sides of the corrugation, leaving the traces of the roller, so the adjustment needs to be carefully adjusted repeatedly.

Lihao machinery has many kinds of correction machines to choose from, such as TL series, HS series, SSP series and other kinds of precision correction machines.
