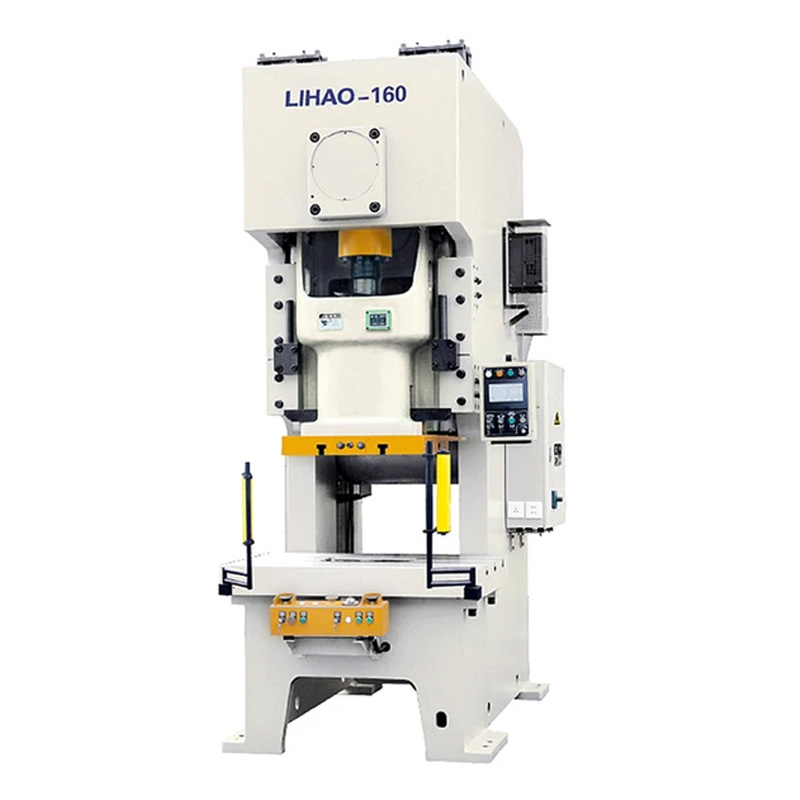

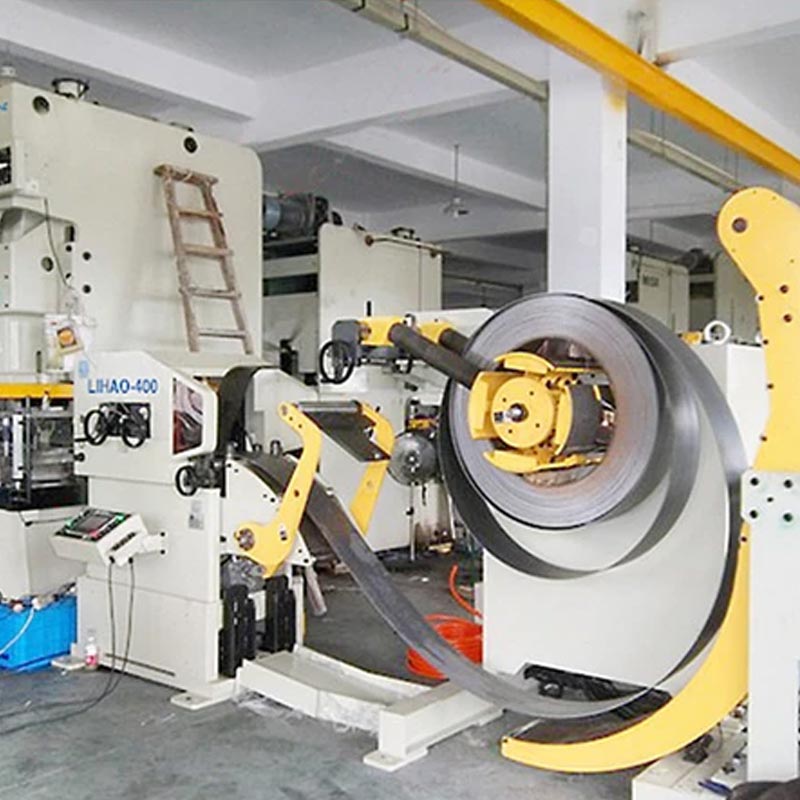

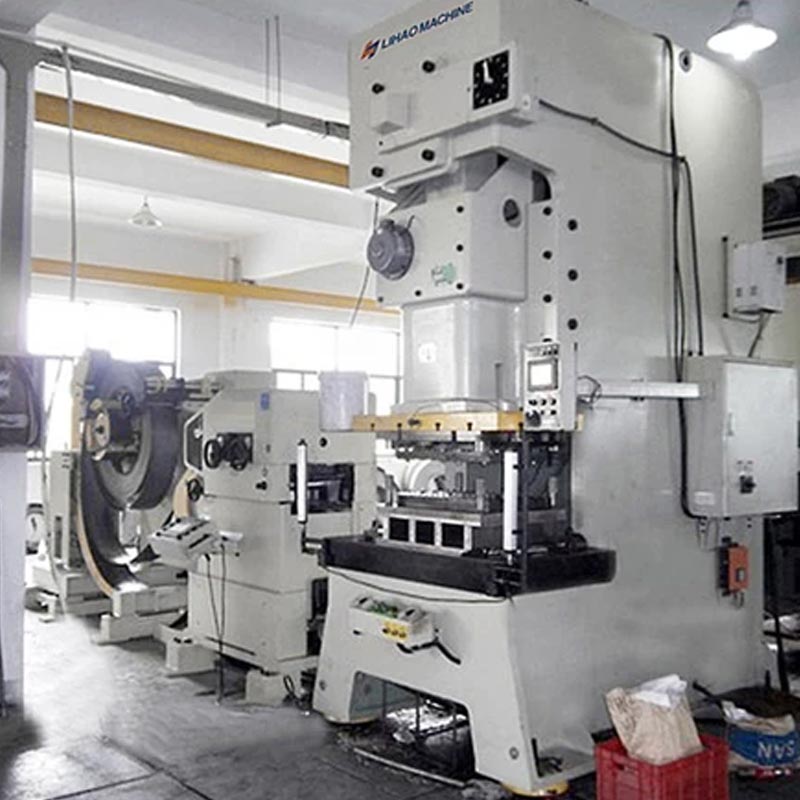

APA Series High Precision Power Press Machine
APA precision metal stamping press possesses a wide range of stamping capacity ,which caould well meet your low- and high-volume stamping needs: from 15 ton to 315 ton, and the presses precision of our stamping presses arrives to class 1-JIS(Japannese industrial standards). Therefore, Lihao's precison metal stamping press has been widely used in sheet metal's cutting, forming and deep drawing for diverse products, such as vehicles, timepiece, home appliance, house hold hardware, computers and etc.
Product Description
Features:
With High rigidity rack design, they are welded with the use of high-qualitysteel plates, through relieving of internal stresses,sothat stability and reliability and reliability of the whole machine in precision are enhanced.
Consistent driving center and machine center to guarantee accurate and stable punching
In order to guarantee relative stationarity of machine operation, it is necessary to balance two balances.
Moulding-adjustment precision is as high as 0.1mm, safe,speedy ,and reliable.
Through hard oxidation and grinding ,such parts as bent axles,gear sets,and connecting rods possess higher combination property and tolerance.
Adopt highly sensitive and reliable clutch/brake and internationally top duplex,to guarantee precision and safety for operation and stop of press rams.
Machine's structural design shall be reasonable,for the convenience of realizing automatic production,reducing cost,and improving efficiency.
Possess advanced design concepts, low noise, low consumption,and energy saving.
Standard configuration:
>Inverter
>Hydraulic over-load protector
>Slide manual adjust(60 Tons and below)
>Slide eletric adjust device(80 tons and above)
>Die height mechanical indicator（60 Tons and below）
>Die height eletric indicator(60 Tons and above)
>Balance device
>Rotary cam switch
>Misfeed detection consent
>Power supply
>Crank angle indicator
>Electrical stroke counter
>Air source connector
>Against over-run safety device
>Air ejector
>Maintenance tool box
>Pperation manual
Optional configuration:
>High perfoamance wet clutch & brake
>Eletrical automatic lubrication system
>Pneumatic die cushion device
>Foot switch
>Quick die change device(die lifter,clamp and die arm sepjes)
>Slide knock-out device
>Auti-vibration press mount
>Photo-electronic safety device
>Die room light
>Touch pad(preset, total counter)
>PAC 100 counter system
>Human-computer counter system
Technical parameters
| Name | APA-15 | APA-25A | APA-25 | APA-35 | APA-45 | ||||
| Model | V type | V type | V type | H type | V type | H type | V type | H type | |
| Capacity | Ton | 15 | 25 | 25 | 35 | 45 | |||
| Rated tonnage point | mm | 1 | 3.2 | 3.2 | 1.6 | 3.2 | 1.6 | 3.2 | 1.6 |
| Speed changing | s.p.m | 120-180 | 60-140 | 60-140 | 130-200 | 40-120 | 110-180 | 40-100 | 100-150 |
| Stable speed | s.p.m | 130 | 110 | 110 | 85 | 75 | |||
| Stroke | mm | 60 | 80 | 60 | 30 | 70 | 40 | 80 | 50 |
| Die height | mm | 200 | 195 | 200 | 215 | 220 | 235 | 250 | 265 |
| Slide adjustment | mm | 50 | 50 | 50 | 55 | 60 | |||
| Slide area | mm | 300x230x50 | 300x230x50 | 300x230x50 | 300x230x50 | 400x300x60 | |||
| Bolster area | mm | 680x300x70 | 680x300x65 | 680x330x70 | 800x400x70 | 850x440x80 | |||
| Shank hole | mm | Φ38.1 | Φ38.1 | Φ38.1 | Φ38.1 | Φ38.1 | |||
| Main motor | kw.p | 2.2x6 | 3.7x4 | 3.7x4 | 3.7x4 | 5.5x4 | |||
| Slide adjust device | HP | Manual operation | |||||||
| Air pressure | kg/cm | 6 | 6 | 6 | 6 | 6 | |||
| Presses precision | GB(JIS)1class | GB(JIS)1class | GB(JIS)1class | GB(JIS)1class | GB(JIS)1class | ||||
| Presses dimension | 1236x830x192 1 | 280x850x220 | 1280x850x2200 | 1380x900x2400 | 1575x950x2500 | ||||
| Presses weight | mm | 1.8 | 2.1 | 2.1 | 3 | 3 | |||
| Die cushion capacity | Tons | ~ | ~ | ~ | 2.3 | 2.3 | |||
| Stroke | mm | ~ | ~ | ~ | 50 | 50 | |||
| Die cushion effective are | mm2 | ~ | ~ | ~ | 300x230 | 300x230 | |||
| Name | APA-60 | APA-80 | APA-110 | APA-160 | |||||
| Model | V type | H type | V type | H type | V type | H type | V type | H type | |
| Capacity | Ton | 60 | 80 | 110 | 160 | ||||
| Rated tonnage point | mm | 4 | 2 | 4 | 2 | 6 | 3 | 6 | 3 |
| Speed changing | s.p.m | 35-60 | 80-120 | 35-80 | 80-120 | 30-60 | 60-90 | 20-50 | 40-70 |
| Stable speed | s.p.m | 65 | 65 | 50 | 35 | ||||
| Stroke | mm | 120 | 60 | 150 | 70 | 180 | 80 | 200 | 90 |
| Die height | mm | 310 | 340 | 340 | 380 | 360 | 410 | 460 | 510 |
| Slide adjustment | mm | 75 | 80 | 80 | 100 | ||||
| Slide area | mm | 500x360x70 | 560x420x70 | 650x470x80 | 700x550x90 | ||||
| Bolster area | mm | 900x500x80 | 1000x550x90 | 1150x600x110 | 1250x800x140 | ||||
| Shank hole | mm | Φ50 | Φ50 | Φ50 | Φ65 | ||||
| Main motor | kw.p | 5.5x4 | 7.5x4 | 11x4 | 15x4 | ||||
| Slide adjust device | HP | Manual operation | |||||||
| Air pressure | kg/cm | 6 | 6 | 6 | 6 | ||||
| Presses precision | GB(JIS)1class | GB(JIS)1class | GB(JIS)1class | GB(JIS)1class | |||||
| Presses dimension | 1595x1000x2800 | 1800x1180x2980 | 1900x1300x3200 | 2315x1400x3670 | |||||
| Presses weight | mm | 5.6 | 6.5 | 9.6 | 16 | ||||
| Die cushion capacity | Tons | 3.6 | 3.6 | 6.3 | 10 | ||||
| Stroke | mm | 70 | 70 | 80 | 80 | ||||
| Die cushion effective are | mm2 | 350x300 | 450x310 | 500x350 | 650x420 | ||||

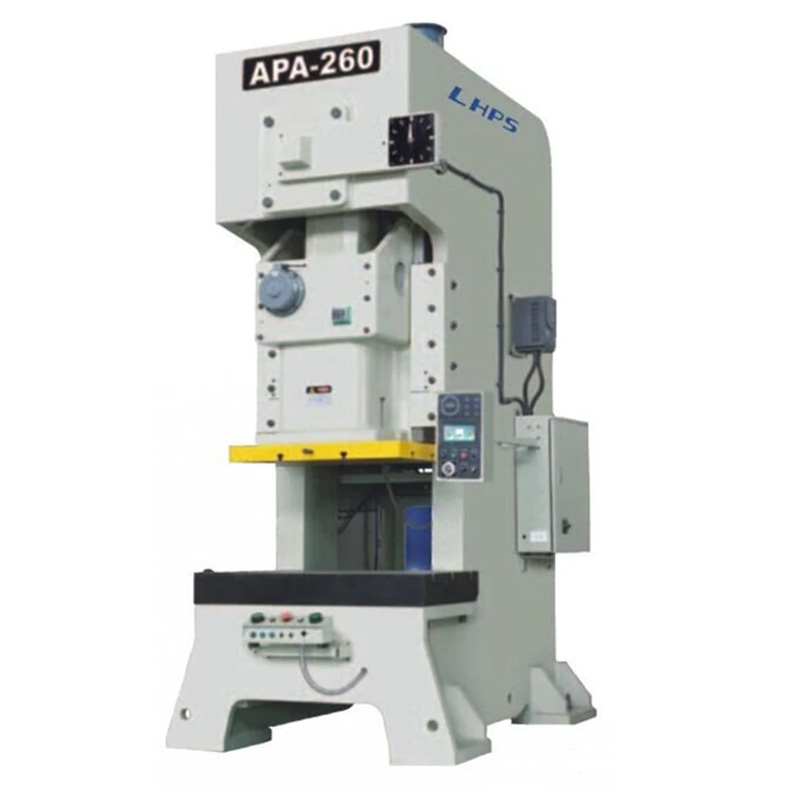

| Name | APA-200 | APA-260 | APA-315 | ||||
| Model | V type | H type | V type | H type | V type | H type | |
| Capacity | Ton | 200 | 260 | 315 | |||
| Rated tonnage point | mm | 6 | 3 | 7 | 3.5 | 7 | 3.5 |
| Speed changing | s.p.m | 20-50 | 50-70 | 20-40 | 40-50 | 20-35 | 35-50 |
| Stable speed | s.p.m | 35 | 30 | 30 | |||
| Stroke | mm | 200 | 100 | 250 | 150 | 280 | 170 |
| Die height | mm | 460 | 510 | 500 | 550 | 550 | 600 |
| Slide adjustment | mm | 110 | 120 | 120 | |||
| Slide area | mm | 850x630x90 | 950x840x100 | 1130x750x110 | |||
| Bolster area | mm | 1400x820x160 | 1500x840x180 | 1600x900x200 | |||
| Shank hole | mm | Φ65 | Φ65 | Φ65 | |||
| Main motor | kw.p | 18x4 | 22x4 | 30x4 | |||
| Slide adjust device | HP | Manual operation | |||||
| Air pressure | kg/cm | 6 | 6 | 6 | |||
| Presses precision | GB(JIS)1class | GB(JIS)1class | GB(JIS)1class | ||||
| Presses dimension | 2615x1390x4075 | 2780x1850x4470 | 2870x1980x483 | ||||
| Presses weight | mm | 23 | 32 | 36 | |||
| Die cushion capacity | Tons | 14 | 14 | 14 | |||
| Stroke | mm | 100 | 100 | 100 | |||
| Die cushion effective are | mm2 | 710x480 | 810x480 | 810x480 | |||
