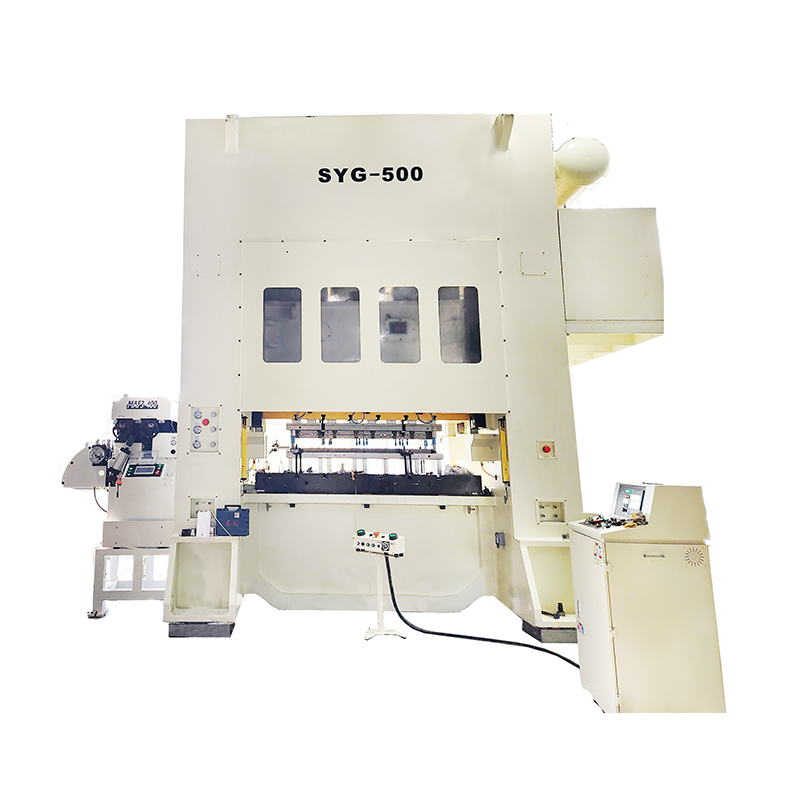

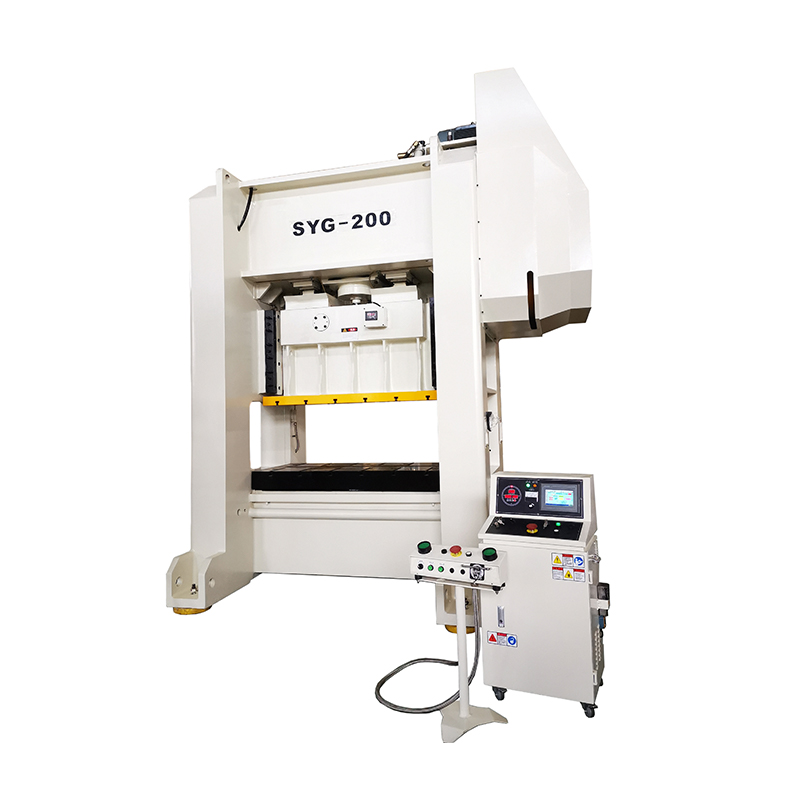

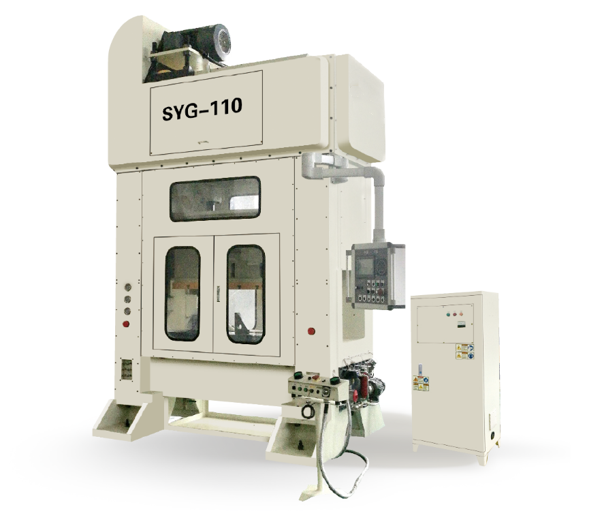

SYG Series Closed Double Point High-Speed Precision Punch Press Machines (80-300T)
Core Advantages
1. Dual Crank Synchronous Drive
2. Ultra-High Rigidity Closed Frame
3. High-Speed & Efficient Operation
4. Precision & Easy Maintenance
5. Seamless Automation Compatibility
Product Description
Closed Type High-Speed Dual Crank Precision Power Press
Our SYG Series Start-Up Mechanical Punch Press (Power Press Machine) is a robust, easy-to-operate stamping solution designed for small-batch to mass production. Built with high-rigidity cast iron frame and reliable mechanical transmission, this start-up punch press delivers stable punching force, consistent precision, and long service life. As the core equipment of a complete stamping production line, it can be seamlessly integrated with a full range of stamping auxiliary equipment to meet diverse processing needs of sheet metal fabrication. Ideal for punching, blanking, bending, forming, and shallow drawing of carbon steel, stainless steel, aluminum, copper, and other sheet metal materials.
Features
> Motorized adjustment of closed height for ease of use, strong self-locking properties, and convenient maintenance.
> Integrates European and American technology with innovative design, featuring a dual guide pillar and four-round auxiliary guide pillar slide drive multi-point guiding structure. This ensures high precision requirements for ultra-high-speed or eccentric load module pressing and includes advanced functions such as hydraulic motor-driven die adjustment and hydraulic-driven die adjustment with dynamic pressure distance ratio setting and correction.
Specification
| Name | Unit | SYG-125 | SYG-160 | SYG-200 | SYG-300 | SYG-400 | SYG-500 | |||
| Moel | A | A | B | A | B | A | B | A | A | |
| Capacity | Ton | 125 | 160 | 200 | 300 | 400 | 500 | |||
| Rated tonnage point | mm | 3 | 3 | 3 | 3 | 3 | 3 | |||
| Stroke | mm | 70 | 70 | 25 | 80 | 25 | 80 | 25 | 80 | 80 |
| Stroker per Minute | s.p.m | 60-140 | 60-120 | 150-250 | 60-120 | 150-250 | 50-100 | 120-220 | 40-90 | 40-70 |
| Die height | mm | 550 | 580 | 320 | 580 | 400 | 600 | 450 | 600 | 620 |
| Slide adjustment | mm | 170 | 170 | 50 | 170 | 50 | 170 | 50 | 170 | 170 |
| Slide Area | mm | 1600ｘ700 | 1800ｘ800 | 1750ｘ460 | 1800ｘ800 | 1750x520 | 2000ｘ900 | 1900x560 | 2200x1000 | 2300x1000 |
| Bolster Area | mm | 1700ｘ800 | 1900ｘ900 | 1750ｘ600 | 1900ｘ900 | 1880x700 | 2100ｘ1000 | 2100x800 | 2300x1100 | 2400x1100 |
| Bolster thickness | mm | 160 | 180 | 180 | 180 | 190 | 180 | 200 | 200 | 200 |
| Side opening | mm | 600x500 | 700x500 | 840x380 | 700x500 | 840x400 | 800x550 | 840x500 | 800x550 | 800x550 |
| Main motor | kw.p | 18.5x4 | 22x4 | 18.5ｘ4 | 30x4 | 22x4 | 45ｘ4 | 45x4 | 55x4 | 75x4 |
| Air pressure | kg/cm² | 6 | ||||||||
Standard Unit
1. touch screen system
2. Hydraulic load containment protection device
3. Electric slide adjustment device
4. Electric thin oil lubrication device
5. Slider and mold balancing device
6. Electronic cam
7. Main motor reversing device
8. Digital mold height indicator
9. Second fall protection device
10. Mechanical anti-shock feet
11. Misdelivery detection device
12. Air blow joint
13. Air source connector
14. Imported oil collecting muffler
15. Frequency
16. Maintenance tools and tool boxes
17. Counter
18. Operating Instructions
Application Cases
Automotive High-Precision Parts: Stamping of automotive engine brackets, chassis reinforcement plates, door hinge assemblies, and automotive electronic components, etc.
Electronic & Connector Components: Stamping of tiny electronic connectors, terminal pins, shielding cases, and semiconductor lead frames, etc.
Hardware & Fastener Mass Production: High-speed stamping of stainless steel hinges, lock parts, auto fasteners, and hardware fittings, etc.

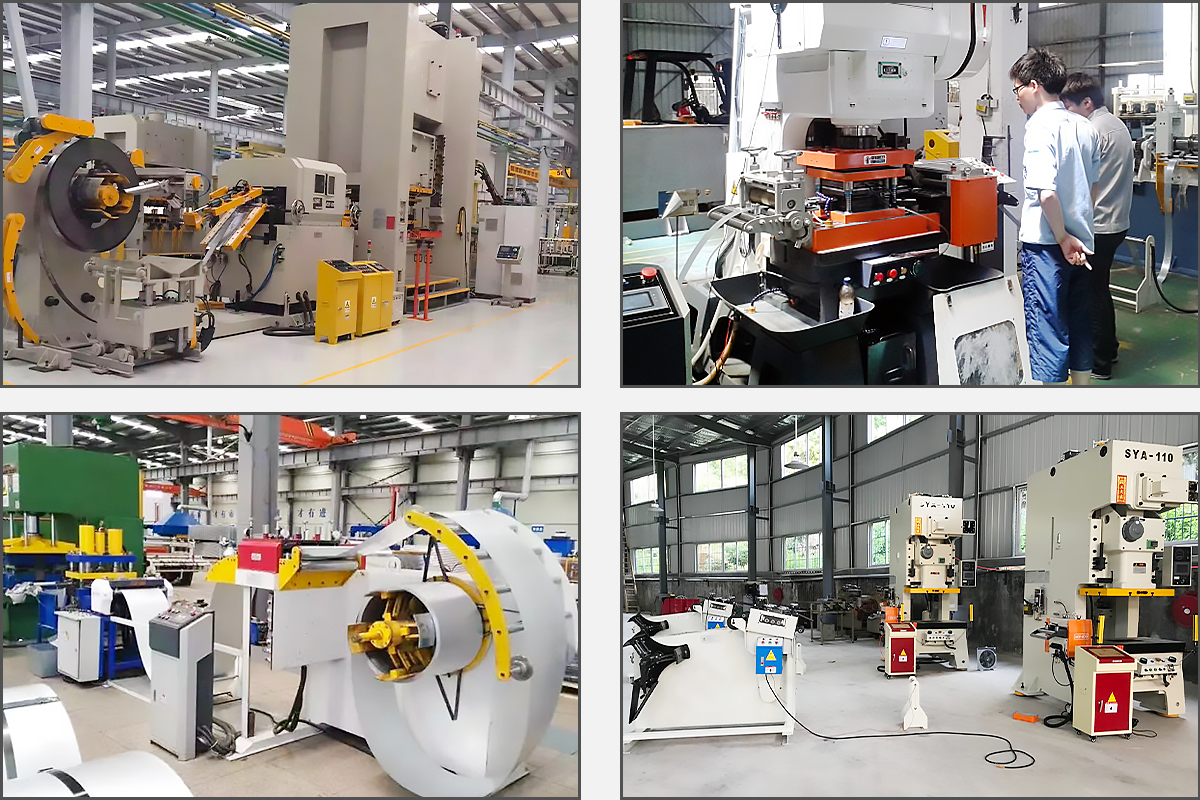

Matching Equipment for Full-Automatic Line
To build a turnkey high-speed stamping production line, our closed dual crank press is fully compatible with the following auxiliary equipment:
1. Stamping Dies / Progressive Dies / Compound Dies / Bending Dies: Customized per product requirements, supporting multi-step stamping, blanking, and forming.
2. Automation Feeding Equipment: NC Servo Feeder, 2 in 1 decoiler with straightener, 3 in 1 uncoiler straightener and feeder, etc.
3. High-Speed Decoiler: Hydraulic decoiler for metal coils, with tension control to avoid material wrinkling.
4. Sheet Metal Leveler: Precision straightening machine to correct coil warpage, ensuring raw material flatness.
5. Robotic Manipulator: Automatic loading/unloading of finished parts, reducing labor costs.
FAQs
Q1: What is the key difference between dual crank and single crank closed presses?
A: Dual crank presses feature synchronous balanced drive, eliminating lateral deflection and vibration during high-speed stamping. They offer higher rigidity, better load distribution, and longer die life, making them ideal for high-precision and heavy-duty processing. Single crank presses are more suitable for small-batch, low-speed production.
Q2: Can this press be integrated into an automatic production line?
A: Yes. It comes with a standard PLC control interface and pre-reserved connection ports, easily matching with servo feeders, decoilers, levelers, and robotic arms to form a fully automatic stamping line. We also provide customized automation integration solutions.
Q3: Can I customize the tonnage, stroke, or other parameters for my specific production needs?
A: Absolutely. We offer full customization services, including tonnage , stroke length, die height, voltage, and control system to match your product and production requirements.
