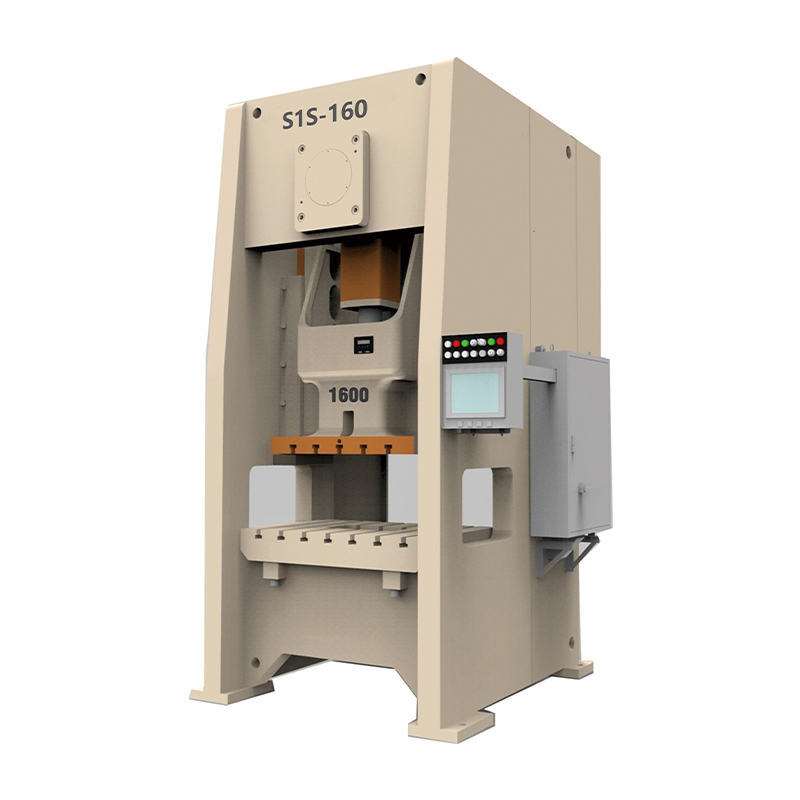

S1S Series Closed Single Point Mechanical punching machine, Servo Power Press Machines (80-200T)
Standard drive system
1. Driveshaft with integral pinion
2. Main Gear
3. Crankshaft
4. Connection rod with ball type connection
5. Electric motor slide adjustment
Product Description
Servo Single-Crank Straight Side Punch Press
The Servo Single-Crank Straight Side Punch Press represents the next generation of precision metal stamping, combining the structural rigidity of a straight side frame with the flexibility of servo-driven technology. Unlike conventional mechanical presses, this servo stamping machine allows for programmable slide motion curves, enabling optimal forming conditions for complex materials and intricate part geometries. Engineered for high-precision applications, the straight side frame eliminates angular deflection, ensuring superior die life and part accuracy. Ideal for manufacturers seeking energy efficiency, noise reduction, and full automation readiness, this servo punch press delivers consistent performance across a wide range of demanding stamping operations.
Product Features
> Low-speed torque motor
> Servo drive and control
> Energy management system
> Manual step die adjustment
> Mechanical safety brake
> Overload protection device
> Automatic thin oil circulation lubrication system
> Color touch screen CNC operating system
> Programmable slide motion
> Safety protection with front light curtain and side mechanical fencing
Specification
| Name | Unit | S1S-80 | S1S-110 | S1S-160 | S1S-200 |
| Capacity | Ton | 80 | 110 | 160 | 200 |
| Working energy | J | 4000 | 4600 | 7900 | 13100 |
| Full stroke | mm | 160 | 180 | 200 | 220 |
| Fwd./Rev.Motion | mm | 60/100/130 | 70/110/150 | 80/120/160 | 90/140/180 |
| At full | spm | 80 | 70 | 60 | 50 |
| Fwd./Rev.Motion | spm | 118/96/82 | 114/93/76 | 100/82/68 | 81/67/57 |
| Mold height | mm | 320 | 350 | 400 | 450 |
| Slide adjustment | mm | 80 | 90 | 100 | 110 |
| Slide area(L.R.x F.B. ) | mm | 700x460 | 800x520 | 900x580 | 1000x650 |
| Bolster area(L.R.x F.B. | mm | 900x600 | 1000x680 | 1150x760 | 1250x840 |
| Bolster thickness | mm | 140 | 155 | 165 | 180 |
| Max.upper die weight | kg | 183 | 218 | 225 | 430 |
| Main Motor (AC Servo) | kW | 35 | 40 | 50 | 65 |
| Power supply capacity | KVA | 16 | 22 | 30 | 32 |
| Required air pressure | Mpa | 0.5 | |||
| Foundation bolt position | mm | 1220x1200 | 1344x1310 | 1525x1590 | 1360x2020 |
| Bench height | mm | 900 | 900 | 900 | 1000 |
| Side opening size(LRxFB) | mm | 400x300 | 500x320 | 560x380 | 620x420 |
| Height | mm | 2180 | 3075 | 3285 | 3795 |
| Gross Weight | kg | 9000 | 13000 | 18000 | 21000 |

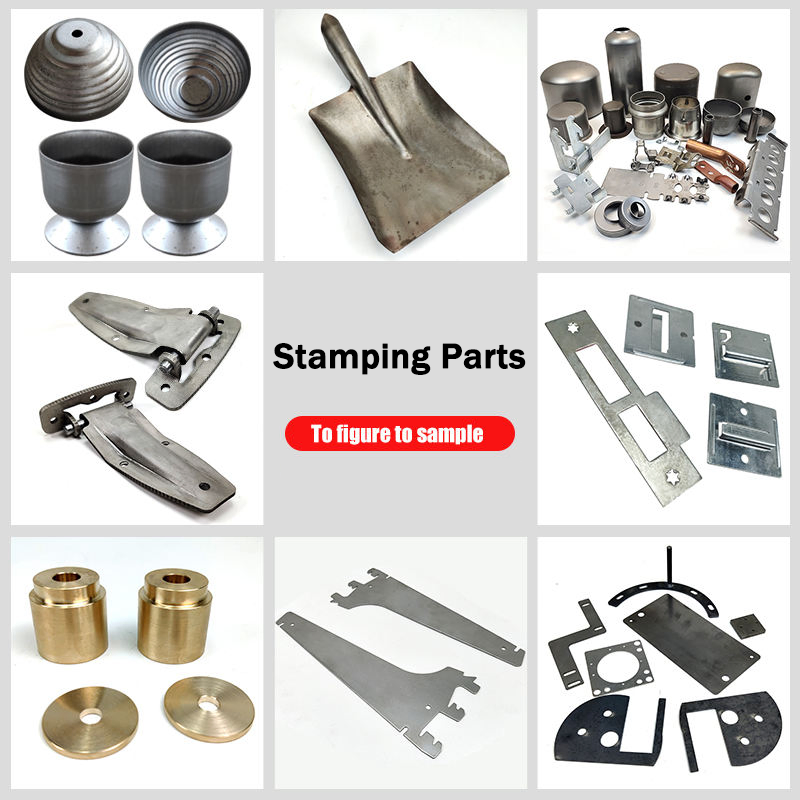

Application Areas
Automotive Industry: Precision chassis brackets, High-strength steel structural components, Electric vehicle battery housing parts, etc.
Hardware & Fasteners: Heavy-duty industrial hinges, High-tensile lock housings, Precision washers and retaining rings, etc.
Electronics Industry: Micro-switch contact components, Precision terminal connectors, EMI shielding frames, etc.
Home Appliances: Compressor valve plates, Motor core laminations, Structural brackets for washing machines and refrigerators, etc.
Compatible Equipment

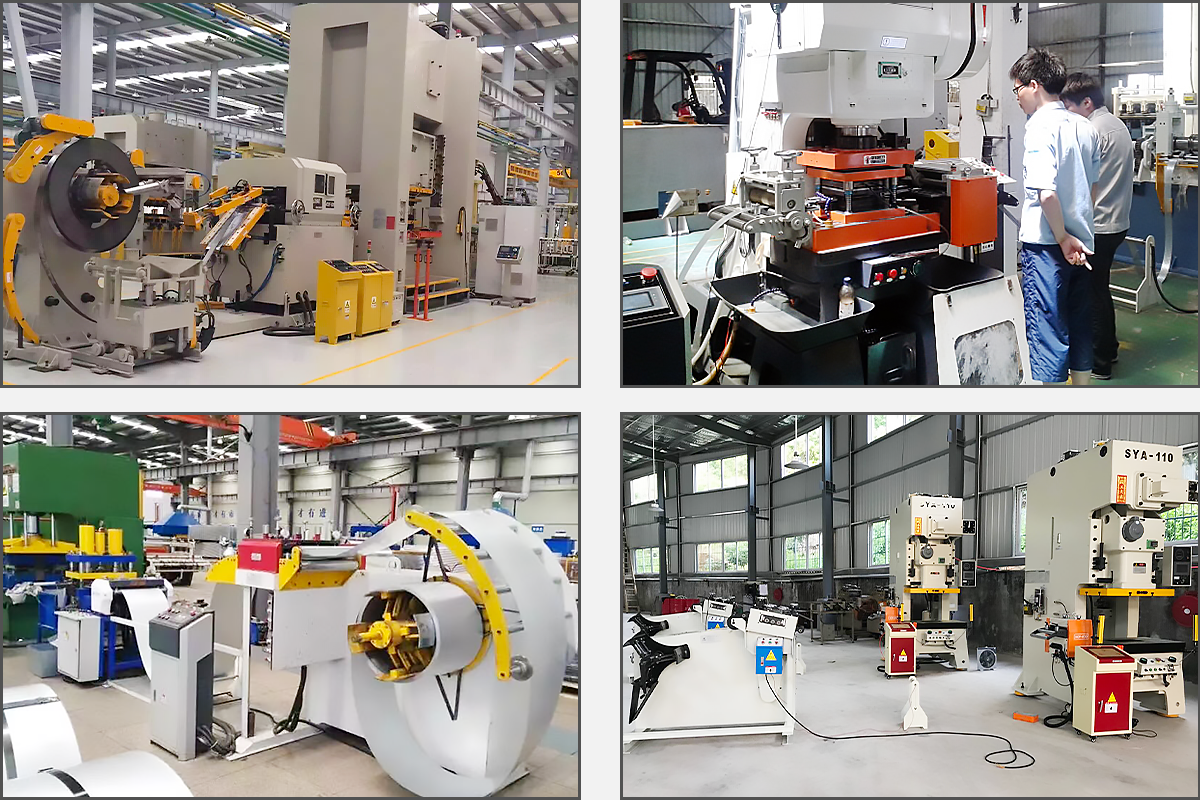

We provide complete turnkey automation solutions to maximize the efficiency of your stamping line. The following equipment can be seamlessly integrated with our servo single-crank straight side punch press:
Stamping Dies: Single Dies, Compound Dies, Progressive Dies, Transfer Dies, etc.
Feeding Systems: servo feeder, air feeder, Zigzag feeder, 2-in-1 uncoiling and straightening, 3-in-1 uncoiling straightening and feeding, etc.
Uncoilers & Decoilers: Heavy-Duty Uncoiler, Double-Head Uncoiler, Hydraulic Uncoiler, Light-Duty Decoiler, etc.
Straighteners & Levelers: Precision Roller Leveler, Heavy-Duty Straightener, Thin-Material Straightener, etc.
FAQs
Q: What are the main advantages of a servo press over a conventional mechanical press?
A: Unlike conventional mechanical presses that operate with a fixed flywheel-driven motion, a servo punch press offers full control over slide motion. You can program variable speed, dwell time, and motion curves to match the specific forming requirements of the material. This results in improved part quality, extended die life, reduced energy consumption, and significantly lower noise levels—particularly beneficial for high-strength steel stamping and delicate forming applications.
Q: How is the servo press integrated into an automated stamping line?
A: Our servo punch press is designed with full automation compatibility. It features standard interfaces for communication with 3-in-1 servo feeders, robotic transfer systems, and conveyor lines. The servo control system can be synchronized with peripheral equipment to create a fully automated, lights-out stamping production line with centralized monitoring and control.
Q: What is the warranty and after-sales support?
A: We offer a 12-month standard warranty covering the complete machine and servo system. Our global after-sales network provides 24/7 technical support, on-site installation and commissioning, operator training, and a comprehensive spare parts inventory to ensure minimal downtime and long-term reliability for your production operations.
