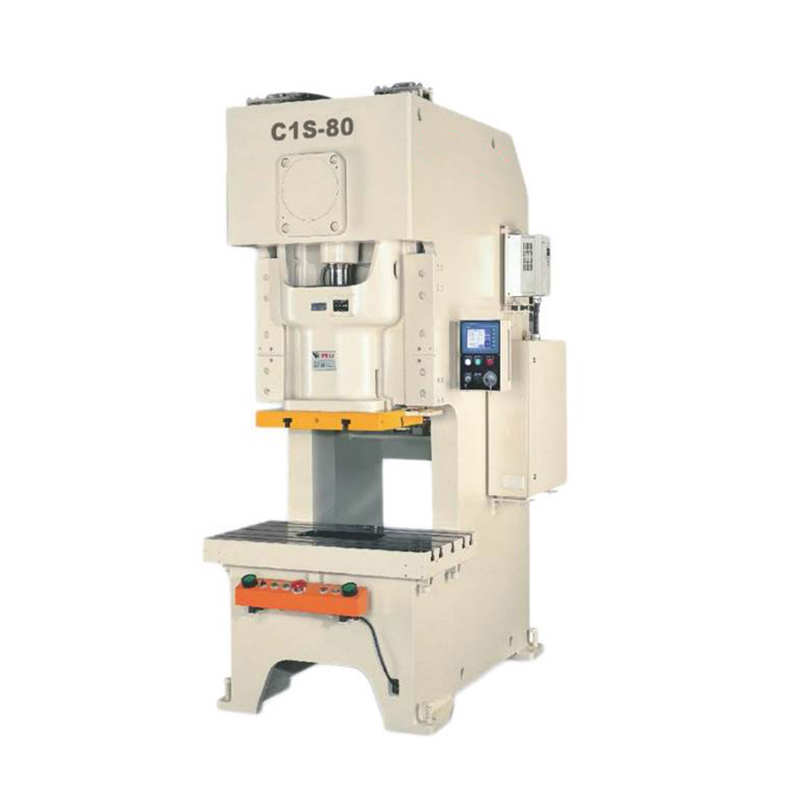

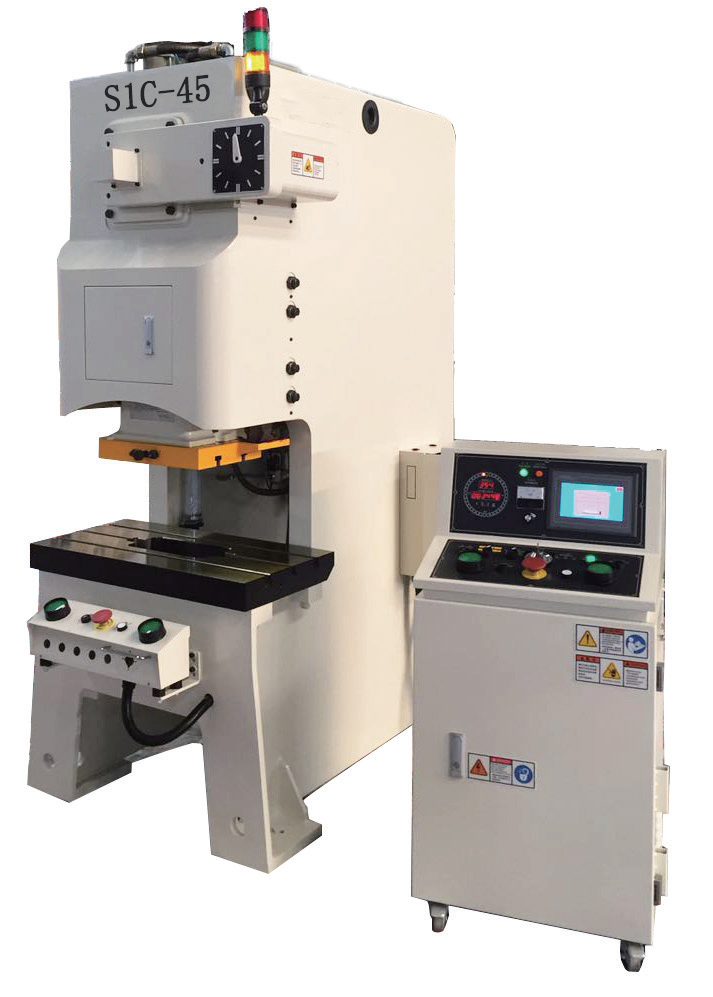

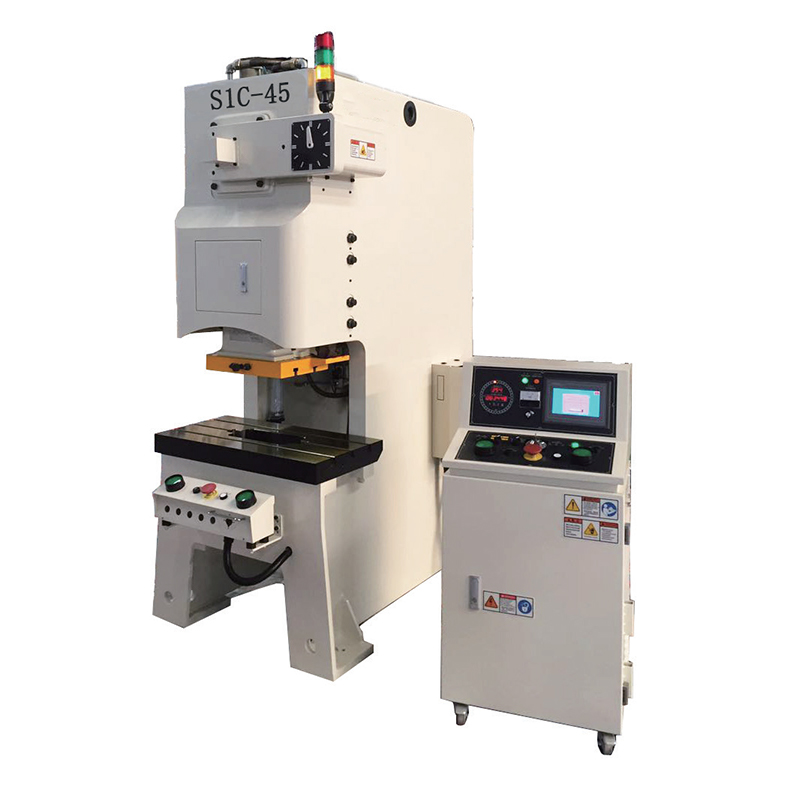

S1C Series Open Single Crankshaft Servo Mechanical Punch, 80 Tons 160 Tons Pneumatic Press Machines
Key Product Advantages
1. Closed loop control
2. Repeated positioning accuracy +0.0.1mm
3. bottom dead center automatically corrects +0.0.1mm
4. Pressure retaining function
Product Description
Product Features
1. Equipped with low speed, high torque special servo motor
2. The motion curve can be arbitrarily set and changed during processing
3. With automatic bottom dead center compensation function, accuracy up to 0.02mm, to achieve precision stamping
4. The slider speed can be stepless speed regulation, which significantly improves production efficiency
5. Intelligent servo control, energy saving, environmental protection and carbon reduction
6. The stroke height and motion sequence can be programmed to meet the flexible production needs
7. It can optimize the motion curve, improve the quality of the parts and extend the life of the die
8. The stamping performance is reliable, the machine tool is less pressed, the equipment is stable and easy to maintain
9. Equipped with hand wheel fine-tuning function can greatly shorten the test time
Specifications
| Name | Unit | S1C-80 | S1C-110 | S1C-130 | S1C-160 | S1C-200 | S1C-260 | S1C-315 |
| Capacity | Ton | 80 | 110 | 130 | 160 | 200 | 260 | 315 |
| Rated Tonnage point | mm | 4 | 6 | 6 | 6 | 6 | 7 | 8 |
| Stroke | mm | 150 | 180 | 180 | 200 | 200 | 250 | 250 |
| Stroke Per Minute | s.p.m | 80 | 60 | 60 | 50 | 50 | 40 | 40 |
| Mold Height | mm | 340 | 360 | 400 | 460 | 460 | 500 | 500 |
| Slide Adjustment | mm | 80 | 80 | 80 | 100 | 110 | 120 | 120 |
| Slide Area | mm | 770x420x70 | 910x470x80 | 910x500x80 | 900x550x90 | 1130x630x90 | 1250x700x100 | 1250x750x100 |
| Bolster Area | mm | 1000x550x90 | 1150x600x110 | 1200x600x110 | 1250x800x140 | 1400x820x160 | 1500x840x180 | 1600x860x190 |
| Shank hole | mm | ∅50 | ∅50 | ∅50 | ∅65 | ∅65 | ∅65 | ∅65 |
| Max torque value | N.m | 4000 | 5500 | 6000 | 9000 | 12000 | 14000 | 18000 |
| Slide adjust device | HP | electrial driving | ||||||
| Air pressure | kg/cm² | 6 | ||||||
| Presses precision | GB/JIS 1class | |||||||
| Presses dimension | mm | 1800x1320x3010 | 1920x1450x3200 | 1920x1450x3250 | 2460x1550x3610 | 2640x1850x4080 | 2820x2000x4450 | 2820x2010x4500 |
| Presses weight | Ton | 6.5 | 9.6 | 10 | 16 | 23 | 30 | 33 |
| Mold cushion capacity | Ton | 3.6 | 6.3 | 6.3 | 10 | 14 | 14 | 14 |
| Stroke | mm | 70 | 80 | 80 | 80 | 100 | 100 | 100 |
| Mold cushion effective area | mm² | 450x310 | 500x350 | 500x350 | 650x420 | 710x480 | 710x480 | 810x480 |
Application Areas
Automotive Industry: Engine mounting brackets, Automotive seat rails, Brake system components, etc.
Hardware & Fasteners: Hinges and door handles, Industrial washers and spacers, Lock components and latches, etc.
Electronics Industry: Shielding covers and EMI/RFI frames, Connector terminals, Heat sink brackets, etc.
Home Appliances: Motor laminations, Compressor valve plates, Sheet metal casings for washing machines and refrigerators, etc.
Compatible Equipment

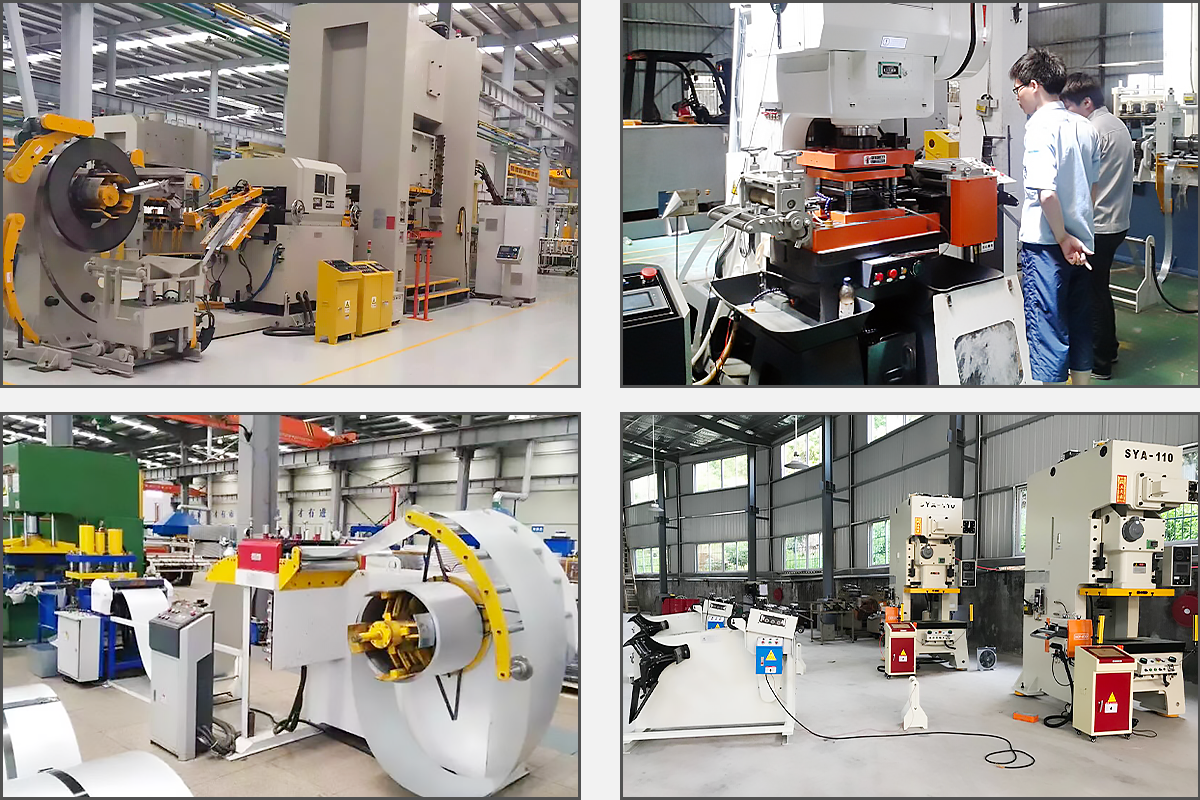

(Turnkey Automatic Stamping Production Line)
Stamping Dies: Single-Station Dies, Compound Dies, Progressive Dies, Transfer Dies
Feeding Systems: Servo Feeder, Air Feeder, NC Servo Feeder, Zigzag Feeder, 2-in-1 Uncoiler & Straightener, 3-in-1 Uncoiler Straightener Feeder
Uncoilers (Decoilers): Heavy-Duty Uncoiler, Double-Head Uncoiler, Hydraulic Uncoiler, Light-Duty Uncoiler
Straighteners (Levelers): Precision Roller Leveler, Heavy-Duty Straightener, Thin-Material Straightener
FAQs
Q: Can the punch press be integrated with an automatic feeding line?
A: Yes. Our presses are designed for full automation compatibility. They can be seamlessly integrated with 3-in-1 servo feeders, robotic arms, and conveyor systems to form a fully automatic, lights-out stamping production line.
Q: How do you ensure the safety of the operator?
A: Safety is our top priority. Our presses comply with international safety standards (CE, ISO). Standard features include hydraulic overload protection, electro-pneumatic dual valve clutches, light curtains, and emergency stop systems to ensure maximum operator safety during production and maintenance.
Q: What is the warranty period and after-sales service?
A: We offer a standard 12-month warranty on the complete machine. Our global after-sales service network provides 24/7 technical support, on-site installation guidance, operator training, and a readily available stock of genuine spare parts to minimize your production downtime.
