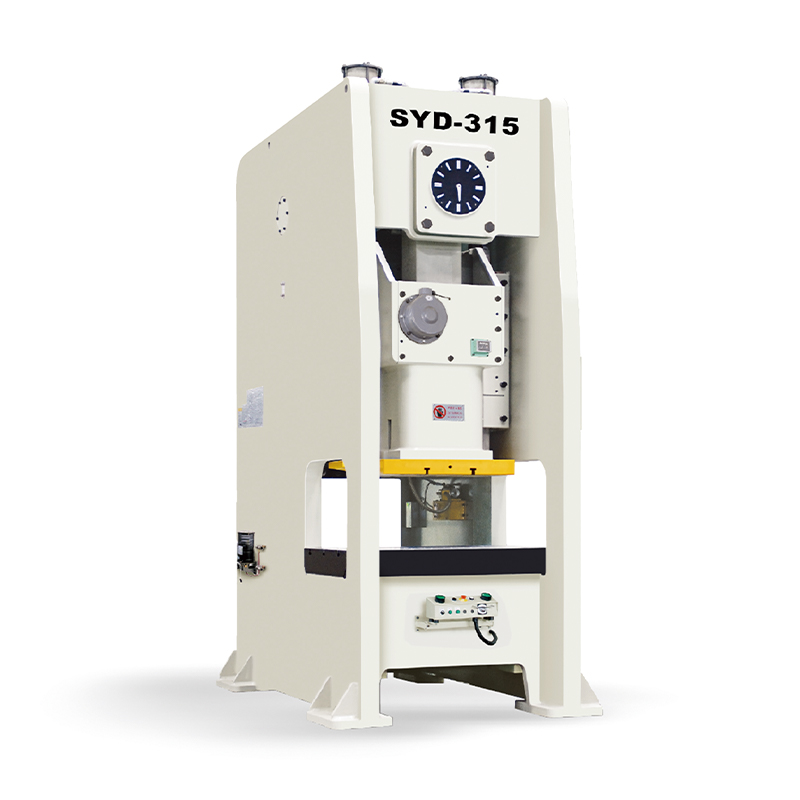

SYD Series Semi-Closed Single Point Precision Punch Press (80-400T)
Realization of high-precision processing
Realization of convenient operation
Realization of low noise
High-rigidity machine body
Low-comprehensive gap
Product Description
Pneumatic Punch Press Introduction
A pneumatic punch press is a high-performance stamping machine driven by pneumatic system, featuring stable pressure, fast response, and easy operation. It adopts rigid frame structure, pneumatic clutch & brake system, and precise control unit, widely used for punching, blanking, bending, forming, and drawing of various metal sheets.
Our pneumatic power press provides consistent stamping force, low noise, and strong stability, suitable for automated production lines and manual workshops. It is the ideal equipment for modern sheet metal stamping.

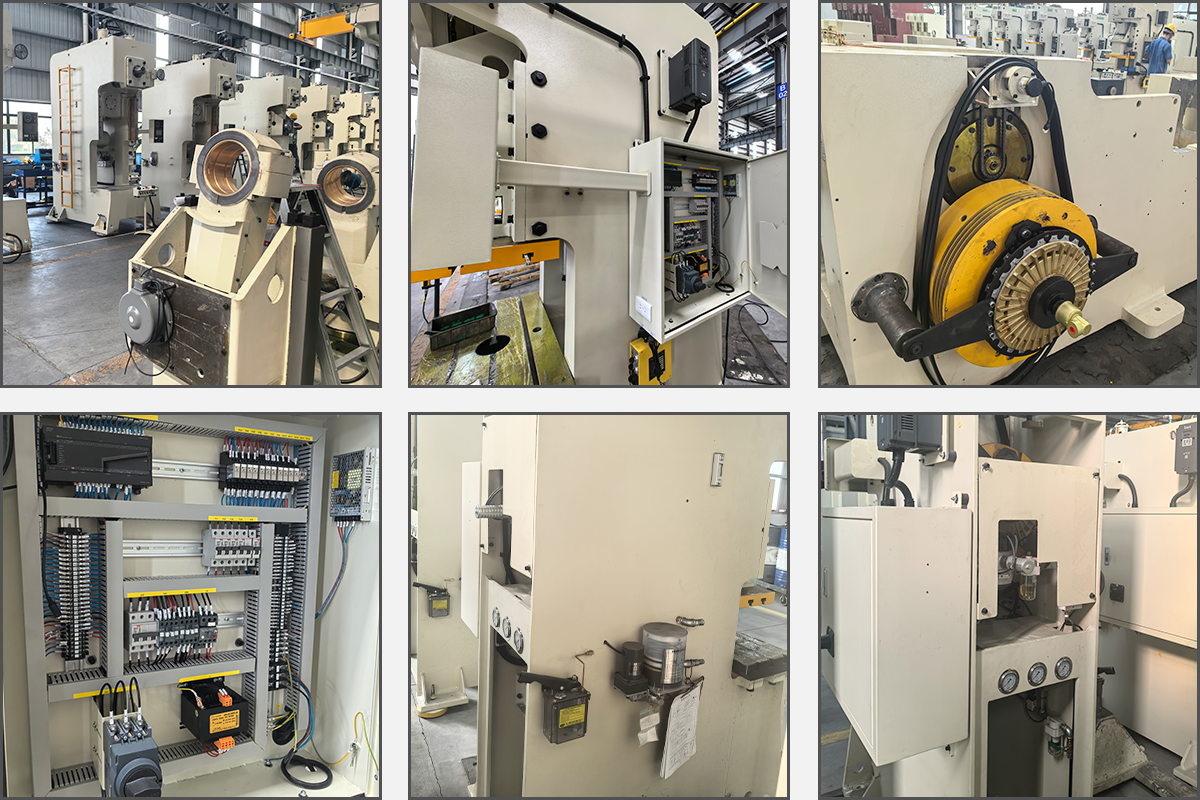

Features
> The machine body is made of high-quality steel plates, designed with high precision and high strength, and stress relieved after welding, ensuring stable precision and reliable performance.
> To ensure relatively stable operation of the machine, a pneumatic balancer device is used in its design.
> The die adjustment accuracy reaches 0.1mm, making it safe, convenient, and reliable.
> Components such as the crankshaft, gears, and screws undergo hard oxidation and grinding processes, resulting in superior comprehensive mechanical properties and wear resistance.
> The machine structure is designed reasonably, with complete configurations, facilitating automated production and assembly line manufacturing.
> It features a high-performance combined clutch/brake, ensuring smooth engagement and reliable safety.
> Equipped with a safety dual-solenoid valve and hydraulic overload protection device to maximize operational safety.
> This machine adopts a semi-closed frame structure design, with stable dynamic accuracy, effectively extending the lifespan of the die.
> The slider balance device is aligned with the center of the slider, ensuring balanced machine operation and evenly distributed force on the slider itself, achieving more stable motion accuracy.
Specifications
| Specification | Unit | SYD-80 | SYD-110 | SYD-130 | SYD-160 | SYD-200 | SYD-260 | SYD-315 | |||||||
| Model | V | H | V | H | V | H | V | H | V | H | V | H | V | H | |
| Capacity | Ton | 80 | 110 | 130 | 160 | 200 | 260 | 315 | |||||||
| Rate tonnage point | mm | 4 | 2 | 6 | 3 | 6 | 3 | 6 | 3 | 6 | 3 | 7 | 3.5 | 8 | 4 |
| Stroke | mm | 150 | 70 | 180 | 80 | 180 | 80 | 200 | 90 | 200 | 100 | 250 | 150 | 250 | 150 |
| Stroker per Minute | s.p.m | 35-80 | 80-125 | 30-60 | 60-90 | 30-60 | 60-90 | 20-50 | 40-70 | 20-50 | 50-70 | 20-40 | 40-50 | 20-40 | 30-50 |
| Die height | mm | 340 | 380 | 360 | 410 | 400 | 450 | 460 | 510 | 460 | 510 | 500 | 550 | 450 | 550 |
| Slide adjustment | mm | 80 | 80 | 80 | 100 | 110 | 120 | 120 | |||||||
| Slide area | mm | 770ｘ420ｘ70 | 910ｘ470ｘ80 | 910ｘ500ｘ80 | 990ｘ550ｘ90 | 1130ｘ630ｘ90 | 1250ｘ700ｘ100 | 1250ｘ750ｘ100 | |||||||
| Bolster area | mm | 770ｘ550ｘ90 | 910ｘ600ｘ110 | 910ｘ600ｘ110 | 990ｘ880ｘ140 | 1130ｘ820ｘ160 | 1250ｘ840ｘ180 | 1250ｘ860ｘ190 | |||||||
| Main motor | kw.p | 7.5ｘ4 | 11ｘ4 | 11ｘ4 | 15ｘ4 | 18.5ｘ4 | 22ｘ4 | 30ｘ4 | |||||||
| Slide adjust device | HP | electrial driving | |||||||||||||
| Air pressure | kg/cm² | 6 | |||||||||||||
| Presses dimension | mm | 1890ｘ1580ｘ3000 | 1985ｘ1680ｘ3200 | 2280ｘ1700ｘ3160 | 2380ｘ1780ｘ3610 | 2730ｘ1970ｘ4090 | 2180ｘ2900ｘ4470 | 2200ｘ2980ｘ4500 | |||||||
| Presses precision | GB/JIS1 class | ||||||||||||||
| Die cushion capacity | Ton | 3.6 | 6.3 | 6.3 | 10 | 14 | 14 | 14 | |||||||
| Stroke | mm | 70 | 80 | 80 | 80 | 100 | 100 | 100 | |||||||
| Die cushion effective area | mm² | 450ｘ310 | 500ｘ350 | 500ｘ350 | 650ｘ420 | 710ｘ480 | 710ｘ480 | 710ｘ480 | |||||||
Standard configuration:
> Inventer
> Hydraulic over load protector
> Touch screen(pre-judge, pre-cut, and total count)
> Slider and mould balancing device
> Misfeed detection consent
> Power socket
> Crank angle indicator
> Over-run safety device
Optional configuration:
> Wet clutch
> Auto grease pump device
> Air die cushion device
> Foot switch
> Quick die change device(Die lifter, die clamper, or mould-shift arm)
> Feeding device on the slider
> Anti-vibration foot
> Photo-electric safety device
> Feeder(air, machinery, and NC)
> Die lighting device
Applicable Materials
1. Our pneumatic punch press is suitable for:
2. Carbon steel sheet
3. Stainless steel sheet
4. Aluminum sheet
5. Copper sheet & brass
6. Galvanized sheet
7. Iron sheet
...

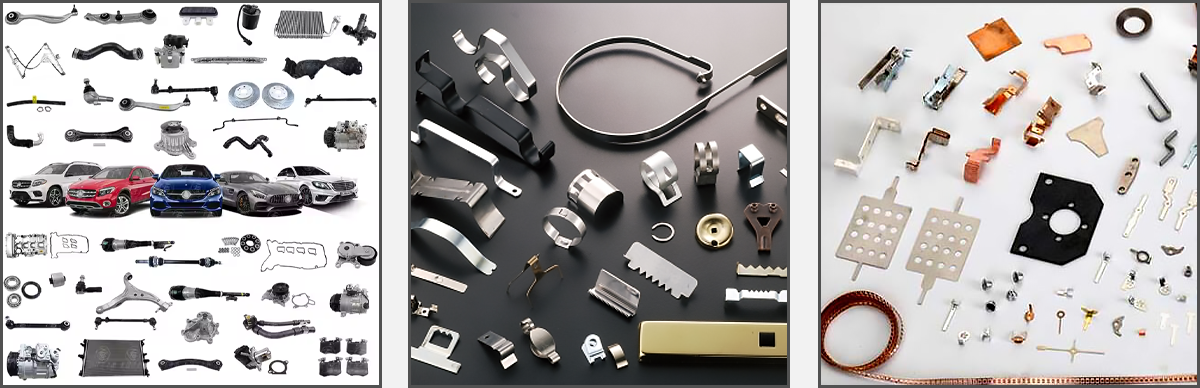

Application Cases
Hardware stamping
Punching and forming of metal brackets, hinges, locks, and fasteners. High precision and stable output.
Electronic parts
Stamping of terminals, connectors, shielding cases, and small metal components.
Home appliance parts
Stamping of shell parts, panels, and accessories for kitchenware, fans, and small appliances.
Automotive stamping parts
Small automotive brackets, clips, and metal components with high consistency.
Metal gift & crafts
Blanking and forming of metal nameplates, logos, and decorative parts.

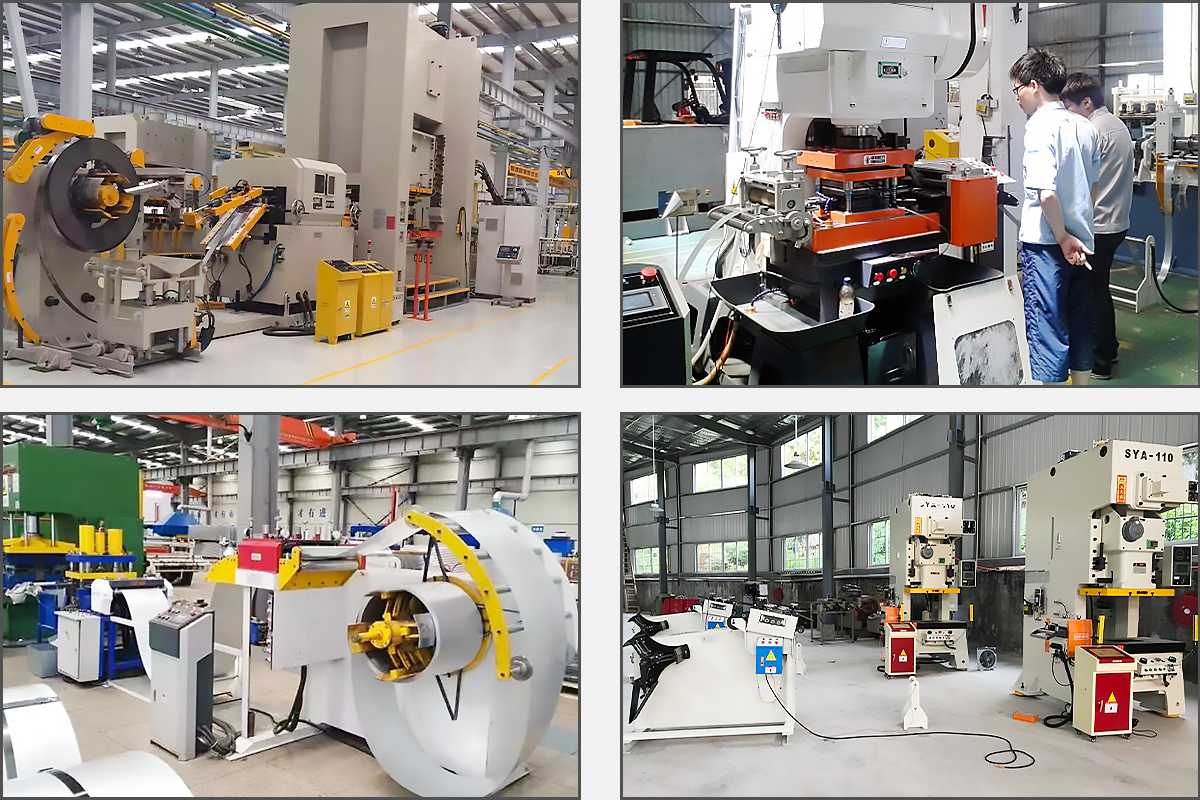

Matching Equipment for Pneumatic Punch Press
A complete stamping line can be equipped with:
1. Stamping dies (punching die, bending die, progressive die)...
2. NC servo feeder / pneumatic feeder / 3-in-1 uncoiler straightener and feeder / 2-in-1 uncoiler with straightener...
3. Decoiler (uncoiling machine) for metal coils...
4. Sheet metal leveler (straightening machine)...
5. Conveyor belt for finished products...
6. Automatic manipulator for loading & unloading..., etc.
FAQs
Q1: What is the difference between pneumatic punch press and mechanical press?
A: Pneumatic press uses air pressure for stable stamping, safer and easier to maintain.
Q2: Can your pneumatic punch press work automatically?
A: Yes, it can match feeder, decoiler, leveler to form automatic line.
Q3: Can you customize tonnage and stroke?
A: Yes, we support customization according to your product and mold.
Q4: What voltage do you use?
A: 220V/380V/415V, customizable for different countries.
...
