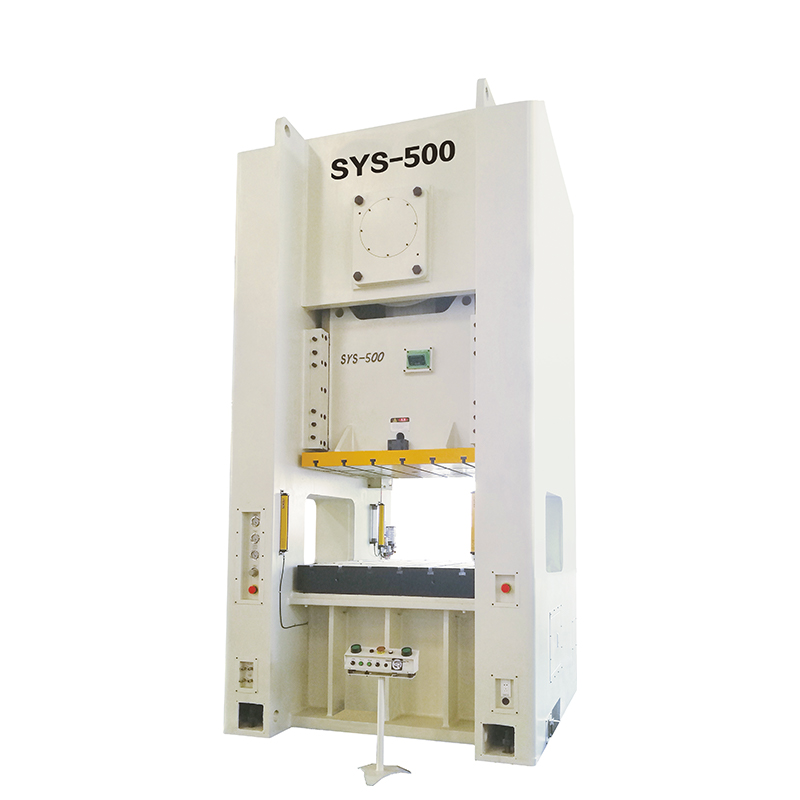

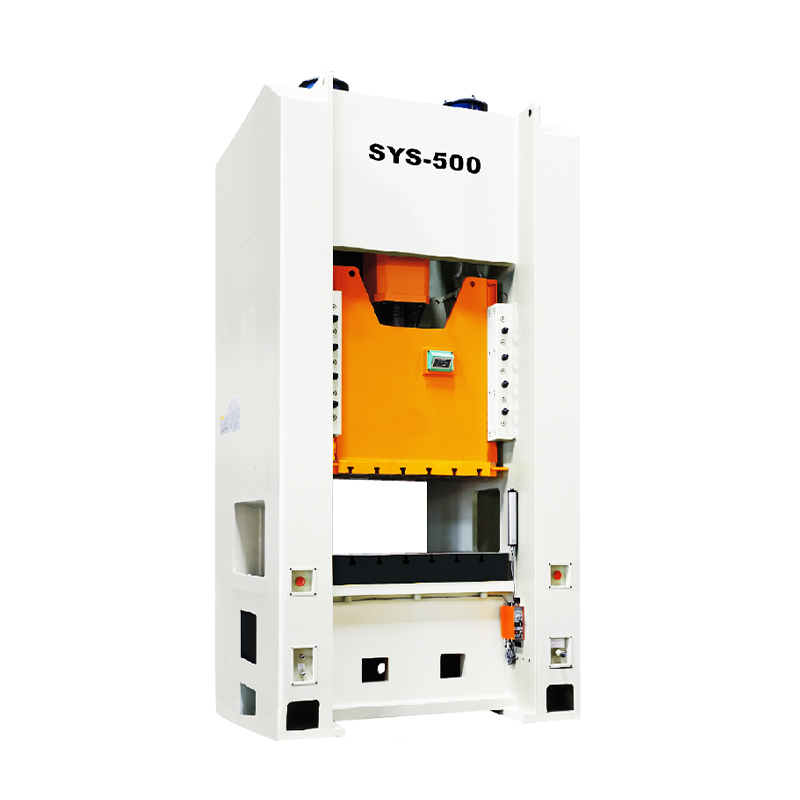

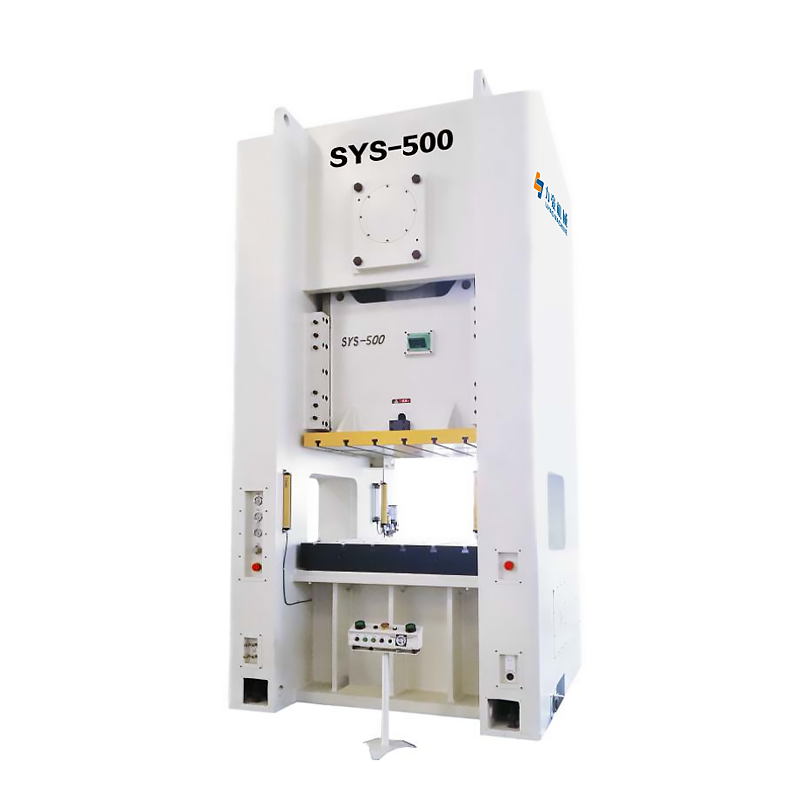

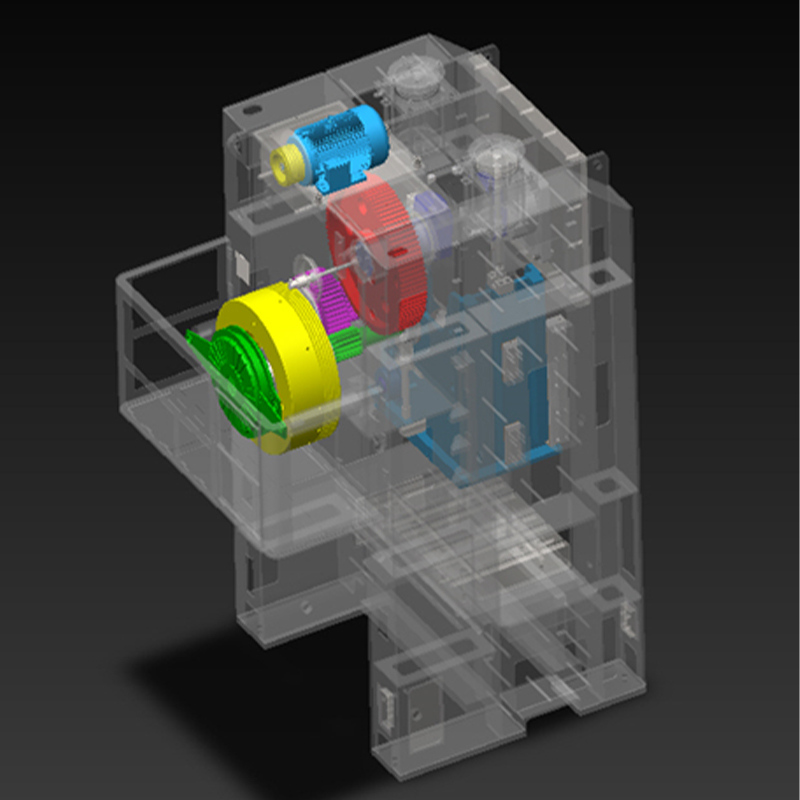

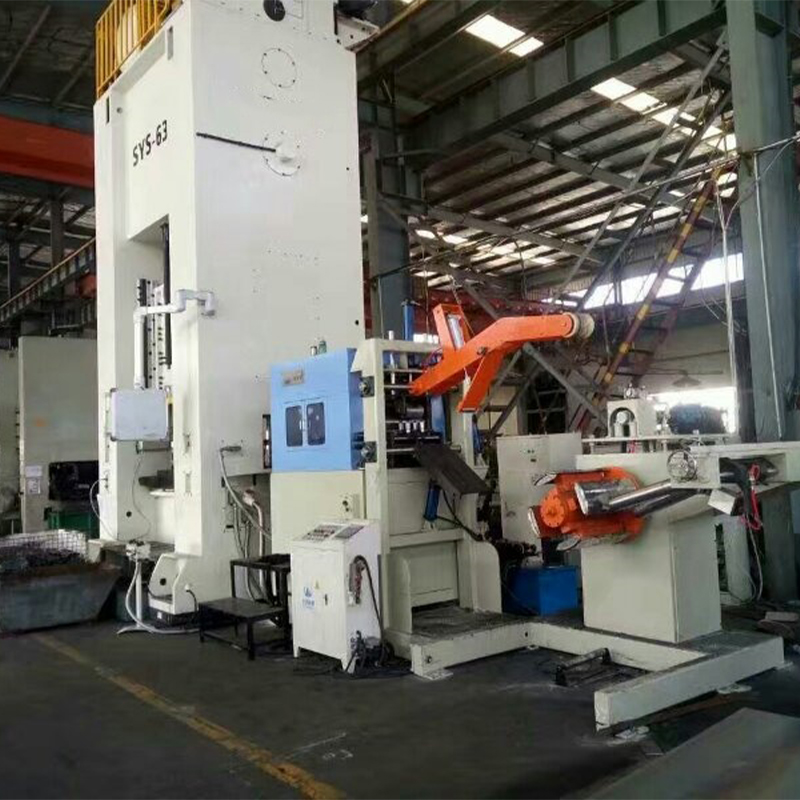

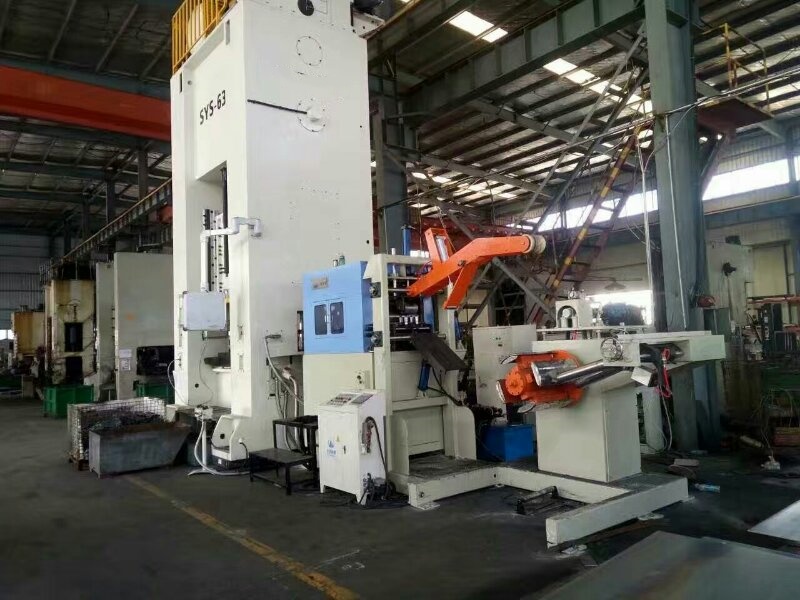

SYS Series Closed Single Point Precision Punch Press (110 Ton 200 Ton 500 Ton)
Optional Items
Die protection device
Quick die change device (die lifter, die clamp, or die arm)
Upper slide knockout device
Photoelectric safety device
Die lighting lamp
Automatic feeding device (feeder, material rack, straightener)
Pre-cut and pre-shear counter
Foot switch
Product Description
Features
1. The machine body is made of high-quality steel plates, designed with high precision and high strength, and stress relieved after welding, ensuring stable precision and reliable performance.
2. The die adjustment accuracy reaches 0.1mm, making it safe, convenient, and reliable.
3. Components such as the crankshaft, gears, and screws undergo hard oxidation and grinding processes, resulting in superior comprehensive mechanical properties and wear resistance.
4. The machine structure is designed reasonably, with complete configurations, facilitating automated production and assembly line manufacturing.
5. It features a high-strength reliable clutch/brake and dual solenoid valve with overload protection device, maximizing operational safety.
6. The machine uses high-grade alloy steel and a single crankshaft with an optimized design, making it highly suitable for large-sized, high-load die stamping.
7. The enclosed electrical circuit design is powerful and can be paired with any automation equipment.
Specifications
| Project name | Unit | SYS-80 | SYS-110 | SYS-160 | SYS-200 | SYS-260 | SYS-300 | SYS-400 | SYS-500 | SYS-600 | SYS-800 |
| Capacity | Ton | 80 | 110 | 160 | 200 | 260 | 300 | 400 | 500 | 600 | 800 |
| Rated tonnage point | mm | 4 | 6 | 6 | 6 | 7 | 7 | 8 | 8 | 10 | 13 |
| Stroke | mm | 120 | 180 | 200 | 200 | 250 | 250 | 250 | 250 | 250 | 250 |
| Speed changing | s.p.m | 40-75 | 30-60 | 20-50 | 20-50 | 20-40 | 20-40 | 20-35 | 20-30 | 15-20 | 15-20 |
| Stable speed | 65 | 50 | 35 | 35 | 30 | 30 | 30 | 20 | 15 | 15 | |
| Die height | mm | 320 | 360 | 460 | 460 | 500 | 500 | 550 | 550 | 600 | 600 |
| Slide adjustment | mm | 80 | 80 | 100 | 110 | 120 | 120 | 120 | 120 | 120 | 120 |
| Slide area | mm | 700ｘ500 | 800ｘ550 | 900ｘ600 | 950ｘ650 | 1000ｘ700 | 1000ｘ800 | 1300ｘ900 | 1400ｘ1000 | 1500ｘ1100 | 1500ｘ1200 |
| Bolster area | mm | 800ｘ550 | 1000ｘ650 | 1100ｘ700 | 1150ｘ750 | 1200ｘ800 | 1250ｘ900 | 1400ｘ1000 | 1500ｘ1100 | 1600ｘ1200 | 1600ｘ1300 |
| Slide opening | mm | 500ｘ300 | 650ｘ400 | 700ｘ450 | 750ｘ450 | 800ｘ500 | 800ｘ500 | 850ｘ550 | 900ｘ550 | 1000ｘ600 | 1000ｘ600 |
| Main motor | kw.p | 7.5ｘ4 | 11ｘ4 | 15ｘ4 | 18.5ｘ4 | 22ｘ4 | 30ｘ4 | 37ｘ4 | 55ｘ4 | 75ｘ4 | 75ｘ4 |
| Air precision | kg/cm² | 6 | |||||||||
| Presses precision | GB/JIS class | ||||||||||
Standard Configuration
1. Hydraulic overload protection device
2. Electric slide adjustment device
3. Motorized die height indicator
4. Slide and die balance device
5. Pneumatic air source connection
6. Double safety protection device
7. Main motor reverse rotation device
8. Variable frequency drive
9. Electronic cam
10. Crankshaft angle indicator
11. Pneumatic air blowing device
12. Maintenance tools and toolbox
13. Mechanical anti-vibration feet
14. Misfeed detection device
15. Imported oil-collecting muffler
16. Touch screen control device
17. Motorized grease lubrication device

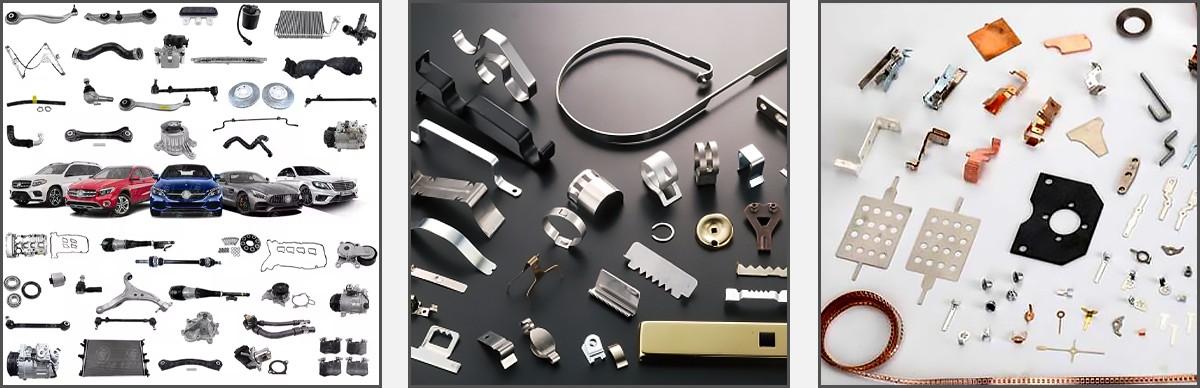

Industry Applications
Automotive: Automotive parts, chassis, structural components, etc.
Hardware: Standard parts, fasteners, metal components, etc.
Electronics: Connectors, terminals, shells, precision parts, etc.
Home Appliances: Housing, sheet metal parts, inner components, etc.
Sheet Metal: Cabinets, panels, large drawing parts, etc.
Optional Combinations

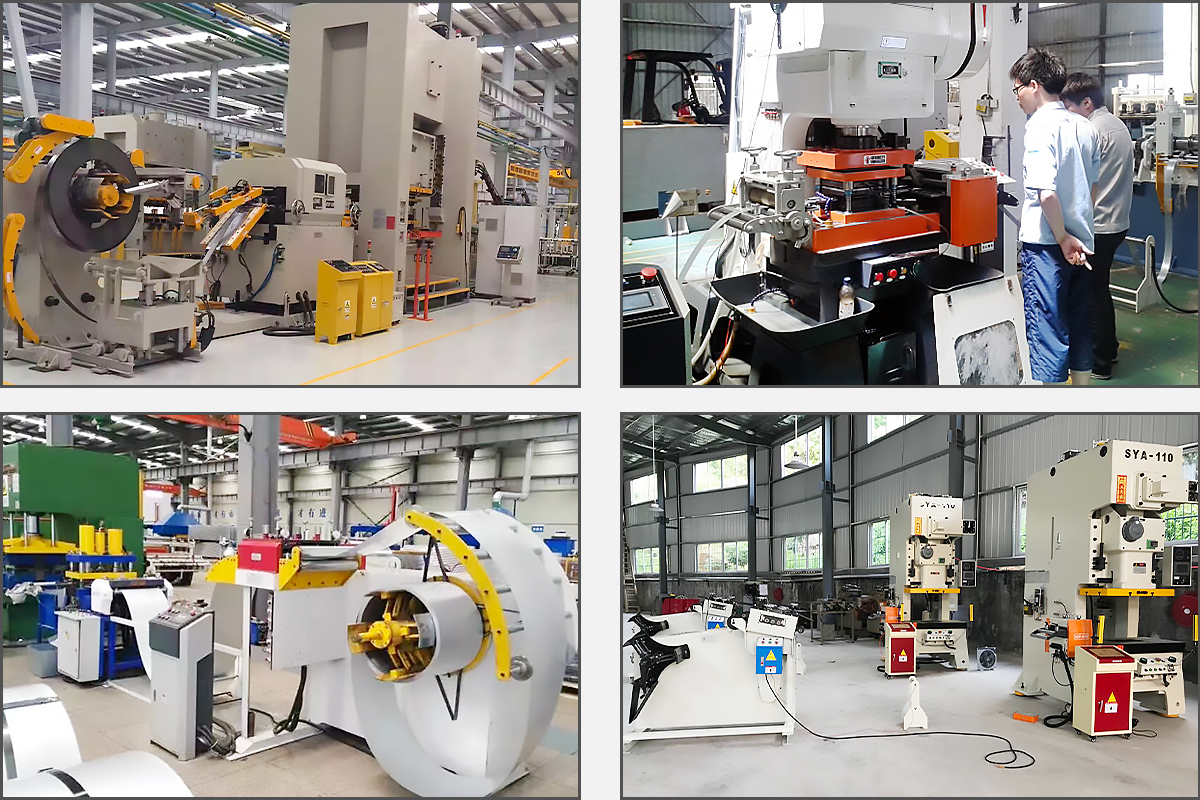

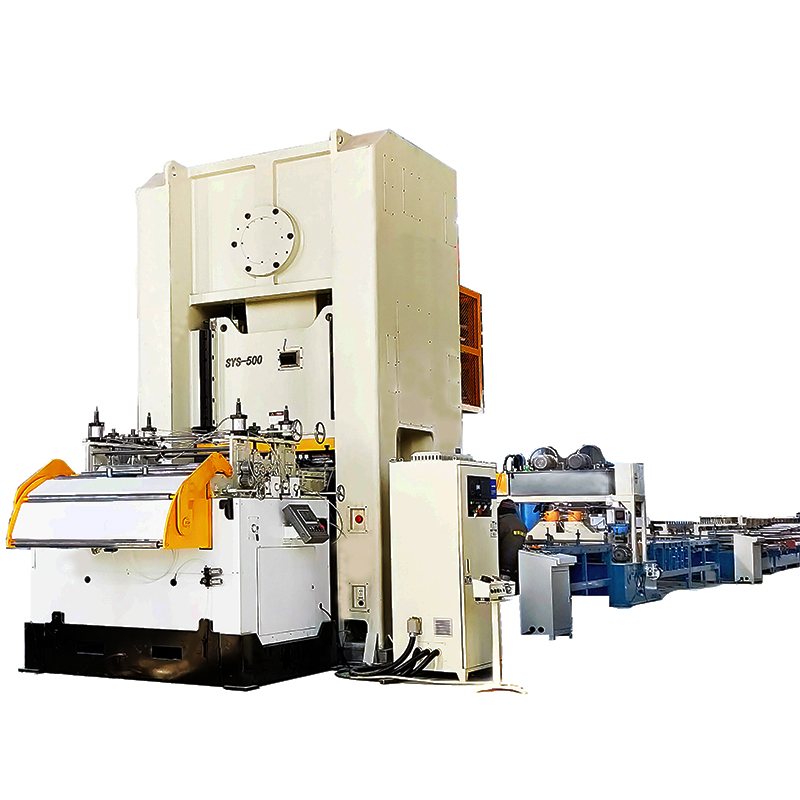

> 3-in-1 uncoiling, straightening, and feeding
> 2-in-1 uncoiling and straightening
> Uncoiler, servo feeder, sheet straightener, and stamping dies, covering most of the metal stamping needs.
