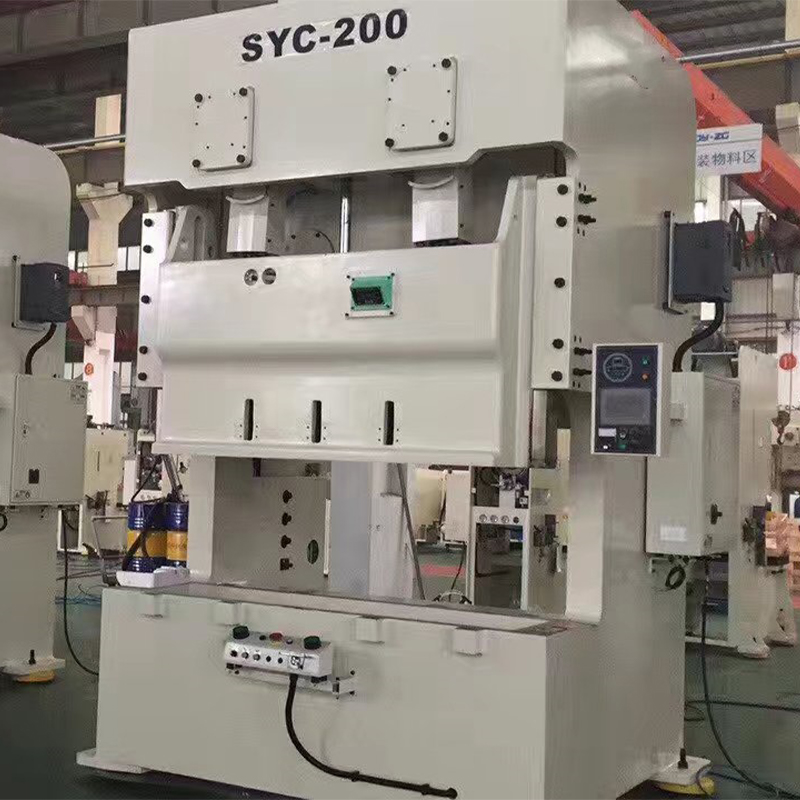

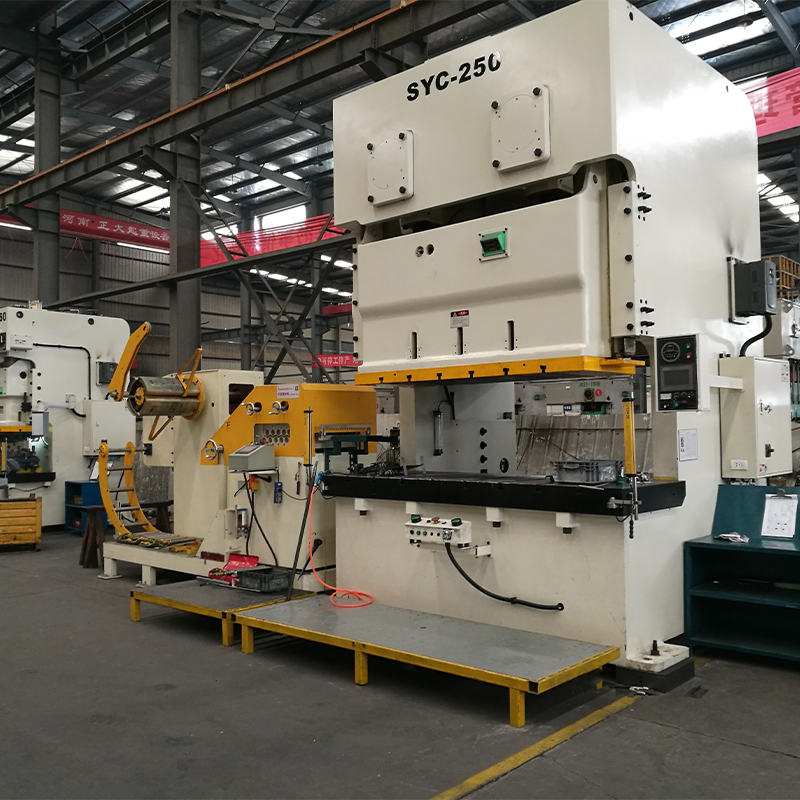

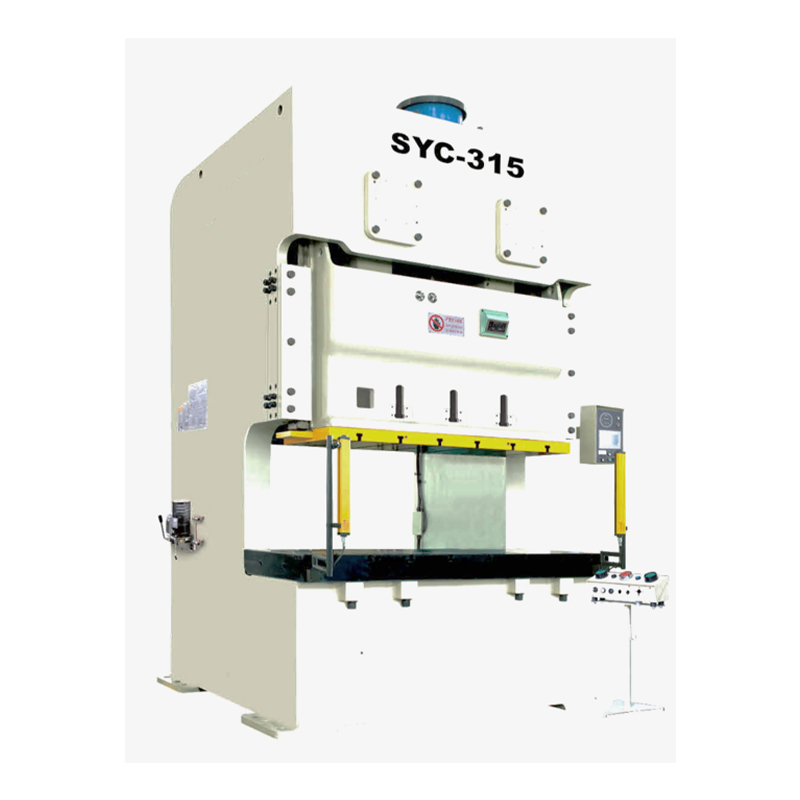

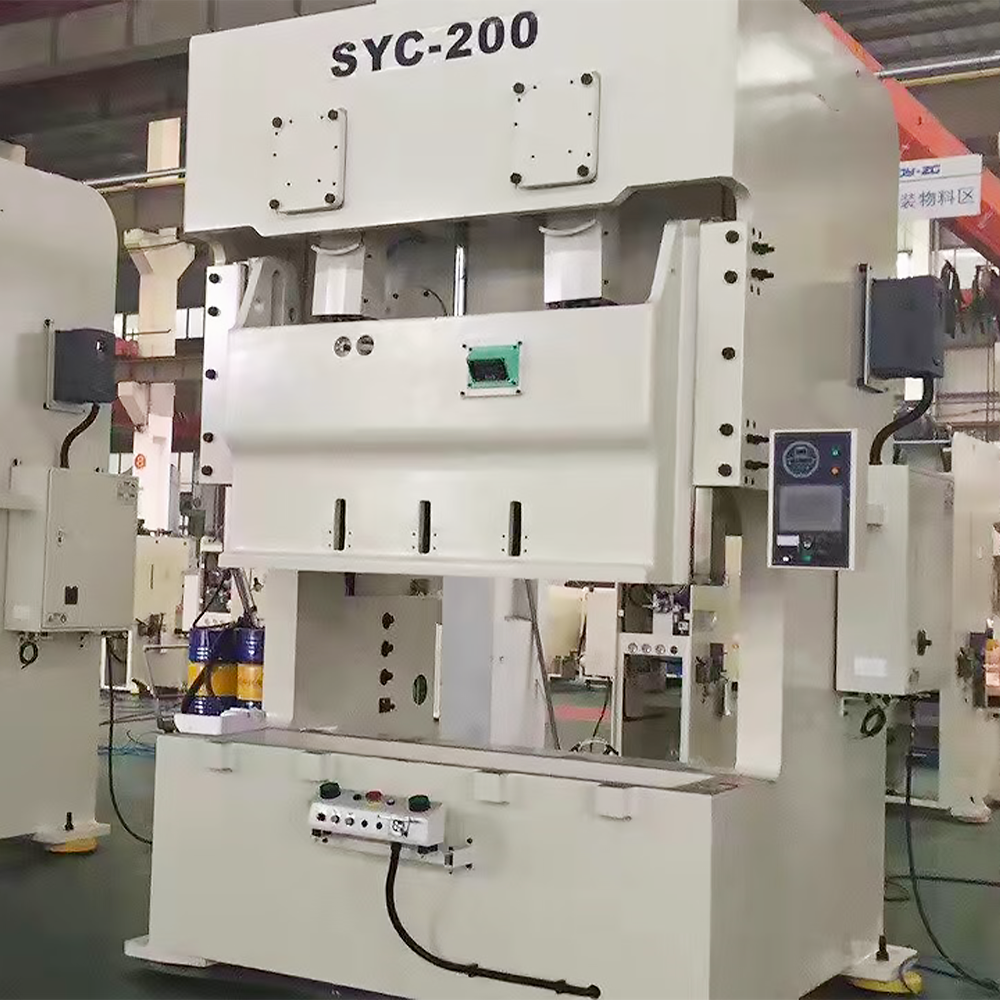

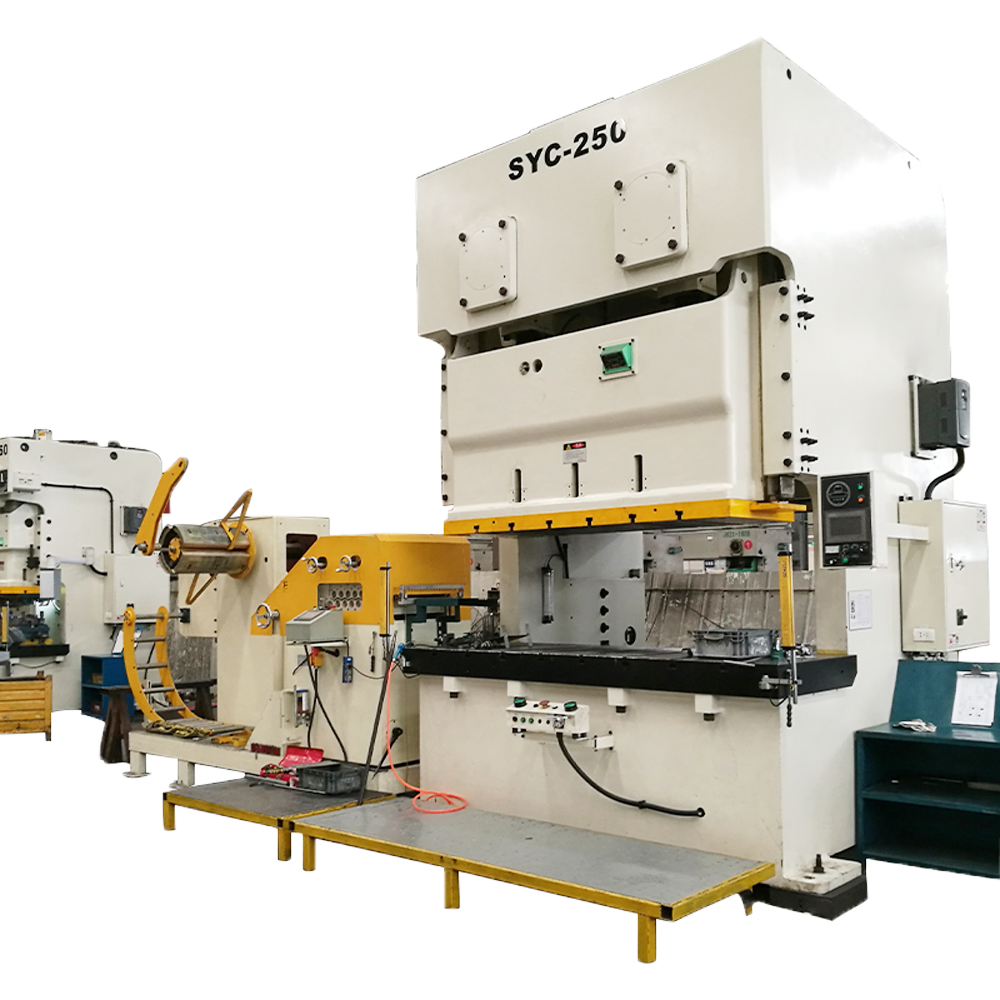

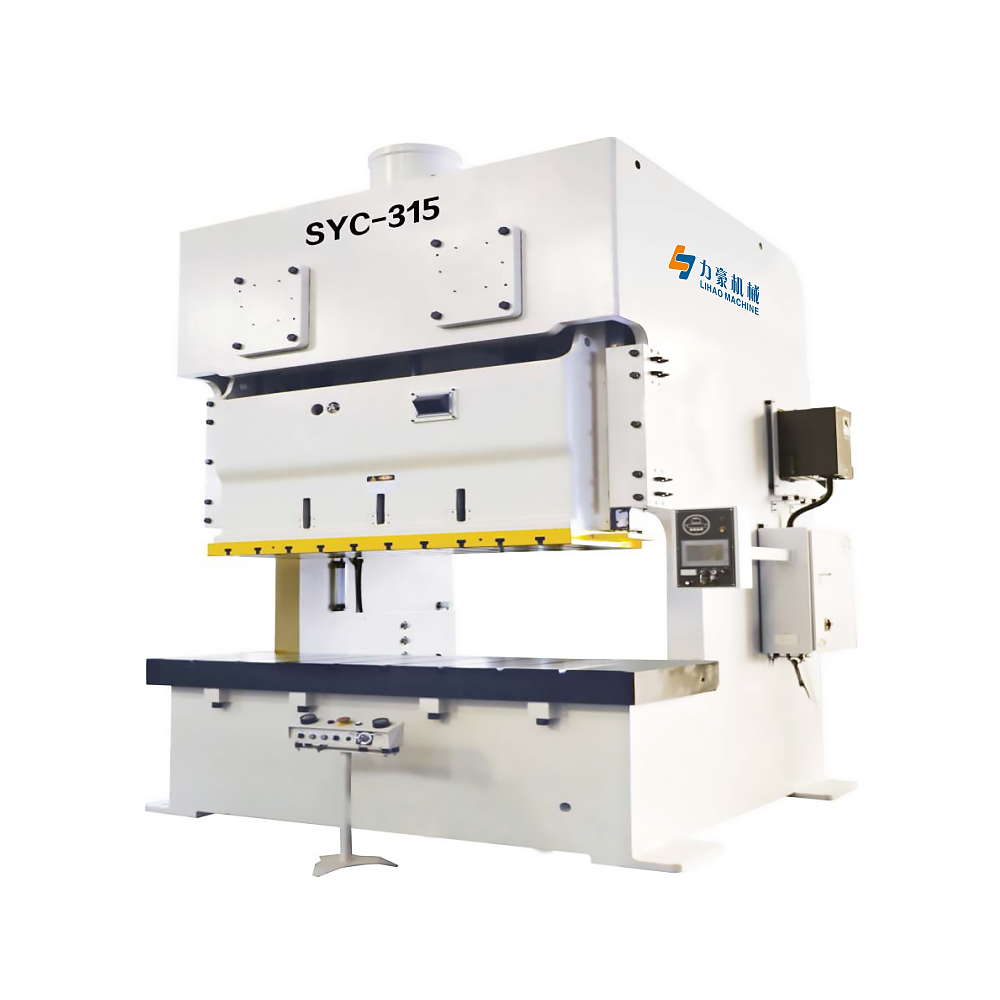

SYC Series Open Double Crank Precision Punch Press (110 Ton 315 Ton) High-Speed Stamping Machine

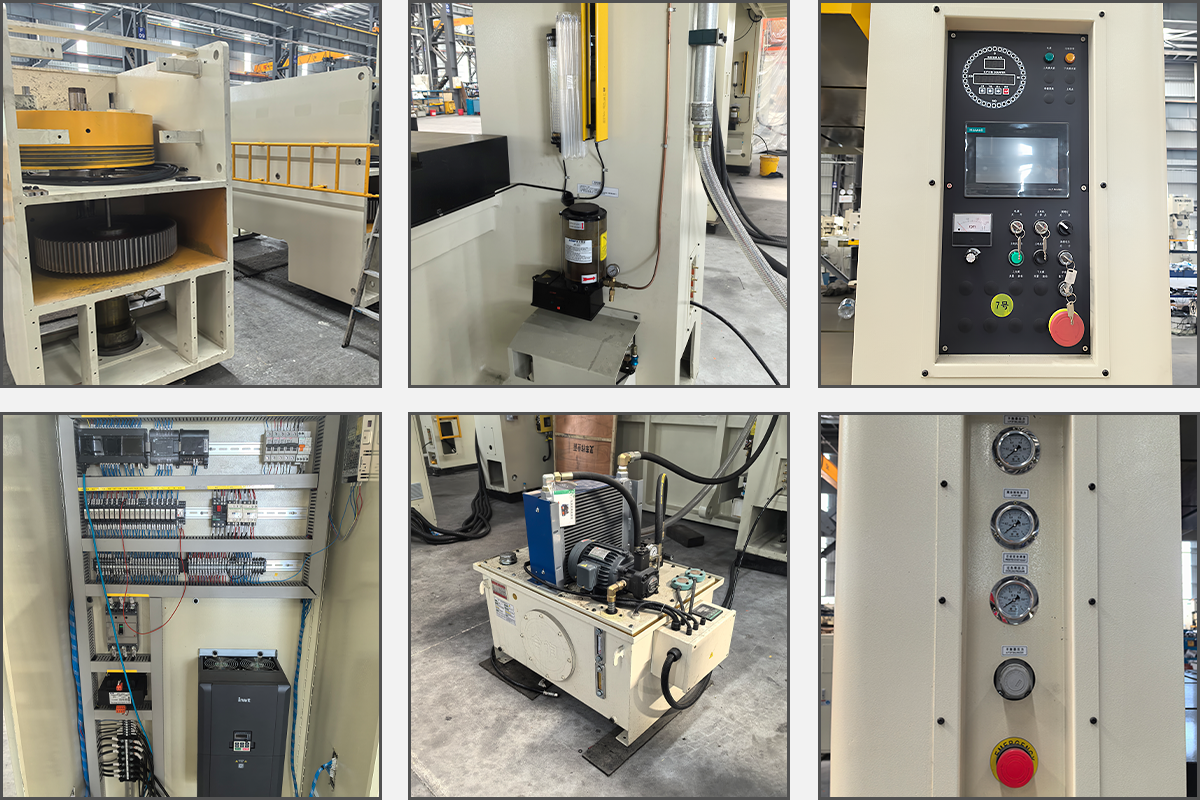

Standard Unit
1. Dry ciutch & brake
2. Standard operating system
3. Operating mode selection
4. Hydraulic overload protector
5. Frequency conversion
6. Overrun detector
7. Portable 2-hand push
8. Dual solenoid valve
9. Automatic slide adjust devicet
10. Digital die height indicator
11. Automatic lubrication system
12. Total counter, 6 digits
13. Preset counter, 6 digits
14. Maintenance counter, 6 digits
15. Life counter, 6 digits
16. Electronic rotary cam switch
17. Air blowing device
18. Air source reeptacle
19. Missfeed detection circuit
20.Power Receptacle

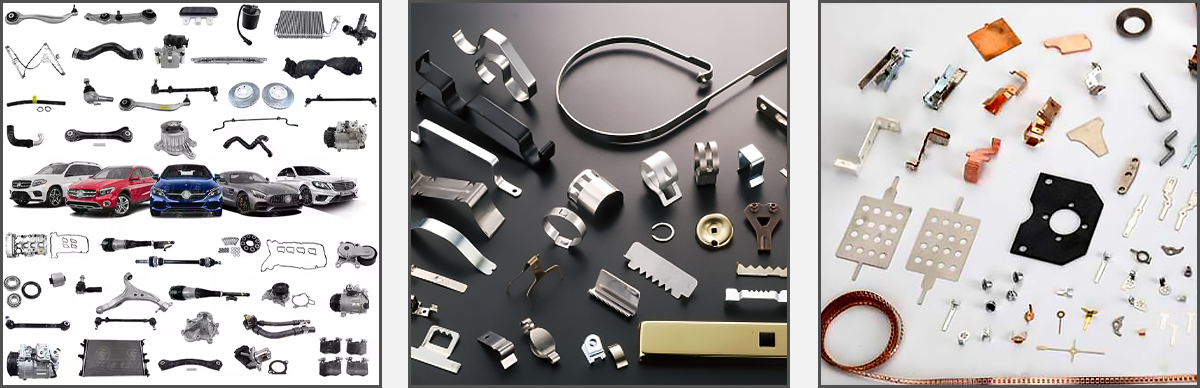

Product Description
Product Features
> The machine body is made of high-quality steel plates, designed with high precision and high strength. Stress relief treatment after welding ensures stable precision and reliable performance.
> To ensure relatively smooth operation, a pneumatic balancer is used.
> Die adjustment accuracy reaches up to 0.1mm, ensuring safety, convenience, and reliability.
> Components such as the crankshaft, gears, and screws undergo hard oxidation and grinding, providing exceptional mechanical properties and wear resistance.
> The machine structure is designed reasonably, with complete configurations, facilitating automated production and assembly line manufacturing.
> Features a high-performance combined clutch/brake system for smooth engagement and reliable safety.
> Uses a dual solenoid valve and hydraulic overload protection device to maximize operational safety.
> The machine adopts a double crank and double station design, suitable for precision stamping of large workpieces.
> Enclosed electrical circuit design is robust and can be integrated with any automation equipment.
| Specification | Unit | SYC-110 | SYC-160 | SYC-200 | SYC-250 | SYC-315 | |||||
| Model | V | H | V | H | V | H | V | H | V | H | |
| Capacity | Ton | 110 | 160 | 200 | 250 | 315 | |||||
| Rate tonnage point | mm | 5 | 3 | 6 | 3 | 6 | 3 | 7 | 3.5 | 7 | 3.5 |
| Stroke | mm | 180 | 110 | 200 | 130 | 250 | 150 | 280 | 170 | 300 | 170 |
| Stroker per Minute | s.p.m | 35-65 | 50-100 | 30-55 | 40-85 | 25-45 | 35-70 | 20-35 | 30-60 | 20-35 | 30-50 |
| Die height | mm | 400 | 435 | 450 | 485 | 500 | 550 | 550 | 605 | 550 | 615 |
| Slide adjustment | mm | 100 | 100 | 120 | 120 | 120 | |||||
| Slide area | mm | 1400ｘ500ｘ70 | 1600ｘ550ｘ70 | 1850ｘ650ｘ95 | 2100ｘ700ｘ95 | 2100ｘ700ｘ95 | |||||
| Bolster area | mm | 1800ｘ650ｘ130 | 2000ｘ760ｘ150 | 2400ｘ840ｘ170 | 2700ｘ900ｘ170 | 2750ｘ900ｘ190 | |||||
| Main motor | kw.p | 11ｘ4 | 15ｘ4 | 18.5ｘ4 | 22ｘ4 | 30ｘ4 | |||||
| Air pressure | kg/cm2 | 6 | |||||||||
| Presses precision | GB/JIS 1 class | ||||||||||
| Presses dimension | mm | 1745ｘ2000ｘ3059 | 1940ｘ2200ｘ3709 | 2235ｘ2620ｘ3849 | 2545ｘ3000ｘ4304 | 2545ｘ3010ｘ4689 | |||||
| Die cushion effective area | mm2 | 350ｘ235ｘ2 | 410ｘ260ｘ2 | 540ｘ350ｘ2 | 640ｘ470ｘ2 | 640ｘ470ｘ2 | |||||
