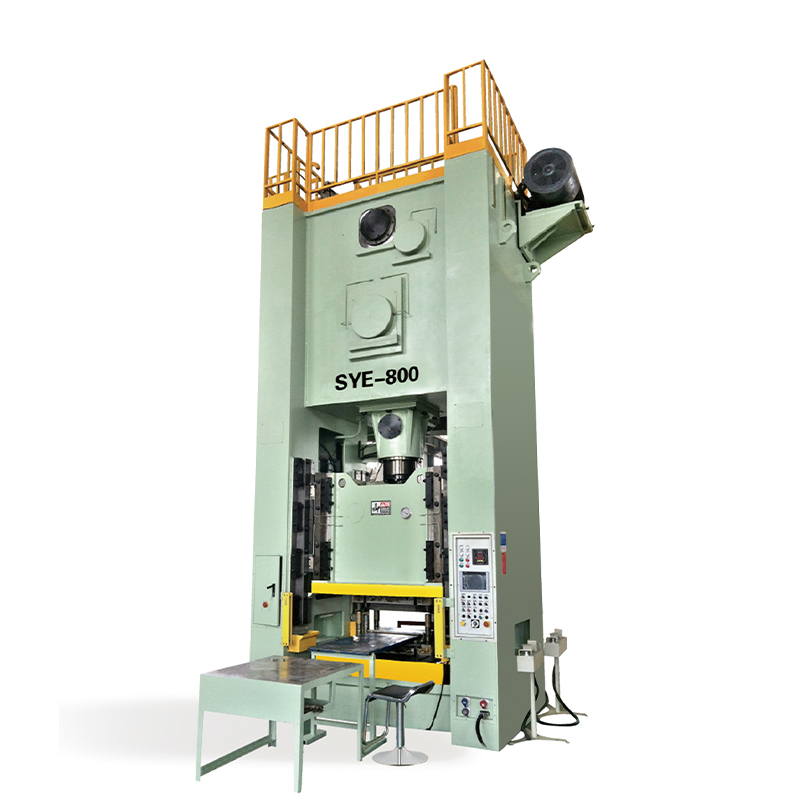

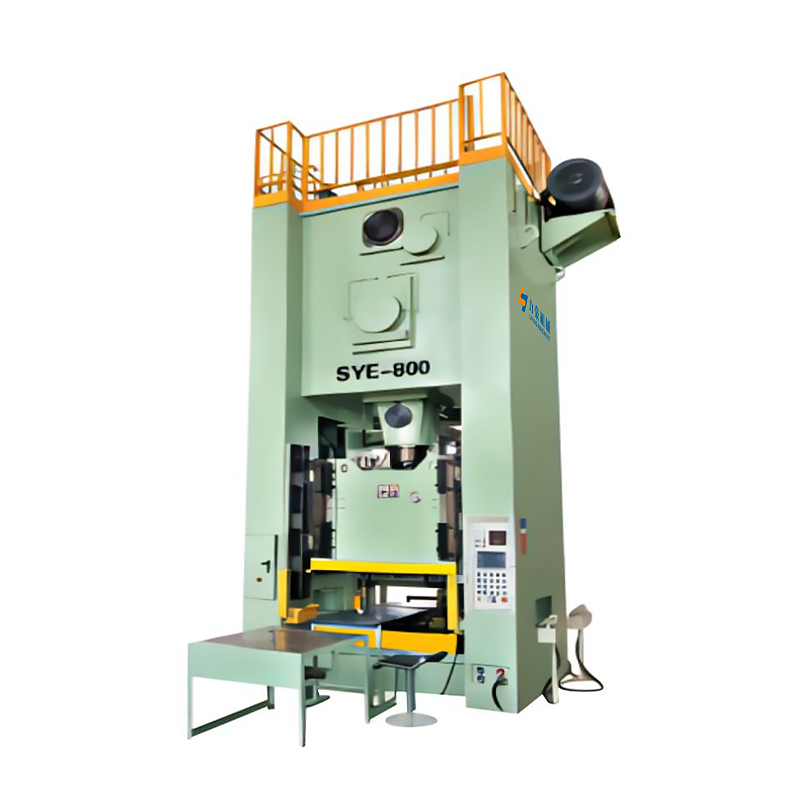

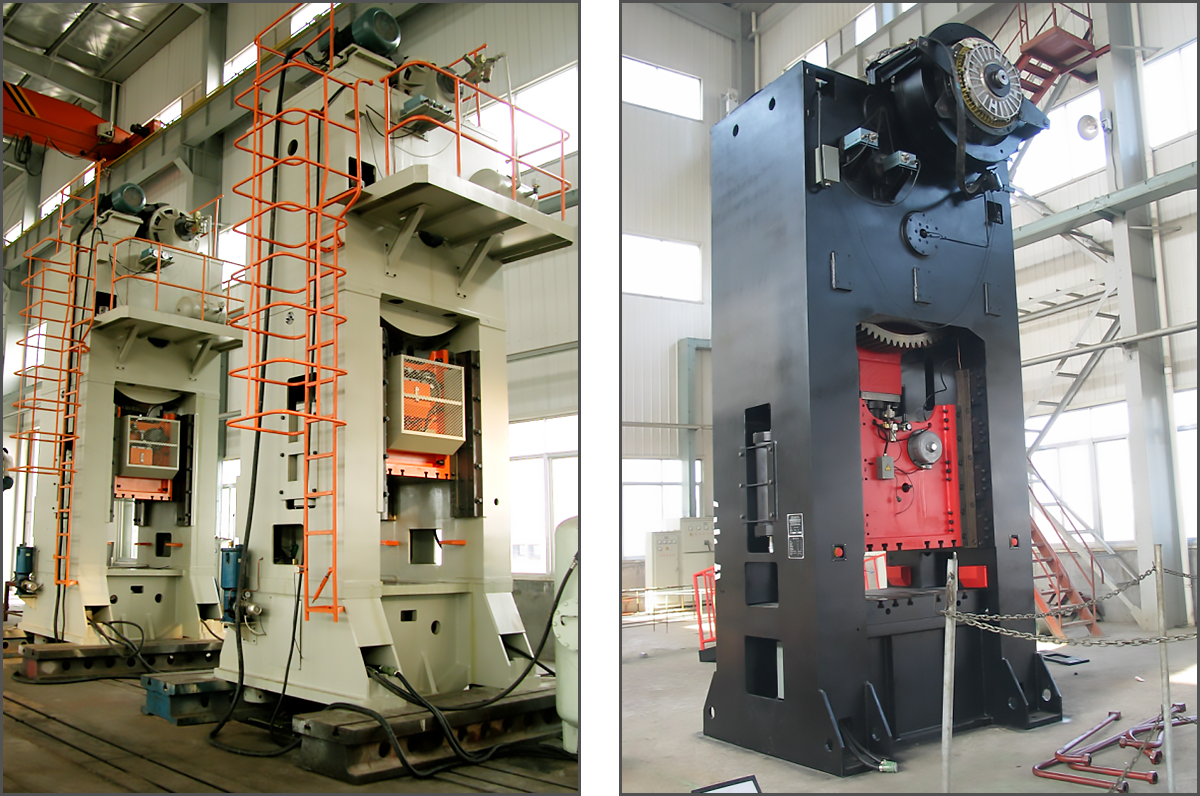

SYE Series Single Eccentric Gear Precision Punch Press (315-1250T)
Pneumatic punching machine is a punching equipment that uses compressed air as a power source.
It converts the energy of compressed air into mechanical energy through a cylinder,
driving the slider to make up and down linear reciprocating motion,
thereby performing various processing on materials such as punching,
forming, shallow stretching, cutting, etc.
Product Description
Product Feature
>Major and critical components are optimized using finite element analysis.
>Both the machine body and the slide are welded from steel plates and undergo aging treatment.
>The machine body can be an integral structure or a split closed structure comprising beams, columns, and base, tightened with four tension bolts. This design provides good rigidity and minimal deformation.
>High-strength alloy steel gears are used, with high-speed herringbone gear transmission and low-speed grinding hard-tooth surface spur gears.
>The punch press features imported or self-manufactured air friction clutches with eccentric gears, guide pillar, and guide sleeve structures, offering high guiding accuracy and good precision retention.
>Equipped with imported hydraulic overload protection, the components respond quickly and reset rapidly.
>Motorized adjustment of closed height ensures ease of use, strong self-locking properties, and convenient maintenance.
>PLC control and variable circuit electrical systems are included.
>Optional moving workstations (front-moving, side-moving, T-type) are available according to user requirements.
>Optional air cushions (with adjustable stroke and self-locking features) can be provided as per user needs.
>The machine features motorized thin oil lubrication for precise, timed, safe, and labor-saving lubrication.
>Full machine automatic interlocking and monitoring functions include brake angle, oil pressure, lubrication failure, hydraulic overload protection, and movable worktable.
Functions and Applications of Power Presses
Power press machines can be used for processing most metals,such as copper, titanium, stainless steel, aluminum, low carbon steel, medium carbon steel, high strength steel, various alloys, etc.
Specifications
| Project name | Unit | SYE-315 | SYE-400 | SYE-500 | SYE-630 | SYE-800 | SYE-1000 | SYE-1250 |
| Capacity | Ton | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 |
| Rated tonnage point | mm | 13 | 13 | 13 | 13 | 13 | 13 | 13 |
| Stroke | mm | 315 | 400 | 400 | 400 | 500 | 500 | 500 |
| Stroker per Minute | s.p.m | 20 | 20 | 16 | 12 | 10 | 10 | 10 |
| Die height | mm | 500 | 550 | 600 | 700 | 800 | 900 | 1000 |
| Slide adjustment | mm | 200 | 250 | 250 | 250 | 315 | 315 | 315 |
| The distance between the guide rail | mm | 1120 | 1280 | 1330 | 1700 | 1870 | 1870 | 1880 |
| Slide area | mm | 1100ｘ1100 | 1240ｘ1200 | 1240ｘ1200 | 1600ｘ1450 | 1800ｘ1600 | 1800ｘ1600 | 1800ｘ1600 |
| Bolster area | mm | 1100ｘ1100 | 1240ｘ1200 | 1240ｘ1200 | 1600ｘ1450 | 1800ｘ1600 | 1800ｘ1600 | 1800ｘ1600 |
| Die Cushion Capacity | Ton | 20 | 20 | 50/7.6 | 100/15 | 125/18 | 125/18 | 125/18 |
| Die Cushion Stroke | mm | 200 | 200 | 200 | 200 | 250 | 250 | 250 |
| Rigid material schedule | mm | 110 | 130 | 150 | 150 | 200 | 200 | 200 |
| Main motor | kw.p | 30ｘ4 | 45ｘ4 | 55ｘ4 | 75ｘ4 | 75ｘ4 | 110ｘ4 | 110ｘ4 |
| Frame structure | integrated/split into three parts | split into three parts | ||||||
| Guide pin guide sleeve structure | Y/N | Y | ||||||
| Side adjust device | / | Configurable with front-moving worktable | ||||||
| Hight of the top surface of bed from floor level | mm | 5800 | 6000 | 6550 | 6950 | 7800 | 8100 | 8430 |
Standard Configuration
>Hydraulic overload protection device
>Motorized slide adjustment device
>Digital die height indicator
>Slide and die balance device
>Electronic cam
>Pneumatic air source connection for air blowing device
>Main motor reverse rotation device
>Motorized thin oil lubrication device
>Dry type integral or split clutch
>Double safety protection device
>Programmable Logic Controller (PLC)
>Independent electrical box
>Foundation bolts
>Maintenance tools and toolbox
>Operation manual
Optional Combinations

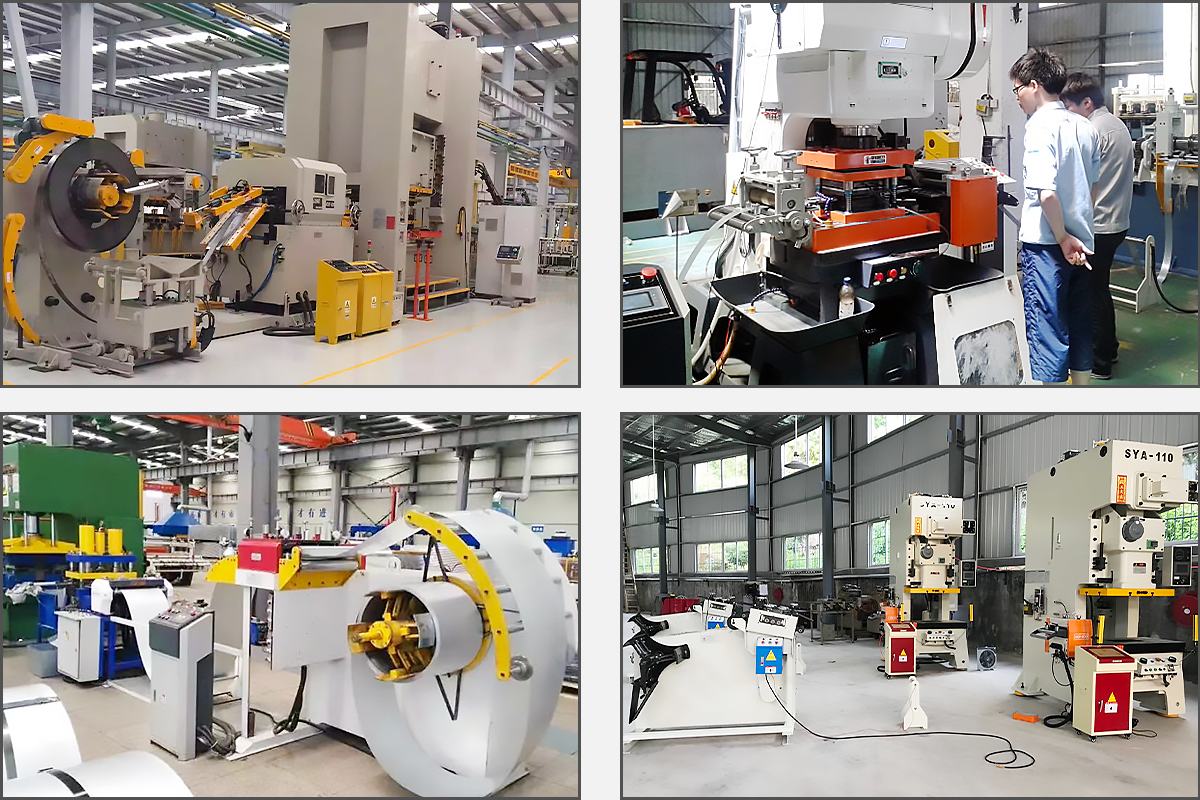

> 3-in-1 uncoiling, straightening, and feeding
> 2-in-1 uncoiling and straightening
> Uncoiler, servo feeder, sheet straightener, and stamping dies, covering most of the metal stamping needs.
FAQs
1. How do l select the right punching machine for mybusiness?
To choose the right punching machine, assess your production volume, material types, required hole sizes, and budget. Consider machines with flexible tooling options and automation capabilities to meet your specific needs. HARSLE offers a range of models to suit various applications and budgets.
2. What is a pneumatic press?
A pneumatic press uses compressed air to apply pressure to a workpiece to shape, cut, or form a material.
3. What are the main components of a pneumatic press?
The main components include the air compressor, control valves, cylinders and pistons, press frames, and die sets.
4. Why does the manufacturing industry prefer pneumatic presses?
They are efficient, precise, safe, and versatile for a wide range of industrial applications.
