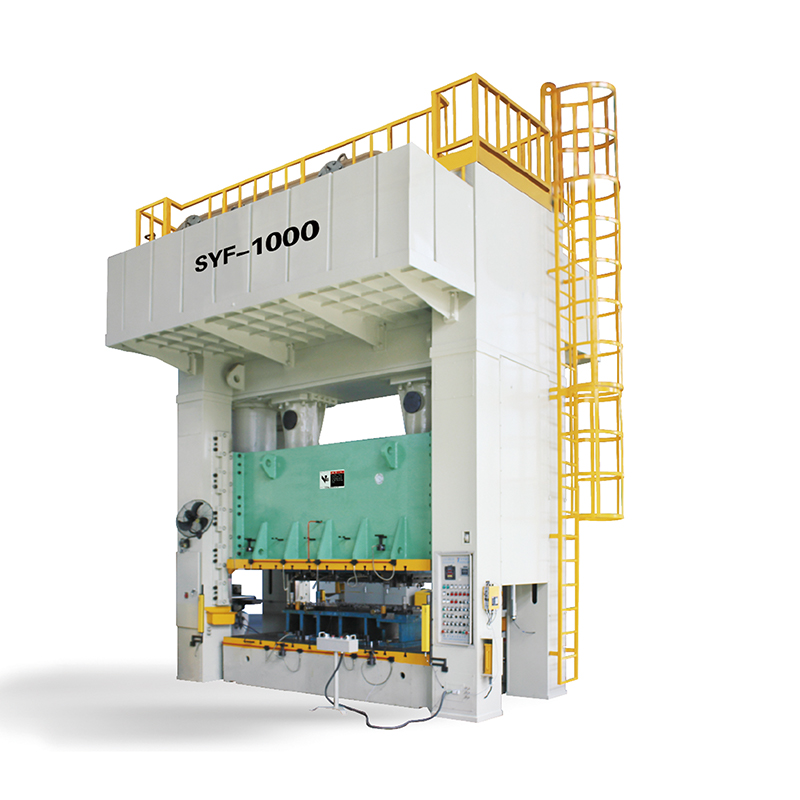

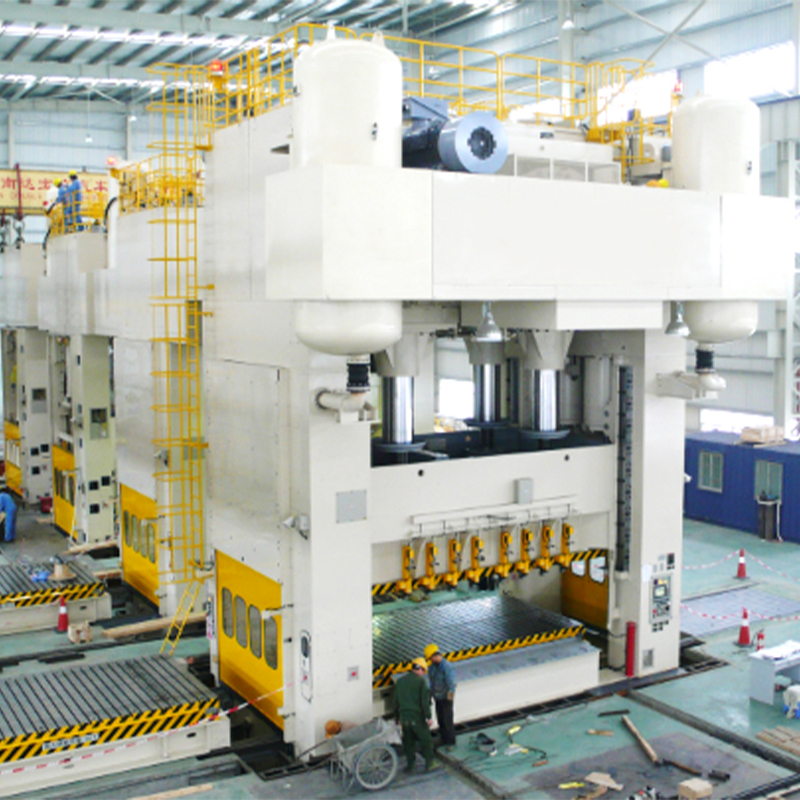

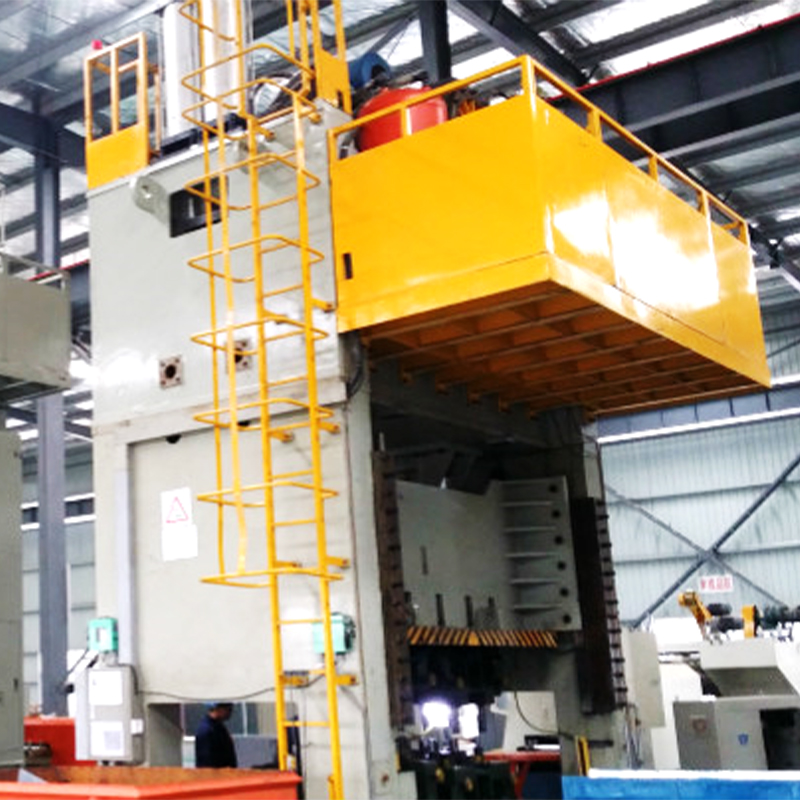

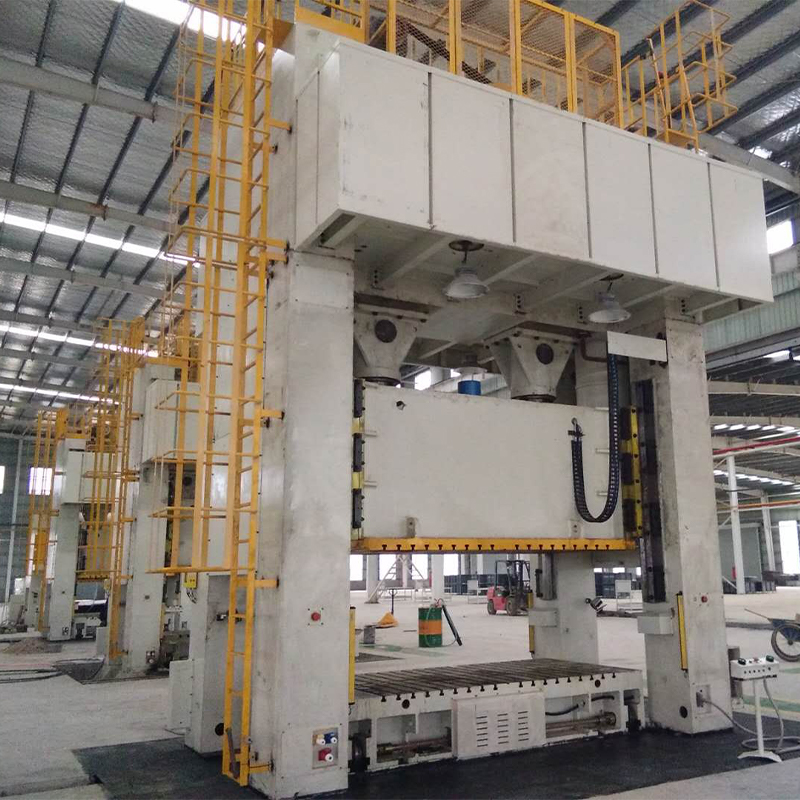

SYF Series Double Eccentric Gear Precision Power Press Punching Machines (250-1250T)
Applicable Material
Material Type: Suitable for vary kind of coil material, such as Galvanized steel, Stainless steel, CR Steel, HR Steel, Galvanized steel, Stainless steel,Aluminum, Cooper etc.
Capacity: 250ton to 1250ton
PLC control.
Dry clutch or Wet clutch for optional.
Hydraulic overload protected.
Both mechanical and electric cam control.
Auto lubricated.
Light curtain, inverter,air cushion are optional.
Product Description
Features
>Imported hydraulic overload protection, with responsive components and quick reset.
>Motorized adjustment of closed height for ease of use, strong self-locking properties, and convenient maintenance.
>PLC control with variable circuit electrical system.
>Optional moving worktable (front-moving, side-moving, T-type) according to user requirements.
>Optional air cushions (adjustable stroke, self-locking features) according to user requirements.
>Motorized thin oil lubrication, precise, timed, safe, and labor-saving.
>Capable of automatic interlocking and monitoring of brake angle, oil pressure, lubrication failure, hydraulic overload protection, and moving worktable.
Specifications
| Specification | unit | SYF-250 | SYF-400 | SYF-500 | SYF-800 | SYF-1000 | SYF-1250 |
| Capacity | Ton | 250 | 400 | 500 | 800 | 1000 | 1250 |
| Rate tonnage point | M M | 13 | 13 | 13 | 13 | 13 | 13 |
| Stroke | MM | 400 | 400 | 500 | 500 | 500 | 500 |
| Speed changing | s.p.m | 16-25 | 13-20 | 13-20 | 12-16 | 10-14 | 8-12 |
| Stable speed | 20 | 18 | 16 | 14 | 12 | 12 | |
| Mold height | mm | 600 | 800 | 900 | 1000 | 1200 | 1200 |
| Slide adjustment | mm | 250 | 400 | 400 | 400 | 500 | 500 |
| Slide area | mm | 2000x1250 | 2800x1600 | 3300x1600 | 4000x1800 | 4000x2000 | 4000x2000 |
| mm | 2800x1250 | 3500x1600 | 4000x1800 | 4500x2000 | 4800x2000 | 5000x2000 | |
| Bolster area | mm | 2000x1250 | 2800x1600 | 3300x1600 | 4000x1800 | 4000x2000 | 4000x2000 |
| mm | 2800x1250 | 3500x1600 | 4000x1800 | 4500x2000 | 4800x2000 | 5000x2000 | |
| Side opening | 800 | 800 | 1000 | 1400 | 1600 | 1800 | |
| Mold Cushion Capacity | Ton | 40 | 60 | 80 | 120 | 120 | 150 |
| Mold Cushion Stroke | mm | 200 | 200 | 200 | 220 | 220 | 300 |
| Main motor | kw.p | 30x4 | 45x4 | 55x4 | 90x4 | 110x4 | 132x4 |
| Frame structure | Integrated/Three segmentation | Three segmentation | |||||
| Side adiust device | Can be configured with forward, side, and T-shaped mobile workbenches | ||||||
| Hight ofthe top surface of bed from floorlevel | mm | 5600 | 6800 | 7100 | 8000 | 8350 | 8860 |

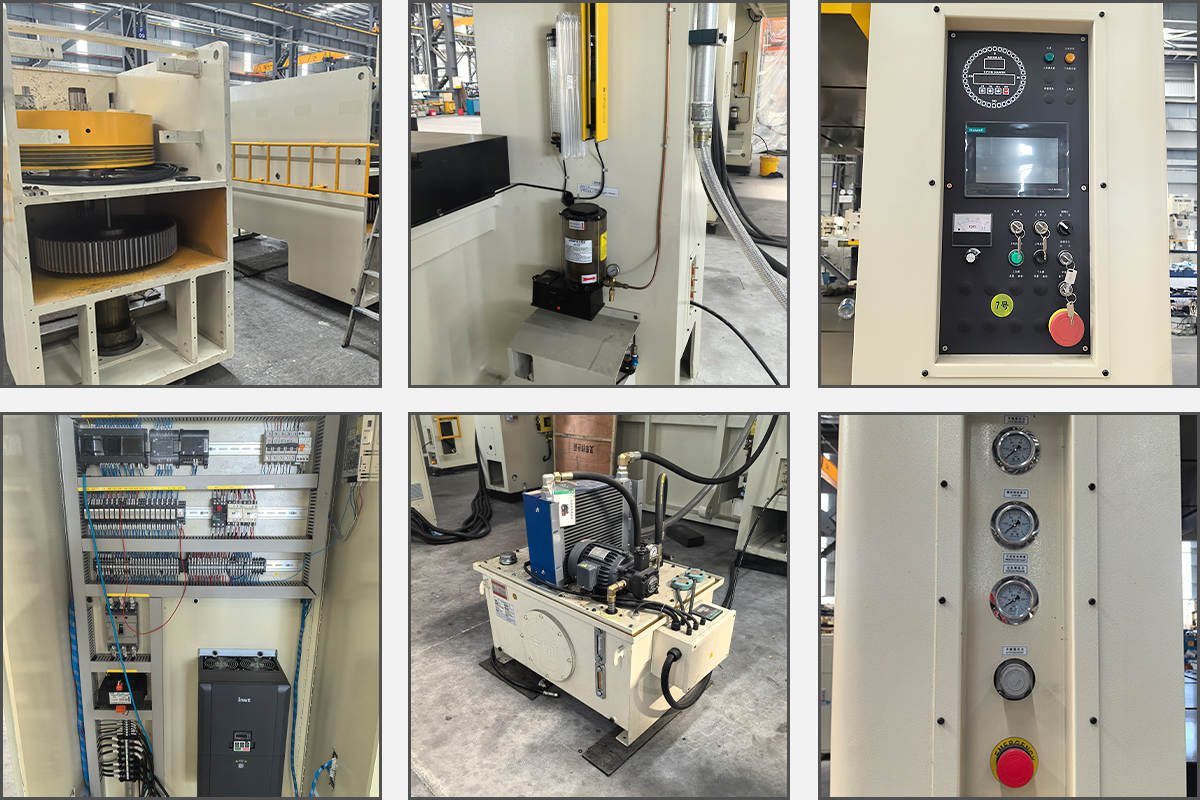

Standard Unit
1. Hydraulic overload protection device
2. Motorized slide adjustment device
3. Digital die height indicator
4. Slide and die balance device
5. Electronic cam
6. Air source connection
7. Air blowing device
8. Main motor reverse rotation device
9. Motorized thin oil lubrication device
10. Integrated or split clutch
11. Double safety protection device
12. Programmable Logic Controller (PLC)
13. Independent electrical box
14. Foundation bolts
15. Maintenance tools and toolbox
16. Operation manual
17. T-type operation table

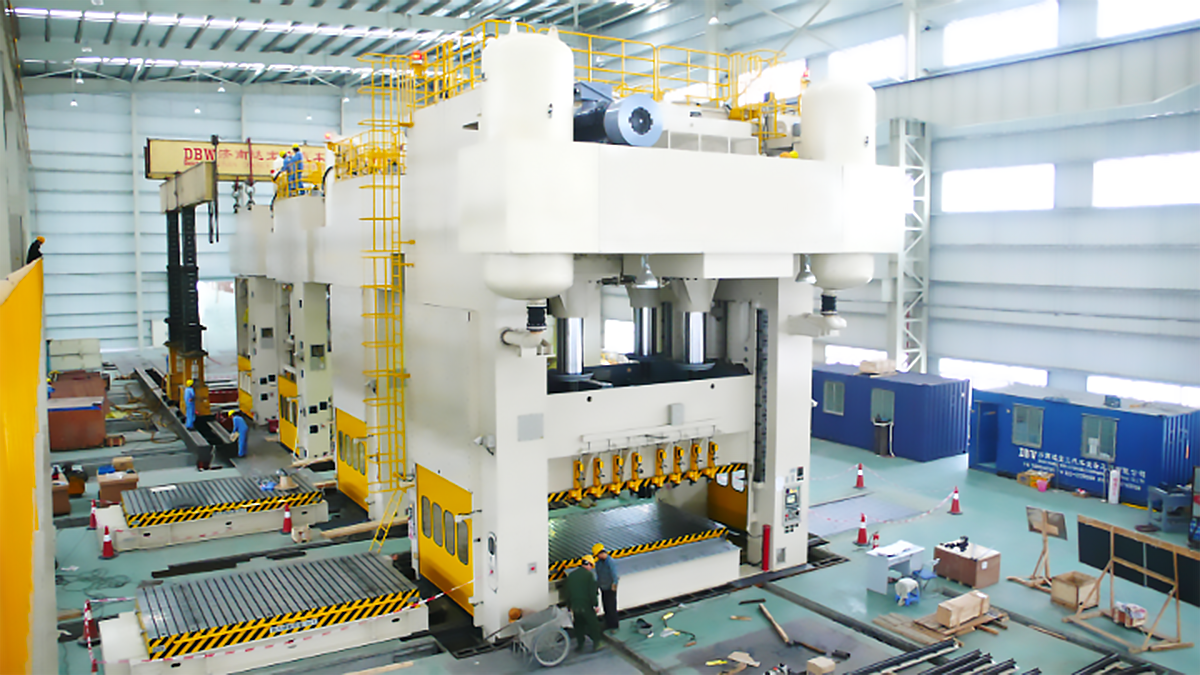

Details Of Eccentric Gear Punch Press

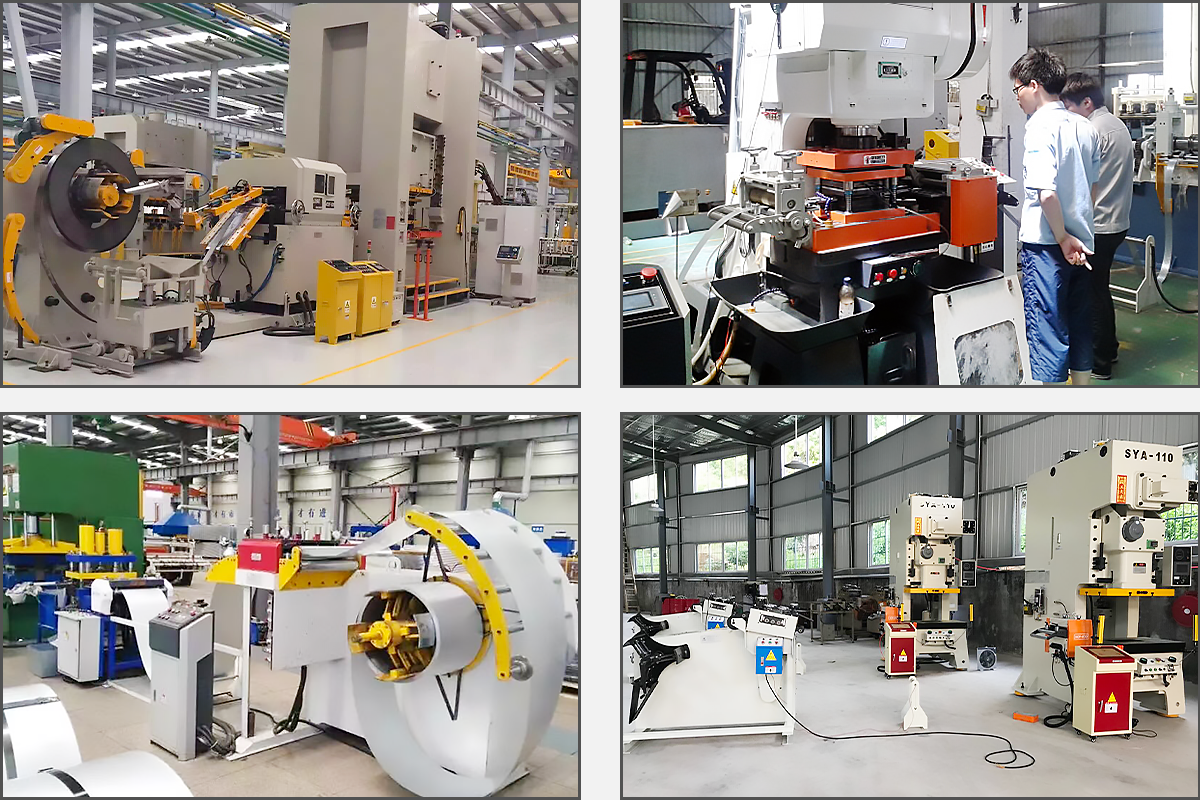

Optional System:
> 3-in-1 uncoiling, straightening, and feeding
> 2-in-1 uncoiling and straightening
> Uncoiler, servo feeder, air feeder, and stamping dies, covering most of the metal stamping feeding needs.

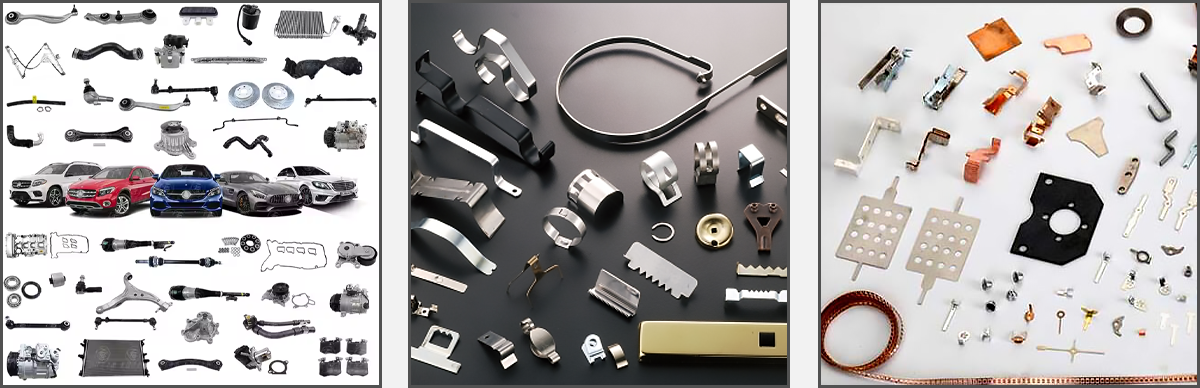

Application of Punch Press Machine
Automotive industry: used for stamping and forming of automotive parts, such as car bodies, engine parts, etc.
Home appliance manufacturing: used for stamping of metal parts of home appliances, such as the outer shell and internal structural parts of washing machines and refrigerators.
Electronic communications: used for precision stamping of electronic products, such as metal frames of mobile phones and computers.
Hardware tools: used to manufacture various hardware tools and parts, such as screwdrivers, wrenches, etc.
Aerospace: used for precision stamping of aerospace parts, such as parts of aircraft and satellites.
FAQs
What types of punch presses do you produce?
We are a professional manufacturer of metal stamping equipment, providing a complete range of punching machines including Open Type, Closed Type, High Speed, Precision, and Servo Presses with various tonnage options.
What materials can your stamping presses stamp?
Cold rolled steel, stainless steel, copper, aluminum, galvanized sheet, metal coil, etc.
What can a punch press make?
Blanking, punching, bending, drawing, forming, progressive die stamping, etc.
