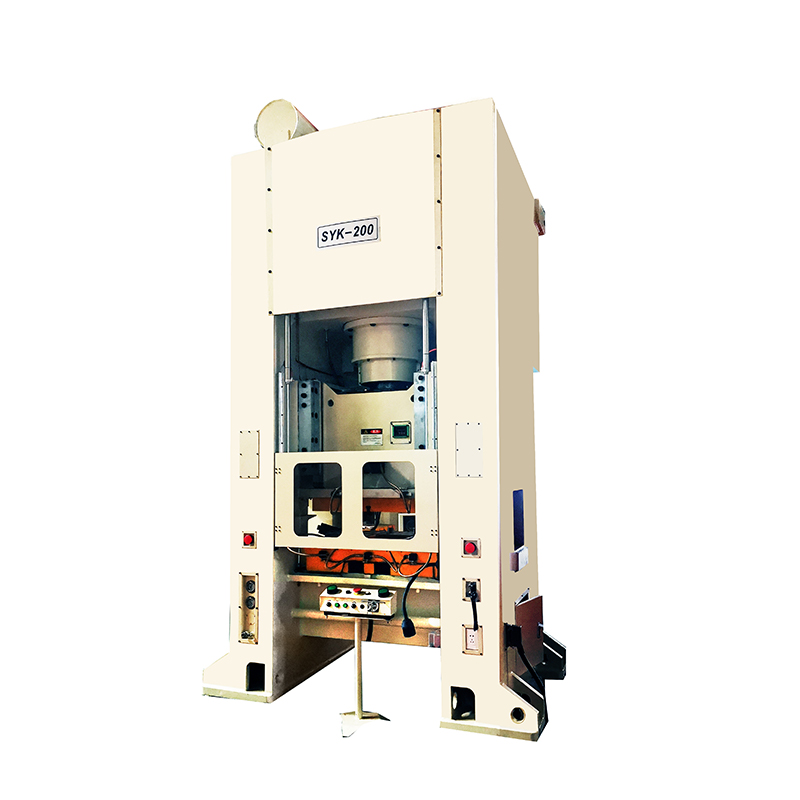

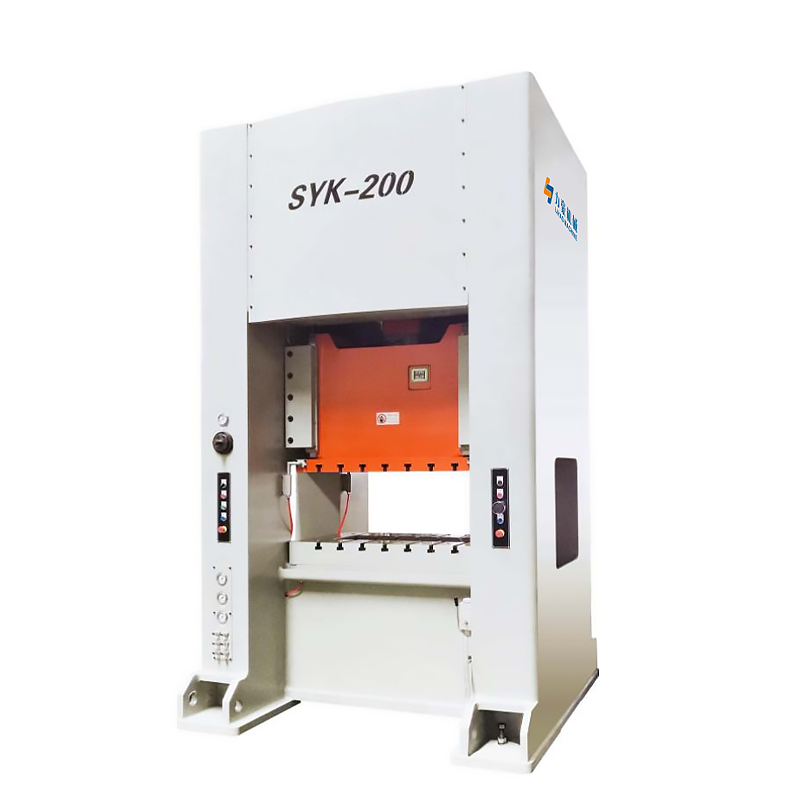

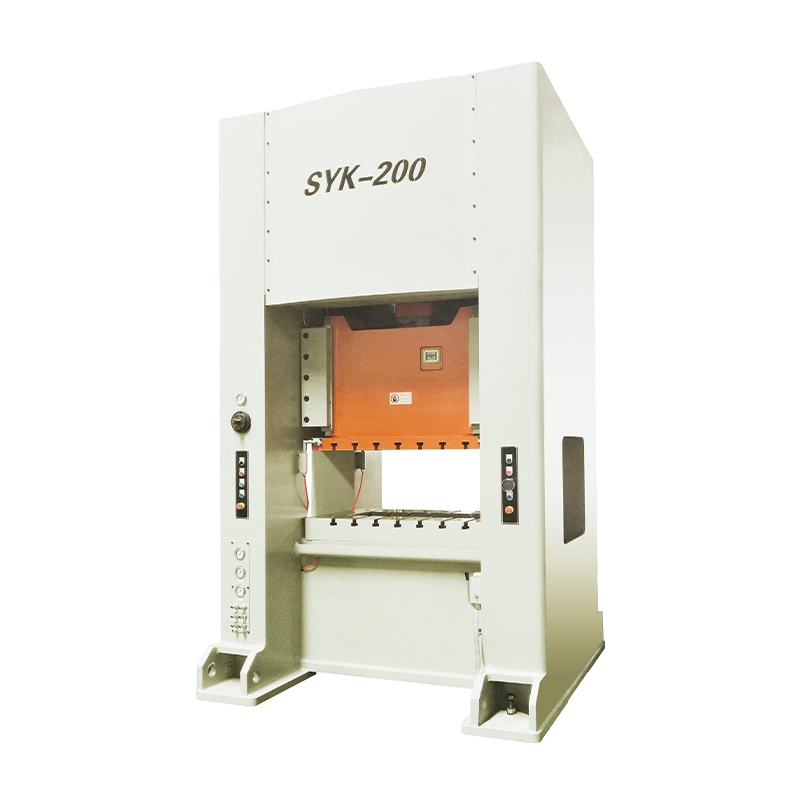

SYK Series Closed Single Point High-Speed Precision Power Press Machines (80-300T)

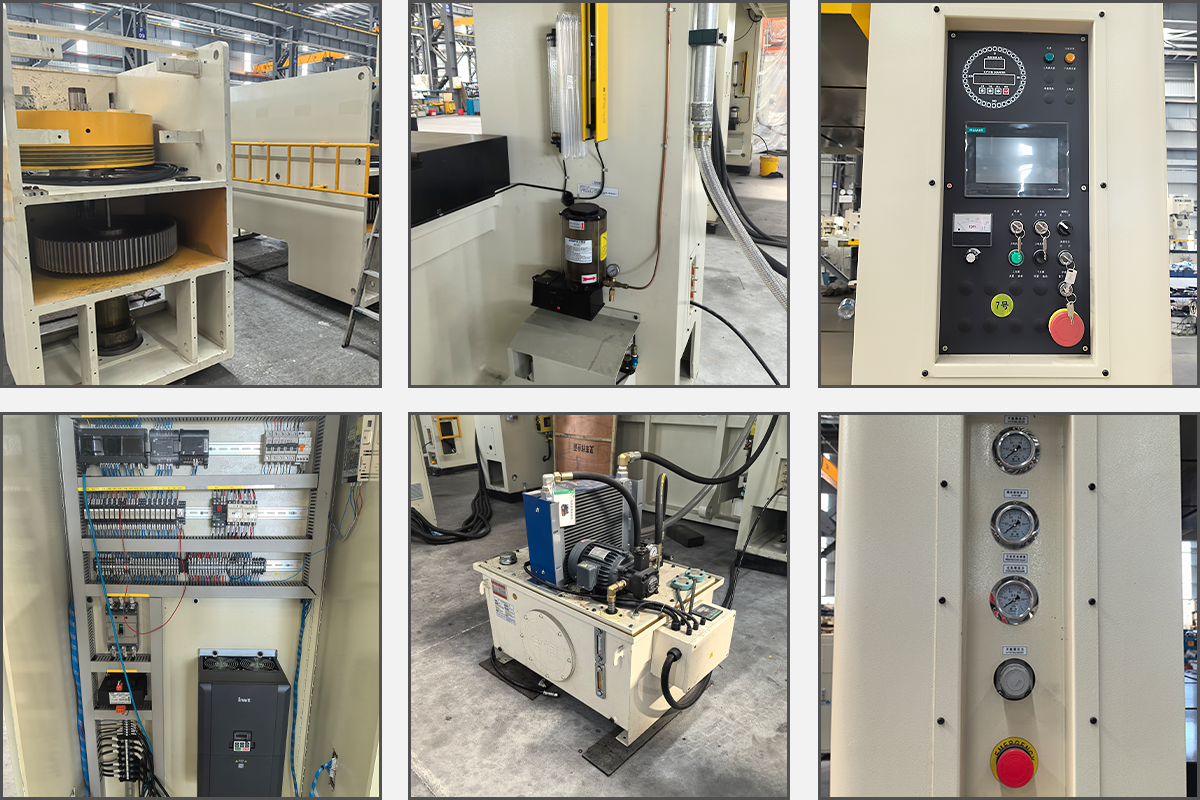

Standard Configuration
1. Hydraulic overload protection device
2. Motorized slide adjustment device
3. Motorized die height indicator
4. Slide and die balance device
5. Electronic cam
6. Crankshaft angle indicator
7. Counter
8. Air source connection
9. Air blowing device
10. Main motor reverse rotation device
11. Manual hydraulic connecting rod locking device
12. Imported oil-collecting muffler
13. Motorized thin oil circulation device
Product Description
Features
1. The machine body is made of high-quality steel plates, designed with high precision and high strength, and stress relieved after welding, ensuring stable precision and reliable performance.
2. The slide is guided by eight-sided needle roller guides, ensuring stable precision.
3. The hydraulic overload protection device is highly responsive and reliable.
4. The combined pneumatic friction clutch/brake and slide balancer ensure smooth operation with low noise.
5. The automatic lubrication system provides timed, metered, and precise lubrication with thin oil, ensuring sufficient, reliable, and long-lasting lubrication.
6. The PLC electrical control system is responsive and reliable, offering an excellent human-machine interface.
7. The stepless hydraulic locking device eliminates thread gaps, enhancing the dynamic precision at the bottom dead center of the press.
8. The use of combination bearings improves the machine's rigidity and operational precision, reducing total clearance and the heat generation of support parts.
9. Additionally, it can be equipped with quick die change systems, photoelectric protection devices, automatic feeding devices, and air cushions.
| Project name | Unit | SYK-80 | SYK-125 | SYK-160 | SYK-160A |
| Nominal force | Ton | 80 | 125 | 160 | 160 |
| Rated tonnage point | mm | 2 | 2 | 2.5 | 3 |
| Stroke | mm | 30 | 30 | 30 | 30 |
| Stroker per Minute | s.p.m | 160-280 | 160-240 | 160-220 | 160-250 |
| Die height | mm | 360 | 400 | 400 | 280 |
| Slide adjustment | mm | 50 | 50 | 50 | 50 |
| Slide area | mm | 800x450 | 1000x550 | 1200x700 | 800x700 |
| Bolster area | mm | 900x500 | 1100x600 | 1300x700 | 850x700 |
| Thickness | mm | 140 | 160 | 180 | 200 |
| Distance betweenuprights | mm | 950 | 1120 | 1350 | 950 |
| Main motor | kw.p | 11x6 | 18.5x6 | 22x6 | 22x6 |
| Presses dimension | mm | 1500x1525x3580 | 1700x1900x3900 | 1850x2270x3900 | 1850x1870x3800 |
| Air precision | kg/cm2 | 6 | |||
| Presses weight (About) | Ton | 9.5 | 13.6 | 20 | 18 |
| Project name | Unit | SYK-200 | SYK-200A | SYK-250 | SYK-250A | SYK-300 |
| Nominal force | Ton | 200 | 200 | 250 | 250 | 300 |
| Rated tonnage point | mm | 3 | 3 | 3 | 3 | 3 |
| Stroke | mm | 30 | 30 | 30 | 30 | 30 |
| Stroker per Minute | s.p.m | 150-200 | 150-250 | 120-180 | 120-180 | 100-160 |
| Die height | mm | 400 | 280 | 450 | 300 | 450 |
| Slide adjustment | mm | 50 | 50 | 50 | 50 | 50 |
| Slide area | mm | 1300x800 | 800x800 | 1400x850 | 800x850 | 1500x850 |
| Bolster area | mm | 1400x800 | 850x800 | 1500x900 | 900x900 | 1500x900 |
| Thickness | mm | 200 | 200 | 220 | 220 | 220 |
| Distance betweenuprights | mm | 1450 | 950 | 1550 | 1000 | 1600 |
| Main motor | kw.p | 30x6 | 30x6 | 37x6 | 37x6 | 37x6 |
| Presses dimension | mm | 2000x2200x4100 | 2000x1700x4000 | 2200x2300x4400 | 2200x1750x4250 | 3100x2300x4750 |
| Air precision | kg/cm2 | 6 | ||||
| Presses weight (About) | Ton | 25 | 22 | 30 | 27 | 34 |
Note: Type A parameters are applicable to the chain industry
