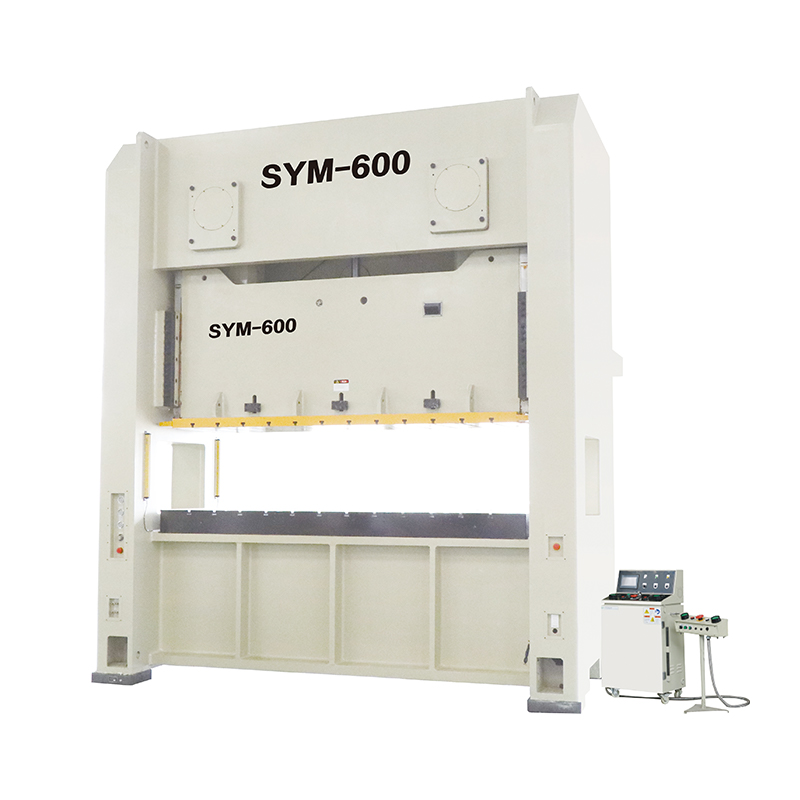

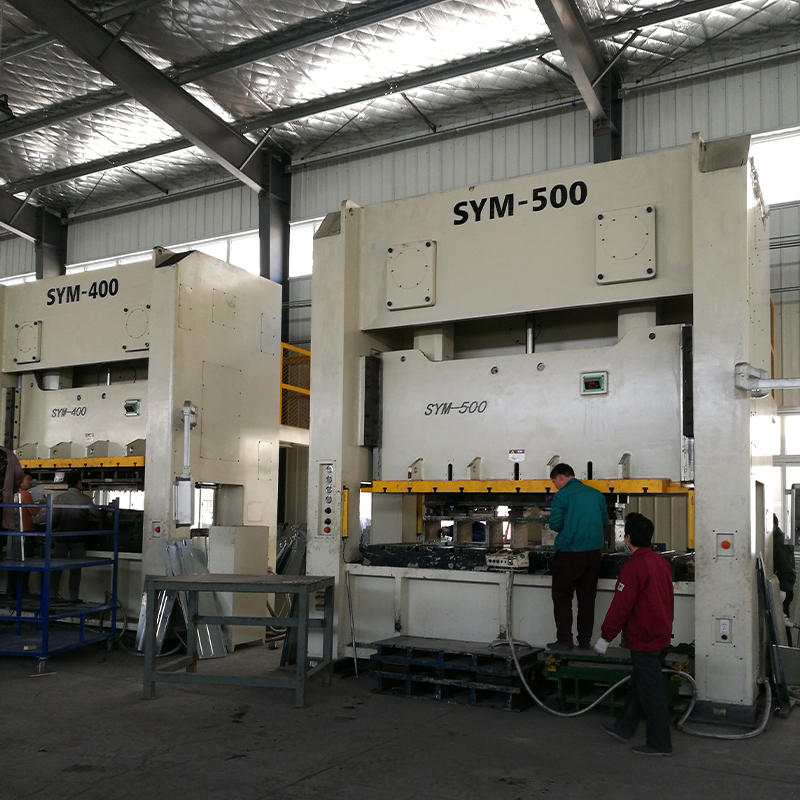

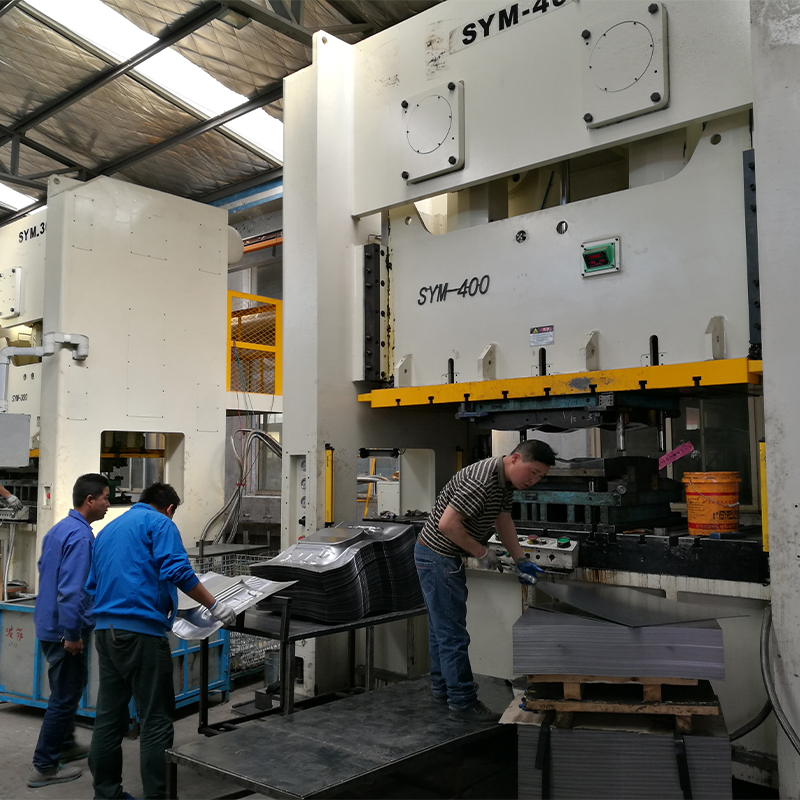

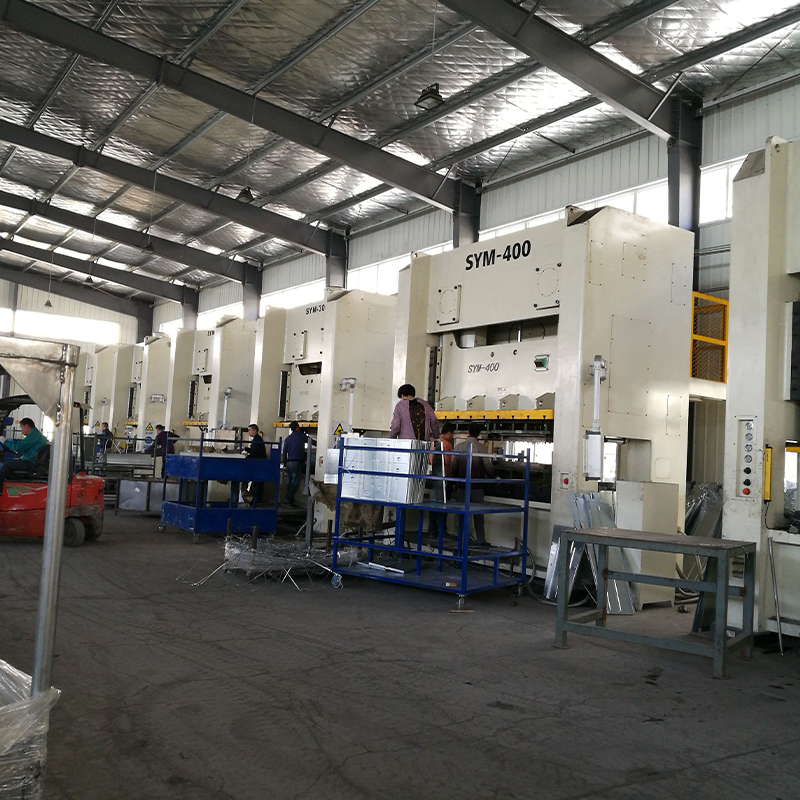

SYM Series Closed Double Point Precision Punch Press (110 200 300 600 ton )
Standard Unit
1. Hydraulic overload protection device
2. Motorized slide adjustment device
3. Motorized die height indicator
4. Dual solenoid valve
5. Variable frequency drive
6. Electronic cam
7. Crankshaft angle indicator
8. Double safety protection device
9. Motorized grease lubrication device
10. Missfeed detection circuit
11. Oil-collecting muffler box
Product Description
Feature
>The machine body is made of high-quality steel plates, designed with high precision and high strength, and stress relieved after welding, ensuring stable precision and reliable performance.
>To ensure relatively smooth operation of the machine, a pneumatic balancer is used.
>The die adjustment accuracy reaches 0.1mm, making it safe, convenient, and reliable.
>Components such as the crankshaft, gears, and screws are treated with hard oxidation and grinding, resulting in superior mechanical properties and wear resistance.
>The machine structure is designed reasonably, with complete configurations, facilitating automated production and assembly line manufacturing.
>It features a high-performance combined clutch/brake, ensuring smooth engagement and reliable safety.
>The machine uses a dual solenoid valve and hydraulic overload protection device, maximizing operational safety.
>The closed frame structure design ensures stable stamping precision, effectively extending the die's service life.
>The enclosed electrical circuit design is powerful and can be paired with any automation equipment.
Specifications
| Specification | Unit | SYM-110 | SYM-160 | SYM-200 | SYM-250 | SYM-300 | |||||
| Model | V | H | V | H | V | H | V | H | V | H | |
| Capacity | Ton | 110 | 160 | 200 | 250 | 300 | |||||
| Rate tonnage point | mm | 5 | 3 | 6 | 3 | 6 | 3 | 7 | 3 | 7 | 3 |
| Stroke | mm | 180 | 110 | 180 | 130 | 250 | 150 | 280 | 170 | 300 | 170 |
| Stroker per Minute | s.p.m | 30-65 | 50-100 | 30-55 | 40-85 | 20-50 | 35-70 | 20-40 | 30-60 | 20-35 | 30-50 |
| Die height | mm | 400 | 350 | 450 | 400 | 500 | 450 | 550 | 450 | 550 | 450 |
| Slide adjustment | mm | 100 | 100 | 120 | 120 | 120 | |||||
| Slide area | mm | 1400ｘ550 | 1600ｘ650 | 1850ｘ750 | 2400ｘ900 | 2400ｘ900 | |||||
| Bolster area | mm | 1550ｘ750 | 1800ｘ760 | 2200ｘ940 | 2500ｘ1000 | 2500ｘ1000 | |||||
| Side opening | mm | 600ｘ400 | 700ｘ450 | 900ｘ600 | 900ｘ600 | 900ｘ600 | |||||
| Main motor | kw.p | 11ｘ4 | 15ｘ4 | 18.5ｘ4 | 22ｘ4 | 30ｘ4 | |||||
| Air pressure | kg/cm² | 6 | |||||||||
| Presses precision | GB/JIS 1class | ||||||||||
| Specification | Unit | SYM-500 | SYM-600 | SYM-800 | ||
| Model | Small countertop | Large countertop | Small countertop | Large countertop | ||
| Capacity | Ton | 500 | 600 | 800 | ||
| Rate tonnage point | mm | 10 | 10 | 10 | ||
| Stroke | mm | 300 | 300 | 300 | ||
| Stroker per Minute | s.p.m | 15-25 | 15-25 | 18-25 | ||
| Die height | mm | 600 | 600 | 700 | ||
| Slide adjustment | mm | 120 | 120 | 120 | ||
| Slide area | mm | 2600ｘ1100 | 3200ｘ1100 | 2740ｘ1200 | 3400ｘ1200 | 2800ｘ1400 |
| Bolster area | mm | 2800ｘ1200 | 3400ｘ1200 | 3000ｘ1300 | 3600ｘ1300 | 3100ｘ1500 |
| Side opening | mm | 1000ｘ700 | 1100ｘ700 | 1300ｘ800 | ||
| Main motor | kw.p | 45ｘ4 | 55ｘ4 | 75ｘ4 | ||
| Air pressure | kg/cm² | 6 | ||||
| Presses precision | GB/JIS 1class | |||||

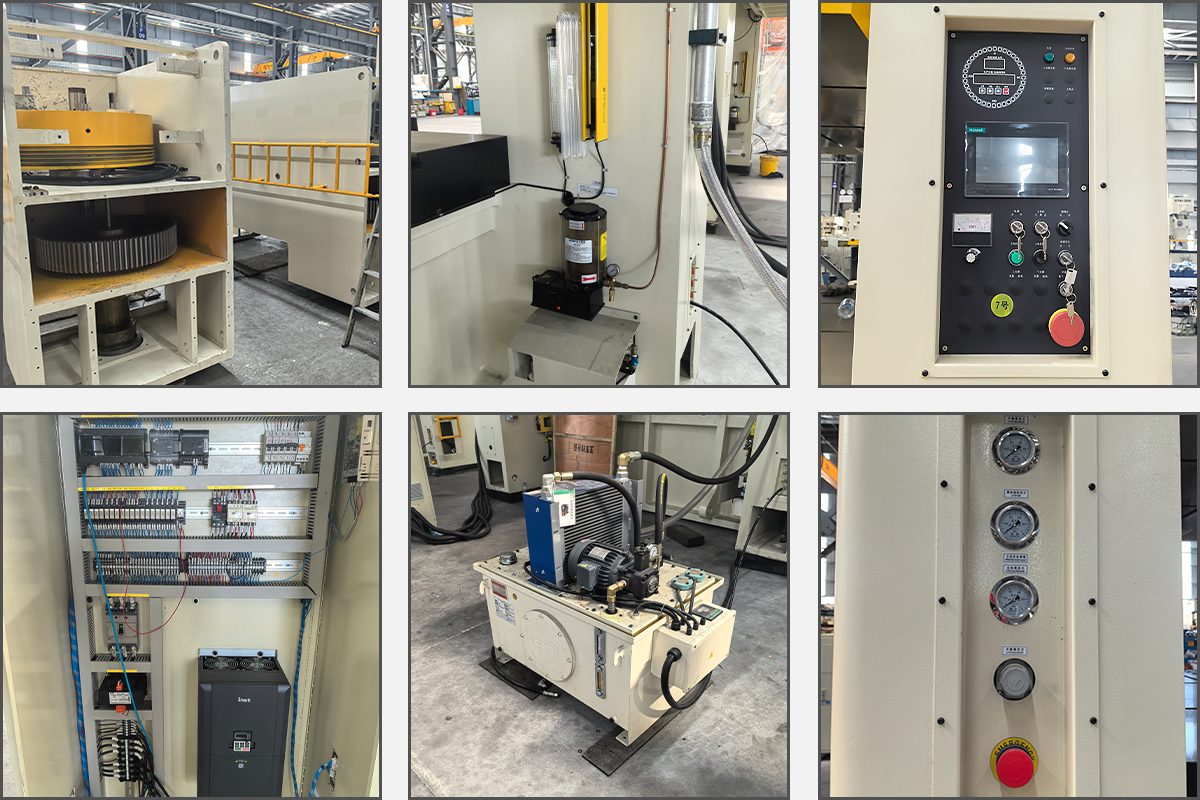

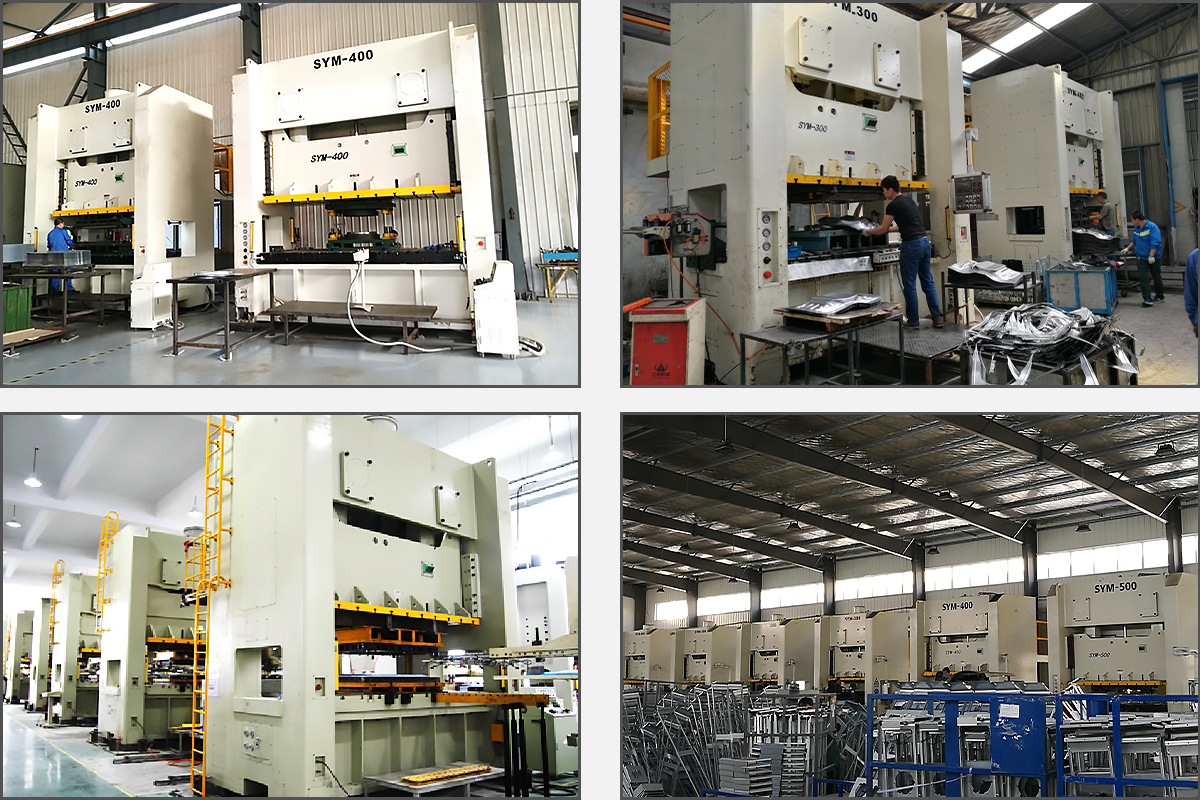

Double-Crank Press Detail

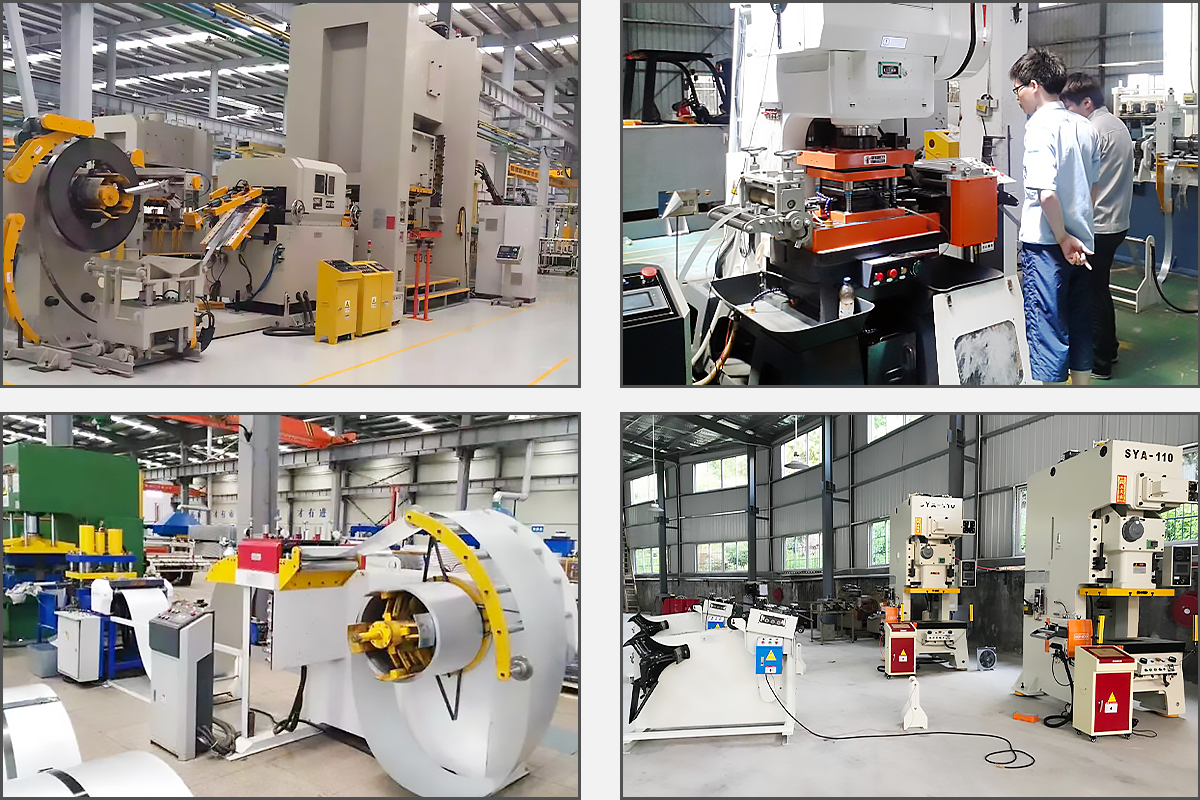

Optional Feeding System:
> 3-in-1 uncoiling, straightening, and feeding
> 2-in-1 uncoiling and straightening
> Uncoiler, servo feeder, sheet feeder, and stamping dies, covering most of the metal stamping feeding needs.

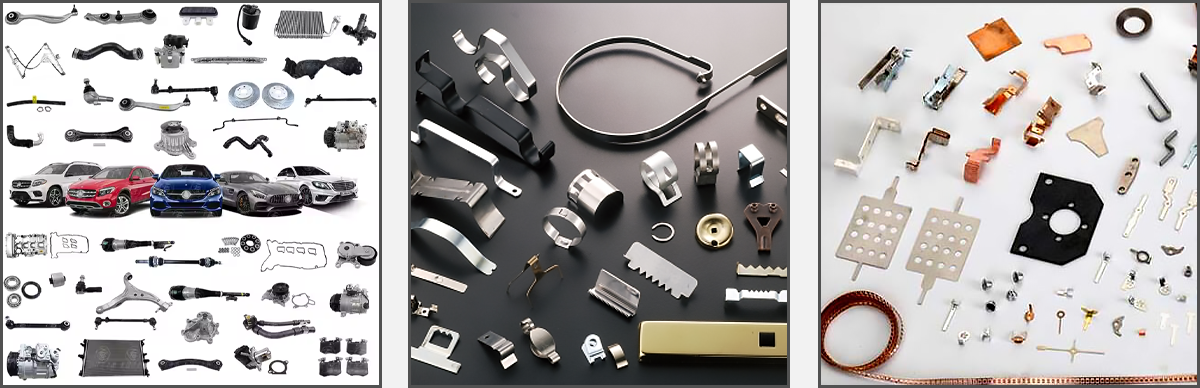

Application of Double Crank H Frame Press Machine
Double crank H Frame press machine is suitable for all kinds of metal sheet stamping, including the hardware parts, home appliances, furniture hardware, motorcycle accessories, mobile phone accessories, computer accessories and so on.
FAQs
What types of punch presses do you produce?
We are a professional manufacturer of metal stamping equipment, providing a complete range of punching machines including Open Type, Closed Type, High Speed, Precision, and Servo Presses with various tonnage options.
What materials can your stamping presses stamp?
Cold rolled steel, stainless steel, copper, aluminum, galvanized sheet, metal coil, etc.
What can a punch press make?
Blanking, punching, bending, drawing, forming, progressive die stamping, etc.
