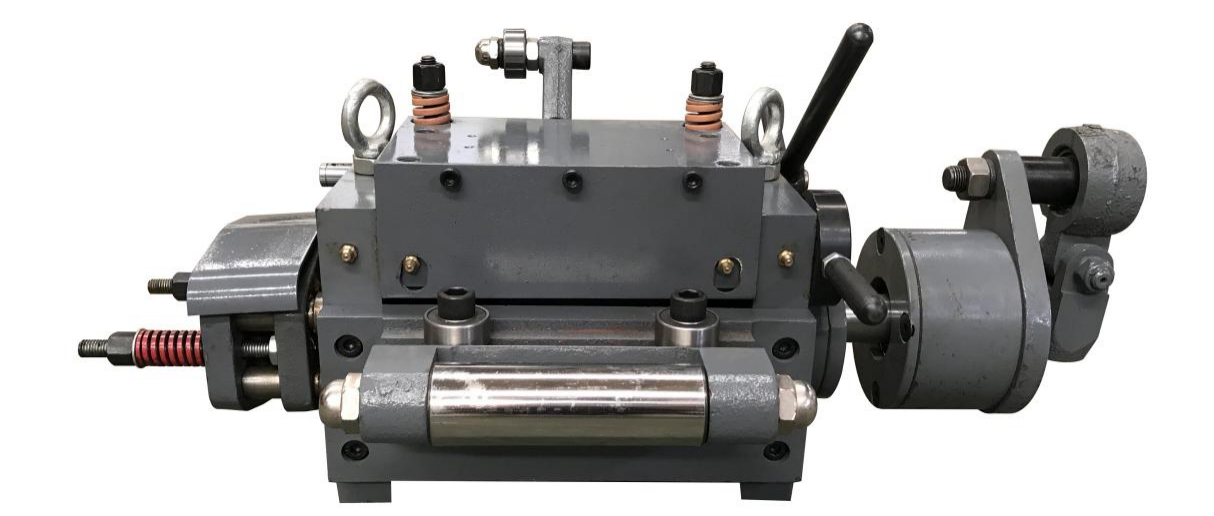

High-speed roller feeder as an earlier appearance in the market of a device, has been widely used in various fields, its use is second only to the air automatic feeder. The appearance of NC servo feeder makes the use of high-speed roller gradually reduce, but because of its durability, low price and other advantages so that it is still favored by many small and medium-sized enterprises in the industry.
The appearance of roller feeder solves the disadvantages of low efficiency of traditional artificial feeding, poor safety and inaccurate feeding, and has the advantages of high-speed feed, high precision, low failure rate and simple maintenance, which basically replaces the market of traditional air feeder. Lihao Machinery as a manufacturer will introduce you to the characteristics of roller feeder, as follows：
features：
Continuity: Multi-engineering continuous machining.
High speed: (up to 600 times per minute).
Ubiquitous: Regardless of the width and thickness of the material, simply adjust the feeder to match the mold can be used.
Maintainability: Simple construction, economical and practical, low failure rate, easy maintenance.
Feeding accuracy: Depending on the number of rotation and feed length, the general accuracy of 0.03mm in the case of the tip of the road, more can be 0.01mm accuracy.
inform：
1、Single-type: Suitable for coiling (more than 0.15mm thickness) Single products or continuous products.
2、Duplex: Suitable for coil (less than 0.15mm thickness) short ruler materials, single-product continuous punching products when the structure of the four characteristics.
1、One-way bearings (made in Germany)
Embedded with Superhard alloy, and with roller bearings, with wear resistance, safety, high precision, long life; Gear after heat treatment HRC600 precision grinding, high transmission accuracy.
2、roller
The use of hollow, light weight, small rotation inertia, can be stopped immediately to ensure the accuracy of feeding. After heat treatment HRC600 plated hard chromium and then grinding, high hardness, excellent wear resistance, long life.
Disc brake (General brake device) using advanced clutch to make the two sides of the plate full contact, long life, good stability, high precision.
3、reverse
(1) Construction, like one-way devices, can control the next wheel with considerable precision, and prolonged use will not cause the next round to have the slightest retrogression, stability and accuracy is quite high.
(2) does not cause the residual oil splashed when stamping, and causes the brakes to fail to produce a turn reversal, the delivery distance is not allowed phenomenon.
(3)not easy to produce high heat.
(4) Ultra-hard alloy and roller, not easy to wear.
(5) The mode of action is a circular movement of the roller, there will be no bite to death phenomenon.
(6) The friction force is small, the required rotational torque is relatively reduced, and the rotating mechanism is less susceptible to damage.
(7) Reverse devices are equipped with speeds of up to 30 m/min, generally 20 m/min, increasing efficiency by 50%.
The extensive use of roller feeder has helped the rapid growth of enterprises，To the enterprise has brought a very considerable income, Li Hao machinery as a roller feeder supplier, has designed nearly 40 different models of rolling turbines to meet market demand, in the industry has gained a good reputation. The company will also continue to customer-centric, as the main idea, and strive to design and manufacture products that make customers more satisfied.
