High speed roller feeder is a commonly used feeder with traditional punch, pneumatic punch, mechanical punch and high speed punch in China at present. It has the characteristics of low failure rate, low energy consumption, high degree of automation, good stability, fast speed and so on.

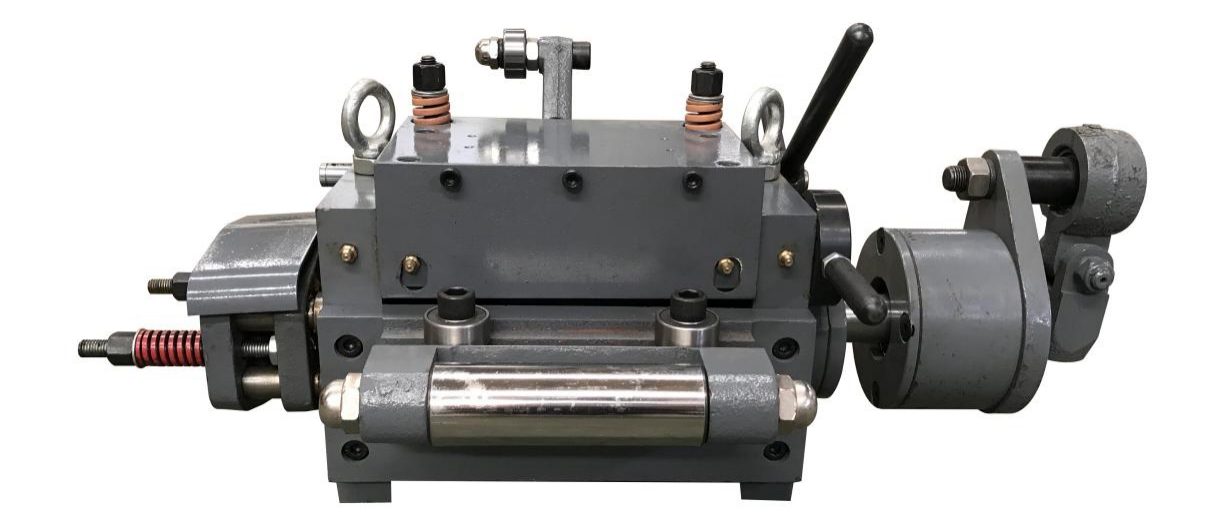

The high-speed roller feeder of Lihao Machinery adopts the feeding mode of eccentric disk, swing arm, pull rod, cross joint and transmission shaft to drive the feeding drum. It does not have power, and the power comes from the output shaft of the punch, which provides power transmission through the installed eccentric disk. In the type of high-speed roller feeder, different types of high-speed roller feeder feeding width, feeding step distance, feeding thickness settings are different, according to the needs of customers to choose.
Three points should be paid attention to when purchasing high speed roller feeder:
1、The punch must have an output shaft. No matter what kind of punch to use, the installation and selection of the premise is that the punch has an output shaft, if the punch itself does not have an output shaft, but also want to be equipped with a high-speed roller feeder, the customer needs to contact the punch manufacturer to install the output shaft.
2、Understand the width, thickness and feed step distance of your material.
3、Clarify the speed requirements of punch stamping.
After understanding the above three points, you can choose the right model according to the actual needs.
Warm advice: for customers with a wide range of processing products, Lihao Machinery recommends choosing a slightly larger type of high-speed roller feeder as far as possible to meet the diversified production needs in the later stamping operation.
