Uncoiler, also known as material rack, feeding rack, feeding rack, is specially designed for all kinds of metal rolling materials to achieve continuous stamping and processing equipment.Standard uncoiler is composed of motor, reducer, electric box, metal expansion tile, expansion spindle, retaining material A frame, support frame, base, etc., with A simple structure.
Uncoiler can be divided into light uncoiler, heavy uncoiler and double-head uncoiler three categories, with power, without power two forms.Purchase according to their own needs, so as to achieve the purpose of cost savings.Metal bar conductive induction and electronic micro - dynamic should be two induction options.

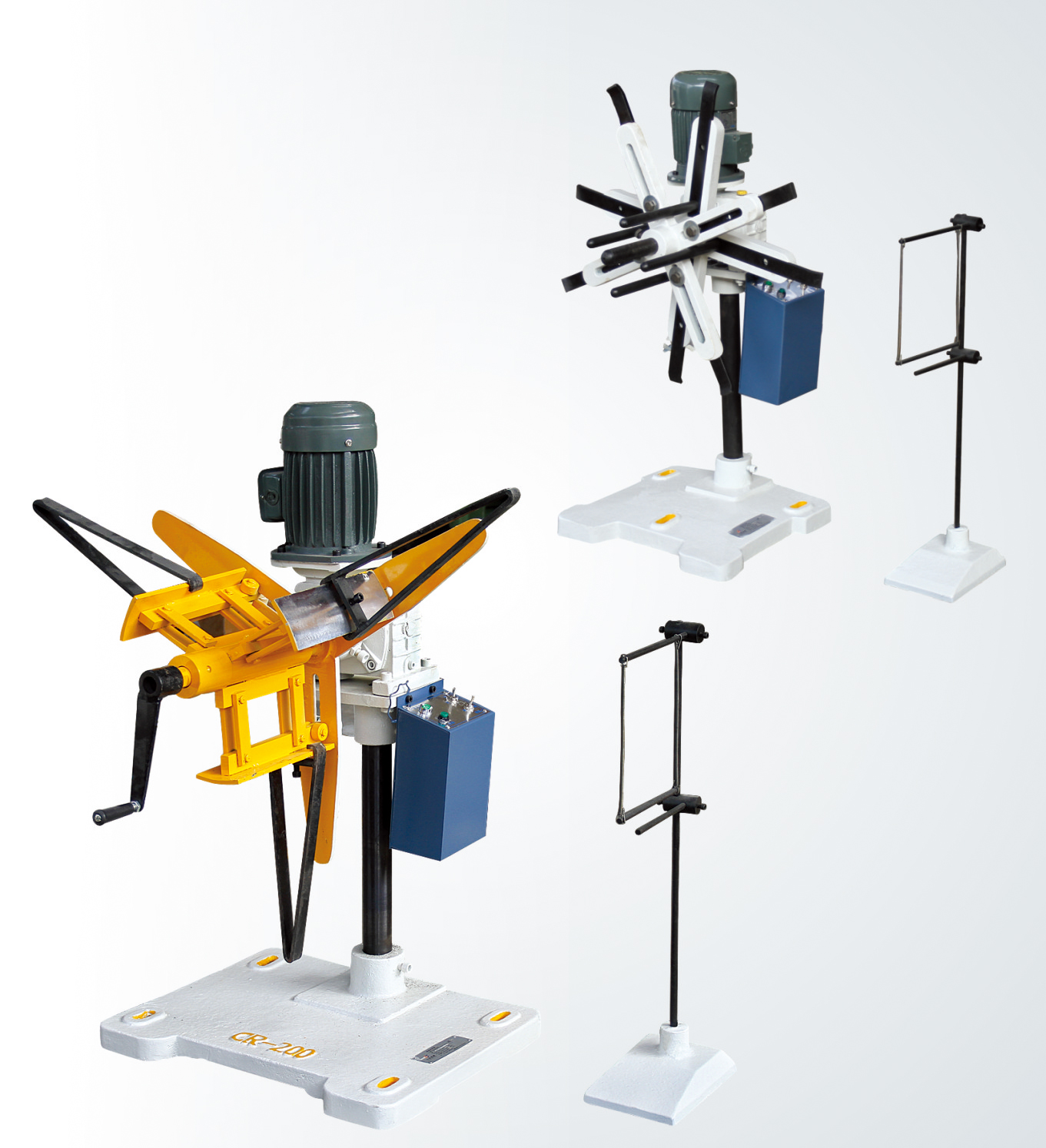

Light uncoiler: it is suitable for the material with light weight, narrow, small inside and outside diameter.It is small in volume, simple in structure, convenient in installation, stable in operation and affordable in price.it is the most uncoiler in the market at present.

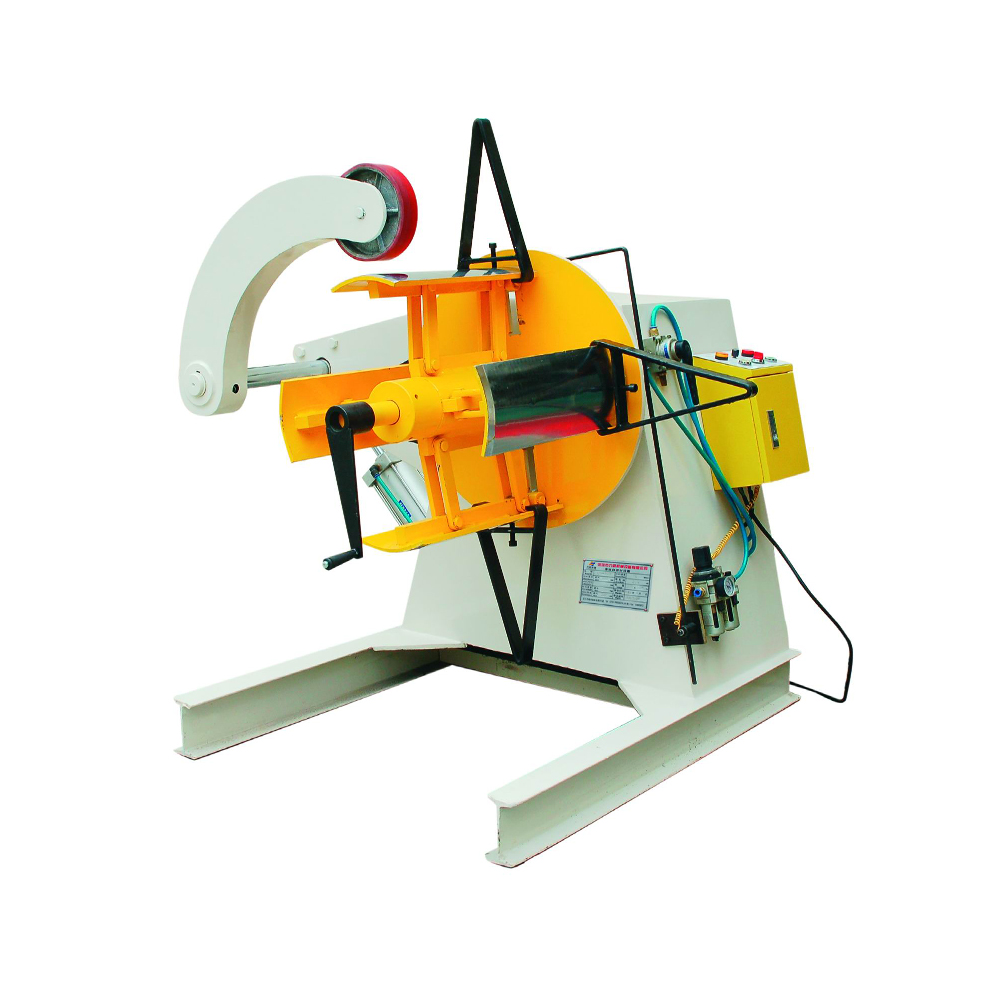

Heavy-duty uncoiler: it is suitable for the material with heavy weight, wide width and large inside and outside diameter.It has the characteristics of large carrying weight and wide applicable specification range, etc. It can also add pressing arm according to the demand, select special devices such as oil pressure expansion, oil pressure support feeding, frequency conversion and speed regulation, etc., to meet the processing needs.

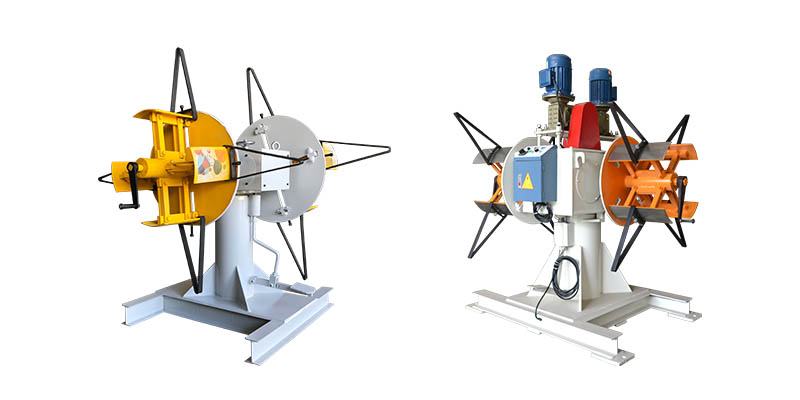

Double-head uncoiler: symmetrical design is adopted on both sides. Each material rack is controlled by separate electric control box.The double head material rack can save the time of refueling effectively and improve the production efficiency.It can be used together with correction machine. This machine is suitable for fast punching, such as stator, rotor, ET pieces and other punching products.
Uncoiling machine is not only suitable for all kinds of uncoiling feeding, but also can be used as a rewinding machine, which can be switched between uncoiling and rewinding at any time.In addition to the light material frame, the other types can be customized according to the requirements of the enterprise non-standard processing, for the enterprise to reduce costs, truly meet the requirements, meet the needs of the target.
